100W-150W Solar Panel Aluminum Frame—lightweight, high-efficiency monocrystalline panels for 12V/24V/36V systems. Durable, easy to install, and perfect for RVs, boats, homes, and camping.
100W-150W Solar Panel Aluminum Frame—lightweight, high-efficiency monocrystalline panels for 12V/24V/36V systems. Durable, easy to install, and perfect for RVs, boats, homes, and camping.

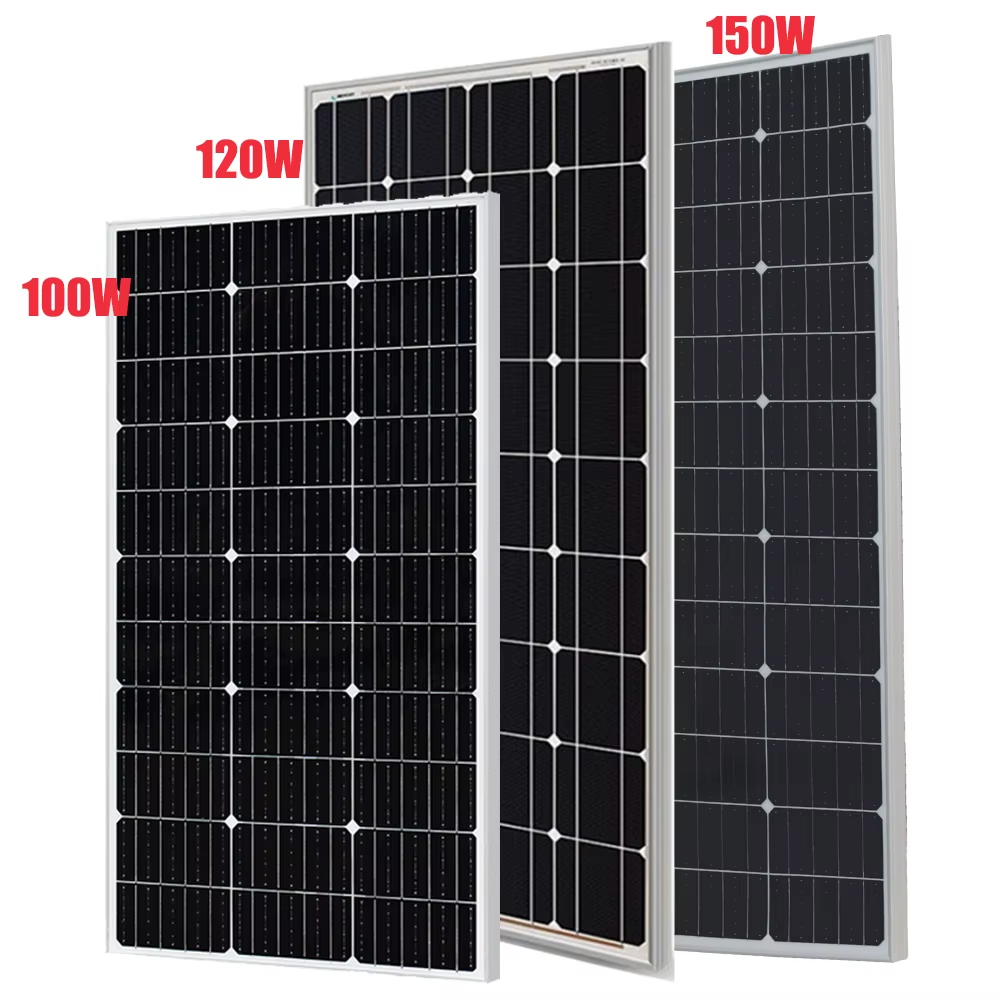

The 100W-150W Solar Panel Aluminum Frame series offers a lightweight, high-efficiency solution for reliable solar power generation in a wide range of applications. Designed with advanced monocrystalline silicon cells, these panels deliver superior conversion rates—up to 24%—ensuring maximum energy output for your car, home, boat, RV, camping, or yacht. Available in 100W, 120W, and 150W options, each panel is engineered for both 12V, 24V, and 36V battery systems.
Built for durability and ease of installation, each solar panel features a robust aluminum frame and pre-drilled holes for fast mounting and grounding. The lightweight construction makes these panels easier to handle and install compared to traditional glass panels, while still providing excellent resistance to wind (200Pa) and snow loads (400Pa). The advanced encapsulation material and multi-layered sheet lamination enhance cell performance and extend service life, making these panels a reliable choice for both indoor and outdoor use.

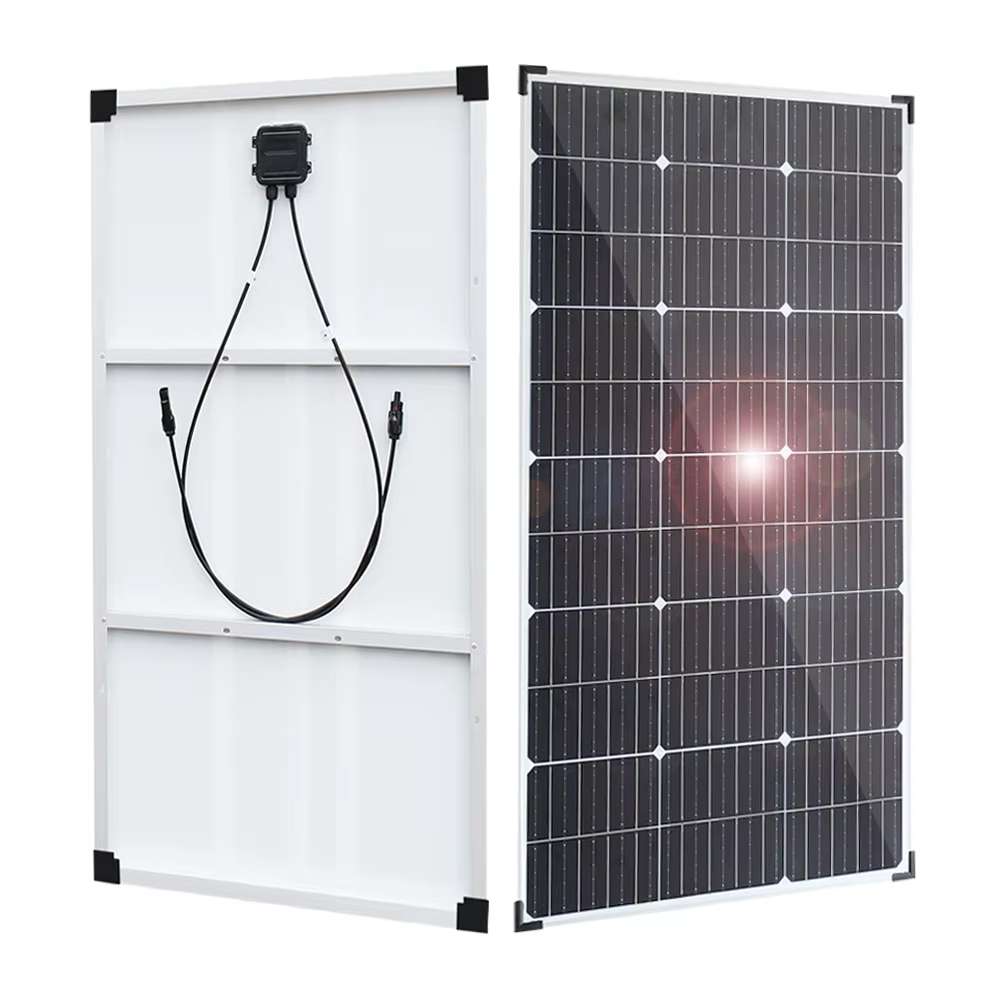

The panels are compatible with a variety of mounting systems, including Z-brackets, pole mounts, and tilt mounts, and come with a .9m MC4 connector wire for secure, plug-and-play integration. Each model is designed to withstand harsh environmental conditions, with an operating temperature range of -40℃ to +80℃ and IP65-rated protection.
Whether you’re powering your RV on a camping trip, setting up a solar system for your home, or investing in off-grid energy for your boat or shed, the 100W-150W Solar Panel Aluminum Frame series delivers unmatched performance, reliability, and versatility. For installation guides, technical support, and compatible accessories, visit our Solar Panel Installation Guide and Solar Accessories Collection. Explore more lightweight solar solutions in our Aluminum Frame Solar Panel Range.
100w solar panel Specification
Maximum power(Pmax) 100W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.06 A
Maximum power current(Imp) 5.55A
Cell efficiency 24%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 2600g
Size 1050*530*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
120W PET Solar Panel Specification:
Maximum power(Pmax) 120W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Short circuit current(Isc) 6.8 A
Maximum power current(Imp) 6.5A
Cell efficiency 21%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs

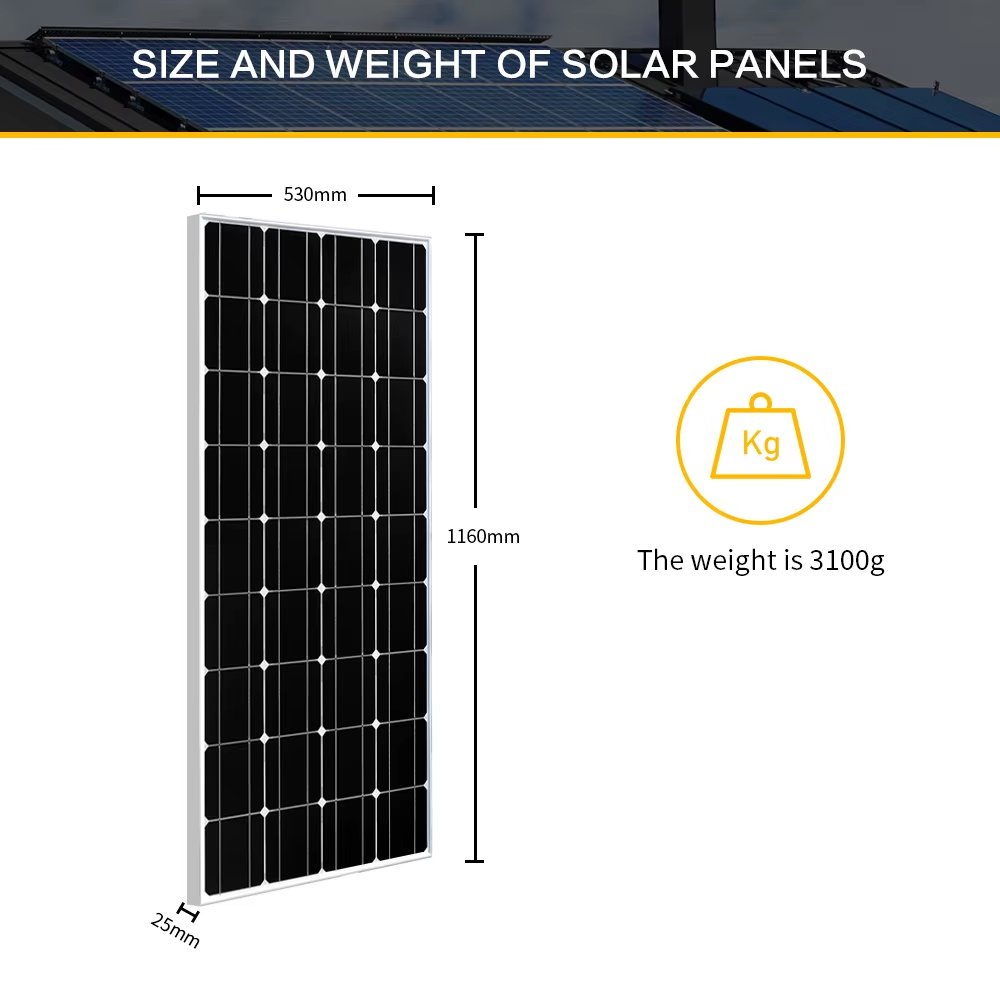

Weight 3100g
Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
150W PET Solar Panel Specification:
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 25,9 V
Short circuit current (Isc) 7,59 A
Vmp 21.6V
Maximum power current(Imp) 6,9 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 39 pieces
Cell efficiency 23%.
Weight 2.74kg

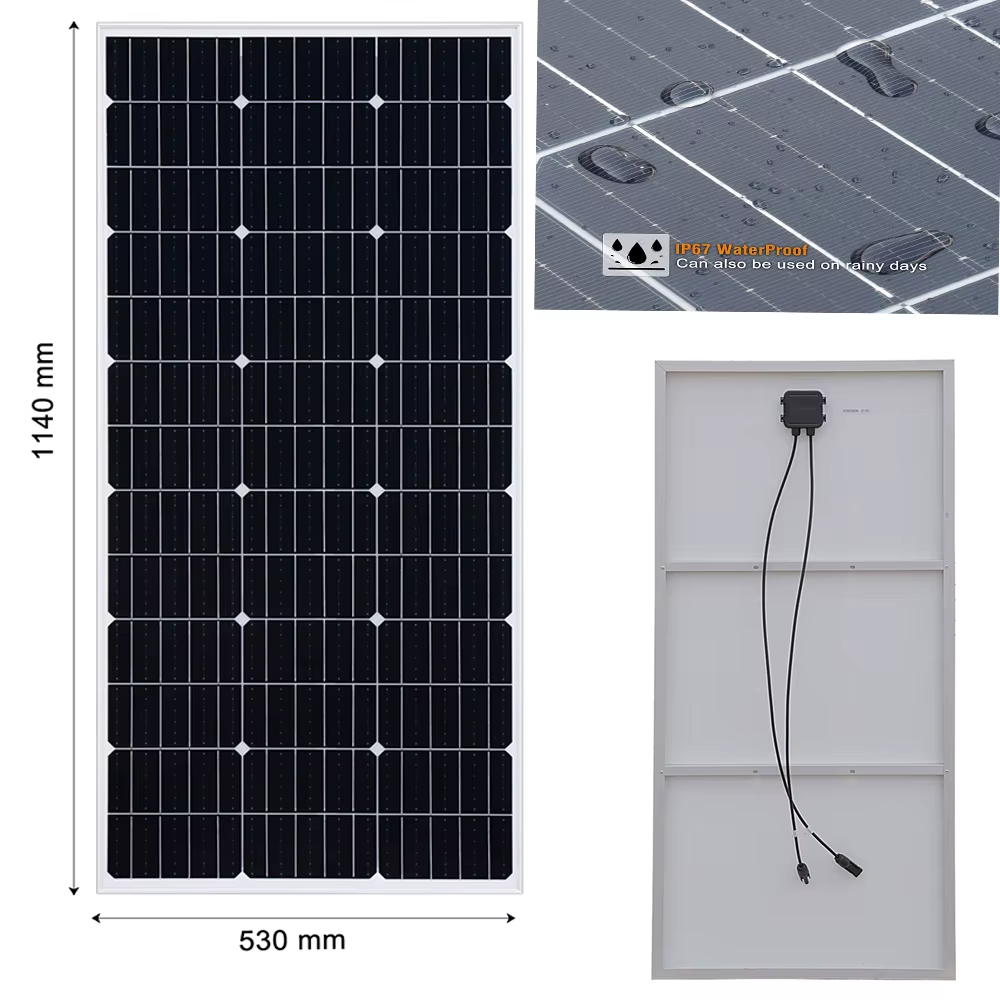

Size 1140 x 530 x 25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Output port 0.9 m long MC 4 connector wire
Solar photovoltaic system manual
Important safety instructions
This manual contains the safe installation and operation instructions of solar modules and solar controller (hereinafter referred to as “controller”).
Please read all instructions and precautions in each product manual and manual carefully before installation and use.
1 Solar module products
a. This product must not be in contact with highly corrosive substances to avoid excessive bending and long-term bending;
b. The solar panel should be prevented from stacking and falling down, the solar flexible panel cannot be disassembled, do not collide with hard objects, avoid trampling, and avoid scratching the surface with hard objects during use;
c. A large number of scratches or dirt on the surface of the solar panel may result in low efficiency of the solar panel, which may seriously cause burnout;
d. The suitable ambient temperature range of solar panels: -20 ℃-80 ℃, do not exceed this range;
e. The solar panel must be installed in an area with good sunlight and no shadow. The solar panel may work in the shaded sunlight for a long time and there may be a risk of burnout;
f. When used in series connection, the “+” of the previous component is connected to the “-” of the next component. The same panel cannot be directly connected to the positive and negative poles.
2 Solar panel connection installation method
When you use a 12V battery, use a parallel connection; when you use a 24V battery, use two serial connections. Please install the solar panel on a smooth surface with good sunlight and no shadow, and try not to install it on uneven areas. Solar panels can be fixed with glue or bolts.
Connection 1.Connect the battery to the charge regulator – plus and minus. 2.Connect the photovoltaic module to the regulator – plus and minus . 3. Connect the consumer to the charge regulator – plus and minus. The reverse order applies when deinstalling! An improper sequence order can damage the controller!
