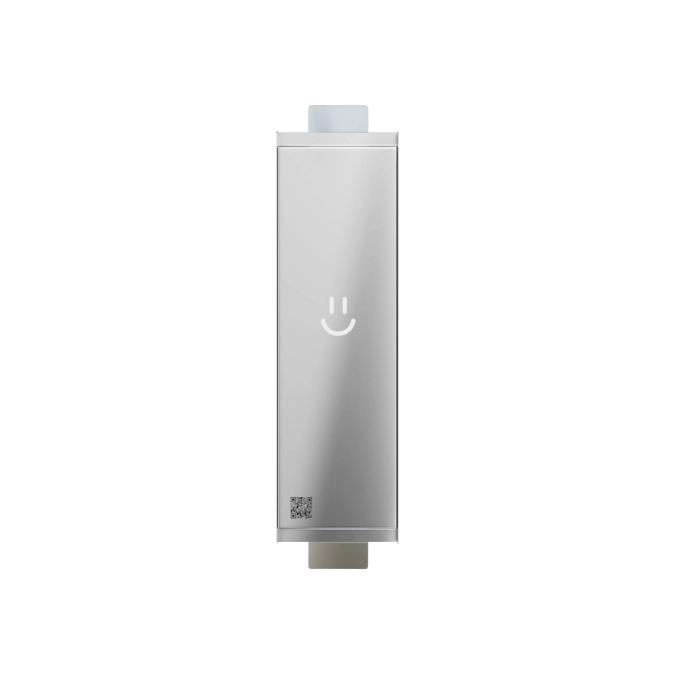

12.2Ah Solid-State MES Cell

MESA544F1 – High-energy desity, high-power, semi-solid battery

Product Description

The MES544F1 provides powerful energy with its high-energy, high-power semi-solid battery, featuring a high-nickel NCM-silicon-based anode and oxide solid electrolyte. With an energy density up to 320 Wh/kg and discharge rates from 3C to 5C, plus a 7C pulse, it’s engineered for excellence.

Key Features:

• Ultra-Lightweight & Compact Design: Dimensions 10.5 x 44 x 151 mm, weight 151 g – suited for larger devices.
• High Performance: Nominal voltage 3.58 V, minimum capacity 12.2 Ah, exceeding 1200 cycles under stress-free conditions.
• Superior Safety & Durability: Semi-solid electrolyte enhances safety and stability, retaining >90% capacity after 1000 cycles at 4.2V (100% DOD).
• Applications: Ideal for e-scooters, industrial tools, and renewable energy systems, functioning from -40°C to 60°C.

The MES544F1 offers a reliable, high-capacity solution for a variety of energy needs.
