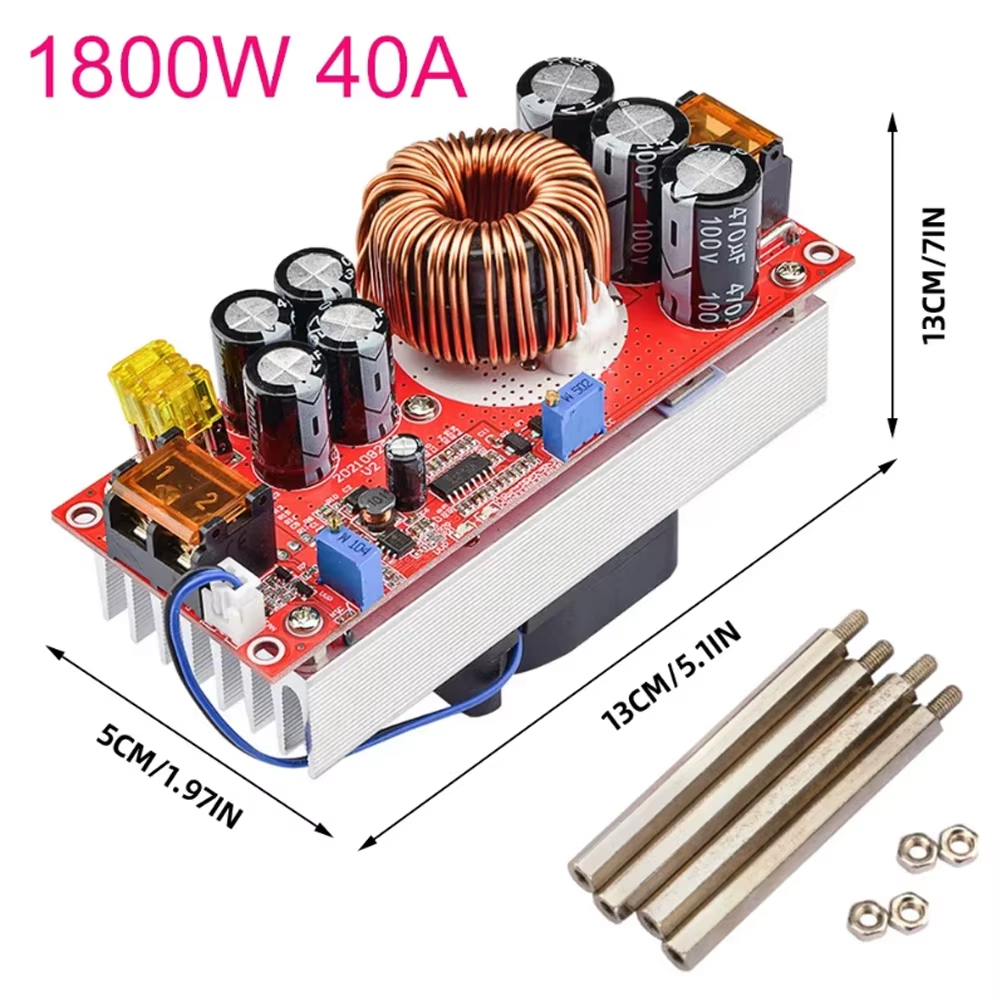

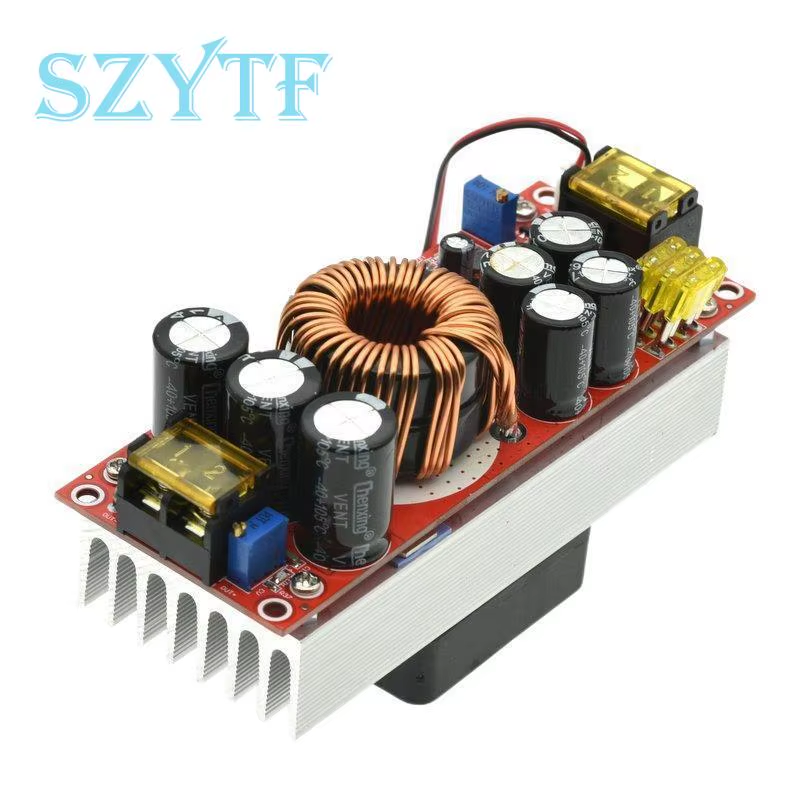

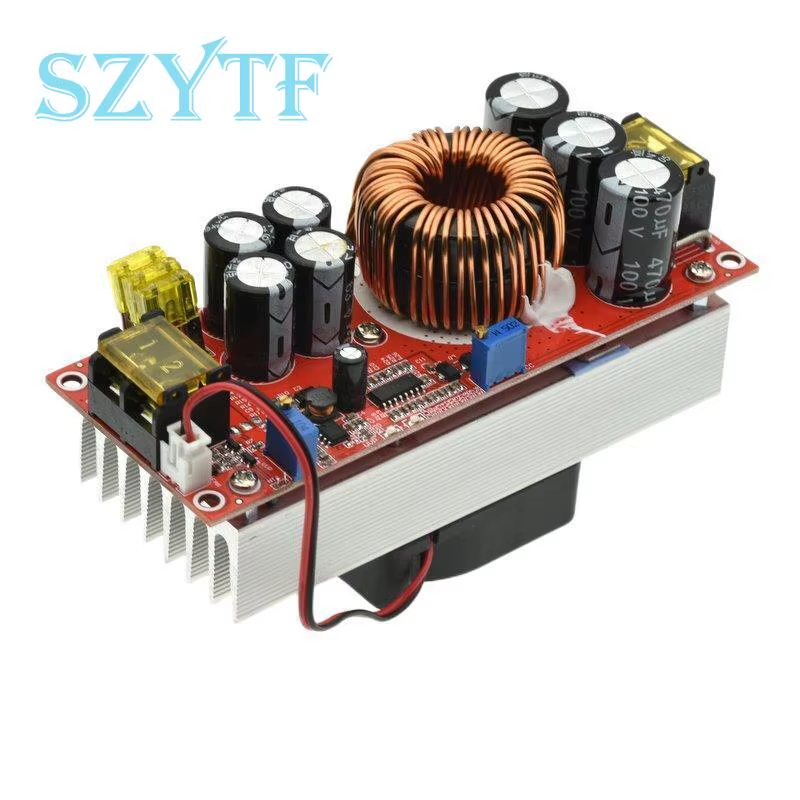

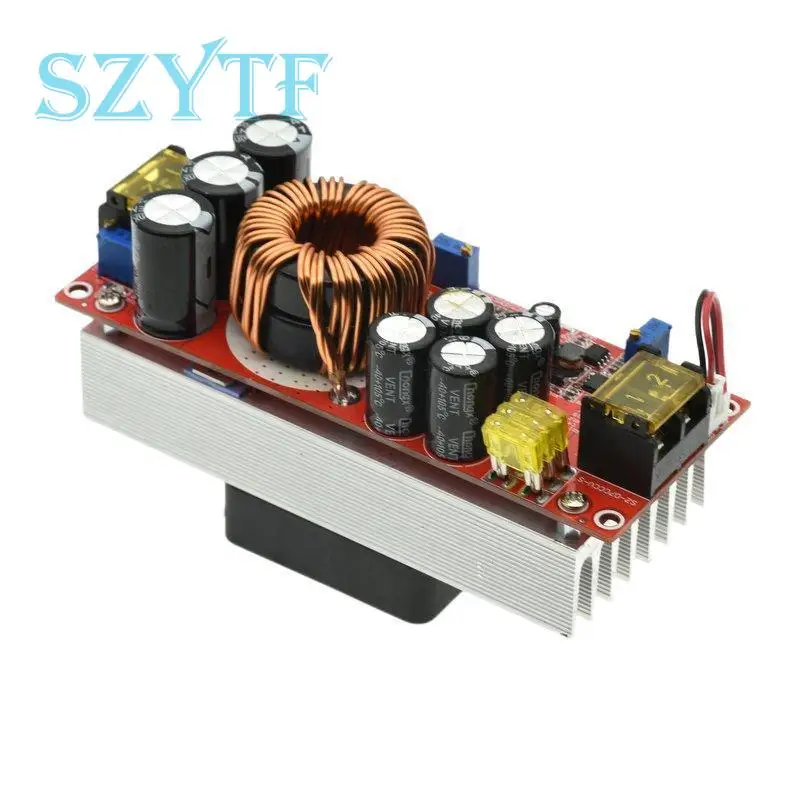

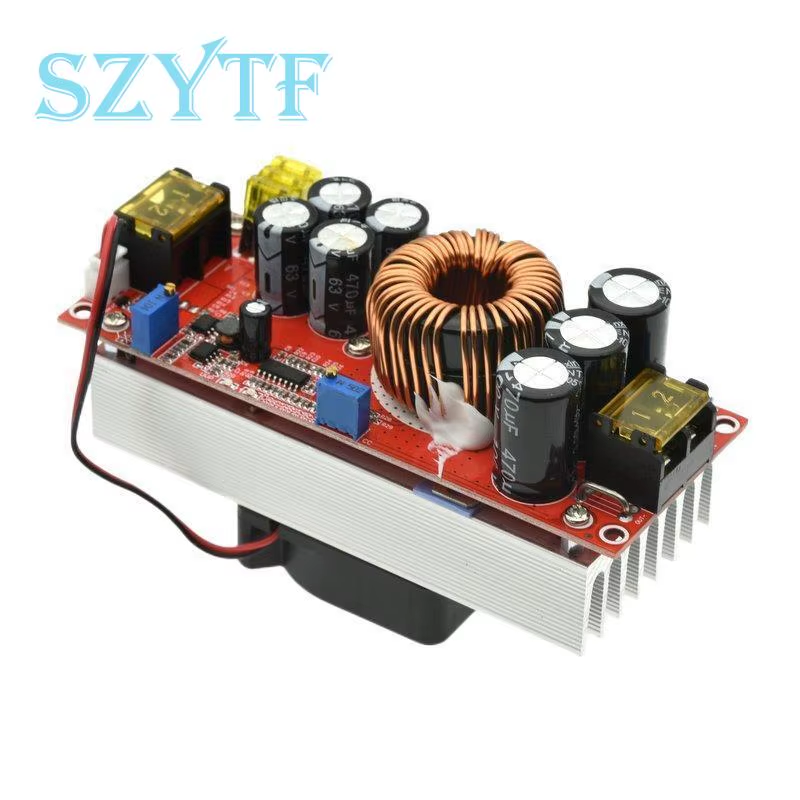

1800W DC-DC Boost Converter

The 1800W DC-DC Boost Converter is a high-performance, 40A step-up module designed for demanding power applications, battery charging, and efficient voltage conversion. Engineered with premium materials and advanced technology, this converter delivers reliable, high-efficiency power output for automotive, industrial, and DIY energy systems.

With an input voltage range of 10V–60V and an adjustable output voltage range of 12V–90V, this module is ideal for a wide variety of uses, from car battery charging to powering high-voltage devices. The converter features a robust constant current function, making it perfect for safely charging batteries and maintaining stable output under varying loads.

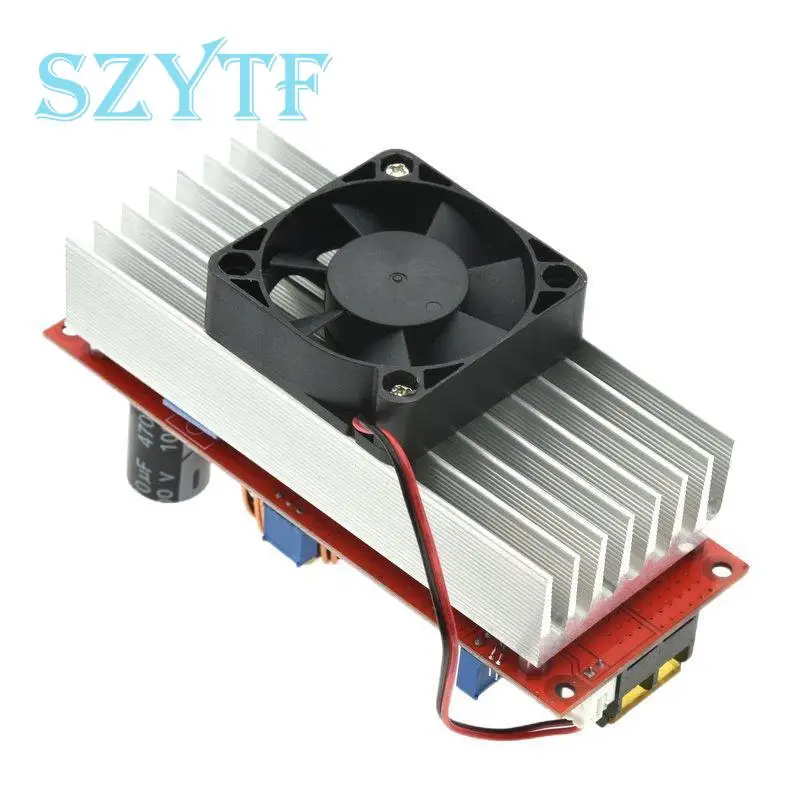

A temperature-controlled, bearing fan provides intelligent cooling—remaining silent under light loads and activating automatically when the temperature reaches 60°C. This design ensures optimal heat dissipation, reduces noise, and extends the service life of the module. The high-quality alumina insulation board and oversized ferrosilicon aluminum magnetic ring, combined with four 1.2mm pure copper enameled wires, guarantee low heat generation and exceptional efficiency.

The 1800W DC-DC Boost Converter boasts a conversion efficiency of up to 98.1% (48V to 60V/72V 8A), with built-in input reverse protection and overheating protection at 60°C. The module operates reliably in a wide temperature range (-20°C to 65°C) and is designed for strong air cooling, ensuring stable performance even in demanding environments.
