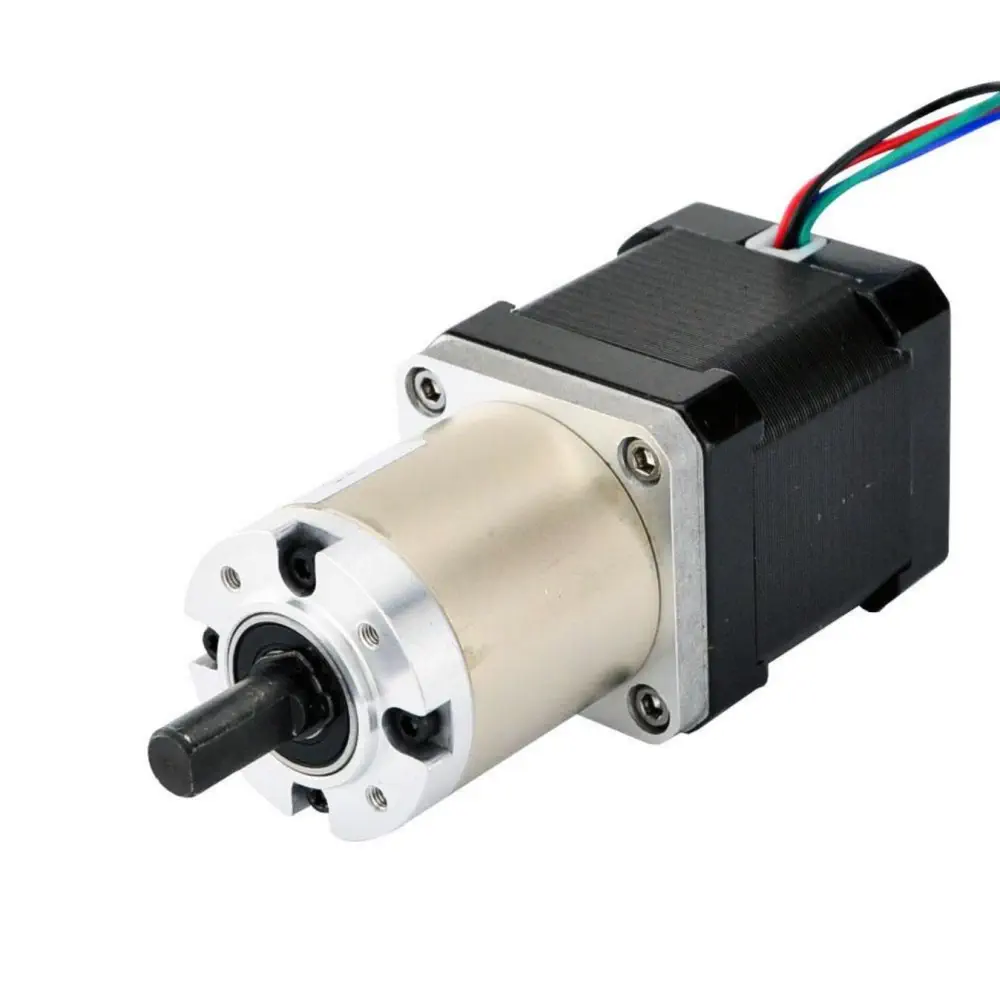

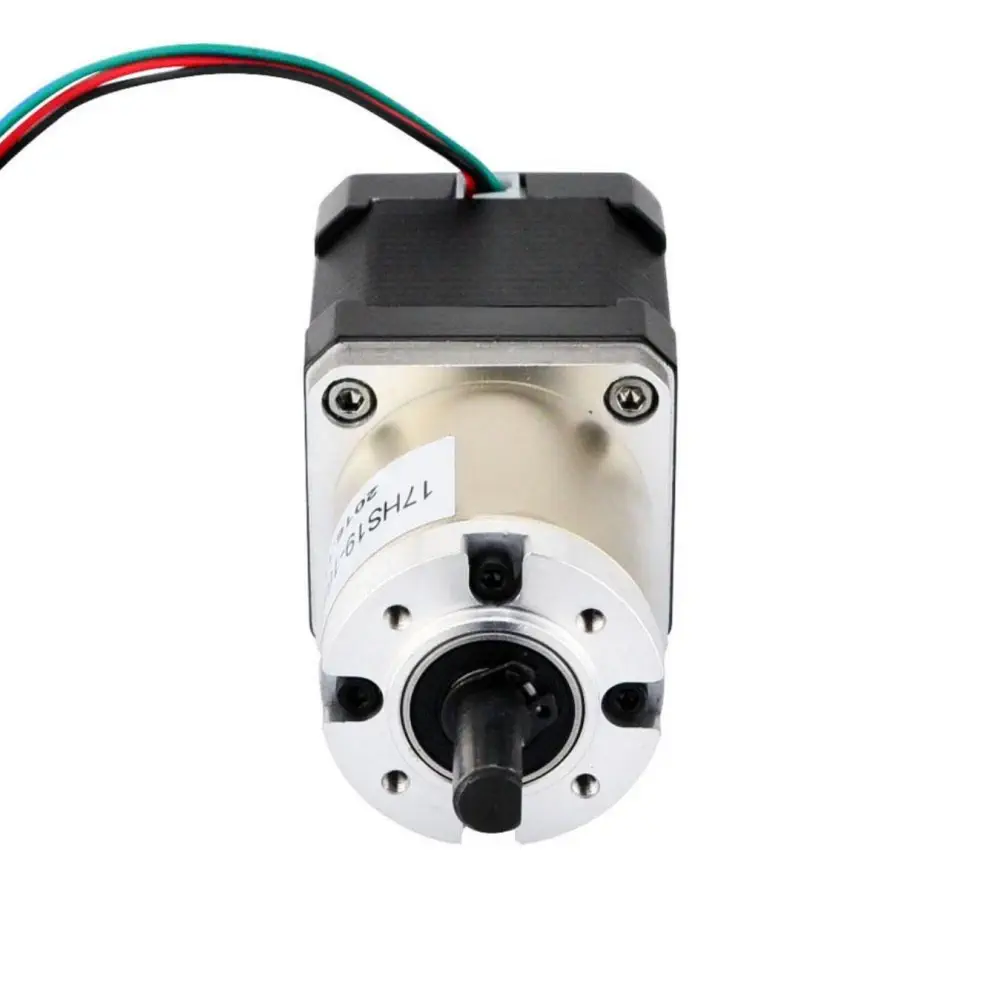

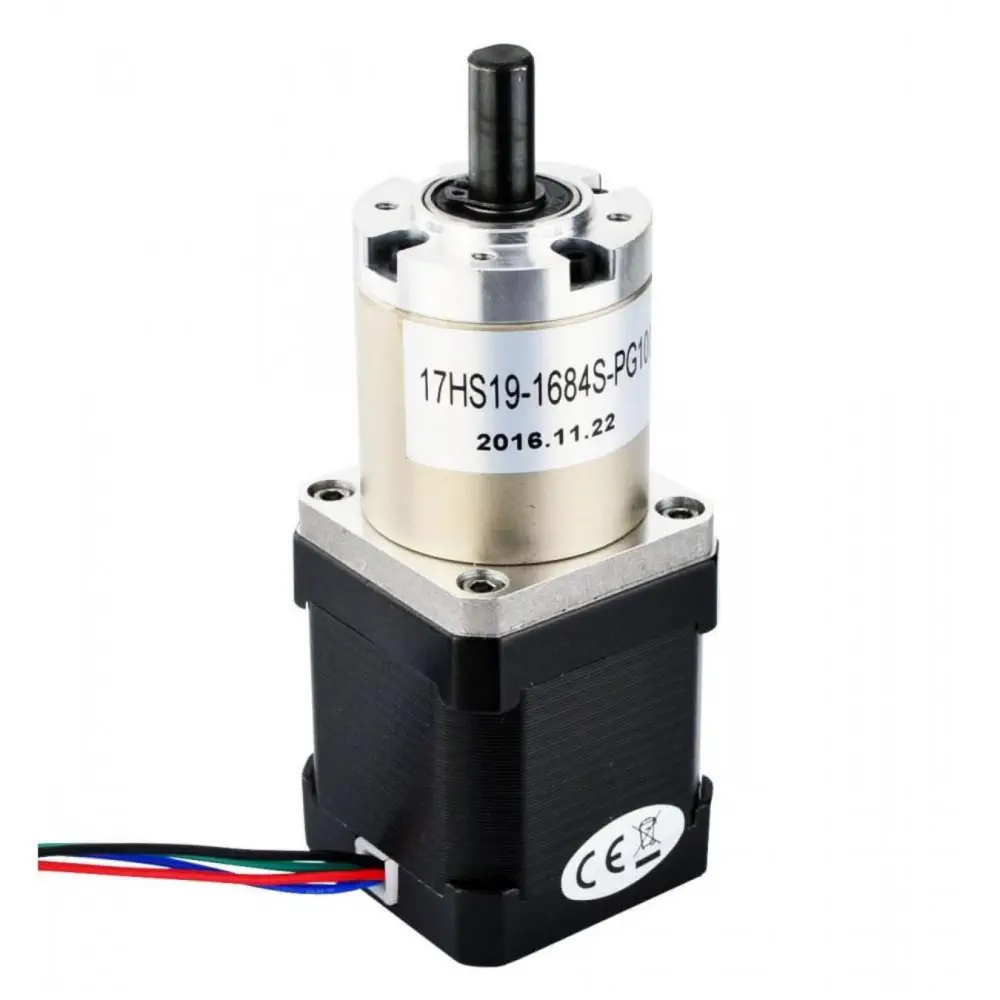

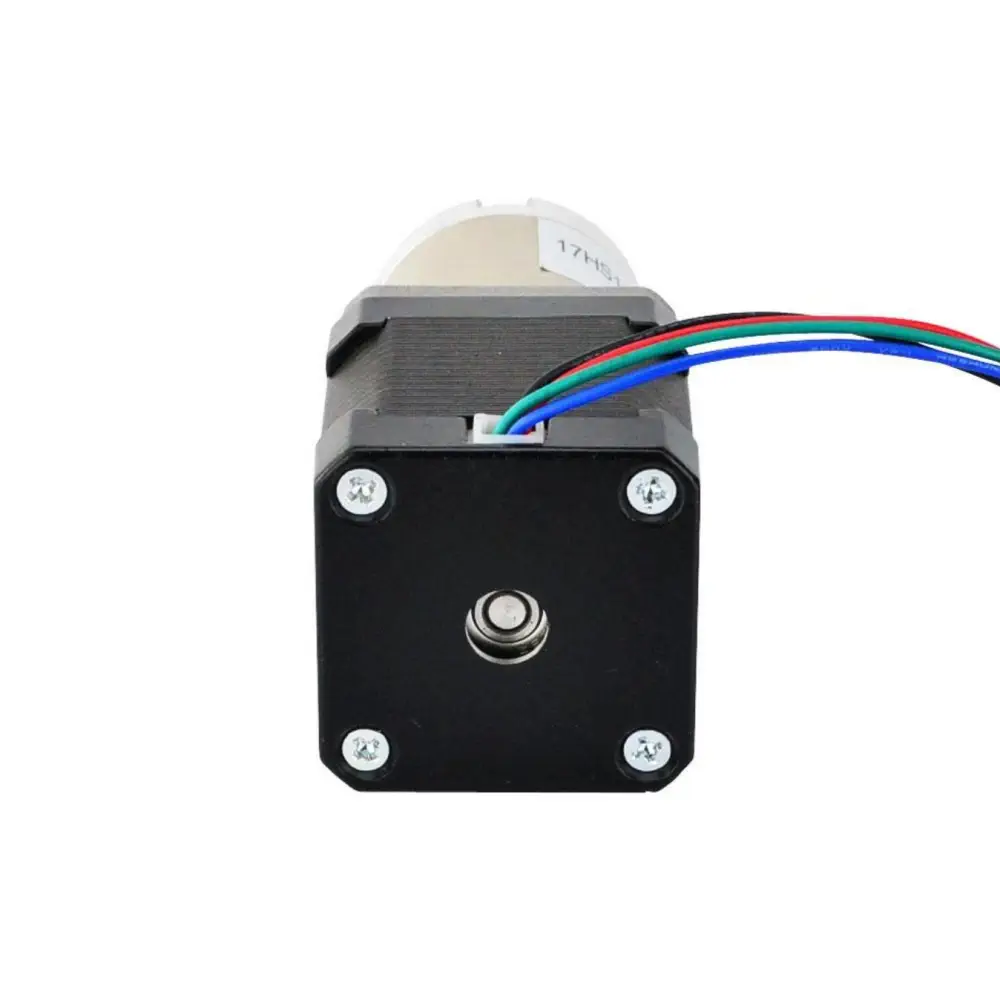

2.8V 1.68A 566Oz-In Nema 17 100:1 Bipolar Stepper Motor

• 566oz-in Nema 17 100:1 Bipolar Stepper Motor
• Nominal Voltage: 2.8
• Stall Current: 1.68 A
• Stall Torque: 73.6 oz.in.
• Shaft Diameter: Φ8 mm

The 2.8V 1.68A 566oz-in Nema 17 100:1 Bipolar Stepper Motorwith 48 mm body and 1.68 A rated current, integrated a planetary gearbox of 99.05:1 gear ratio. It’s a good solution to applications with limited space but need low speed and/or high torque.

• 1 x 2.8V 1.68A 566oz-in Nema 17 100:1 Bipolar Stepper Motor

Size

• 42 x 42 x 48 mm

PDF Files

• Gear Ratio: 99.05:1
• Nominal Voltage: 2.8 V
• Stall Current: 1.68 A
• Stall Torque: 73.6 oz.in.
• Shaft Type: D-cut
