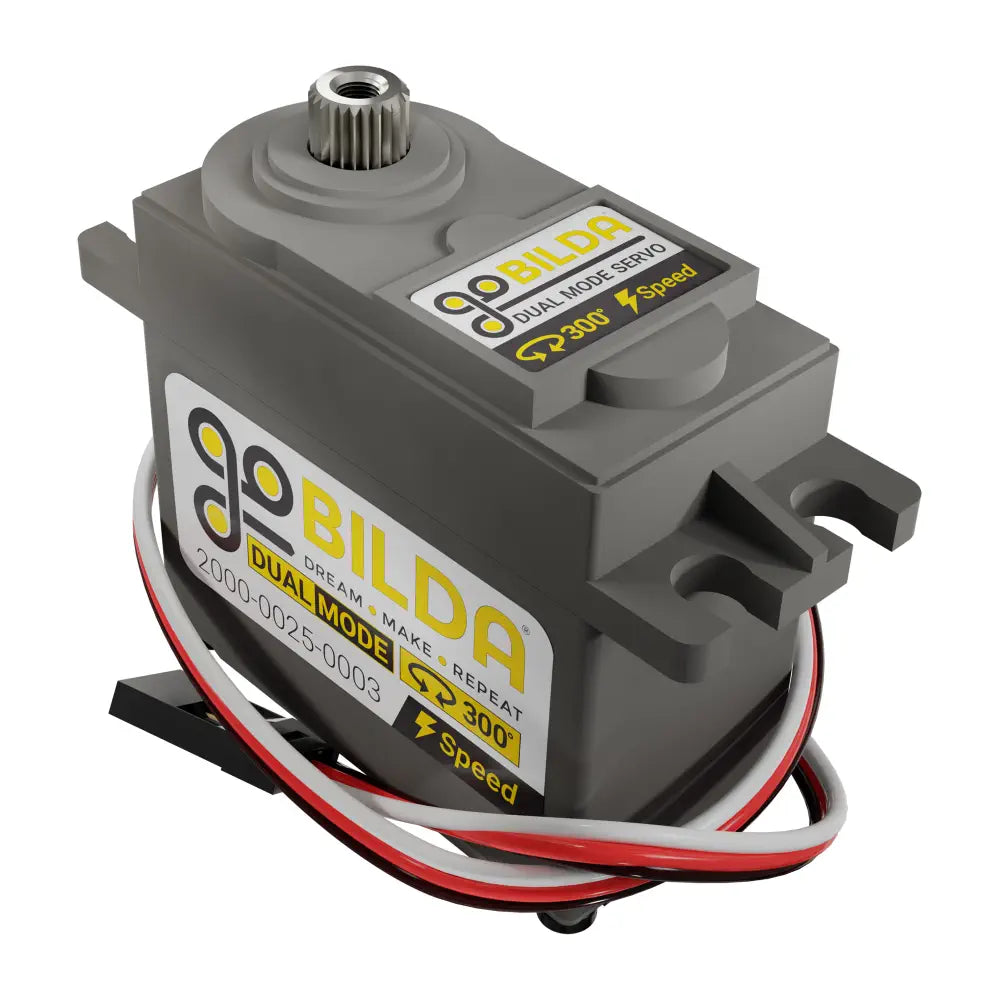

2000 Series Dual Mode Servo (25-3, Speed)

• ServoCity 2000 Series Dual Mode Servo (25-3, Speed)
• Offers dual modes for versatility
• Provides rapid transit speeds
• Supports wide voltage range
• Engineered with steel gears
• Features dual ball bearing support

The ServoCity 2000 Series Dual Mode Servo (25-3, Speed) is engineered for rapid transit, offering over twice the speed of its torque-focused predecessor. This servo is designed with dual operational modes to enhance versatility. In Default Mode, it provides rotational movement with positioning feedback, controlled by a PWM signal to determine its position. Alternatively, it can be switched to Continuous Rotation Mode using a compatible programmer, allowing for proportional speed control based on the PWM signal. This adaptability makes it suitable for various applications requiring precise and swift movements.

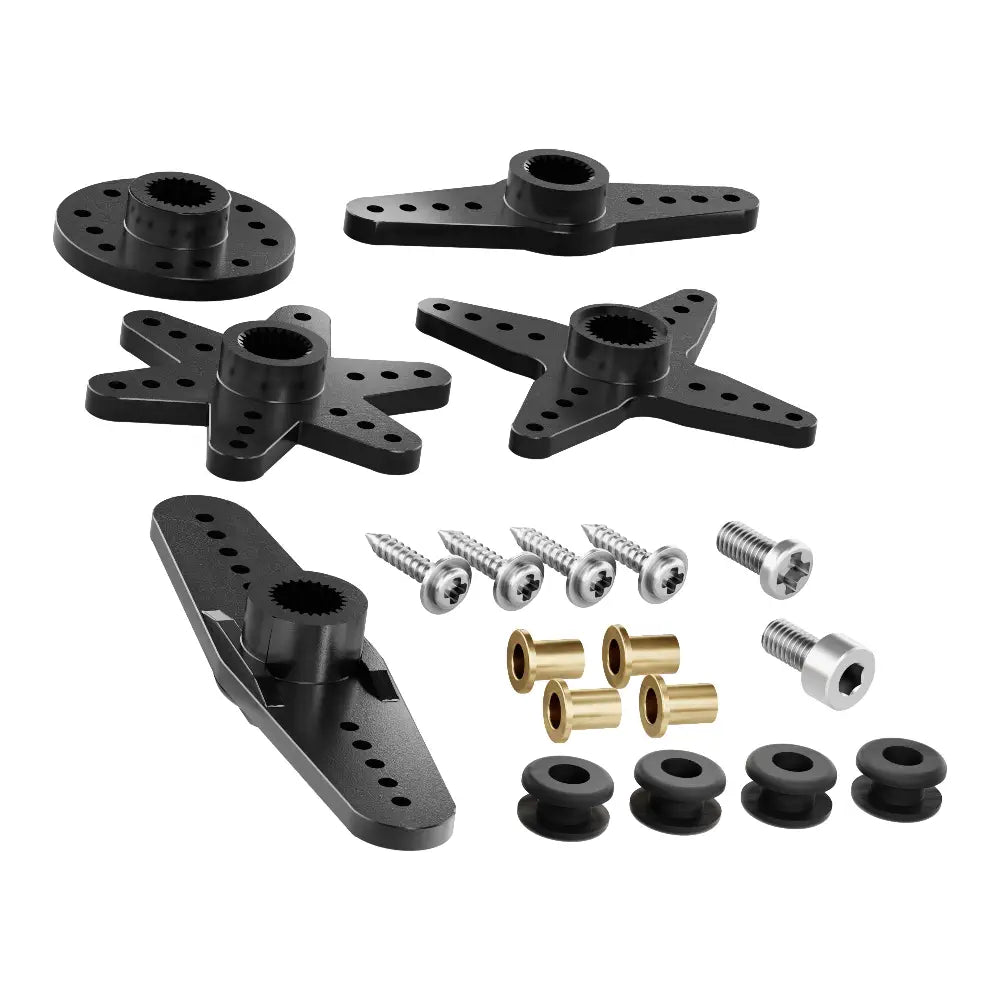

• 1x ServoCity 2000 Series Dual Mode Servo (25-3, Speed)

ZIP File

• Gear ratio: 135:1

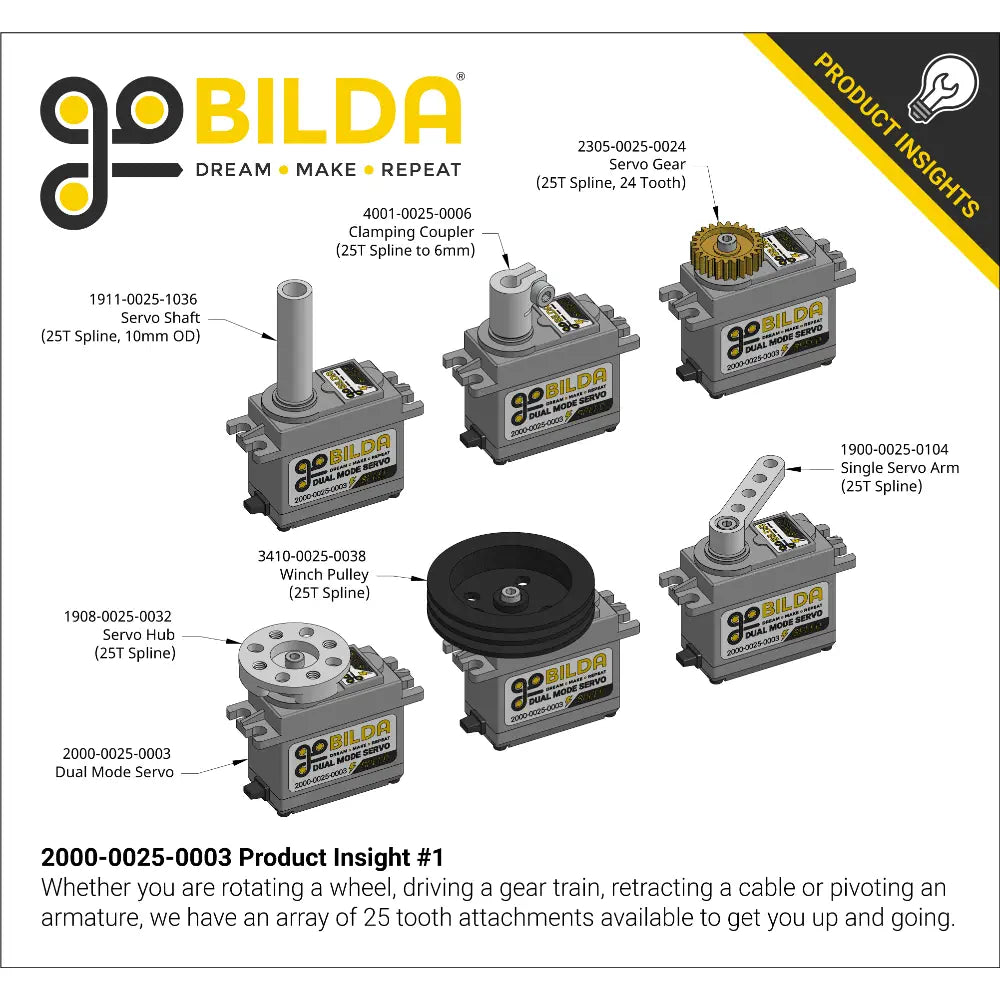

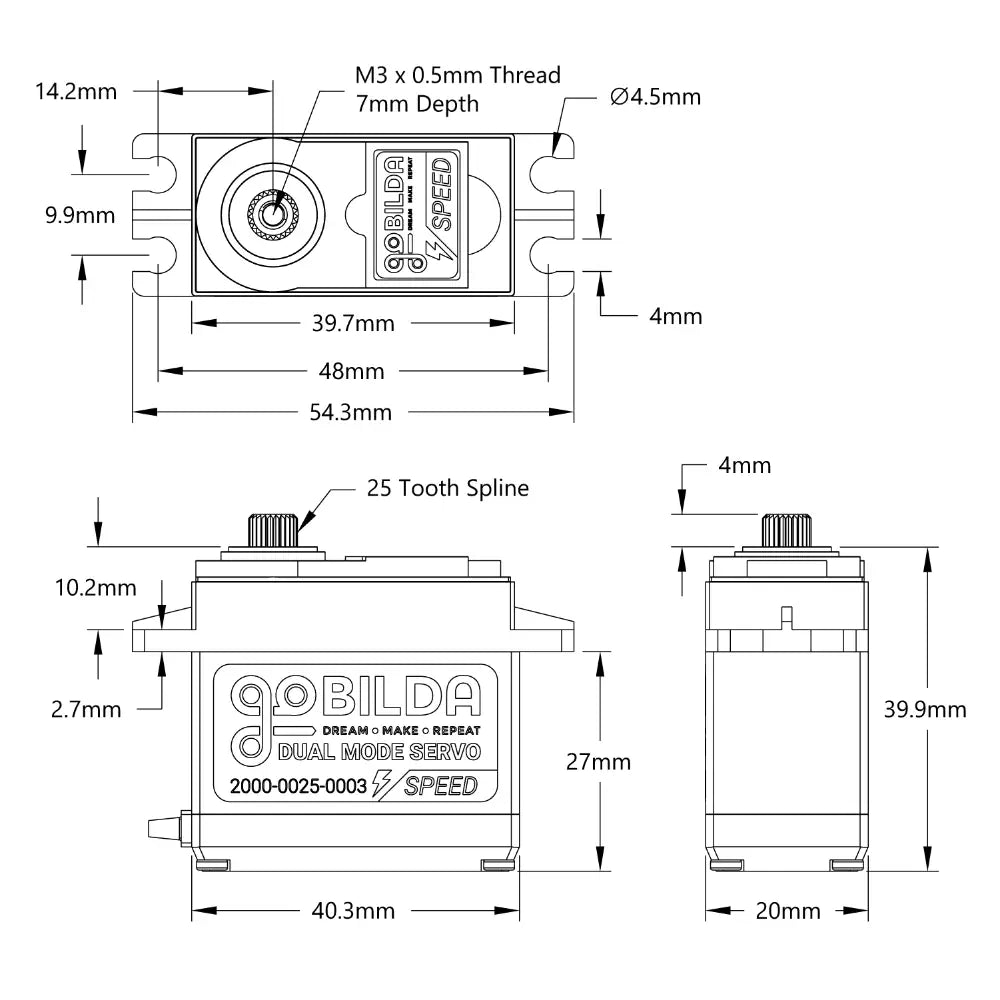

• Output shaft style: H25T spline
• Voltage range: 4.8V – 7.4V
• No-load speed at 4.8V: 0.11 sec/60° (90RPM)
• No-load speed at 6.0V: 0.09 sec/60° (115RPM)
• No-load speed at 7.4V: 0.07 sec/60° (145RPM)
• Stall torque at 4.8V: 110 oz-in (7.9 kg.cm)
• Stall torque at 6.0V: 130 oz-in (9.3 kg.cm)
• Stall torque at 7.4V: 150 oz-in (10.8 kg.cm)
• No-load current at 4.8V: 190mA
• No-load current at 6.0V: 200mA
• No-load current at 7.4V: 230mA
• Stall current at 4.8V: 2,000mA
• Stall current at 6.0V: 2,500mA
• Stall current at 7.4V: 3,000mA
• Maximum PWM range: 500-2500μsec
• Maximum PWM range (continuous): 900-2100µsec
• Travel per μsec: 0.150°/μsec
• Maximum rotation (default mode): 300°
• Pulse amplitude: 3-5V
• Deadband width: 4μsec
• Motor type: Brushed DC
• Feedback style: 5KΩ potentiometer
• Output shaft support: Dual ball bearing
• Gear material: Steel
• Wire length: 11.81″ (300mm)
• Wire gauge: 22 AWG
• Connector type: 3-position TJC8 servo connector [MH-FC]
• Direction with increasing PWM signal: Clockwise
• Weight: 60 g
