120W-200W Rigid Solar Panel System

The 120W-200W Rigid Solar Panel System is a versatile and high-efficiency solution for reliable solar power generation in both home and outdoor environments. Featuring advanced monocrystalline silicon cells, these glass solar panels deliver superior energy conversion, making them ideal for charging batteries, powering devices, and supporting off-grid applications. Available in 120W and 200W options, this system is perfect for balconies, homes, RVs, camping, hiking, and more.

Each rigid photovoltaic panel is constructed with durable tempered glass and a corrosion-resistant aluminum frame, ensuring long-lasting performance and resistance to harsh weather conditions. The panels are IP65 water-resistant, allowing for safe and reliable operation even in challenging outdoor environments. With warehouses in the Czech Republic, Spain, France, Russia, Canada, and the USA, you benefit from fast, local shipping and convenient support.

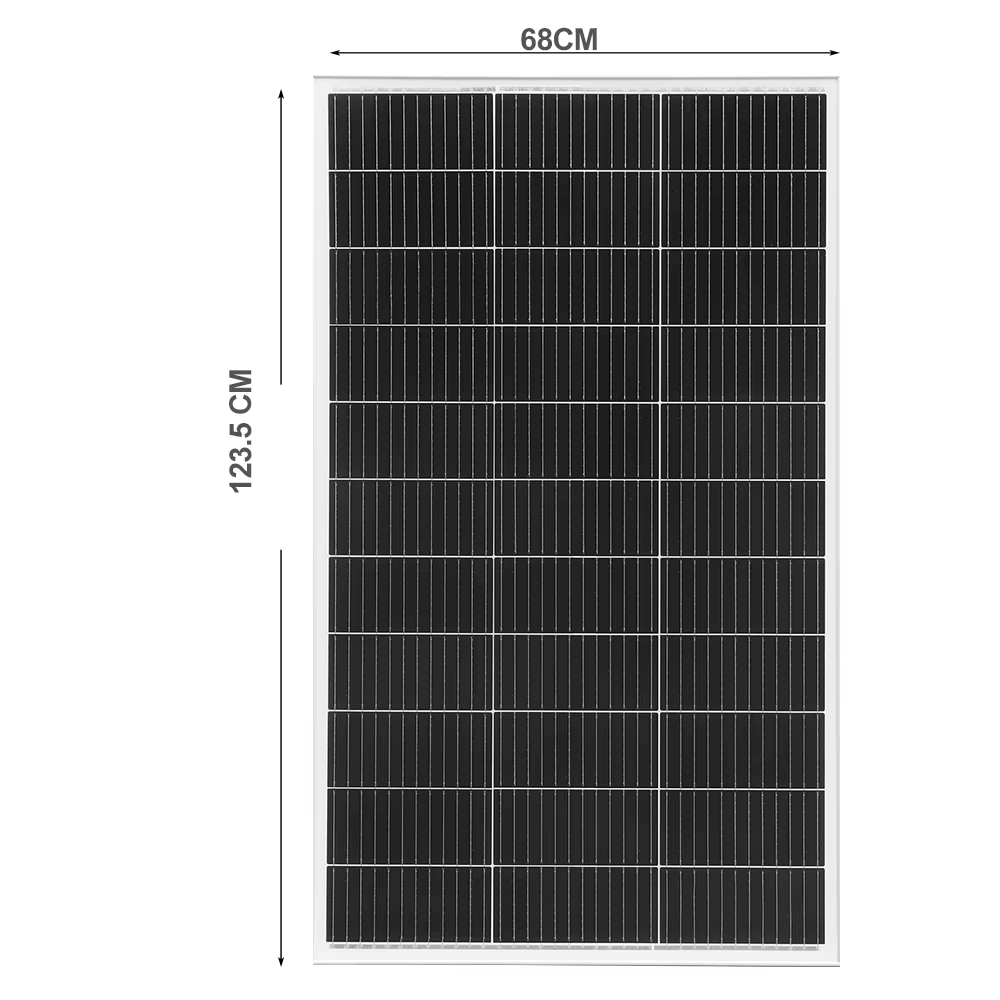

The 200W solar panel measures 1235 x 680 x 25 mm (EU) or 114 x 700 x 25 mm (Russia, Canada, USA), while the 120W panel offers a compact footprint for easy installation in tight spaces. Both panels are designed for quick setup, featuring pre-drilled mounting holes and alligator clip connectors for flexible battery charging and equipment compatibility.

This rigid solar panel system is eco-friendly, cost-saving, and user-friendly, providing a sustainable energy source for a wide range of applications. Whether you need reliable power for home backup, outdoor adventures, or industrial use, the 120W-200W Rigid Solar Panel System delivers dependable performance and peace of mind.

For installation guides, technical support, and compatible accessories, visit our Solar Panel Installation Guide and Solar Accessories Collection. Explore more rigid solar solutions in our Rigid Solar Panel Range.

Maximum power(Pmax) 200W

Vmp(Voltage at Max Power, V): 31.68V

Voc(Voltage at Open Circuit, V): 23.76 V

Output Tolerance: ±5%

Diode: 2 By Pass

Junction Box: IP67 Rated

Temperature range: -20℃-+80℃

Frame: Heavy & Solid Aluminum Alloy

Kind of Glass: 3.2mm Tempered glass

Output Cable: 2.5mm²/14AWG 90mm/3.54＂

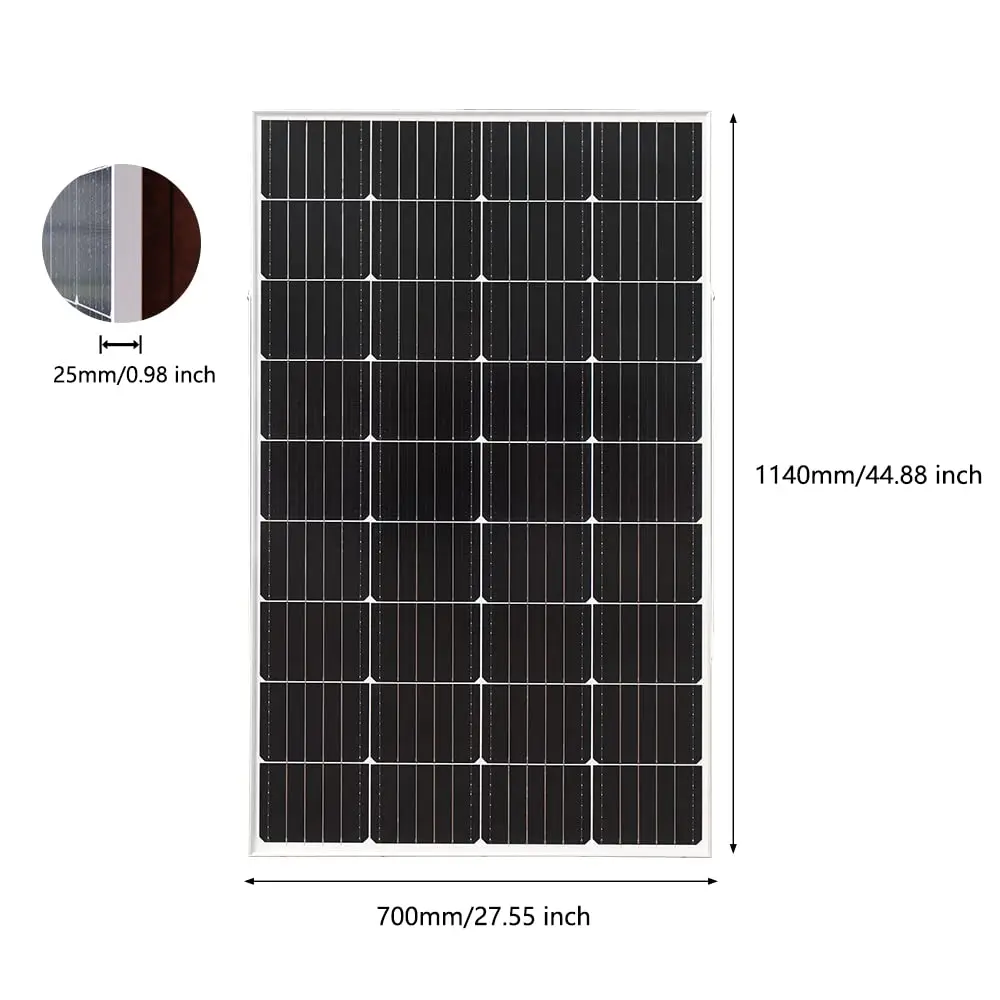

Dimensions: 1140*700*25mm

Weight: 7.96kg

Max System Voltage : 1000V DC(IEC)/600V DC (UL)

STC:Irradiance 1000w/m² Temperature 25℃ AM=1.5

Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)

Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades

Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

This solar panel kit is perfect for different outdoor activities, like illuminating use, camping, hiking, climbing etc. Nice for both indoor and outdoor use. What are you waiting for? Just come and buy.

Note: tempered glass
Features:
Solar energy, eco-friendly, energy inexhaustible, cost-saving and user-friendly.
High conversion monocrystalline solar panel for s-afe & endurable use.
Portable and compact design fit for both outdoor and indoor usage.
Provided you a alligator clip fits to be the power-supplys for different equipment.
Rechargeable, no e-xtra wires and IP65 water resistance ensures it to be used in bad weather.
Perfect and s-afe to use in various applications, such as home, industrial, commercial etc.

Specification of 120w

Installation notes: The front of the solar panel must be securely exposed to sunlight. The solar panel surface must not be obstructed by any objects. The surface of the solar panel must be cleaned regularly to ensure it remains free of dirt and debris.

Solar panel and bracket mounting diagram

Solar panels can be used outdoors to charge batteries, or to power street lights, monitors, etc.

Solar panels can be used for grid-tied solar panel systems

Solar panels can be connected to a DC water pump for power
