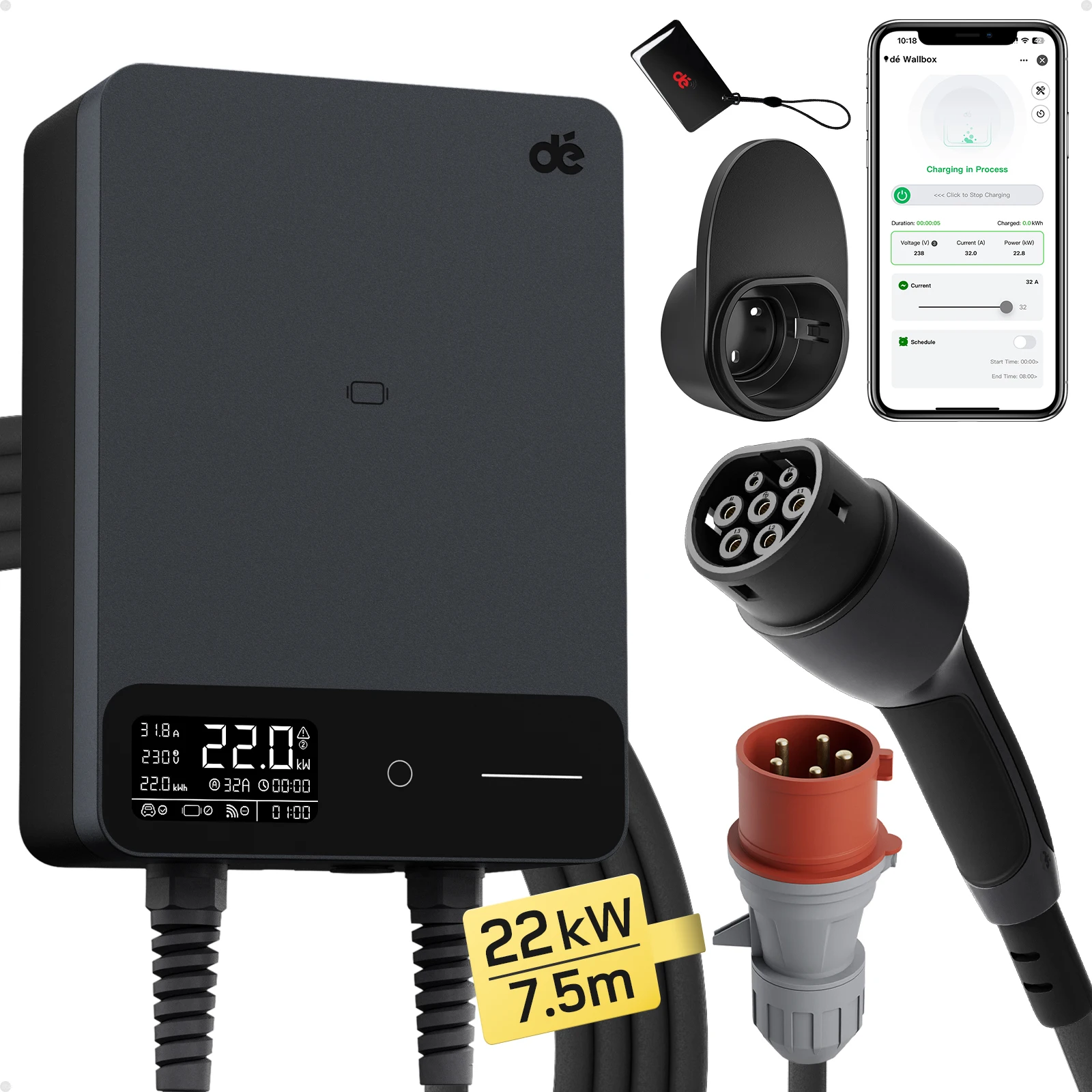

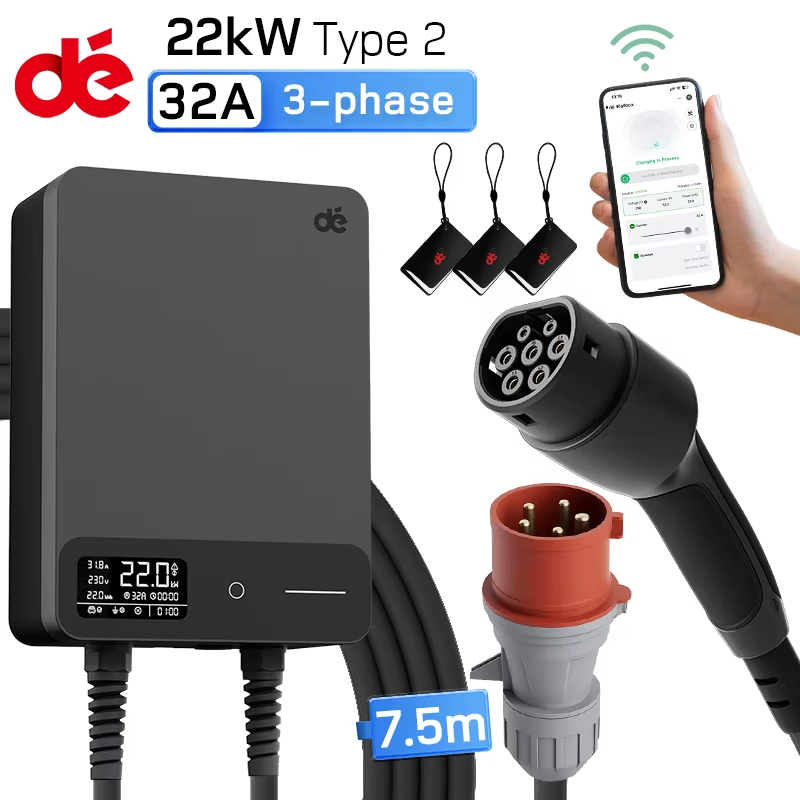

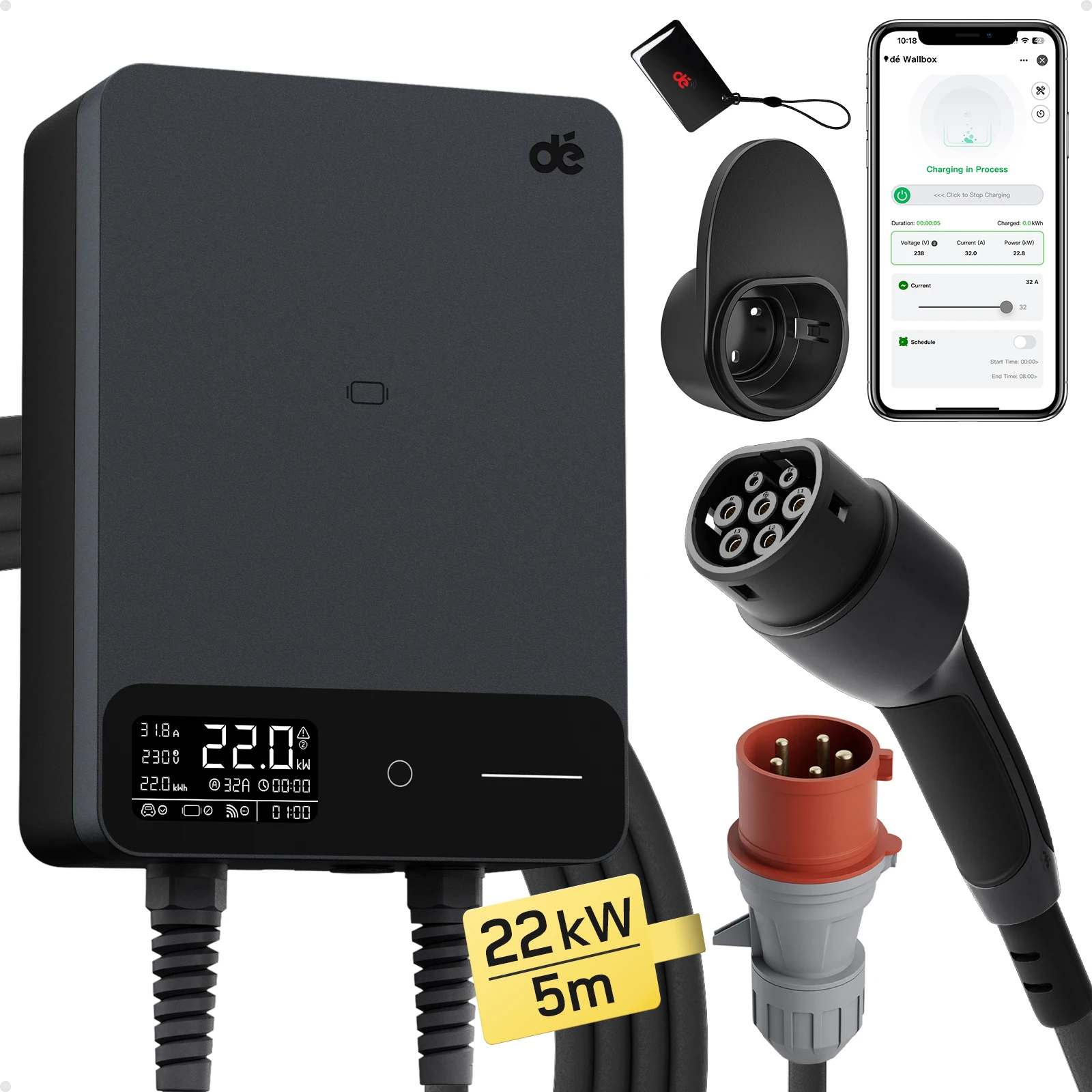

22kW Wallbox EV Charging Station

The 22kW Wallbox EV Charging Station is a powerful, intelligent, and user-friendly solution for fast home and commercial electric vehicle charging. Designed for seamless plug-and-play operation, this wallbox features a CEE plug for instant setup—simply connect to your socket and start charging your Type 2 electric car. With a maximum output of 22kW (32A, 3-phase, 400V), it delivers rapid charging for all IEC 62196-2 compliant BEVs and PHEVs.

Enjoy total control and flexibility with both RFID card authentication (3 cards included) and smart app connectivity via “tuya smart.” Schedule charging sessions, monitor real-time activity, and adjust current settings (6A–32A) directly from the wallbox or remotely through the app. The built-in LCD screen provides clear, at-a-glance information on charging status, power, and session details.

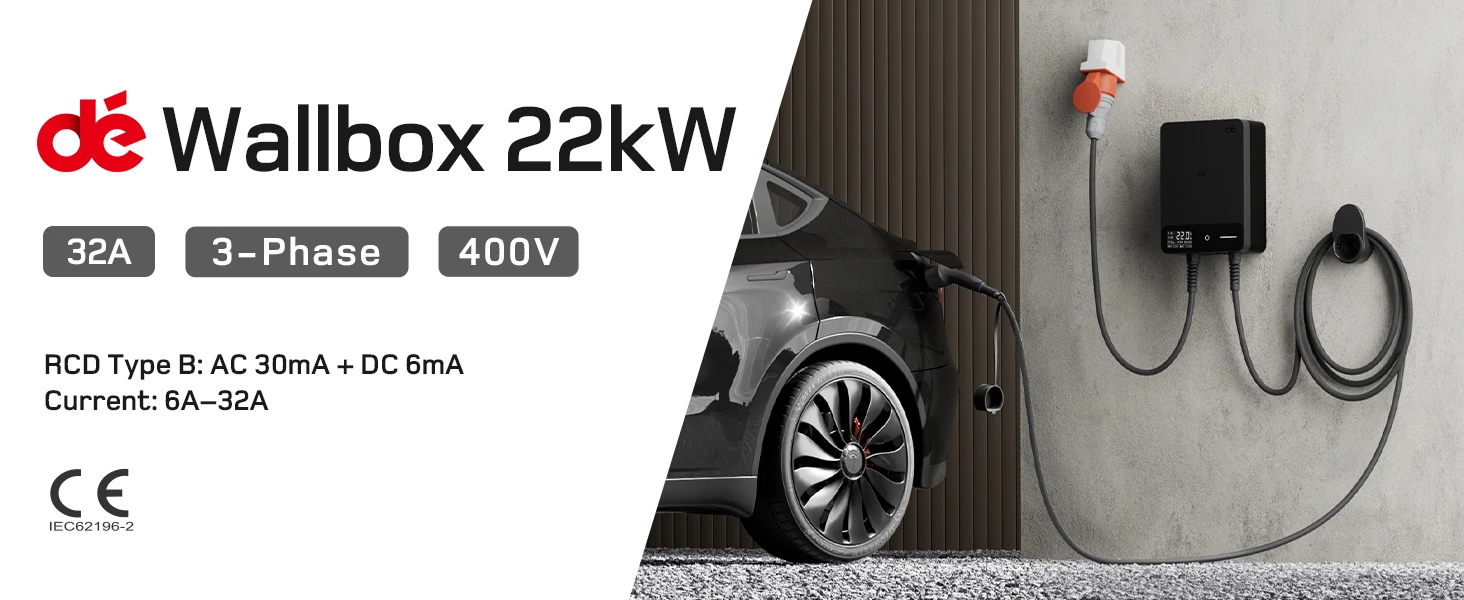

Safety is paramount: the wallbox offers double protection with an integrated RCD type A 30mA + DC 6mA circuit breaker, safeguarding both your charger and vehicle. The robust enclosure is rated IP65 (wallbox) and IP55 (Type 2 connector), ensuring reliable operation in all weather conditions. The wallbox comes with your choice of fixed cable length (5m, 7.5m, 10m, 12.5m, or 15m) and a dedicated cable holder for tidy storage.

Installation is quick and straightforward with the included backplate and mounting kit. The wallbox is suitable for a wide range of scenarios—home, garage, car park, supermarket, or on the road. Certified to IEC 61851-1 and IEC 62196-2 standards and backed by a 2-year warranty, this charging station is built for long-term reliability and peace of mind.

For installation guides, technical support, and compatible accessories, visit our EV Charging Installation Guide and EV Accessories Collection. Explore more smart charging solutions in our EV Charger Range.

Specification

Voltage: 400V(3-phase)
Power: Max 22kW (32A, 3-phase)
Current: 6A/10A/13A/16A/20A/24A/32A

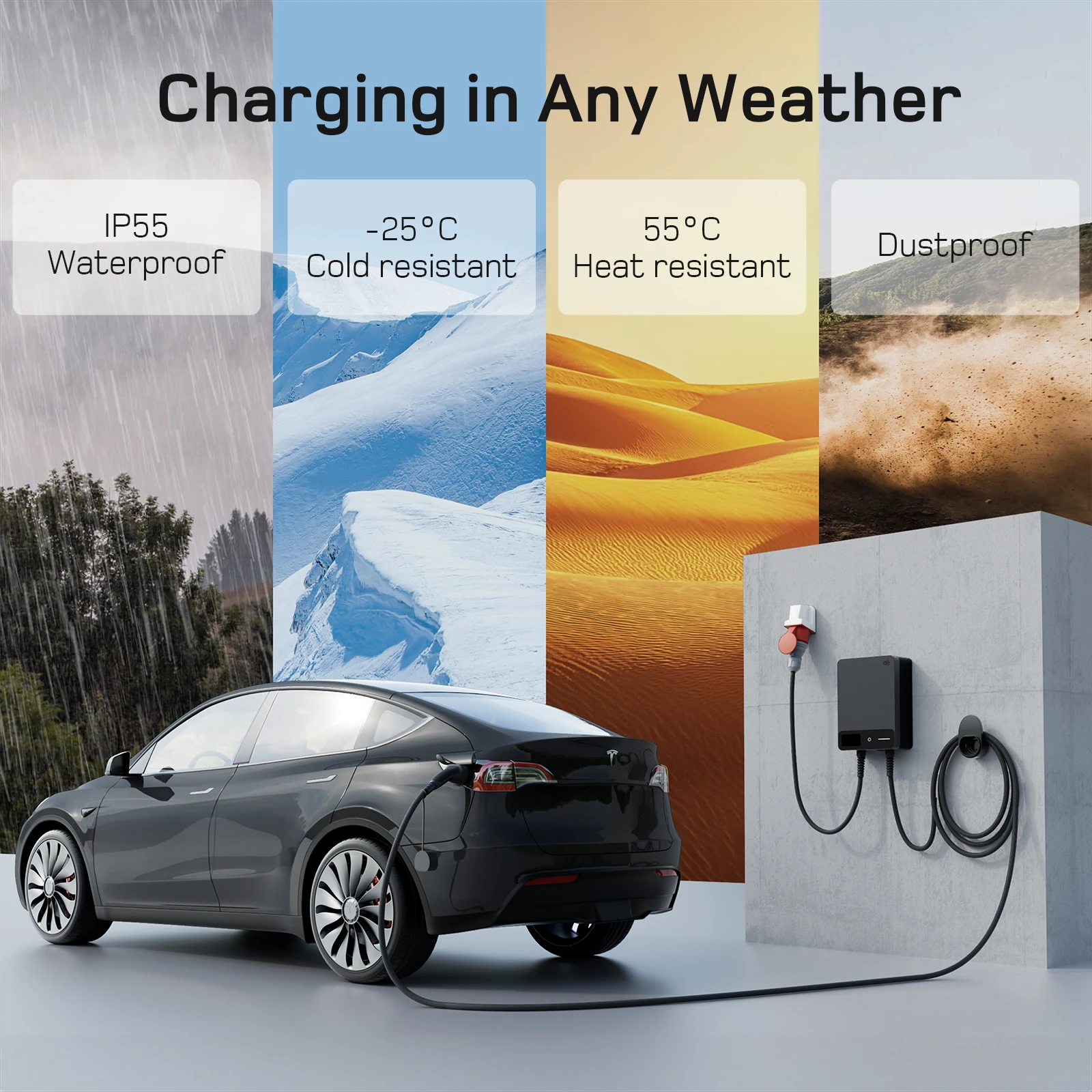

Operating Temperature: -25°C to+ 55°C
Standard: IEC 61851-1, IEC 62196-2
Certification: CE
IP Rating: IP 54[Wallbox], IP 55 [Type 2 coupled)
Wallbox Dimension: 297x214x105 mm
Warranty: 2-Year-Warranty

dé Mobile Wallbox 22kW with Type2 Charging Cable 7,5M

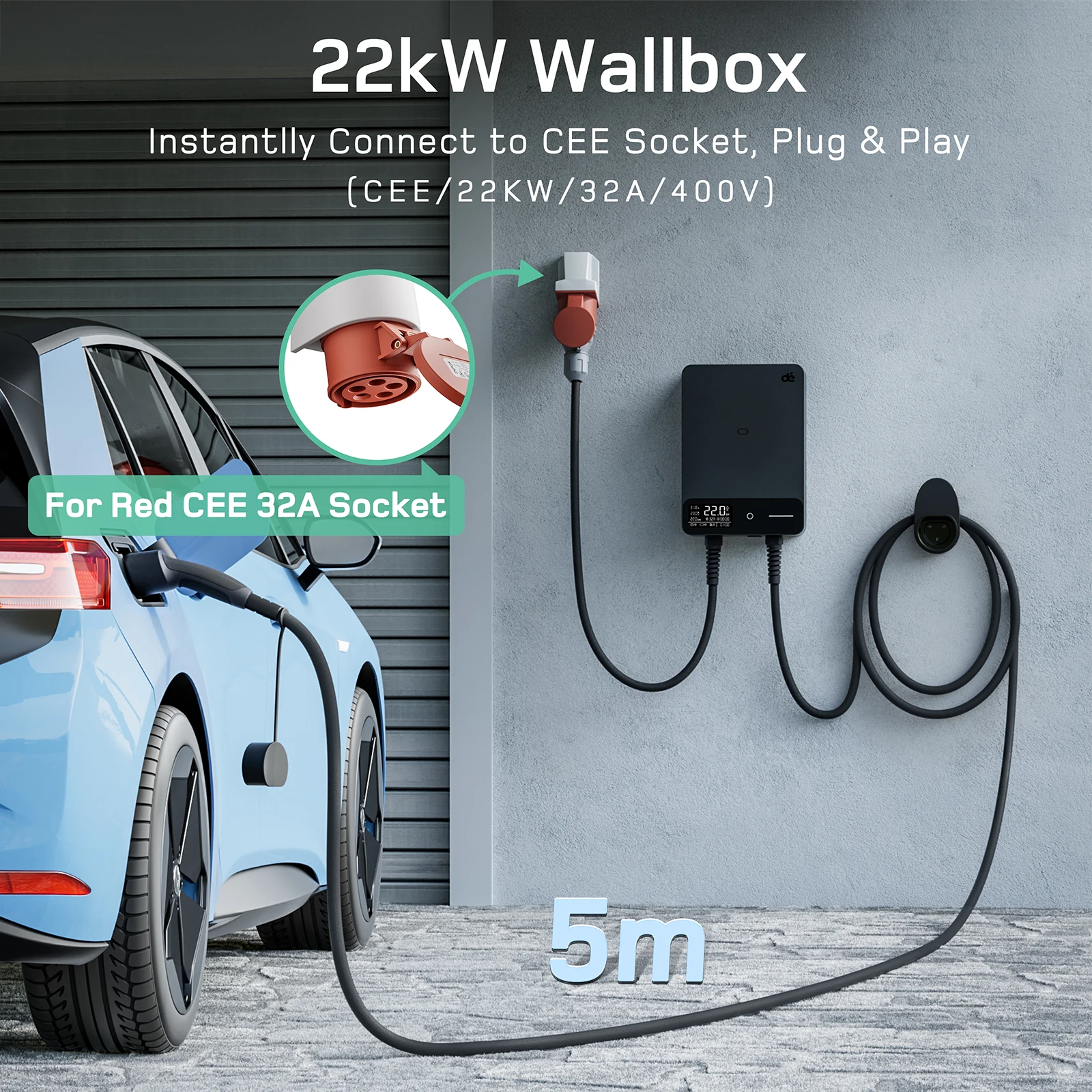

No Installation Needed

Simply insert the CEE plug into the socket and connect the type 2 charging cable to your electric car – the charging process starts immediately. RFID authentication and plug-and-play are both possible.

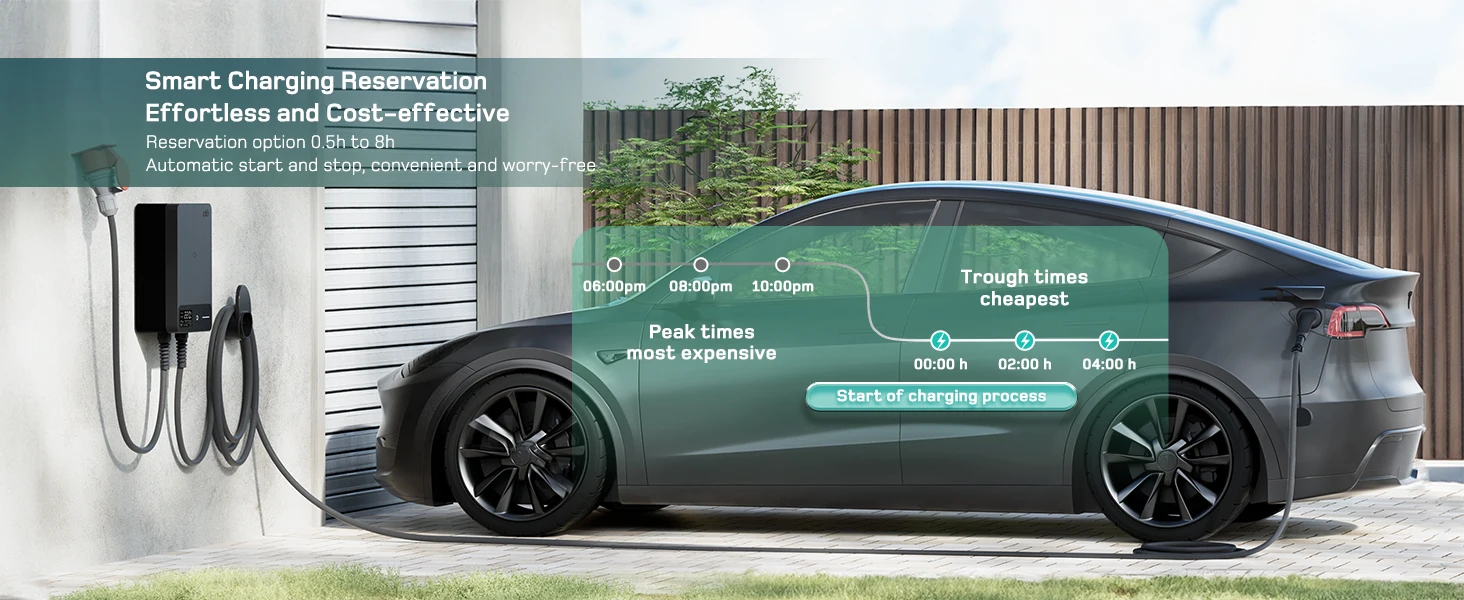

Smart charging reservation Effortless and cost-effective

Reservation option: 0.5h to 8h
Automatic start and stop, convenient and worry-free.

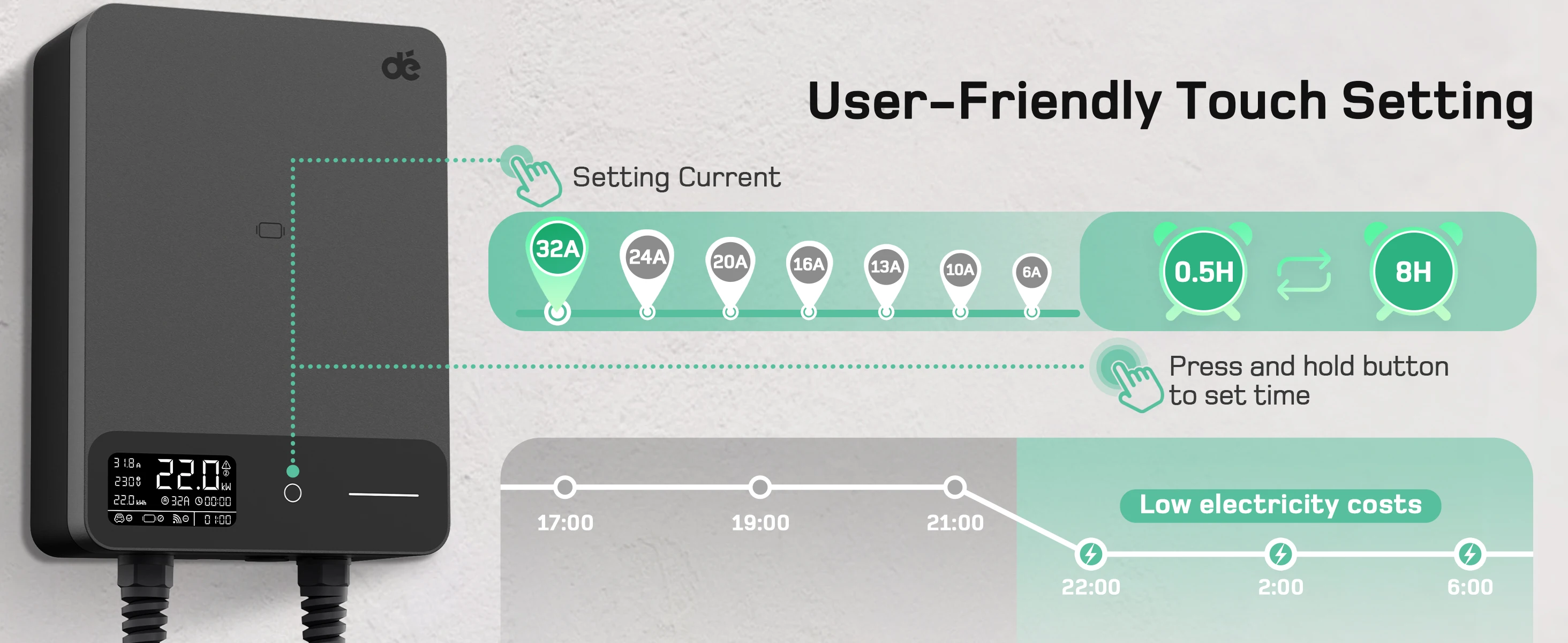

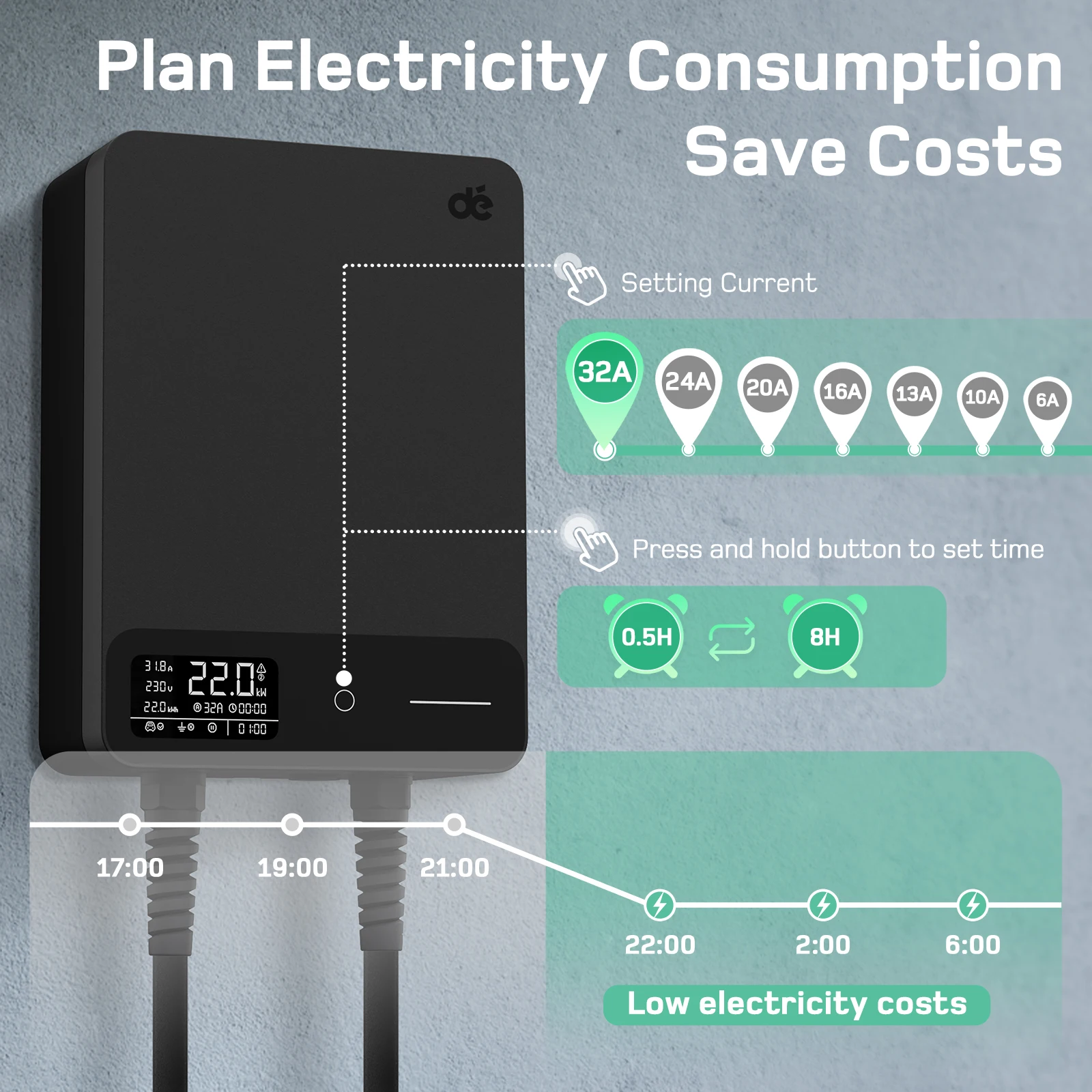

Plan Electricity Consumption Save Costs

The current can be set to 6A/10A/13A/16A/20A/24A/32A at the touch of a button. The charging delay (0.5h-8h) can be set by holding down the button. No complex operation via the app, simple setting directly on the wallbox.

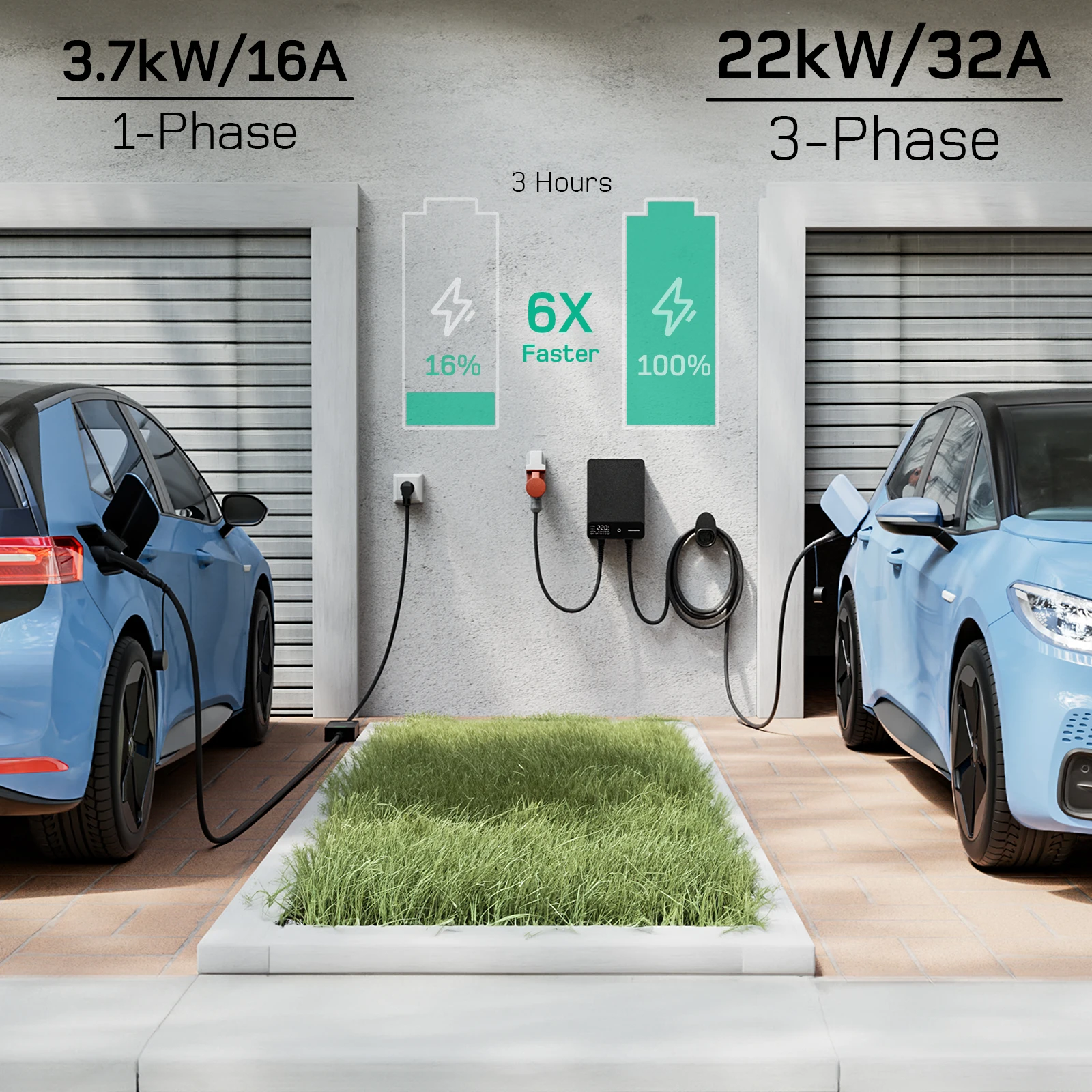

Up to 22kW Charging Power

Faster charging than CEE 16A/Schuko 16A socket

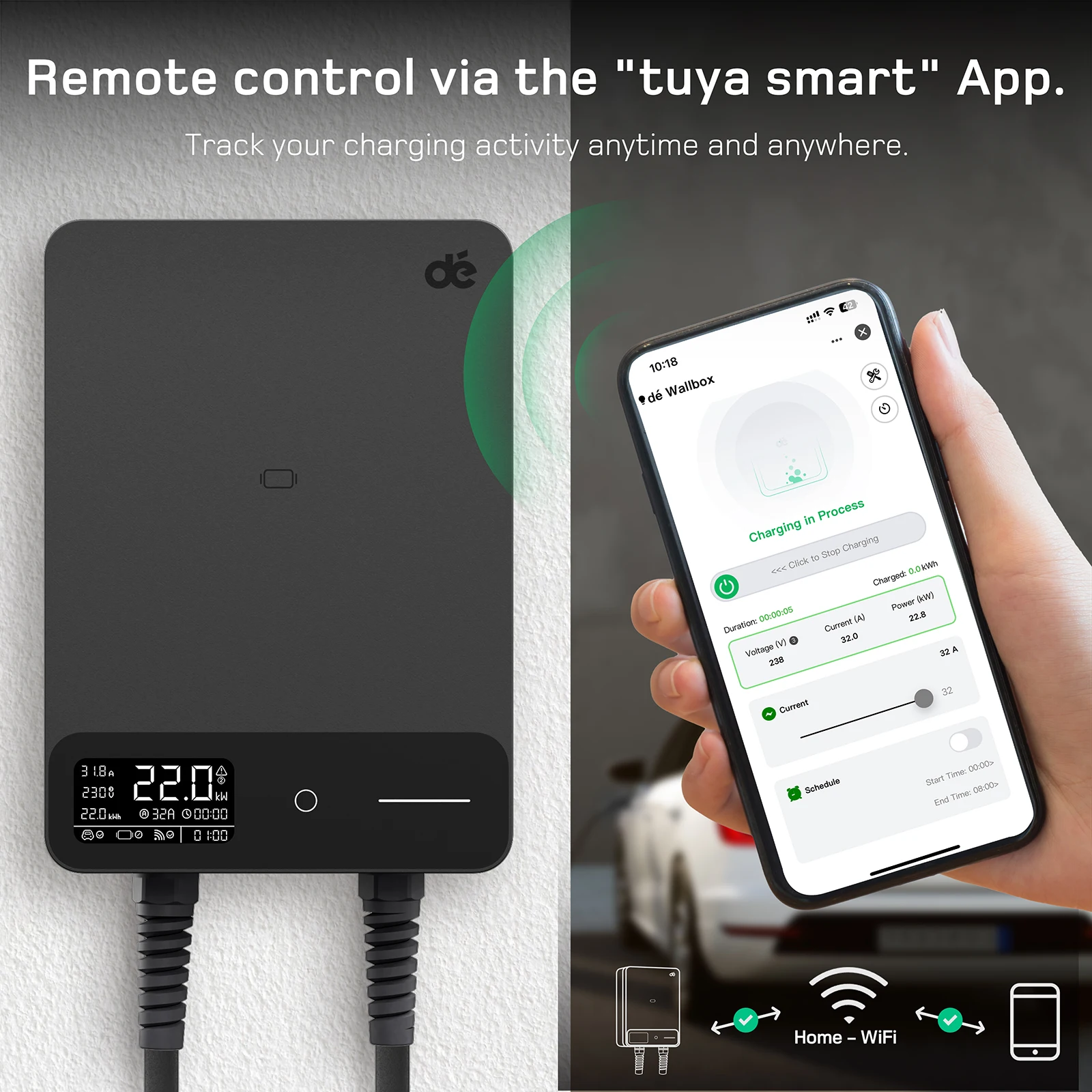

Remote contral via the “tuya smart” App

Track your charging activity anytime and anywhere.

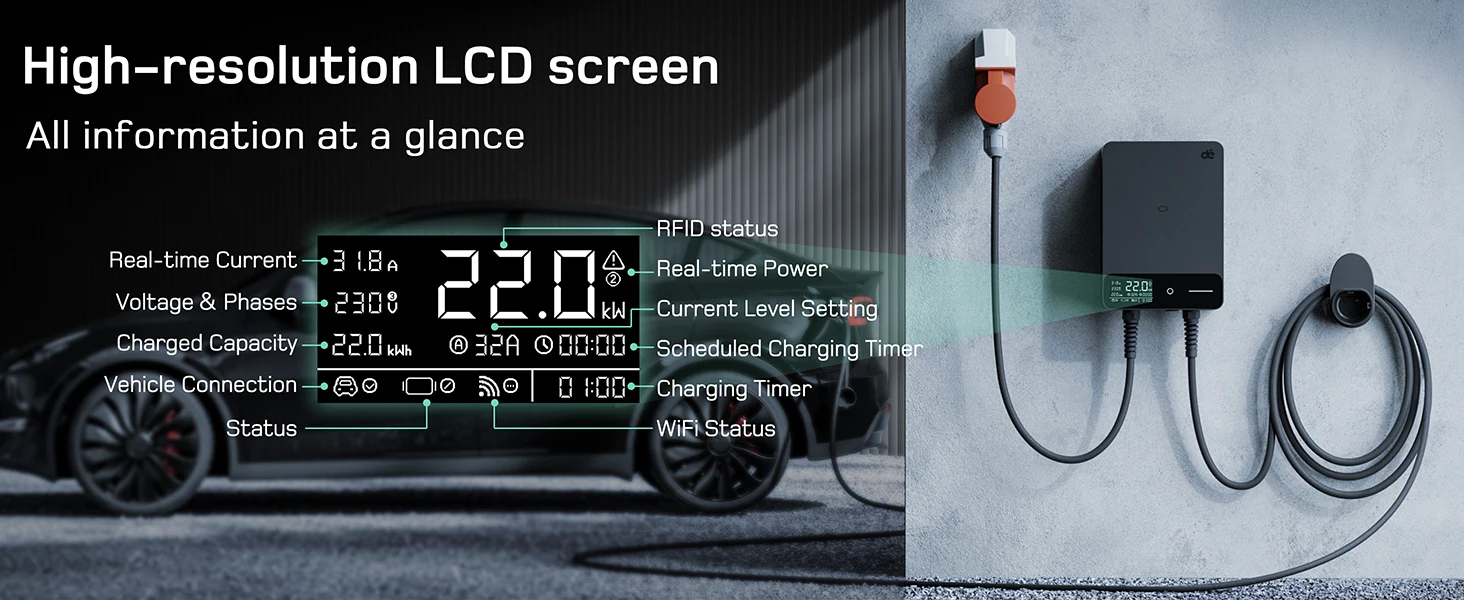

High Definition LCD Screen

All information at a glance

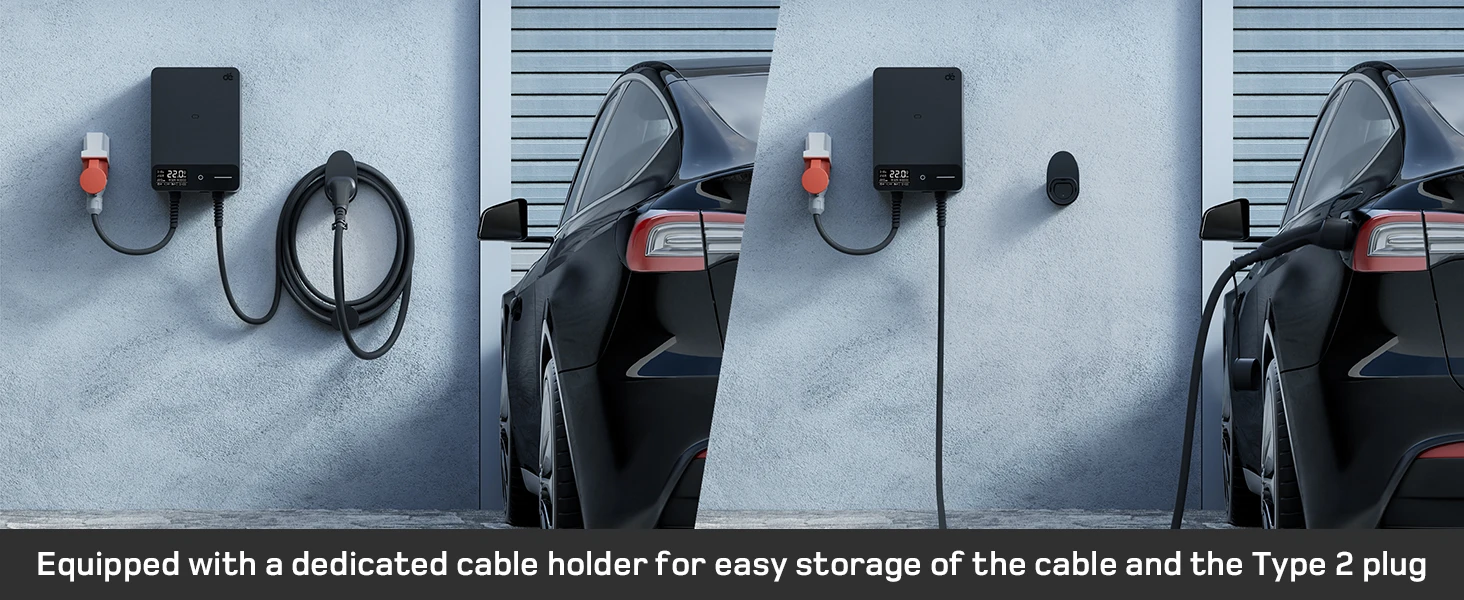

Equipped with a dedicated cable holder for easy storage of the cable and the Type 2 plug

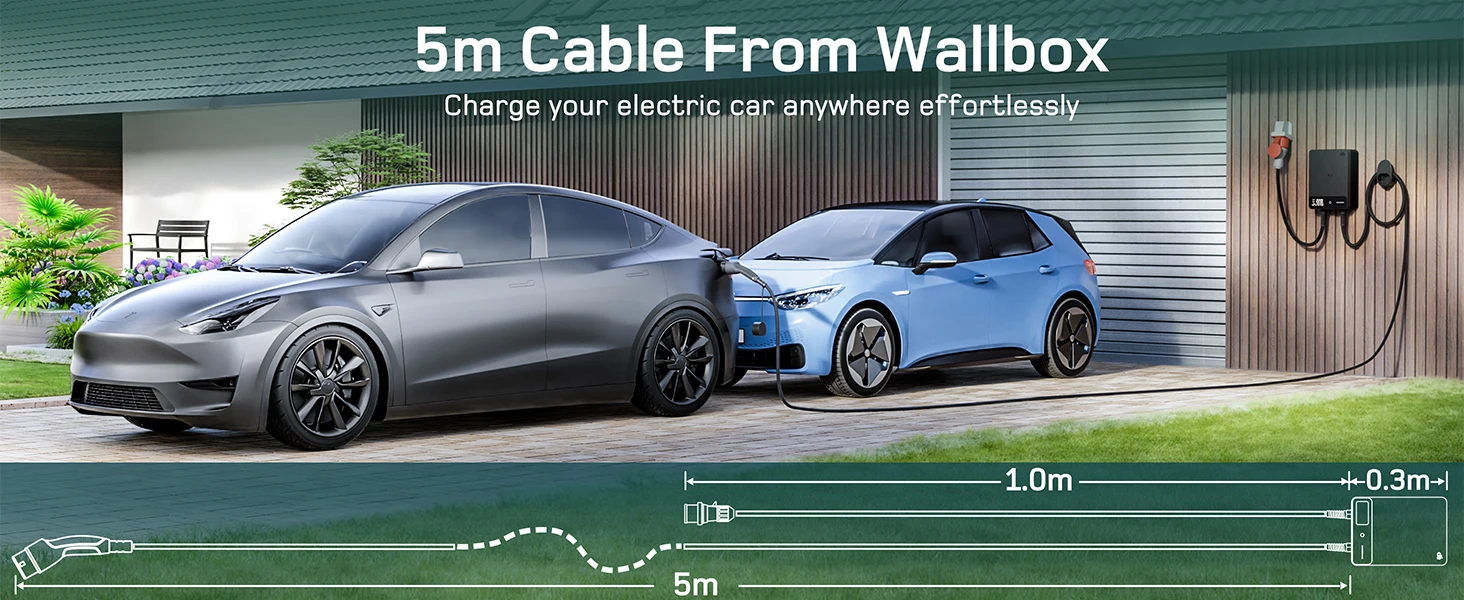

5m Fixed Cable From Wallbox

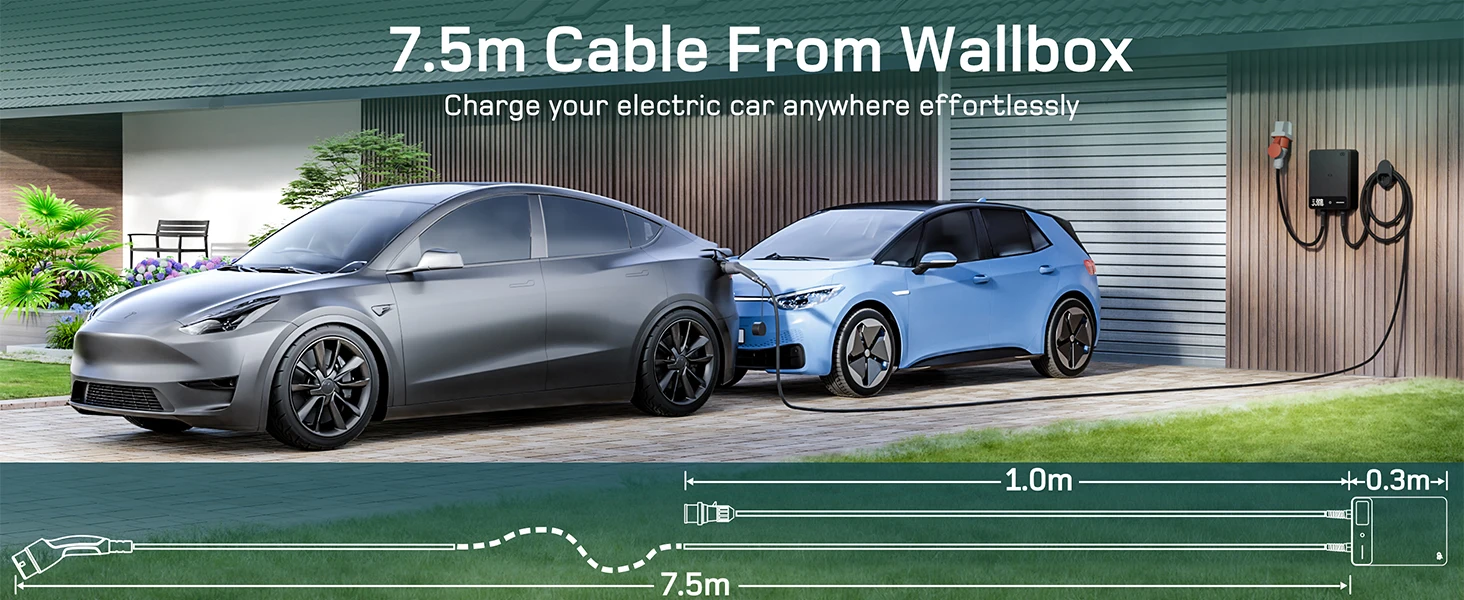

7.5m Fixed Cable From Wallbox

Charge your electric car any effortlessly

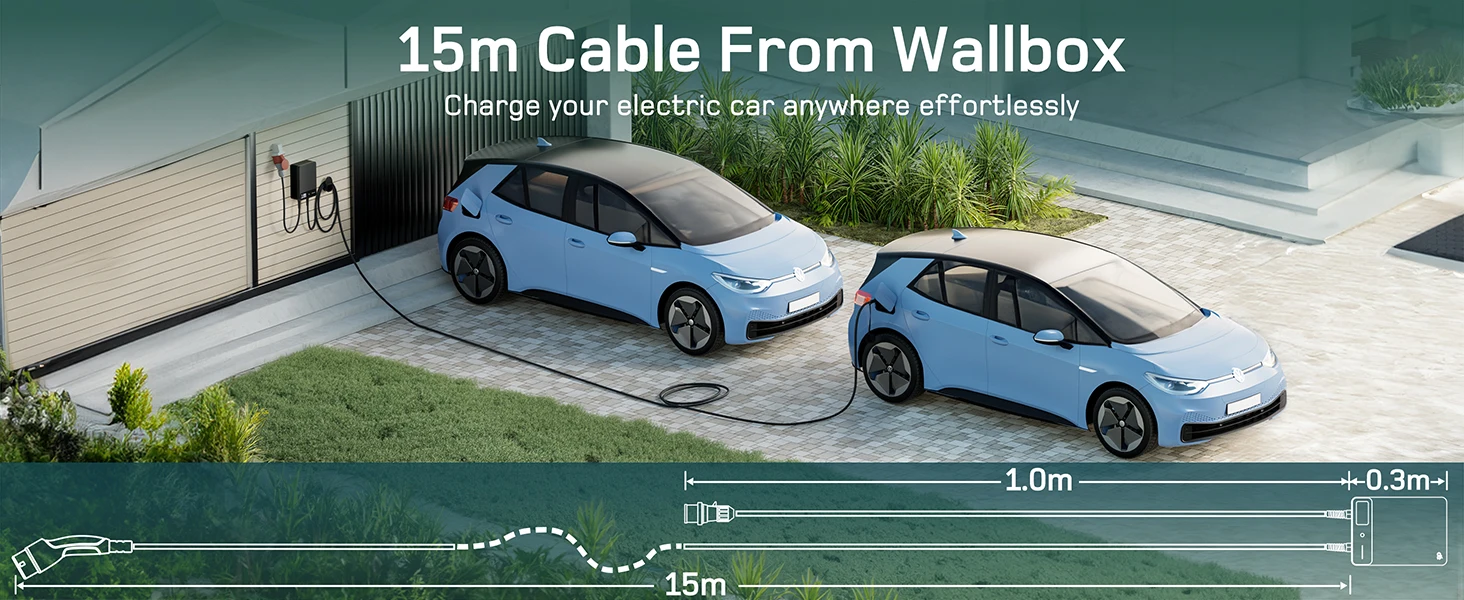

15m Fixed Cable From Wabllbox

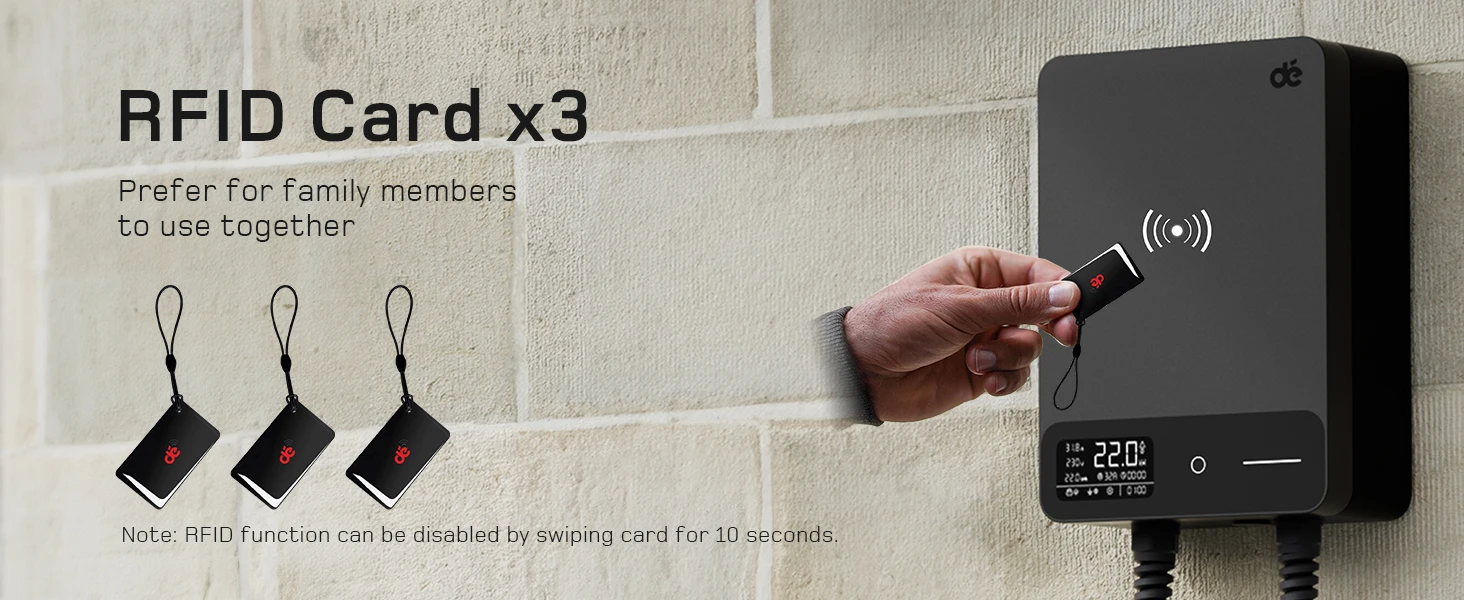

RFID Card x3

Prefer for family members to use together

Note: RFID function can be disabled by swiping card for 10 seconds

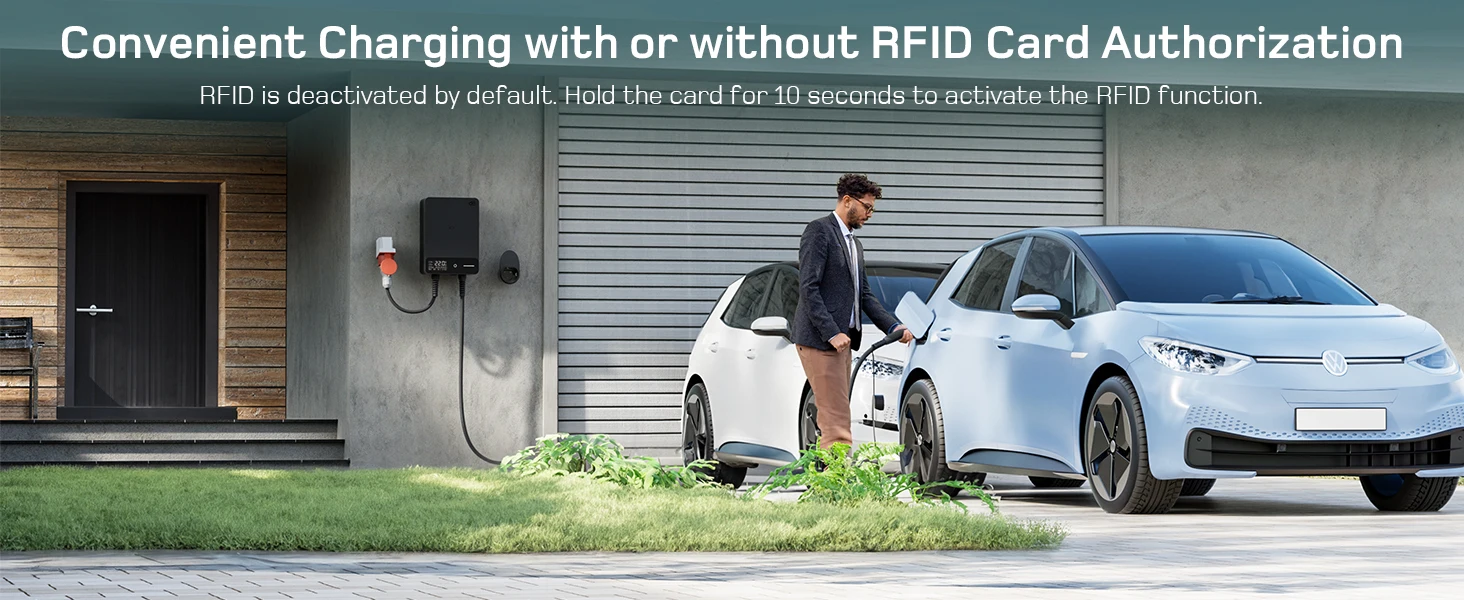

Convenient Charging with or without RFID Card Authorization

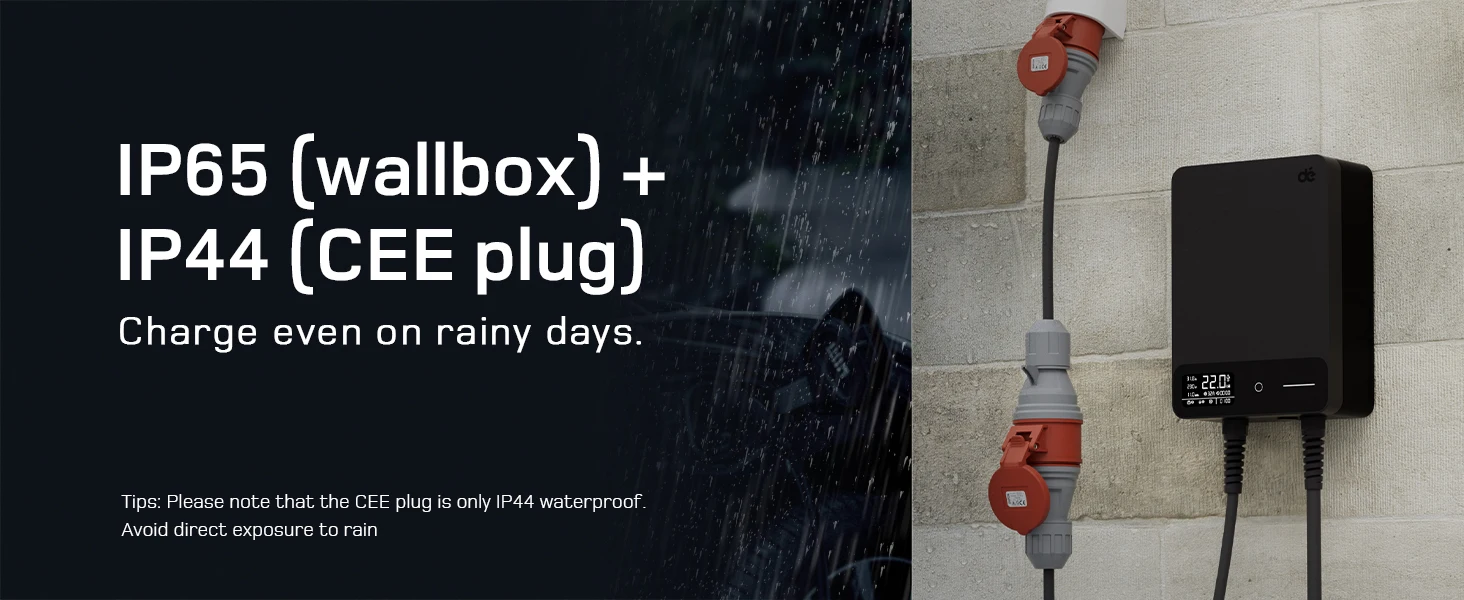

Charge Even on Rainy Days

IP65[Wallbox]
IP44[CEE plug]

Tips: Please note that the CEE plug is only IP44 waterproof.Avoid direct exposure to rain.

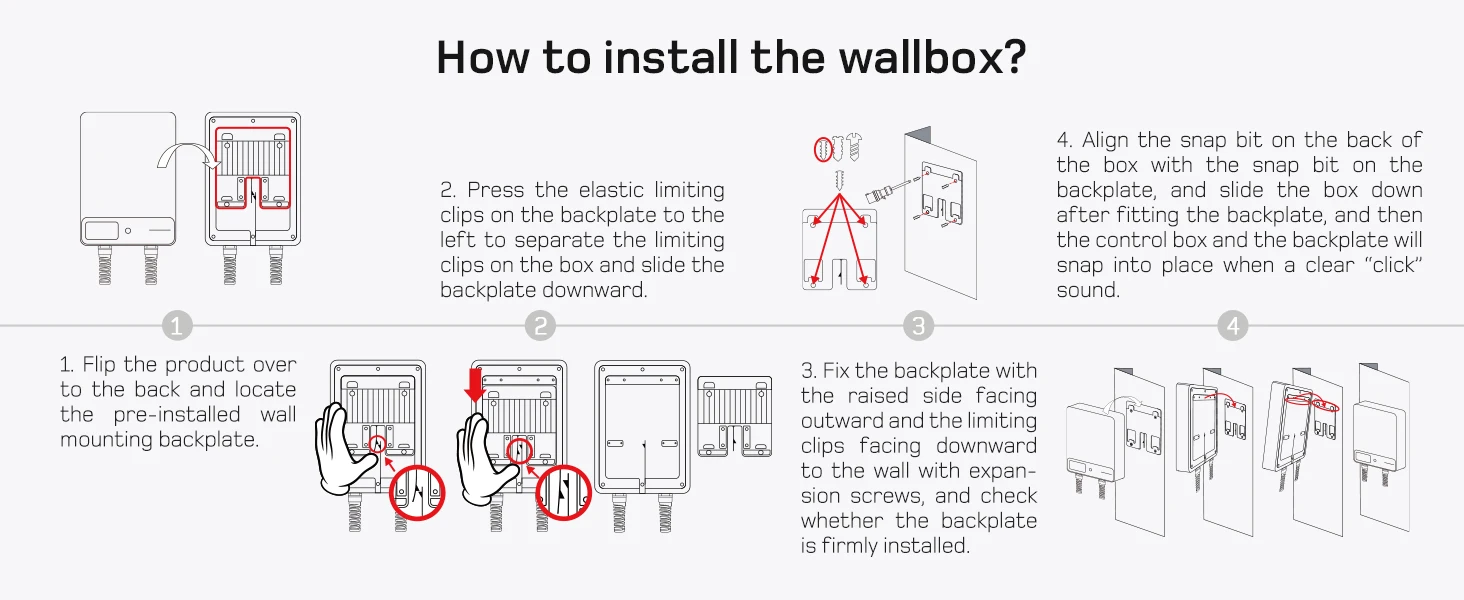

How to install the wallbox?

1. Flip the product over to the back and locate the pre-installed wall mounting backplate.

2. Press the elastic limiting clips on the backplate to the left to separate the limiting clips on the box and slide the backplate downward.

3. Fix the backplate with the raised side facing outward and the limiting clips facing downward to the wall with expansion screws, and check whether the backplate is firmly installed.

4. Align the snap bit on the back of the box with the snap bit on the backplate, and slide the box down after fitting the backplate, and then the control box and the backplate will snap into place when a clear “click” sound.

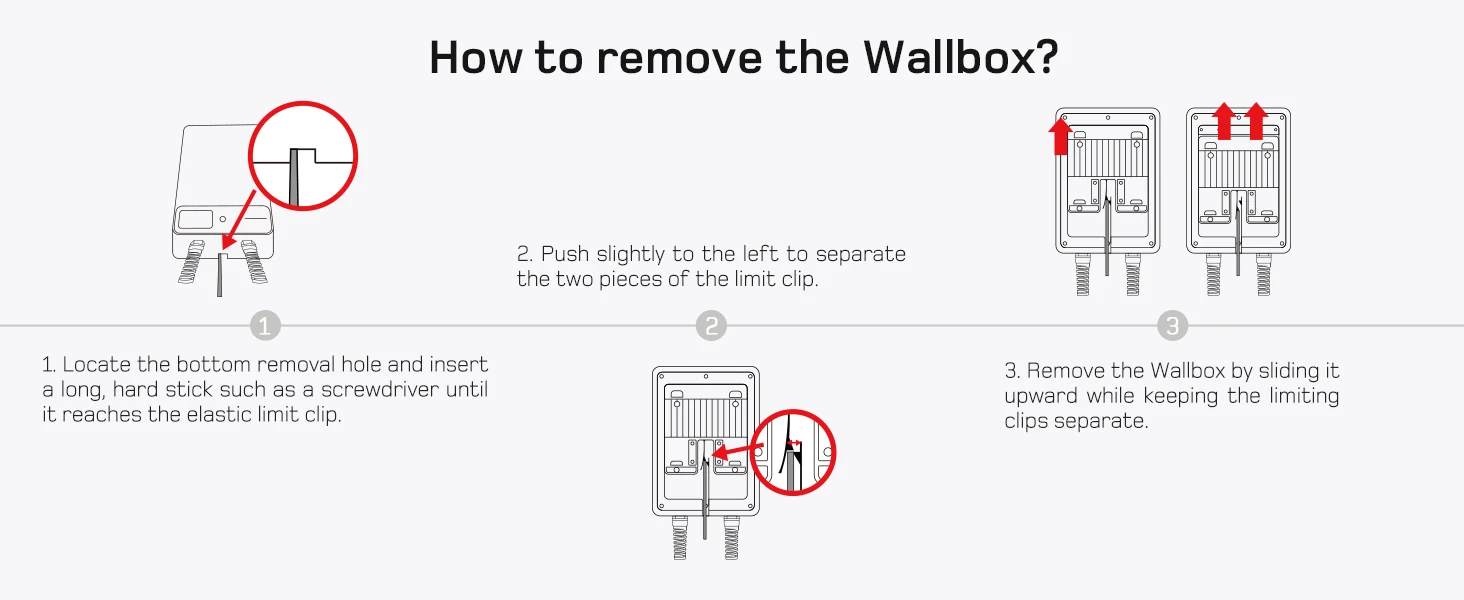

How to remove the Wallbox?

1. Locate the bottom removal hole and insert a long, hard stick such as a screwdriver until it reaches the elastic limit clip.

2. Push slightly to the left to separate the two pieces of the limit clip.

3. Remove the Wallbox by sliding it upward while keeping the limiting clips separate.

Compatible with Type 2 Compliant BEVs/PHEVs

Compatible with IEC 62196-2 standard models.

If you’re not sure, our team is always online to assist you.

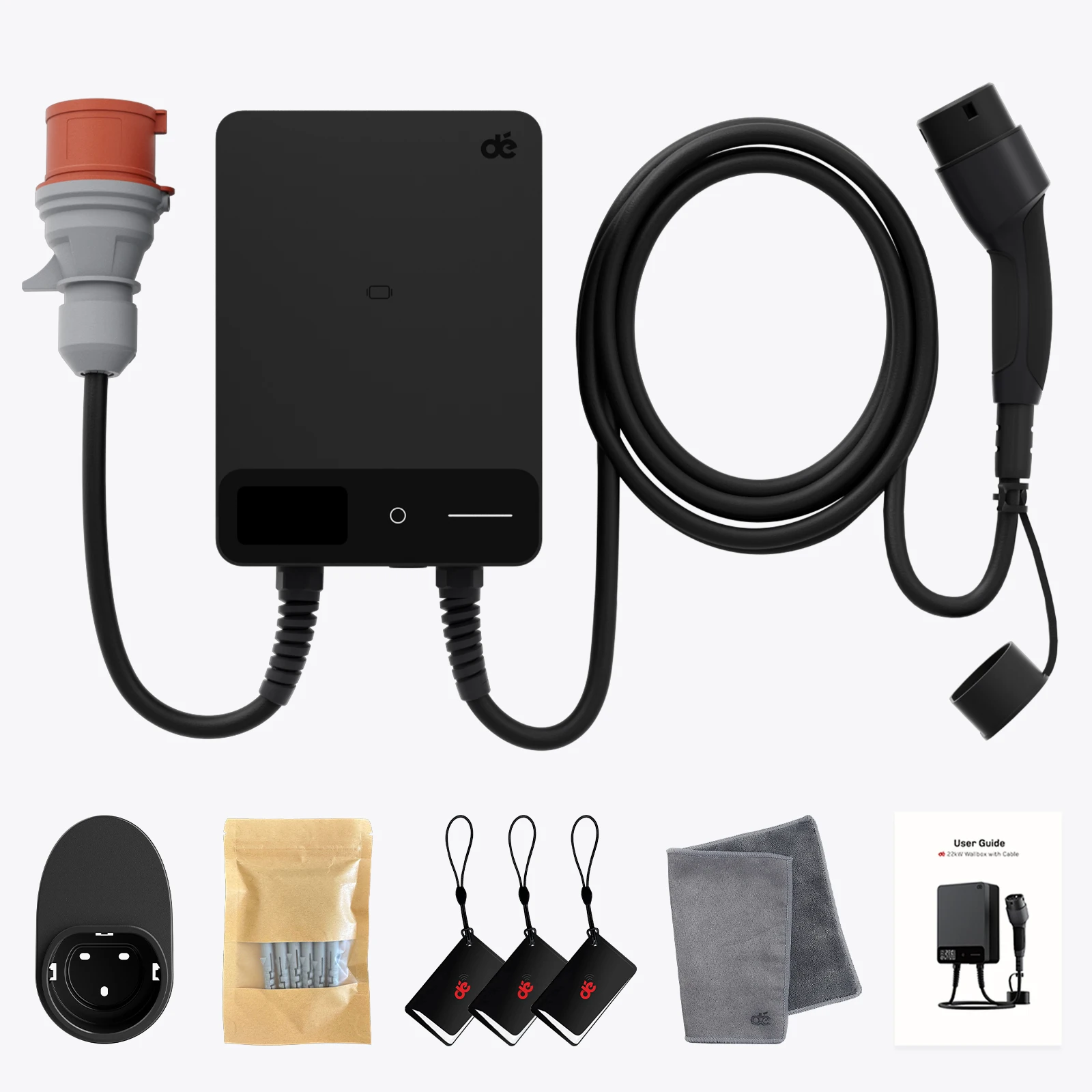

What’s it in the Box?

22kW Wallbox * 1
Microfibre cloth * 1
RFID card * 3
Cable holder * 1
Back plate and installation kit * 1
User Guide *1

About Brand dé

dé in ChineseIt means always putting its people first.
At dé, we’re not just a factory,we’re brand builders.
We’re redefining the “Made in China” perception through exceptional product design, quality, and innovation in EV charging solutions.

What We Do?

Solve a real need for our target audience in EV charging industrywith practical and reliable EV charging solutions.
