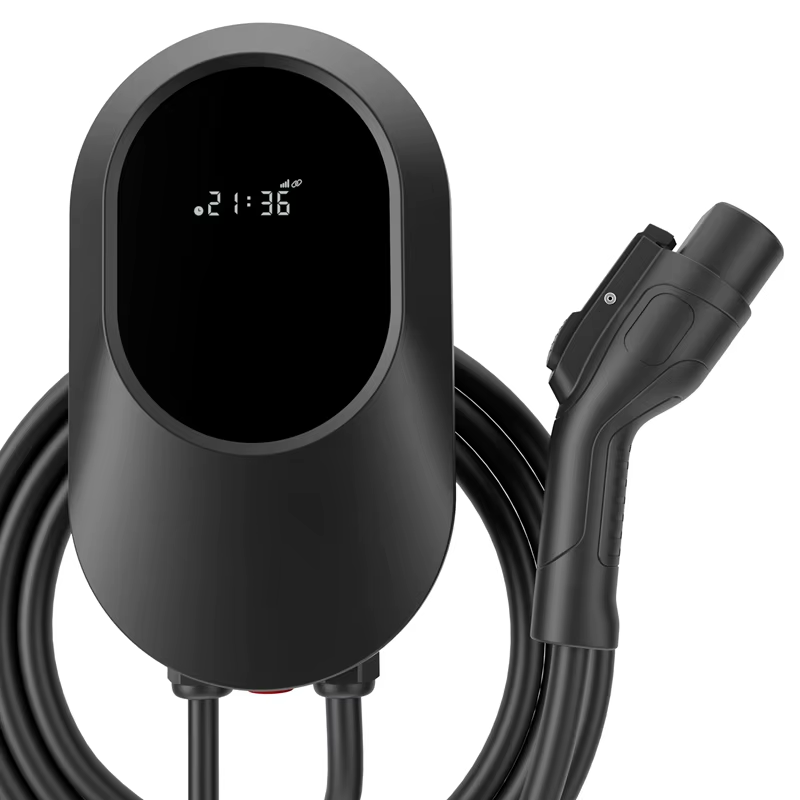

22KW Wallbox EV Charging Station

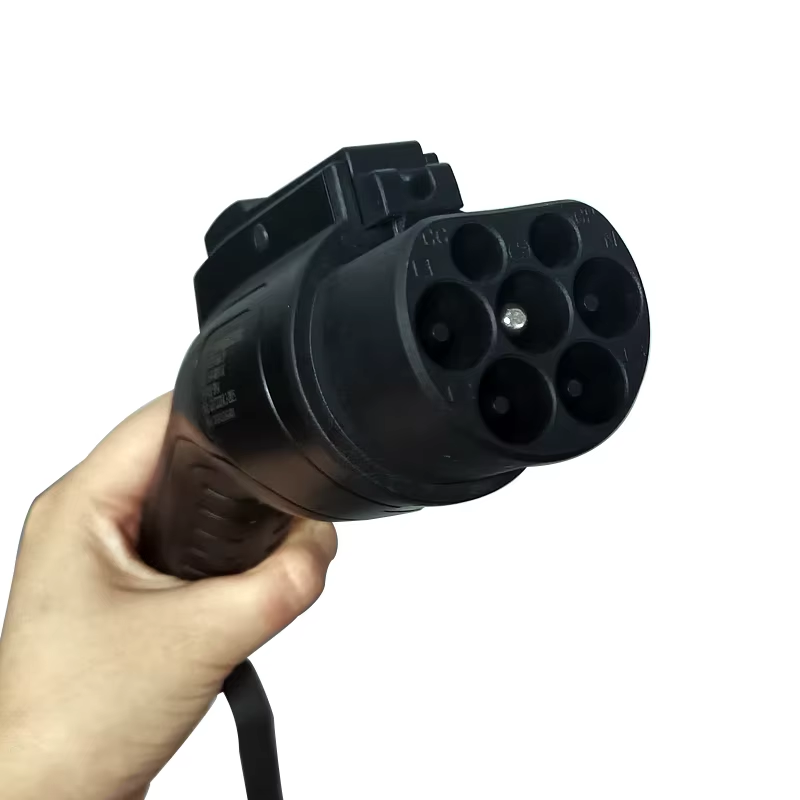

The 22kW Wallbox EV Charging Station is a high-performance, smart charging solution designed for both residential and commercial electric vehicle charging. With a robust 3-phase input (380~415Vac, 32A max), this wallbox delivers up to 22kW of fast, reliable power—ideal for all IEC 62196-2 (Type 2), GBT, and Tesla-compatible EVs. The 22kW Wallbox EV Charging Station is engineered for seamless integration into any garage, parking lot, or commercial space, providing maximum efficiency and convenience.

Equipped with a 2.5″ LED display and intuitive LED indicators, the 22kW Wallbox EV Charging Station offers real-time charging status and easy operation. User authentication is flexible, supporting both RFID cards (ISO/IEC 14443 A/B) and app-based control. The integrated energy meter chip (MID optional) ensures accurate tracking of your energy consumption.

Smart connectivity is built-in, with LAN and Wi-Fi as standard and optional 3G/4G (SIM card) for remote management. The station supports OCPP 1.6 for seamless integration with commercial charging networks and backend systems. The free ChargeMAX app (iOS/Android) enables smart charging, scheduling, shared access, and detailed charging reports for home users.

Safety is paramount, with comprehensive protection features including over-voltage, over-current, over-temperature, under-voltage, surge, grounding, short-circuit, control pilot fault, relay welding detection, and residual current protection (RCD). The IP54/IK08-rated enclosure ensures durability and weather resistance, while the 6-meter standard cable provides installation flexibility.

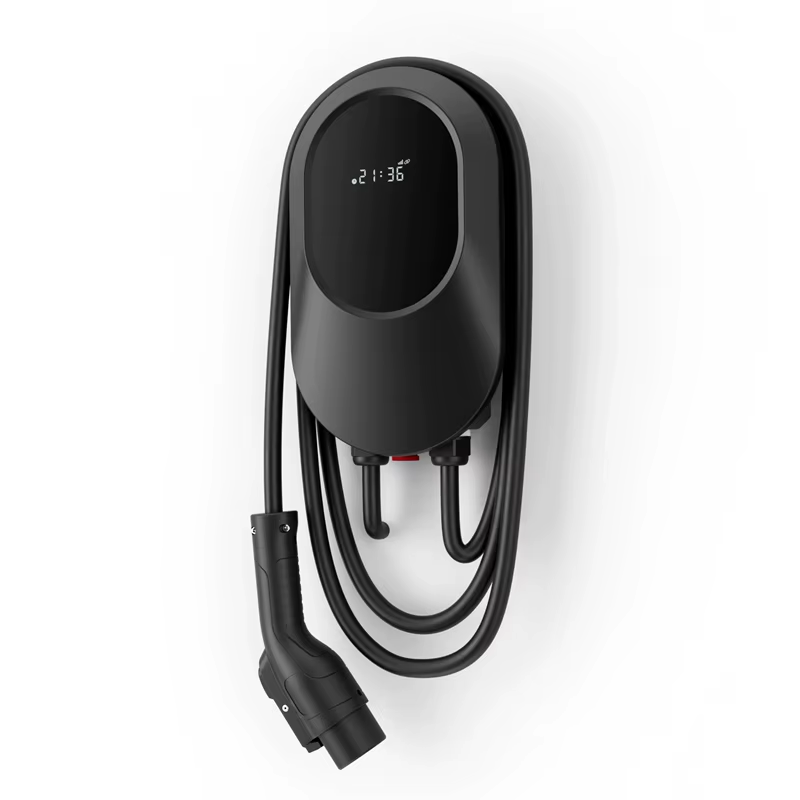

Installation is simple, with wall-mount or pedestal options available. The compact design (190×320×90mm, 4.85kg) fits easily in garages, parking lots, and commercial spaces. OEM/ODM customization is supported for color, logo, cable length, and packaging.
