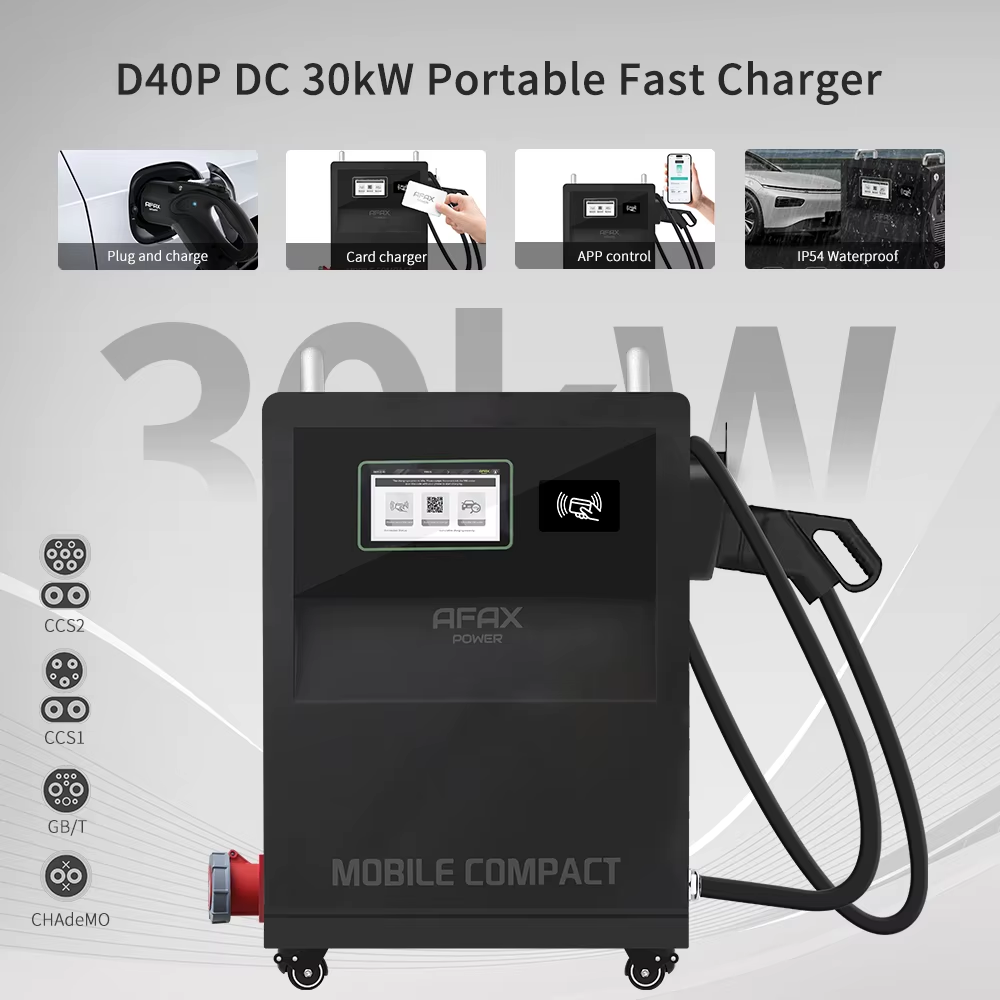

30KW/40KW Portable DC Fast EV Charging Station

SEO Title
30kW/40kW Portable DC Fast EV Charging Station | CCS, Mobile, IP54, OCPP Optional

Product Description

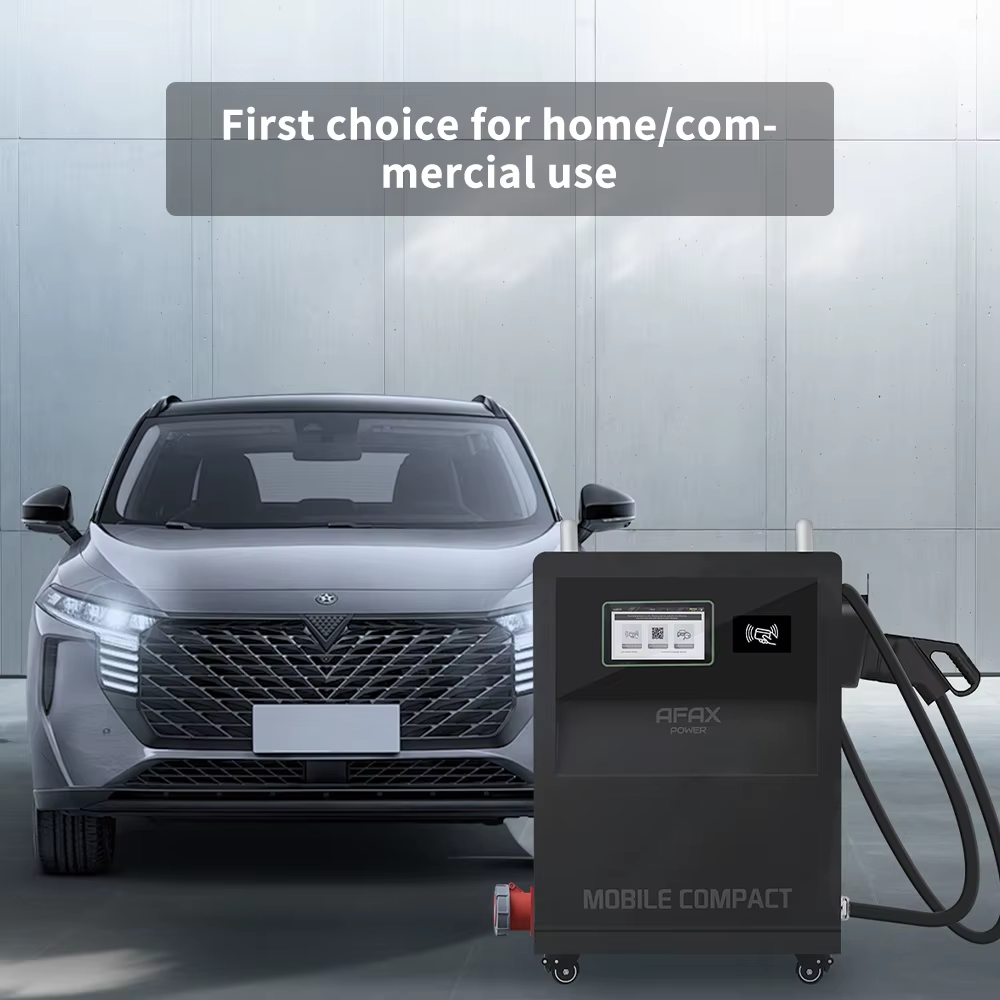

The 30kW/40kW Portable DC Fast EV Charging Station is a state-of-the-art solution for rapid electric vehicle charging in both home and commercial environments. Featuring unique patented technology, this portable DC fast EV charging station ensures efficient heat dissipation, enhanced stability, and a modern, robust design. With CCS/CHAdeMO/GB/T compatibility, it delivers high-speed charging at .5-2C, balancing fast charging with battery longevity.

Engineered for versatility, the 30kW/40kW Portable DC Fast EV Charging Station supports wall-mounted or column-supported installation, making it ideal for garages, parking lots, fleet operations, and temporary charging needs. The IP54 protection grade guarantees resistance to water, dust, and fire, ensuring reliable performance in outdoor and demanding environments.

Safety is paramount, with comprehensive protection features including overvoltage, undervoltage, overload, short circuit, leakage, and battery protection. The charger is easy to install and move, providing flexibility for a wide range of applications.

For advanced management, the OCPP configuration (optional) enables card swiping, password protection, scheduled charging, and mobile software control, empowering users with smart charging and remote access.

Technical Specifications

• Output Power: 30kW / 40kW

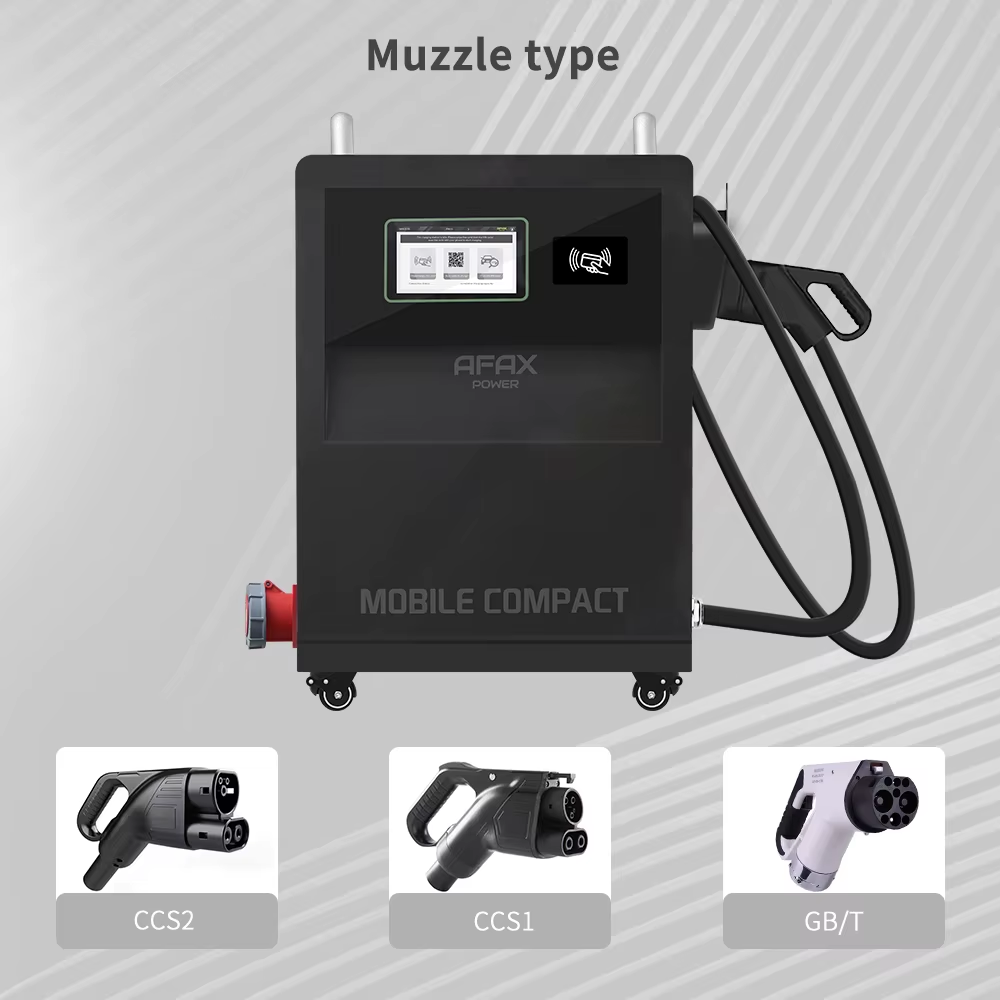

• Charging Standard: CCS/CHAdeMO/GB/T
• Output Current: -80A, -100A (adjustable)
• Voltage: 200V-500V AC
• Operating Temperature: -40°C to +75°C

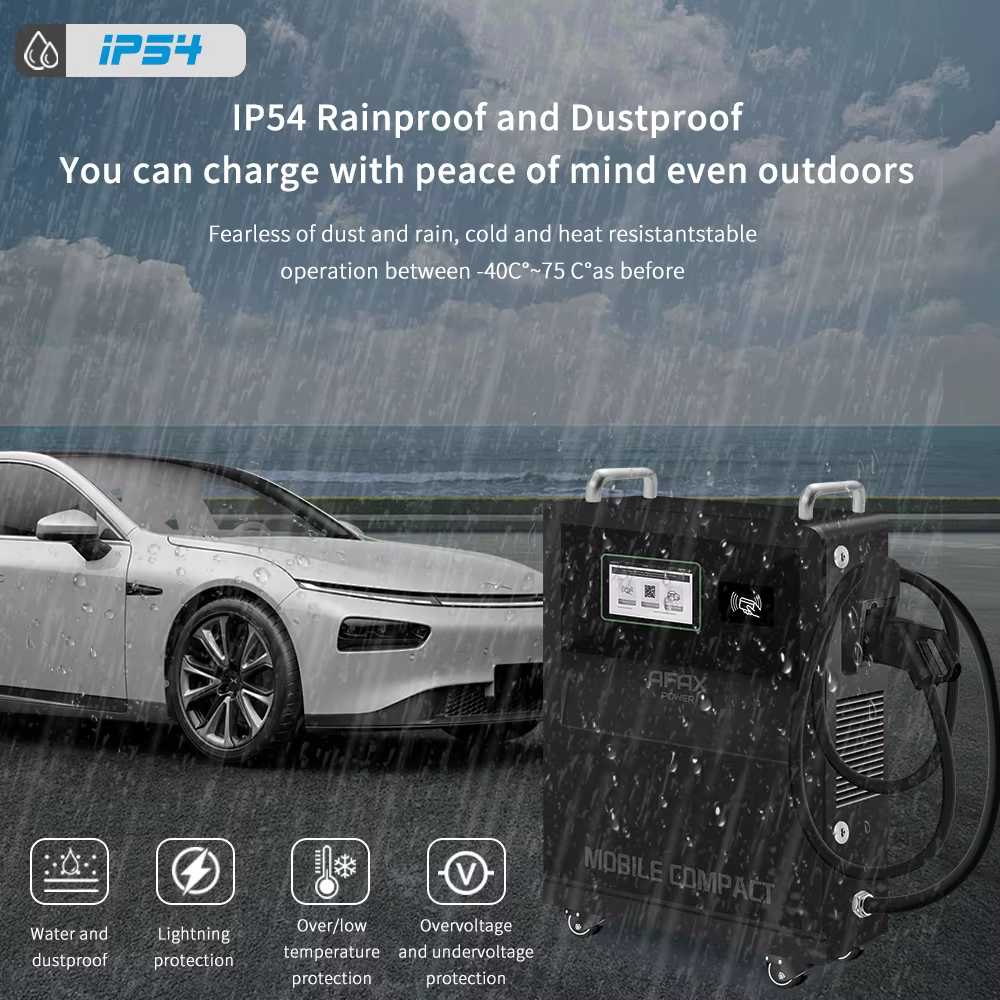

• Protection Grade: IP54 (waterproof, dustproof, flame retardant)
• Overcharge Protection: Yes
• Sum Line Length: 5m
• Color: Elegant automotive white
• Warranty: 24 months
• Max Efficiency: ≥ 95%
• Dimensions (W×H×D): 590mm × 117mm × 390mm
• Product Model: D48P

Package Includes

• 1 × 30kW or 40kW Portable DC Fast EV Charging Station
• 1 × CCS Charging Cable
• 1 × User Manual
• Mounting Accessories (for wall or column installation)
