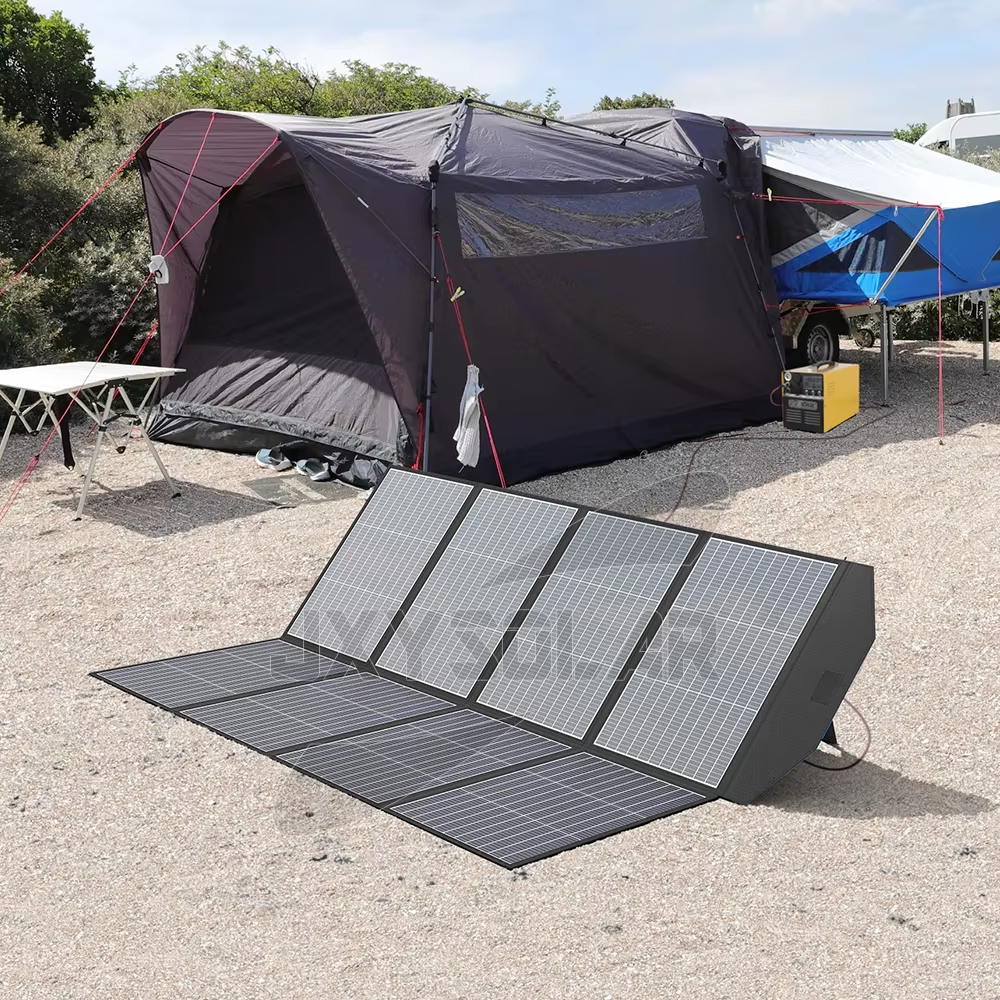

The 500W Foldable Solar Panel, 36V Portable Blanket is the ultimate solution for high-output, portable solar power on the go. Engineered with advanced N-Type monocrystalline silicon cells, this foldable solar panel achieves an impressive 25% cell efficiency, ensuring maximum energy generation in a compact, lightweight design. Whether you’re camping, traveling in an RV, or preparing for emergencies, this portable solar blanket delivers reliable, clean energy wherever you need it.

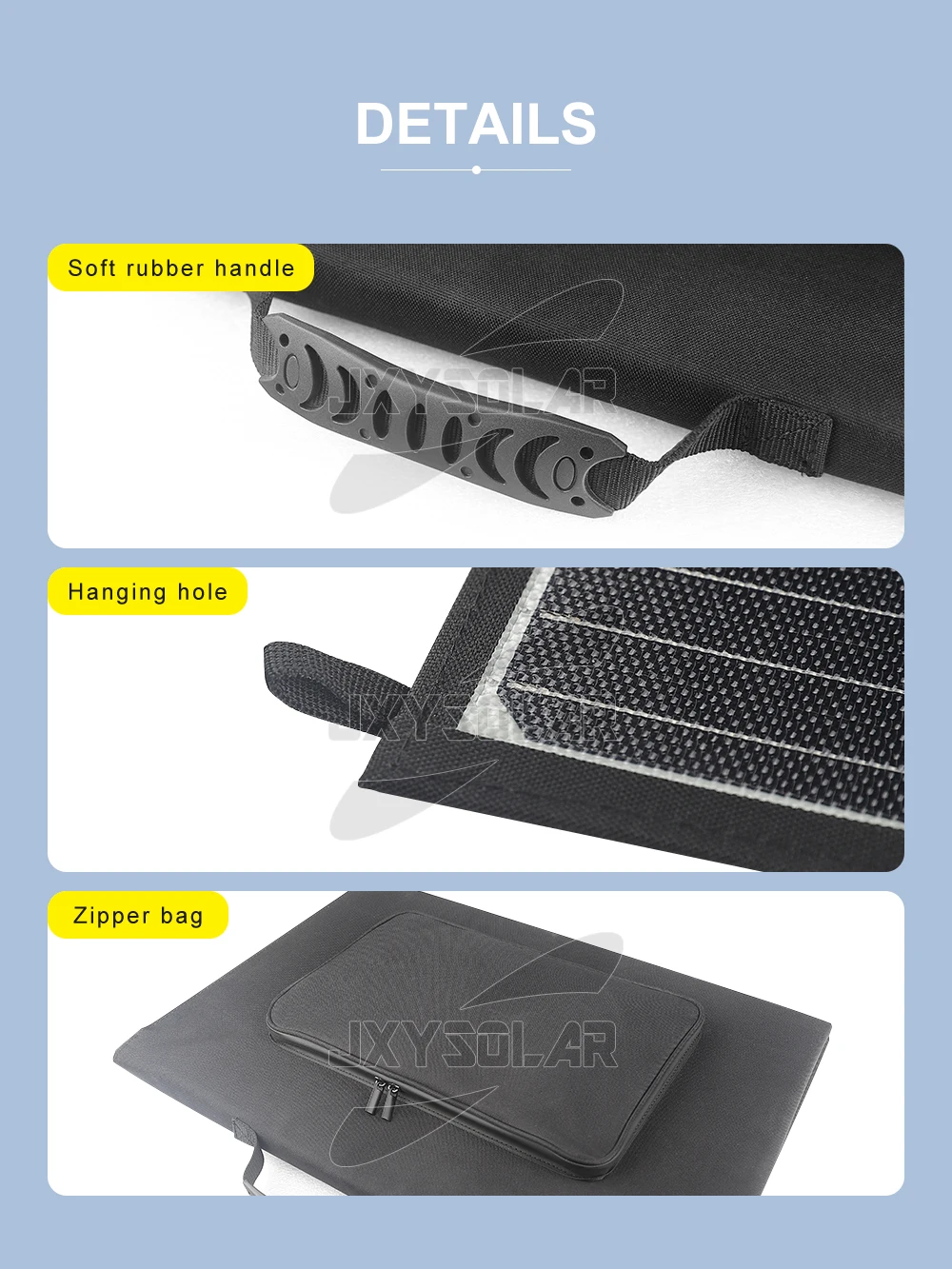

Designed for versatility and convenience, the 500W Foldable Solar Panel features a robust yet lightweight construction, weighing only 10.5 kg. When fully extended, it measures 267 × 1345 × 15 mm, providing a large surface area for optimal sunlight capture. When folded, it compacts to just 675 × 465 × 65 mm, making it easy to transport and store. The panel is equipped with 2-meter photovoltaic cables and an XT60 male connector, plus a range of adapter accessories (XT60 female to Anderson, MC4, GX16, DC5521, DC7909, DC802), ensuring compatibility with a wide variety of power stations, batteries, and devices.
With a maximum power output of 500W and a voltage of 36V, this foldable solar panel is ideal for charging high-capacity batteries, running portable appliances, or supporting off-grid power needs. It operates efficiently in extreme temperatures from -40℃ to 85℃, and its durable construction ensures long-lasting performance in any environment.
The 500W Foldable Solar Panel, 36V Portable Blanket is perfect for outdoor enthusiasts, emergency preparedness, and anyone seeking a flexible, high-efficiency solar solution. For installation tips, compatible accessories, and more portable solar options, visit our Solar Panel Installation Guide and Solar Accessories Collection. Explore our full range of Portable Solar Panels for the best in mobile energy solutions.

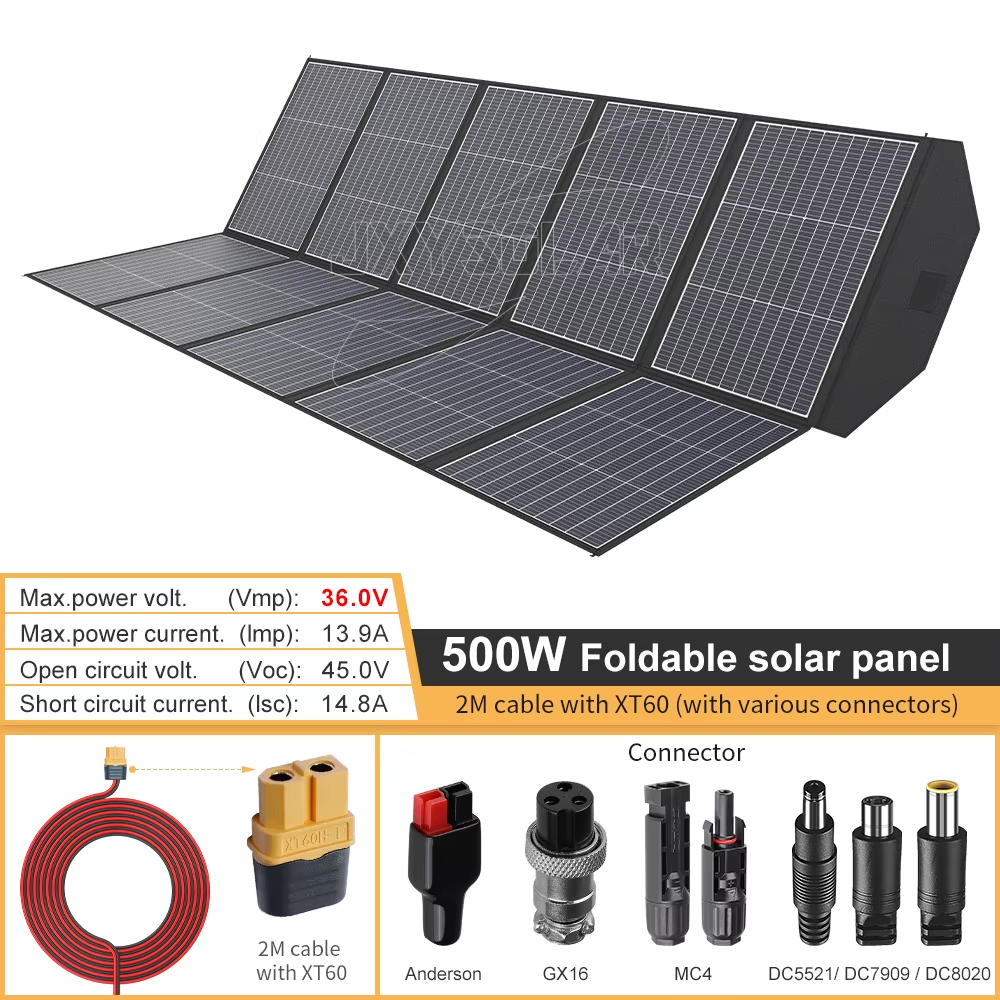

Electrical Characteristics
| Item | Value |
|---|---|
| Model | JXY-FR500M |
| Maximum Power (Pmax) | 500W |
| Maximum Power Voltage (Vmp) | 36.0V |
| Open-circuit Voltage (Voc) | 45.0V |
| Maximum Power Current (Imp) | 13.9A |
| Short-circuit Current (Isc) | 14.8A |
| Cells Efficiency | 25% |
| Operating Temperature | -40℃ ~ 85℃ |
| Nominal Module Operating Temperature (NOMT) | 41±2℃ |
| Temperature Coefficient of Pmax | -0.32% / ℃ |
| Temperature Coefficient of Voc | -0.26% / ℃ |
| Temperature Coefficient of Isc | +0.046% / ℃ |
| STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5. Tolerances of Pmax, Voc and Isc are within ±5% |

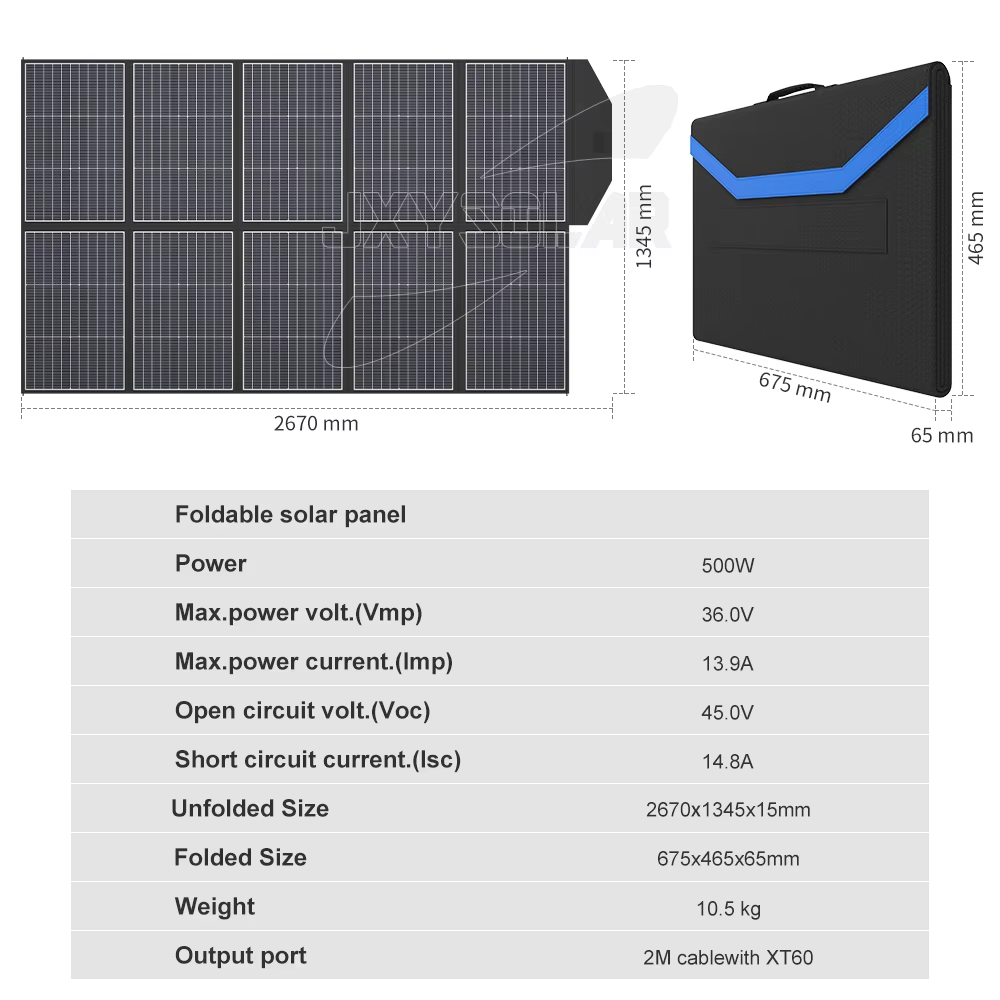

Mechanical Characteristics
| Item | Value |
|---|---|

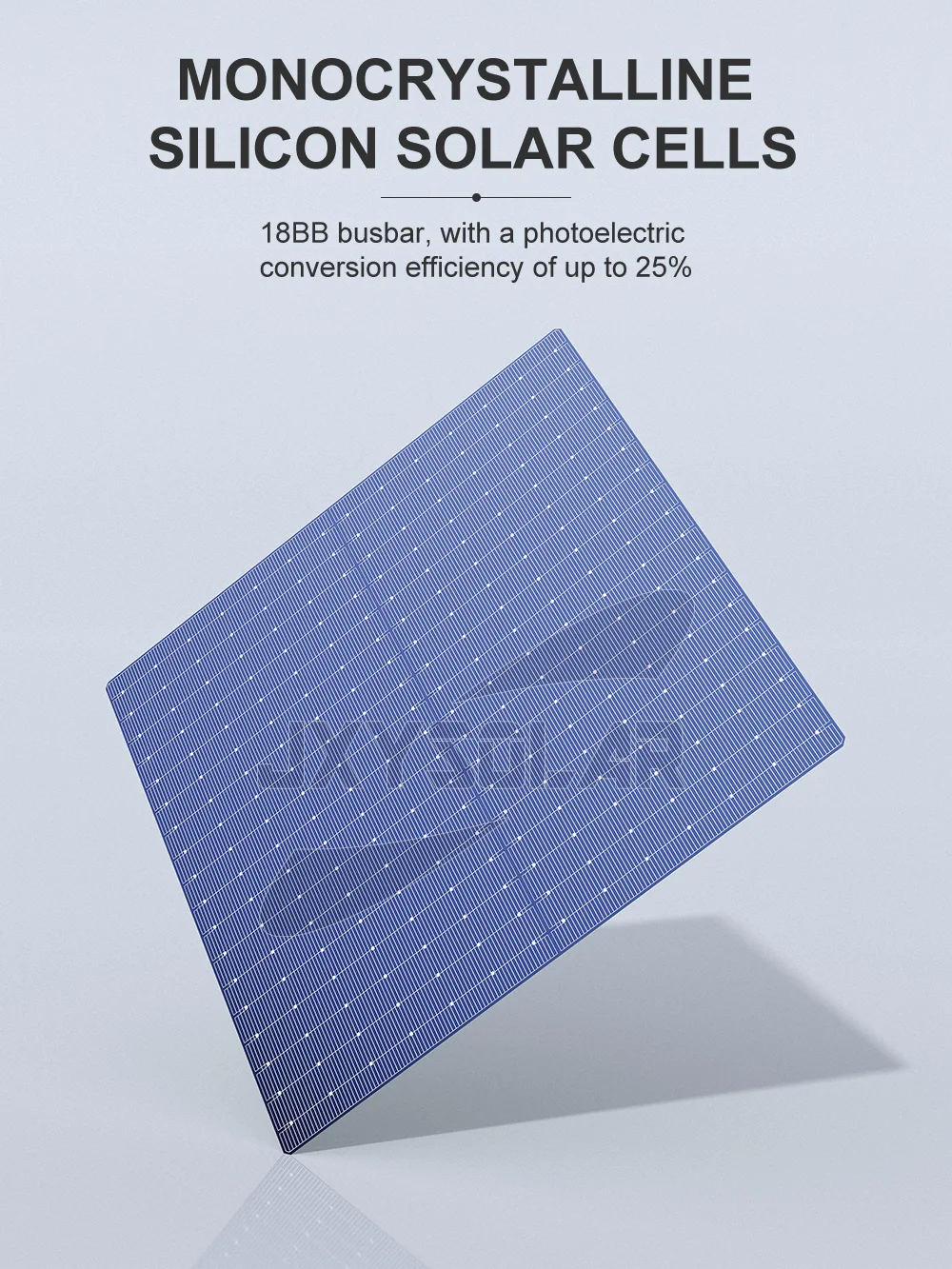

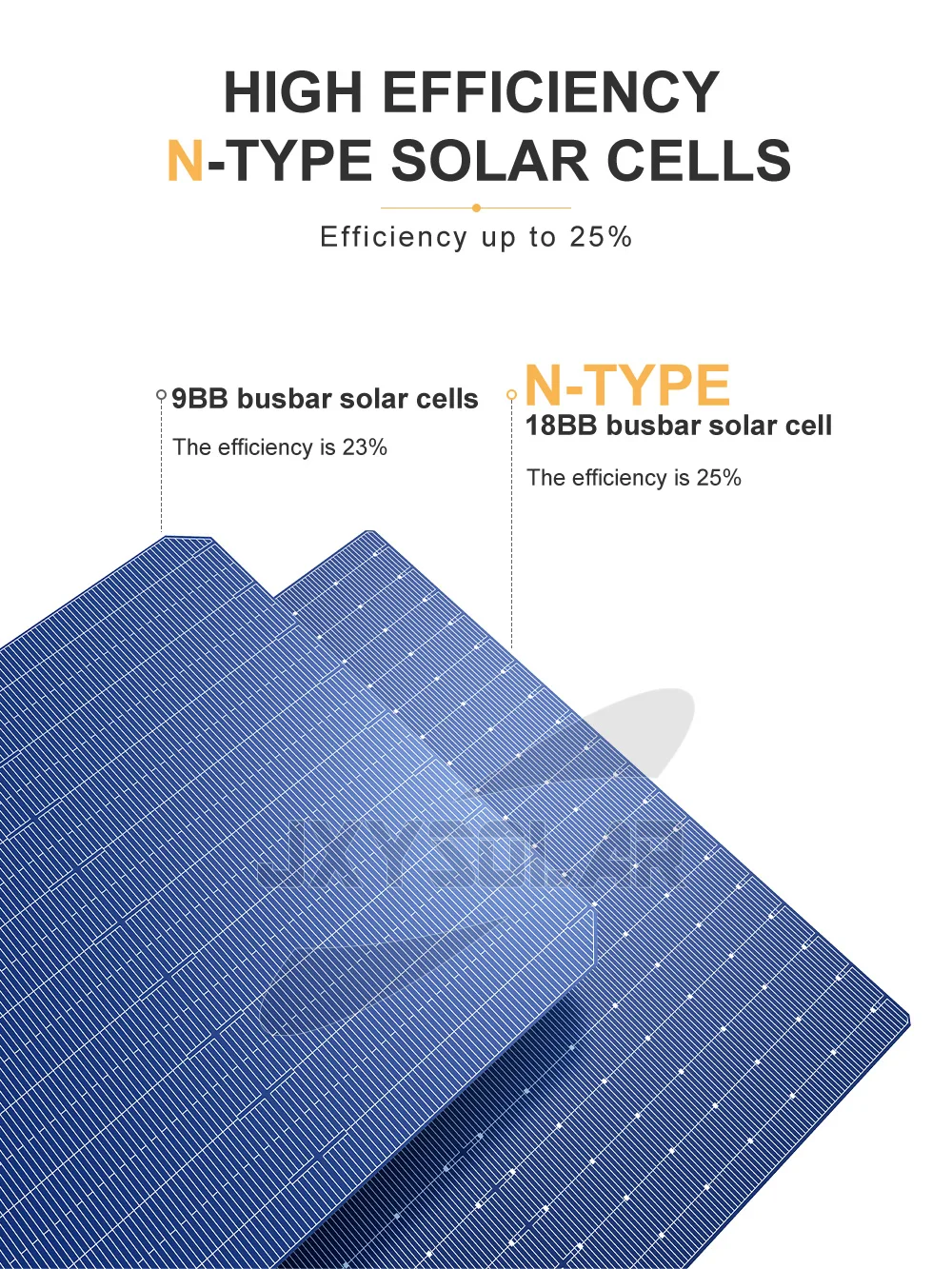

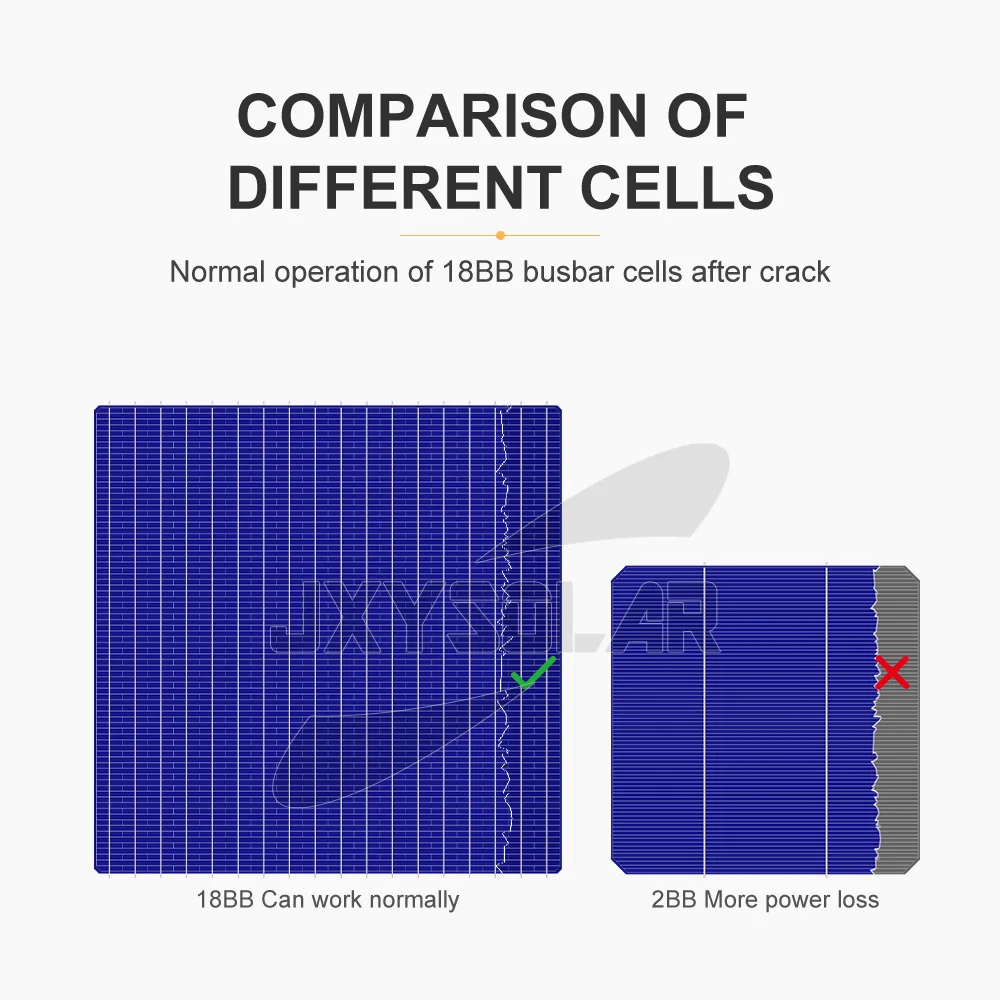

| Solar Cell | N-Type Monocrystalline Silicon Cells (210mm × 35mm) |
| Number of Cells | 330 (10×33) |

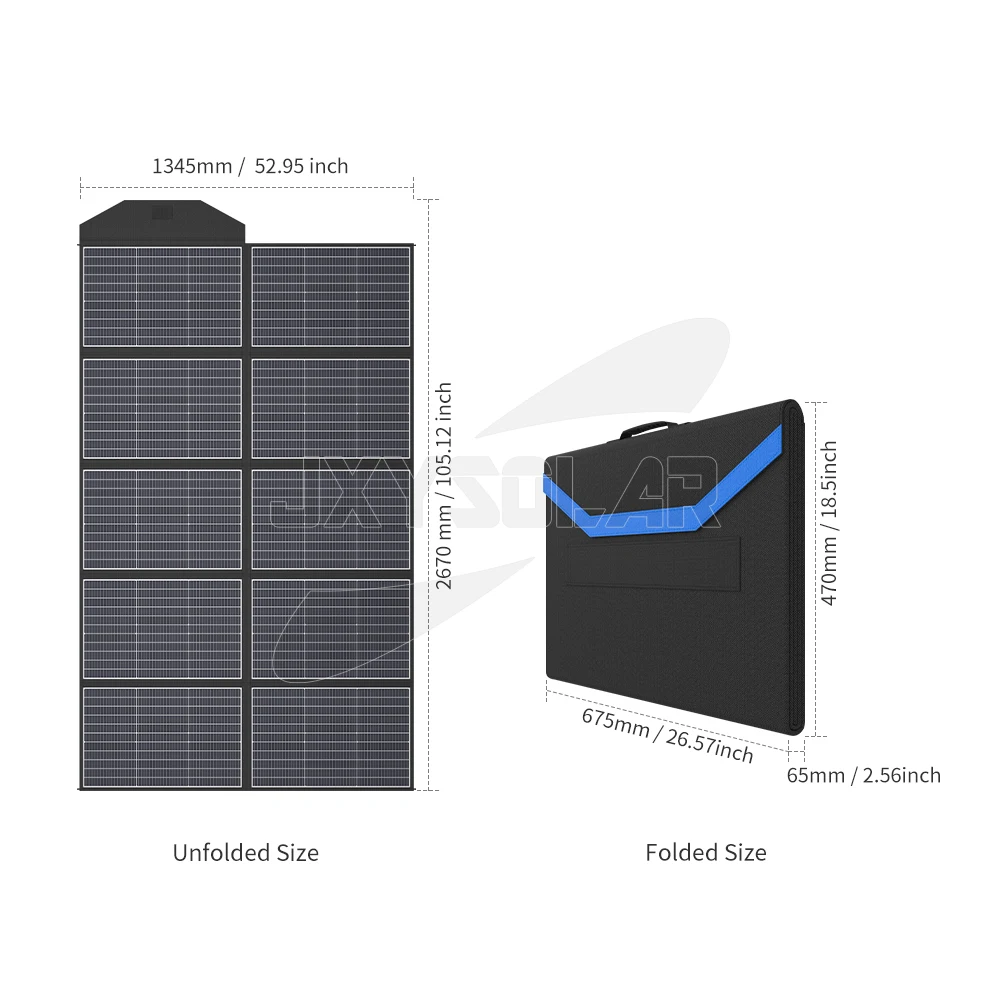

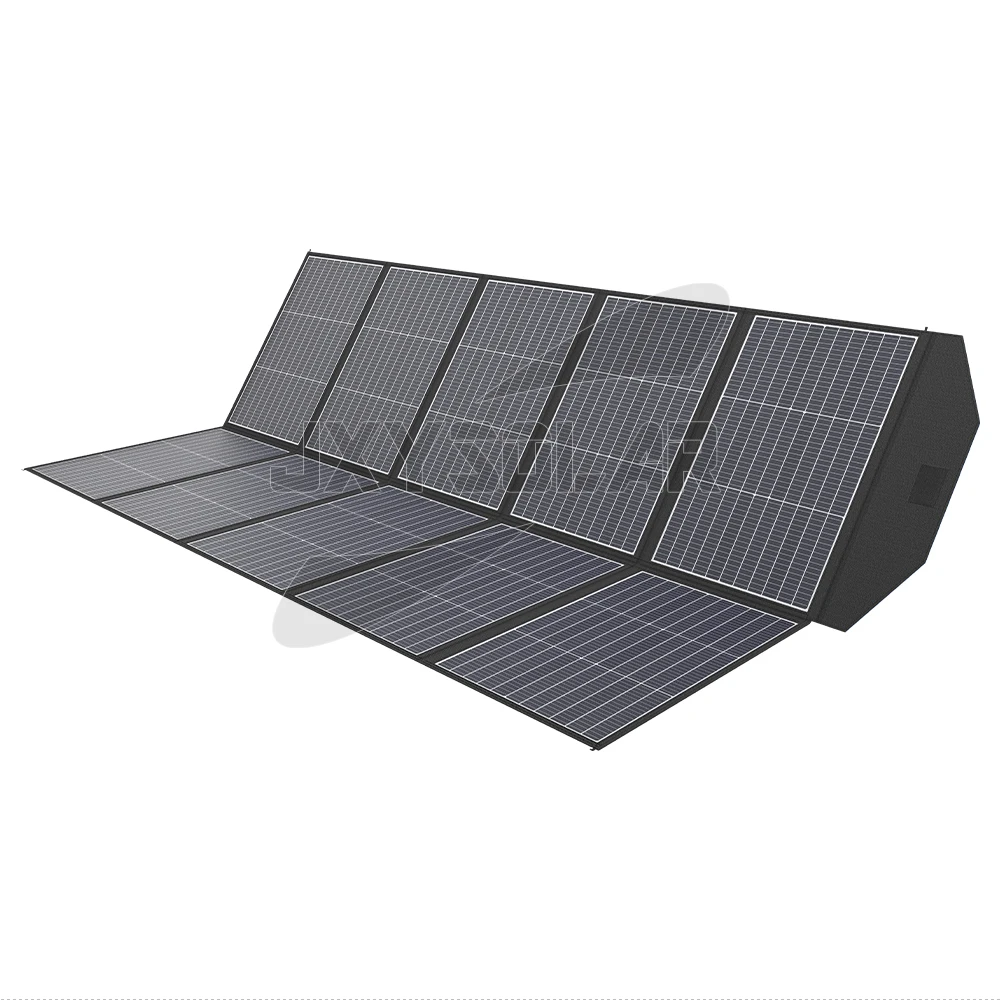

| Extending Size | 2670 × 1345 × 15 mm |

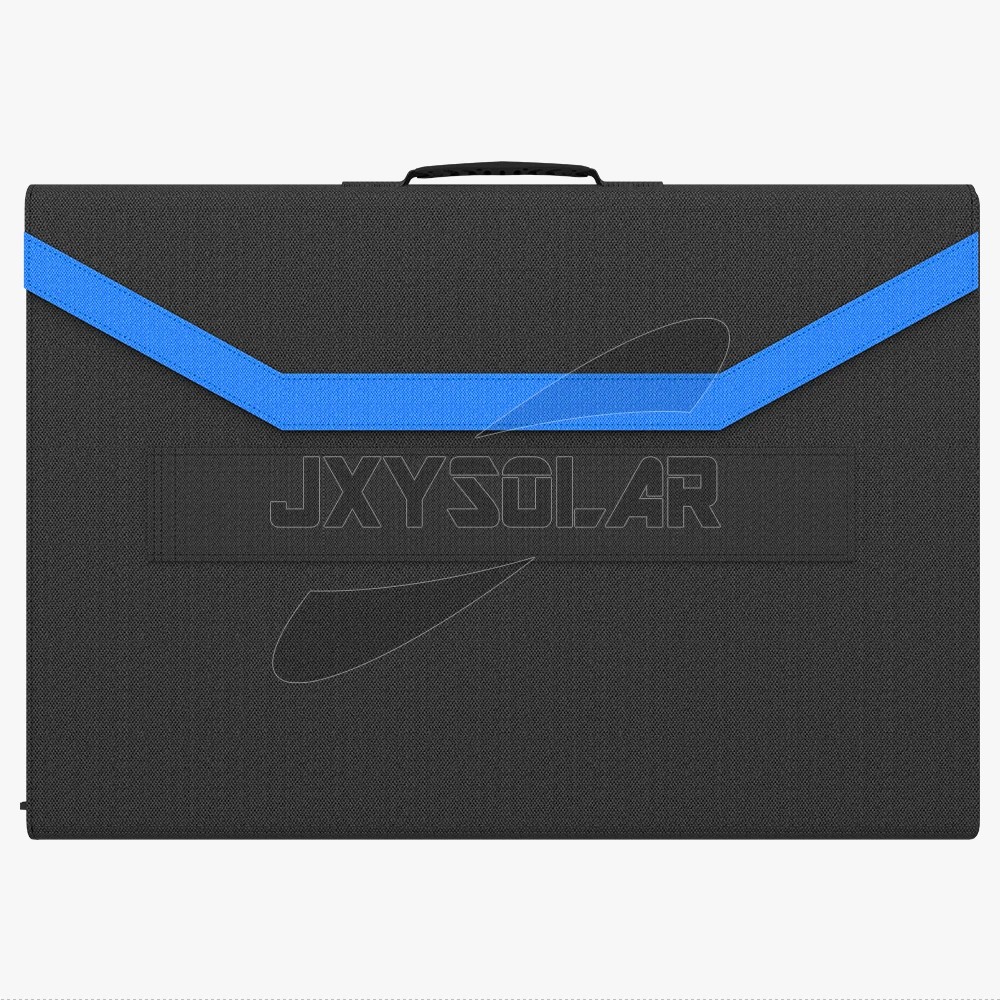

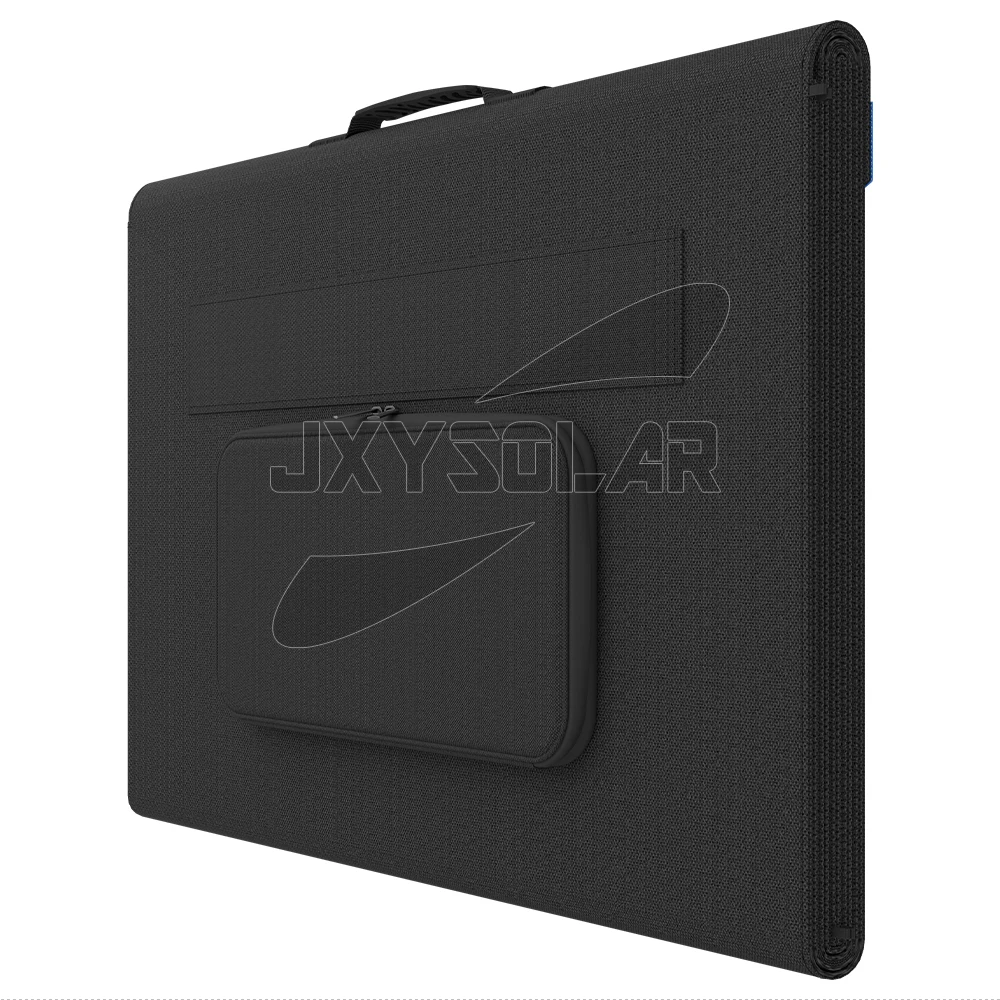

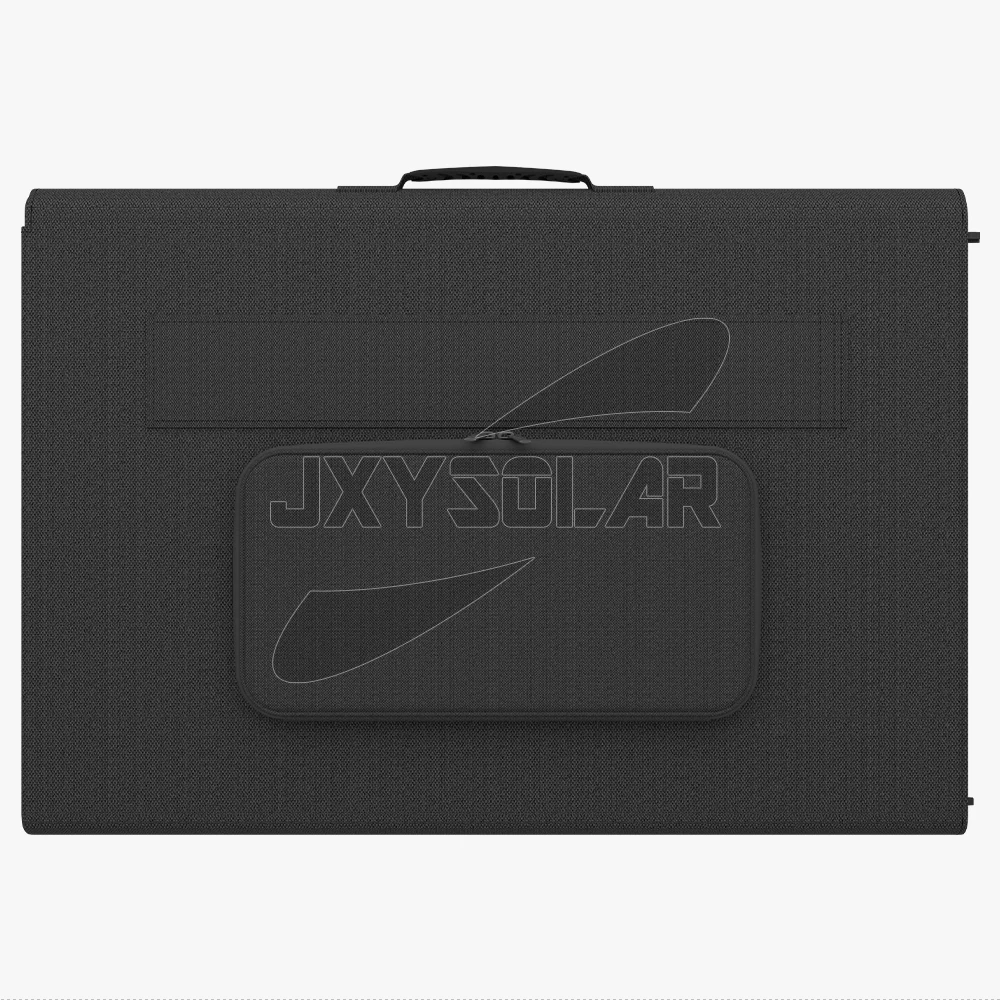

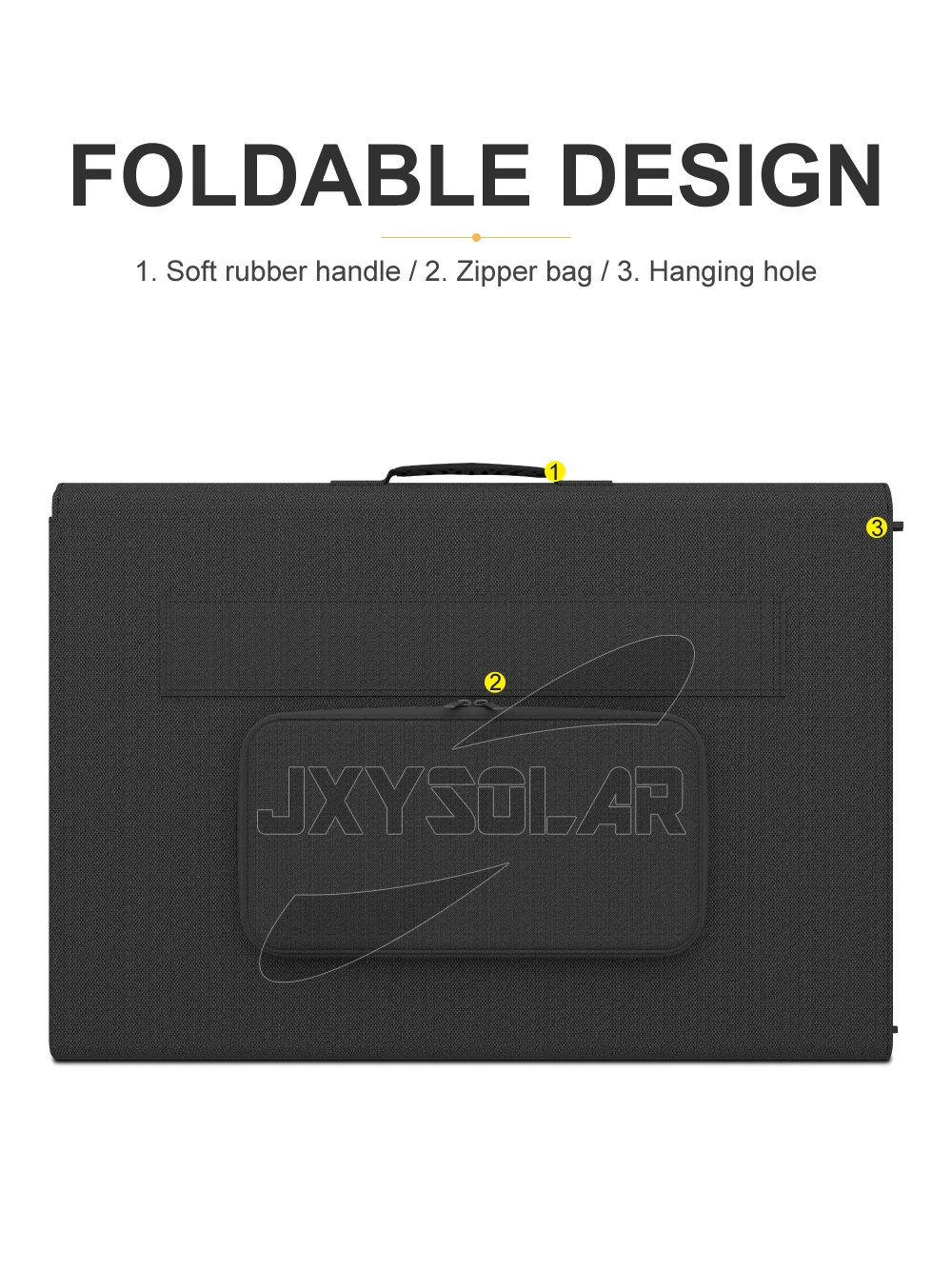

| Folding Size | 675 × 465 × 65 mm |
| Weight | 10.5 kg |

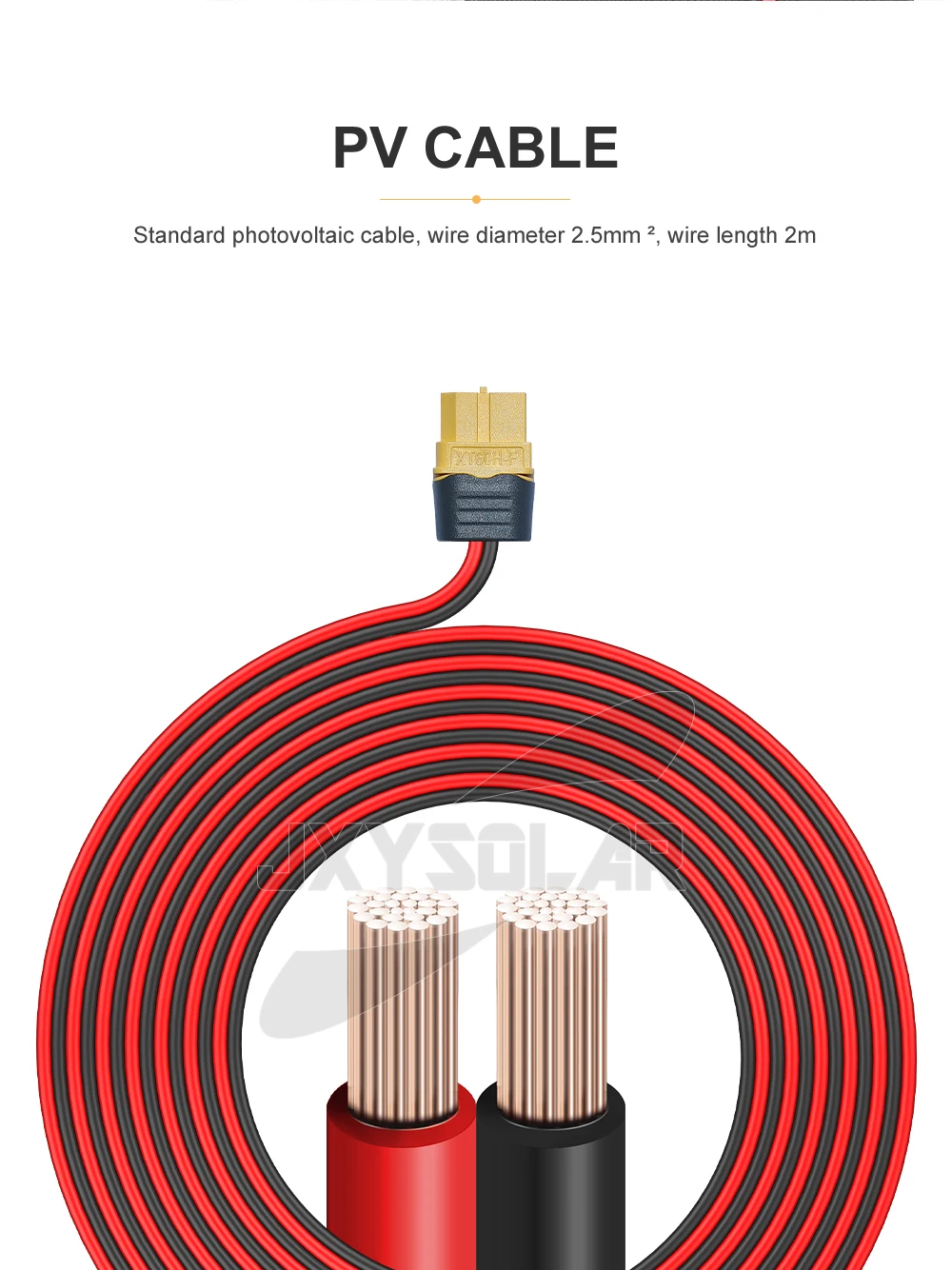

| Output Cables | 2.0M, 2.5mm² Photovoltaic Cable + XT60 Male Connector |

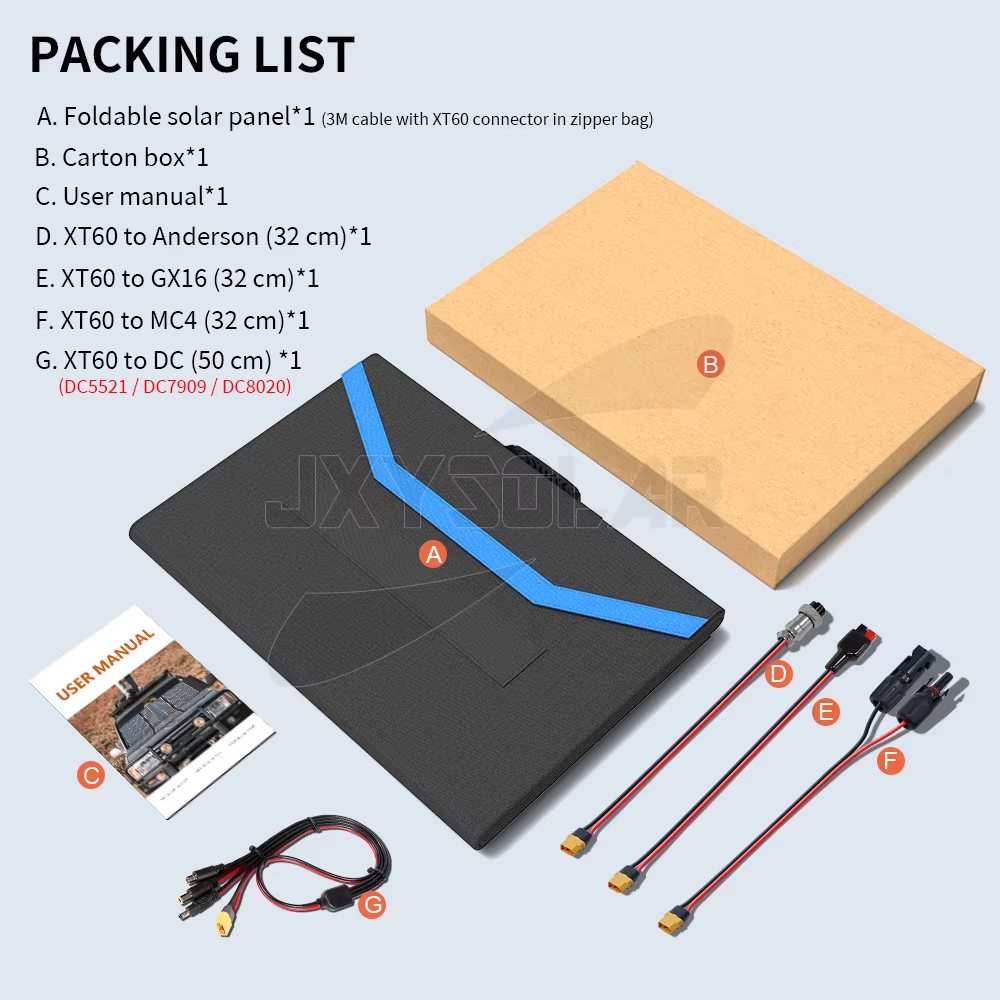

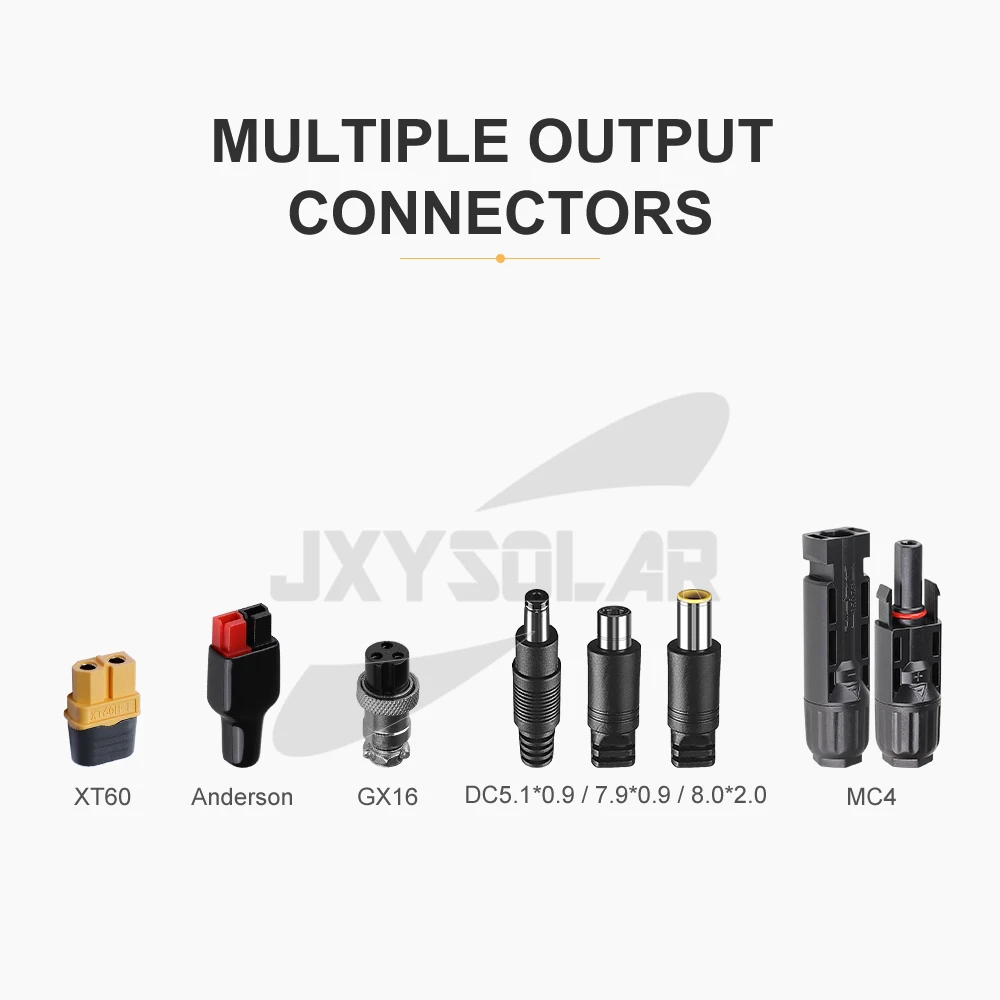

| Connector Accessories | XT60 Female to Anderson/MC4/GX16/DC5521/DC7909/DC8020 |
