The 7kW Wallbox EV Charging Station is a state-of-the-art solution for fast, reliable, and safe electric vehicle charging at home or in commercial environments. This 7kW Wallbox EV Charging Station features a robust single-phase 32A input/output, delivering up to 7kW of charging power through a Type 2 (IEC 62196-2) connector. With a choice of 5m or 7m cable lengths, the 7kW Wallbox EV Charging Station is designed for maximum flexibility and convenience.
Smart connectivity is at your fingertips with Bluetooth, Wi-Fi, and optional 4G, allowing for remote diagnostics, scheduled charging, and real-time monitoring via app or RFID card. The intuitive LED status indicators and adjustable brightness make operation simple in any environment. The 7kW Wallbox EV Charging Station supports plug & charge, RFID, and app-based startup modes, ensuring seamless integration into your daily routine.
Safety is paramount, with 10-layer electrical protection including over-temperature, over-current, under-voltage, over-voltage, leakage, surge, grounding, short-circuit, lightning, and CP fault protection. The enclosure is rated IP65 (cable) and IK10 for impact resistance, while the flame-retardant housing (UL94-V) and aluminum backplate guarantee durability and efficient heat dissipation. Certified to EN.IEC 61851-1:2019, CE, and RoHS standards, this charger is built for long-term reliability.
Installation is quick and easy, with wall or pole mounting options and a quick-installation system to reduce labor costs. The 7kW Wallbox EV Charging Station is ideal for residential, commercial, and public charging applications, offering sustainable and recyclable materials for a greener future.
For installation guides, technical support, and compatible accessories, visit our EV Charging Installation Guide and EV Accessories Collection. Explore more smart charging solutions in our EV Charger Range.
Vela series AC Wallbox Type 2 | |
Electrical Properties | |
Charging mode | Mode 3 |
Charging capacity | 7kW/11kW/22kW |
Input/Output current | Single phase up to 7kW/32A, Three phase 11kW/16A or 22kW/32A |
Input/Output voltage | 230V±15%, single phase; 400V±15%, three phase; 50Hz |
Connector type | IEC 62196-2 ed.1.0 Type 2 |
Number of connector | 1 |
Cable length | 5m, 7m(optional) |
Communication | |
Connectivity | Bluetooth, Wi-Fi, 4G(optional) |
Interaction | |
Startup mode | Plug&Charge / RFID card / App |
Status indicator | LED(Green/Red/Blue) |
Safety | |
Enclosure rating | IP55(socket)/IP65(cable) |
Flameretardant rating | UL94-V0 |
Compressive strength | IK10 |
Electrical protection | Over temperature, overcurrent, over/under voltage, leakage, surge, grounding, shortcircuit,lightning protection, CP fault protection |
Residual operating current | Type A+DC 6mA |
Safety standard | EN.IEC 61851-1:2019 |
Certification | CE, RoHS |
Environment parameters | |
Mounting | Wall/Pole |
Operating temperature | -25°C~+50°C |
Storage temperature | -30°C~+70°C |
Operating humidity | 5%~95%, non-condensation |
Operating altitude | ≤2000m |
Physical properties | |
Housing | PC |
Net weight | 2.1KG(socket) / 7kW:3.6KG(cable), 11kW / 22kW:5.7KG(cable) |
Gross weight | 3.4KG(socket) / 7kW:4.9KG(cable), 11kW / 22kW:7KG (cable) |
Product demension | W187mm*D130mm*H336mm |
Package demension | W525mm*D390mm*H170mm |
Color | Pearl White/Starry Black/Glacier Gray |
Package | Carton |
Vela series AC Wallbox Type 2 |
Smart & Efficient EV Charger | Safe, Durable, and Easy to Install |
uD83DuDE97High-Performance EV Charging Solution |
Designed for modern energy users, our charger combines cutting-edgesmart technologywithrobust safety features, delivering a fast, reliable, and hassle-free charging experience. |
✅Superior Safety & Protection |
RoHS, UL compliant materials |
IP65, IK10, UL94-V0 protection rating |
10-layer electrical protection(Over-temp, Over-current, Under-voltage, Over-voltage, Leakage, Surge, Grounding, Short-circuit, Lightning, CP fault) |
Real-time temperature monitoringwith advanced heat management |
✅Smart & User-Friendly Features |
Simple & intuitive UIwith LED indicators |
Adjustable brightnessfor different environments |
Scheduled chargingfor convenience |
Remote diagnostics & maintenancevia OTA updates |
Bluetooth, Wi-Fi, 4G (optional), Ethernet (optional) |
✅Flexible Installation & Durable Design |

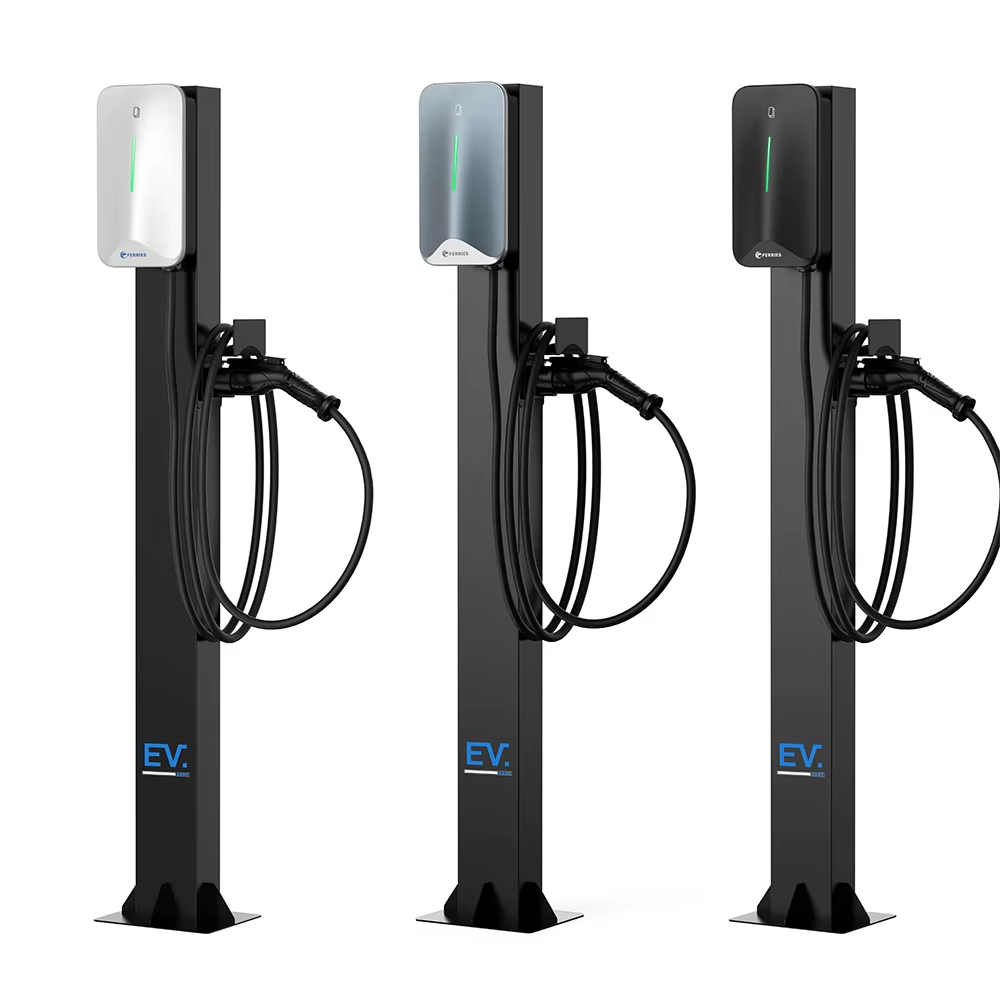

Wall-mounted & pedestal-compatible |
Multiple cable entry options |
Aluminum backplate with efficient heat dissipation |
Quick-installation systemfor reduced labor costs |
Sustainable & recyclable materials |
✅Wide Temperature Adaptability |
Operating temperature:-25℃ to +50℃ |
Storage temperature:-30℃ to +70℃ |
uD83DuDE80Designed for Efficiency, Built for the Future |
Ideal forresidential, commercial, and public charging applications, ensuring seamless integration into diverse environments. |
