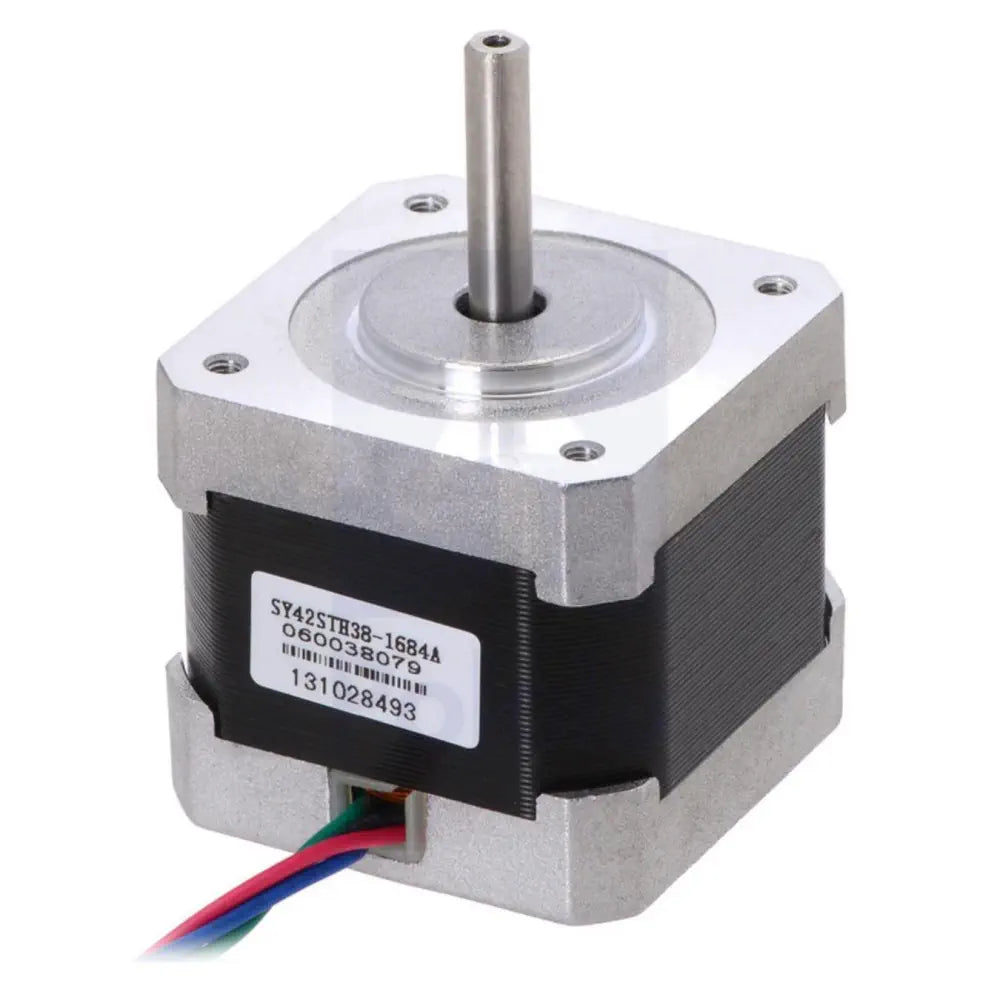

Bipolar Stepper Motor 200 Steps/Rev, 42X38Mm, 2.8V, 1.7 A/Phase

• Bipolar Stepper Motor 200 Steps/Rev, 42 x 38mm, 2.8V, 1.7 A/Phase
• Offers 1.8° step angle
• Comes with four color-coded wires
• RoHS 3 compliant
• Voltage rating: 2.8 V
• Steps per revolution: 200

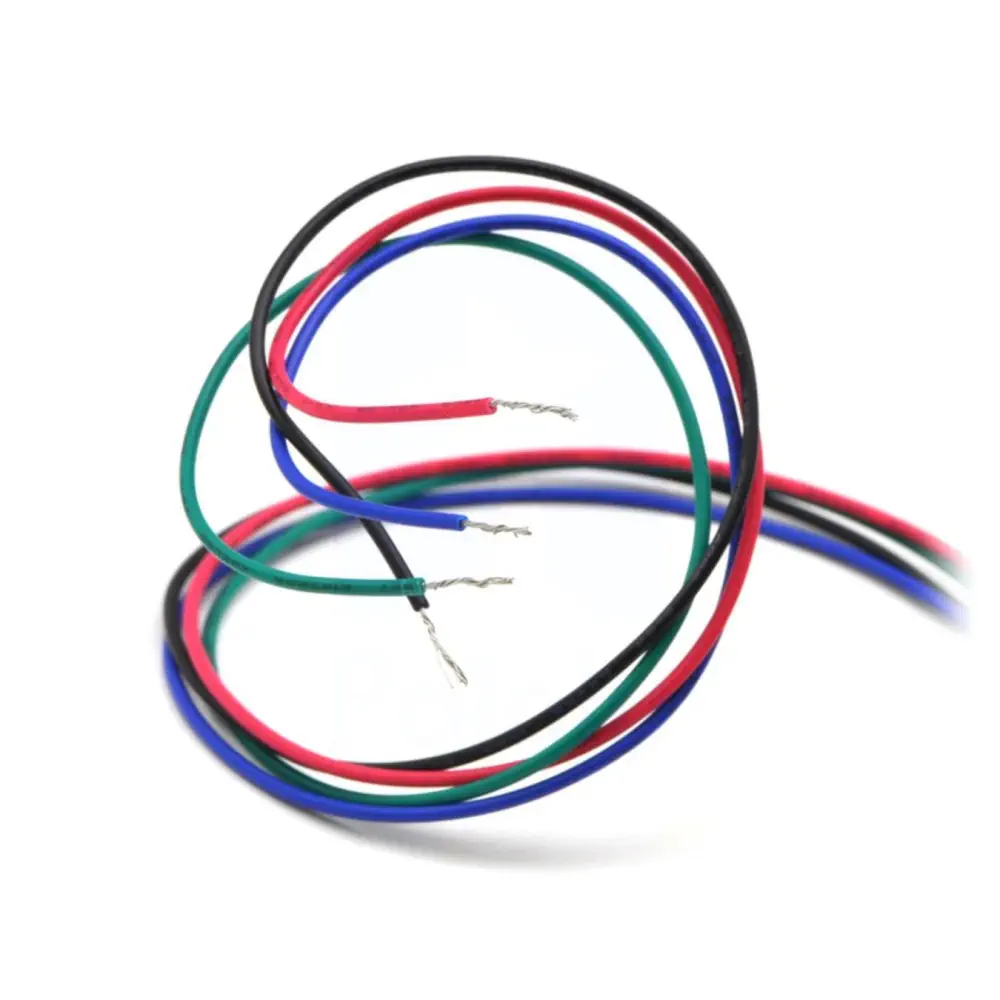

The Bipolar Stepper Motor 200 Steps/Rev, 42 x 38mm, 2.8V, 1.7 A/Phase offers a 1.8° step angle (200 steps/revolution). Each phase draws 1.7 A at 2.8 V, allowing for a holding torque of 3.7 kg-cm (51 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil, red and blue connect to the other.

• 1x Bipolar Stepper Motor 200 Steps/Rev, 42 x 38mm, 2.8V, 1.7 A/Phase

Size

• 42.3 x 38 mm
• NEMA Size: 17
• Shaft Diameter: 5 mm
• Shaft type: 5 mm D
• Lead length: 30 cm

• Shaft Shape: “D”
• Current rating: 1680 mA
• Voltage rating: 2.8 V
• Holding torque: 51 oz.in
• Steps per revolution: 200
• Resistance: 1.65 Ohm
• Inductance per phase: 3.2 mH
• Number of leads: 4
• Weight: 285 g
