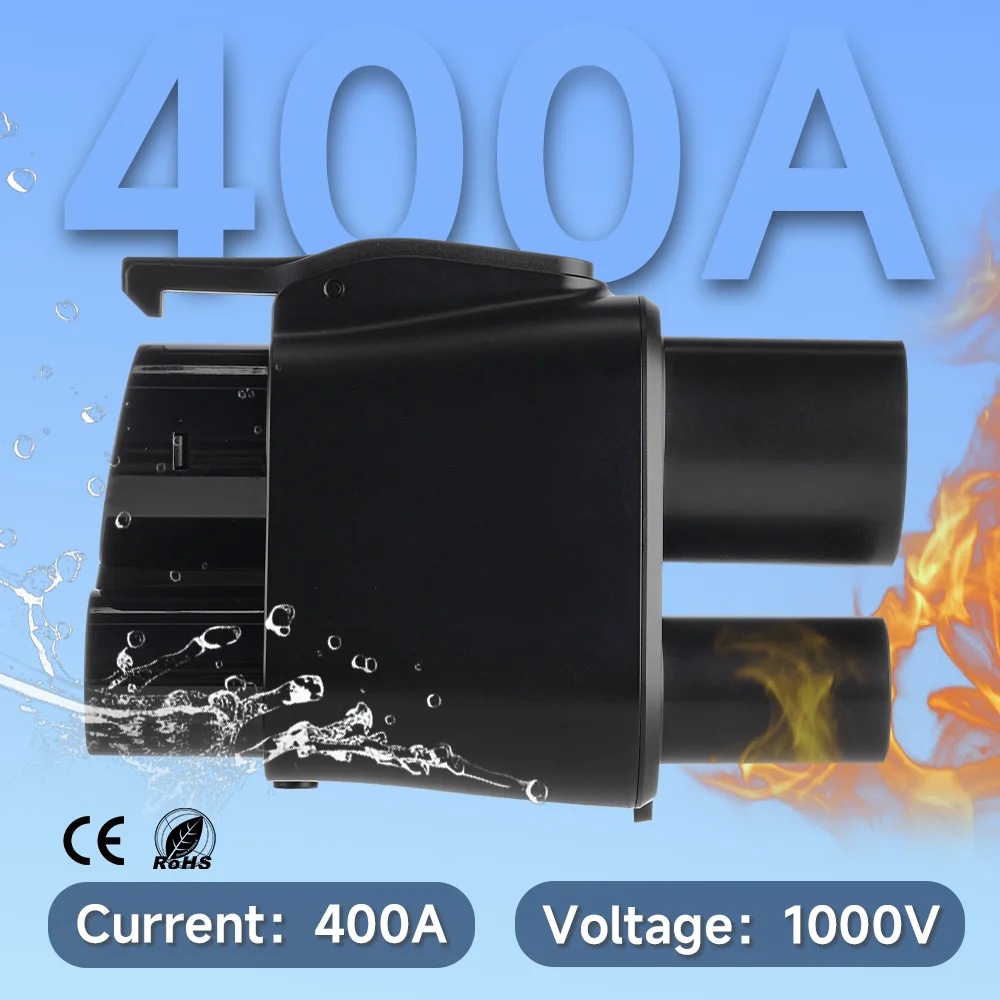

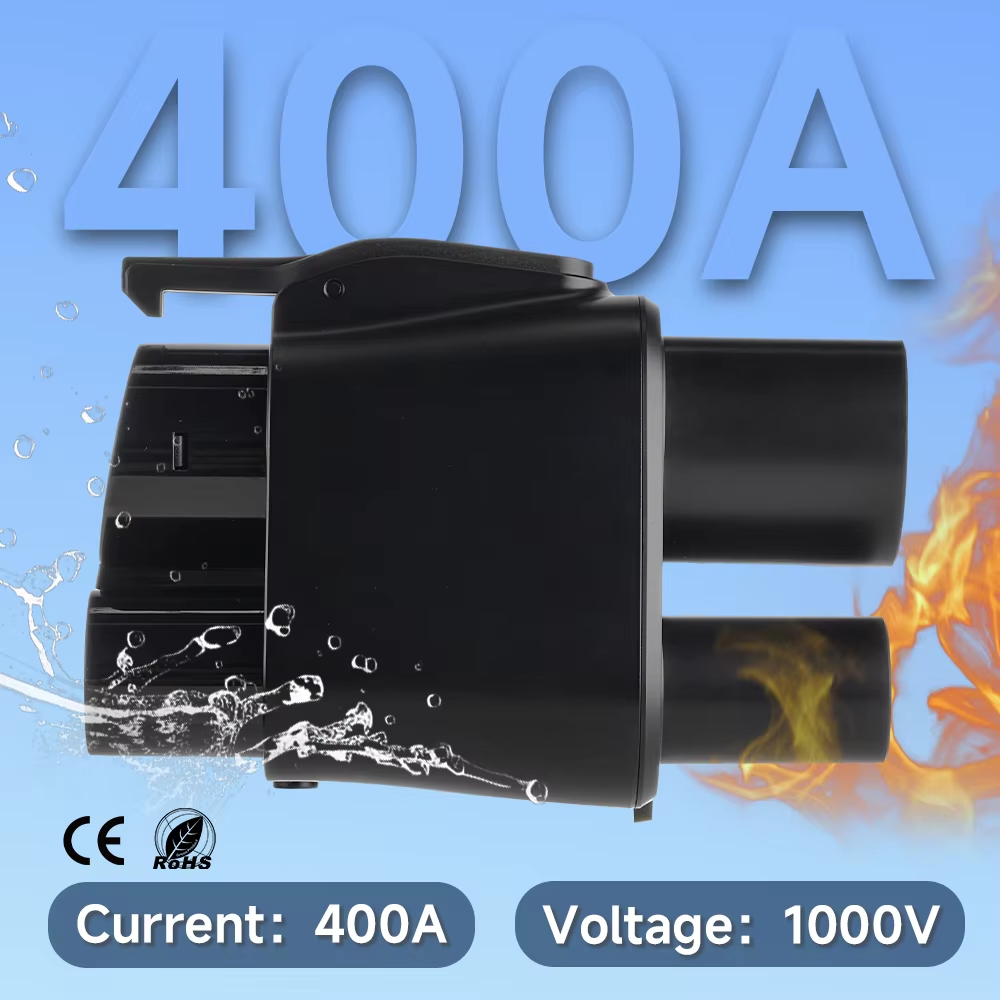

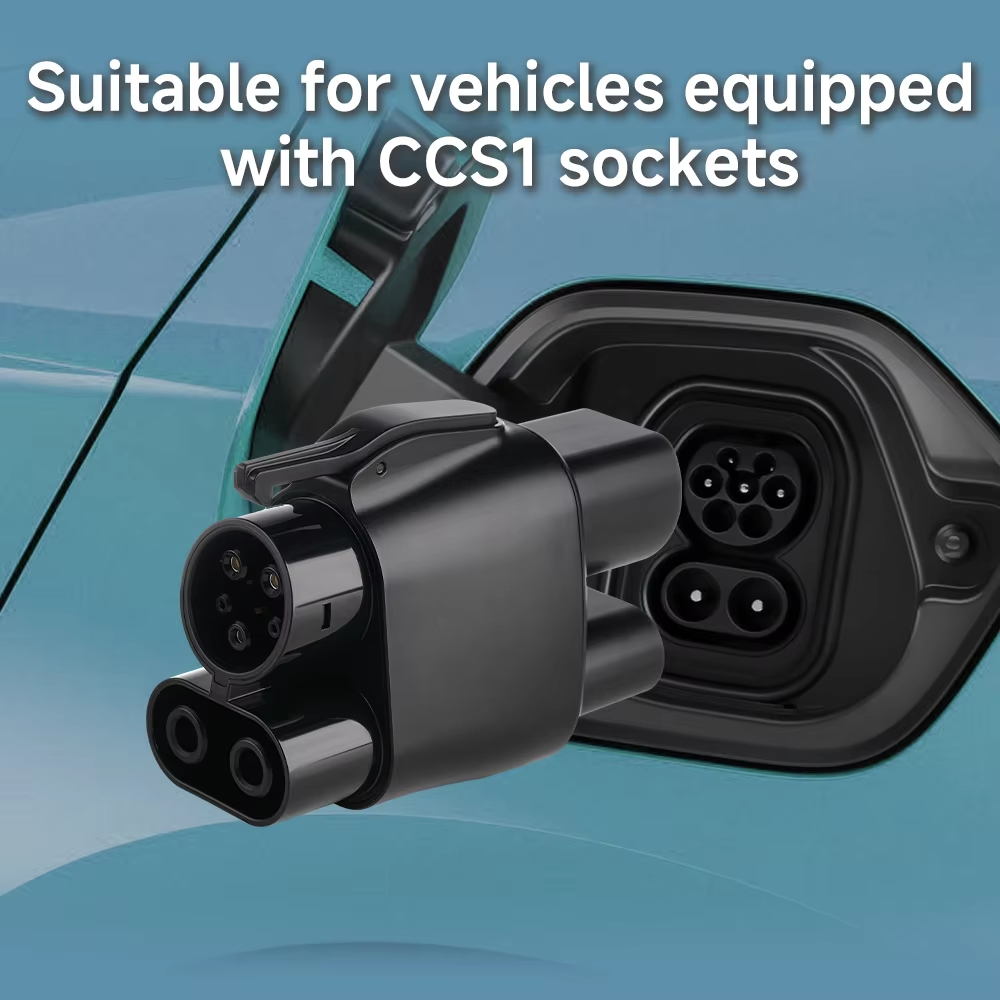

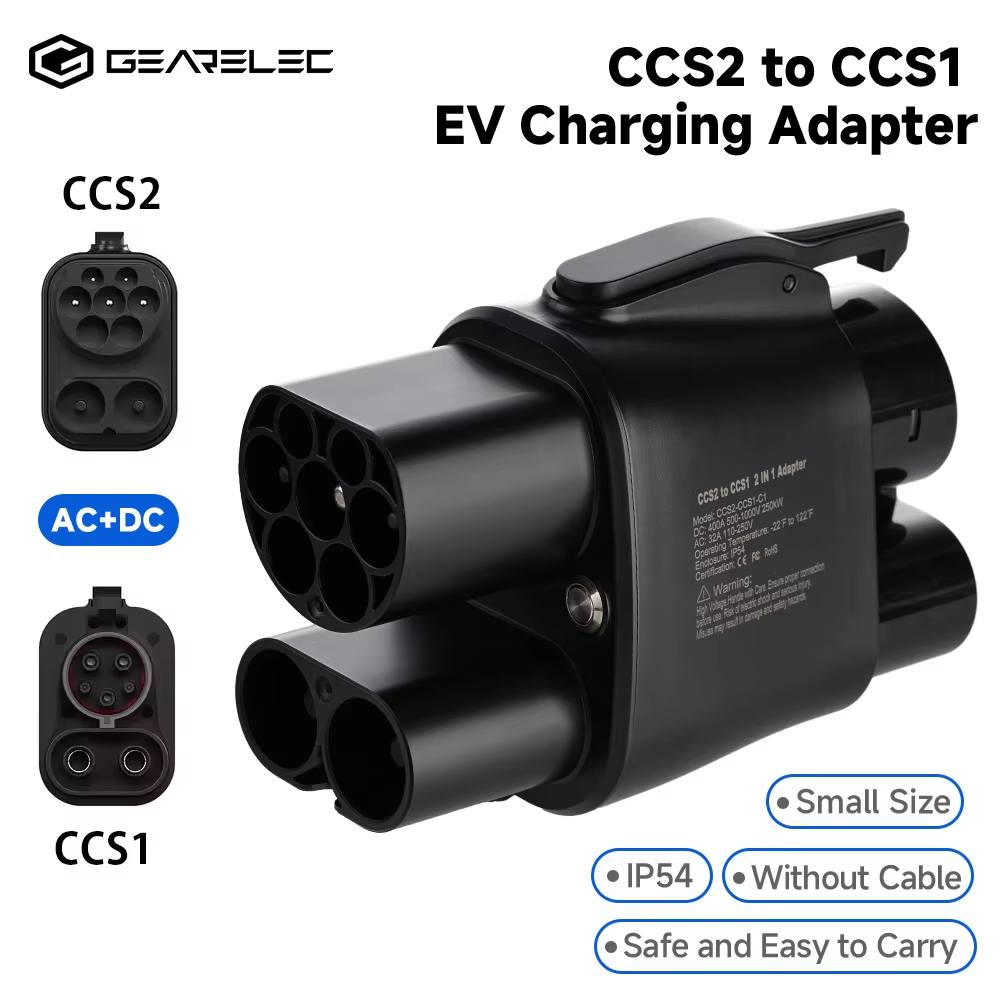

The CCS Adapter: CCS2 to CCS1 (up to 250kW DC) is a high-performance charging connector designed for seamless compatibility between European CCS2 charging stations and North American CCS1 electric vehicles. Supporting up to 250kW DC fast charging at 400A and 500–100V, this adapter enables ultra-fast, reliable charging for a wide range of EVs.

Engineered with a robust T2 copper alloy conductor (silver plated) and a durable PC shell (UL94 V), the adapter ensures efficient power transfer and long-term durability. The built-in temperature kill switch automatically halts charging if the adapter reaches 90°C, providing advanced safety for both your vehicle and charging equipment. The silicon rubber sealing gasket and IP54 protection rating guarantee dependable operation in various weather conditions.

Certified to FCC and RoHS standards, this adapter is suitable for use in both commercial and residential charging environments. With an operating temperature range of -30°C to 50°C and storage capability up to 85°C, it’s built for both performance and longevity.

Technical Specifications

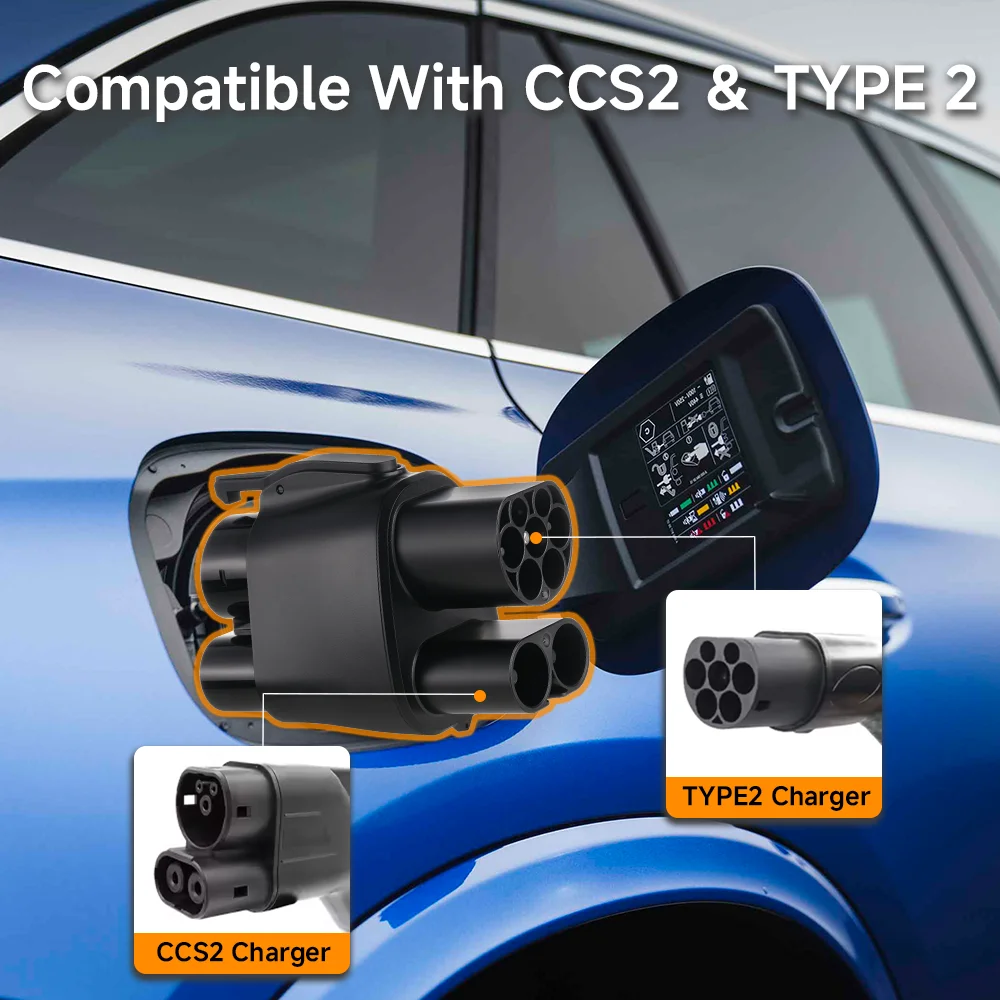

• Adapter Type: CCS2 & Type 2 to CCS1 Adapter

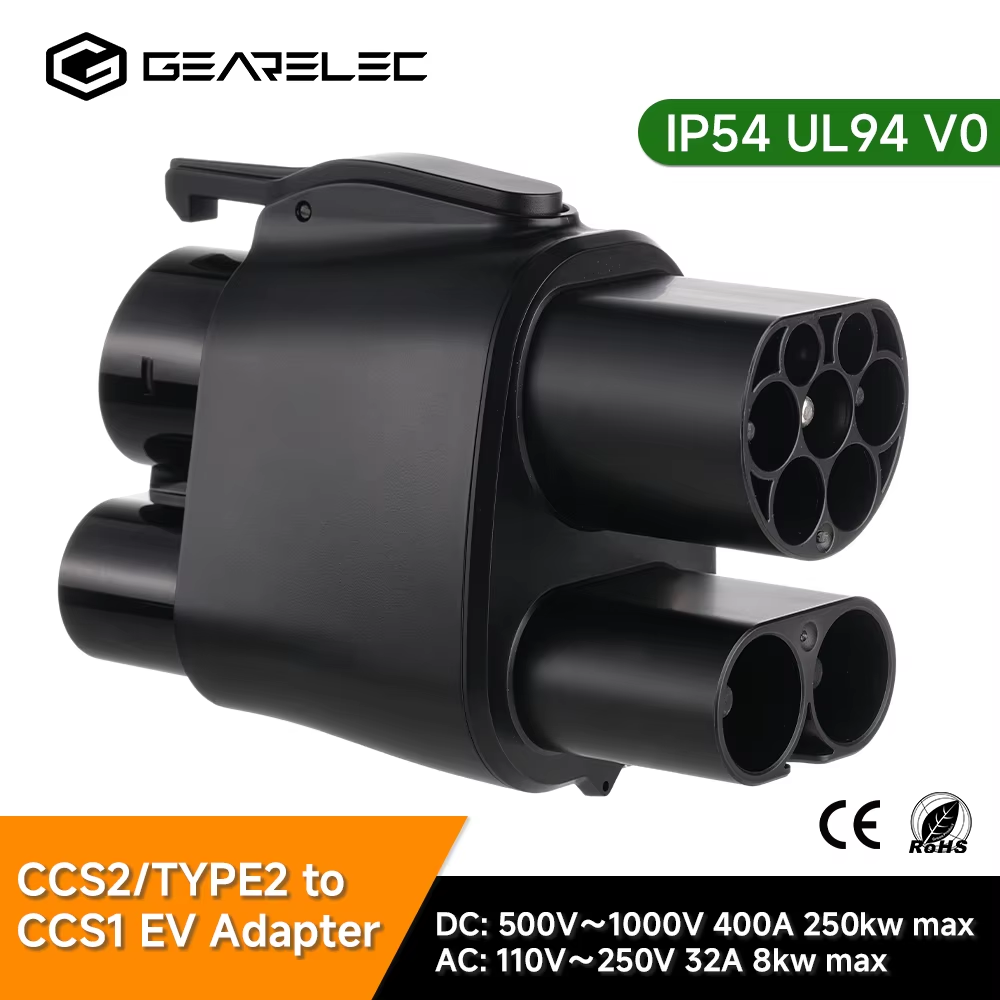

• Power: 250kW, 500–1000V DC
• Current: 400A DC max, 32A AC max (250VAC)
• Conductor Material: T2 Copper Alloy, silver plated
• Shell Material: PC (UL94 V)
• Operating Temperature: -30°C to 50°C
• Storage Temperature: -30°C to 85°C
• Security: Temperature kill switch (charging stops at 90°C)
• Sealing Gasket: Silicon rubber
• Certification: FCC, RoHS
• Degree of Protection: IP54

Package Includes

• 1 × CCS Adapter: CCS2 to CCS1
• 1 × User Manual
