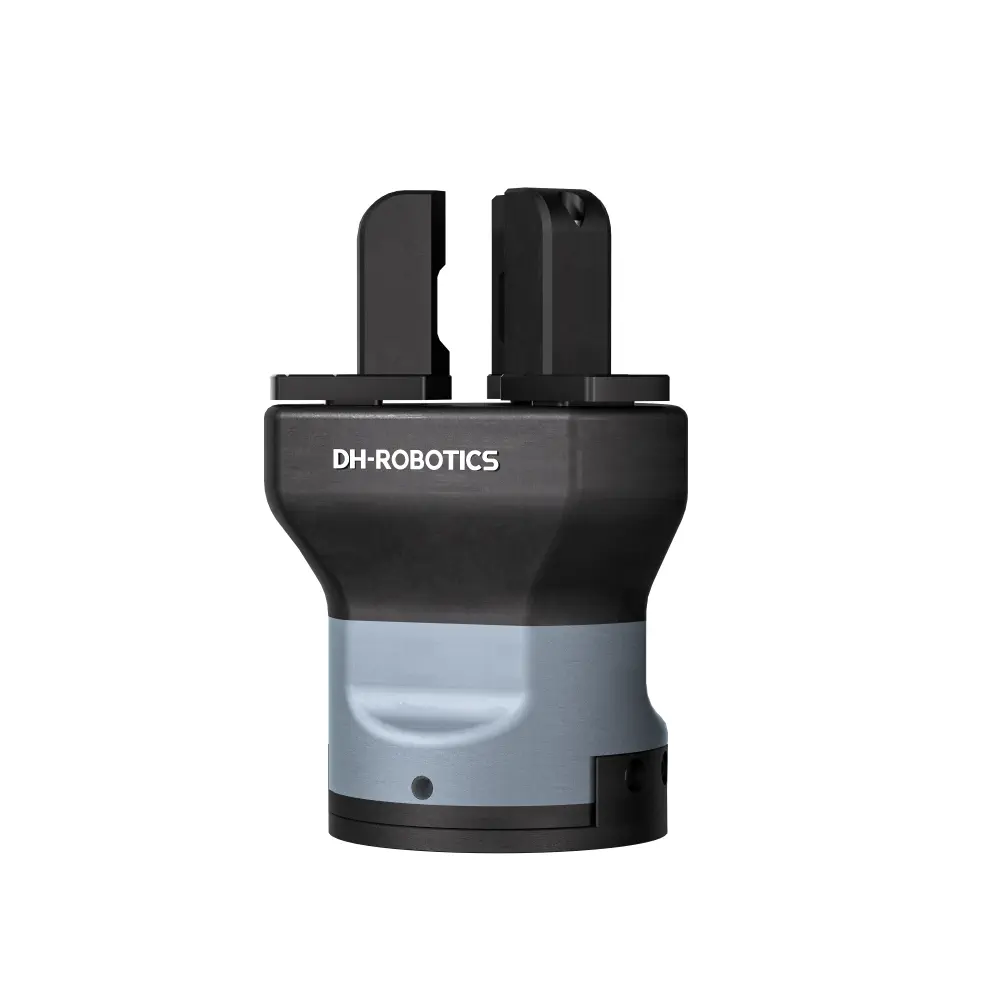

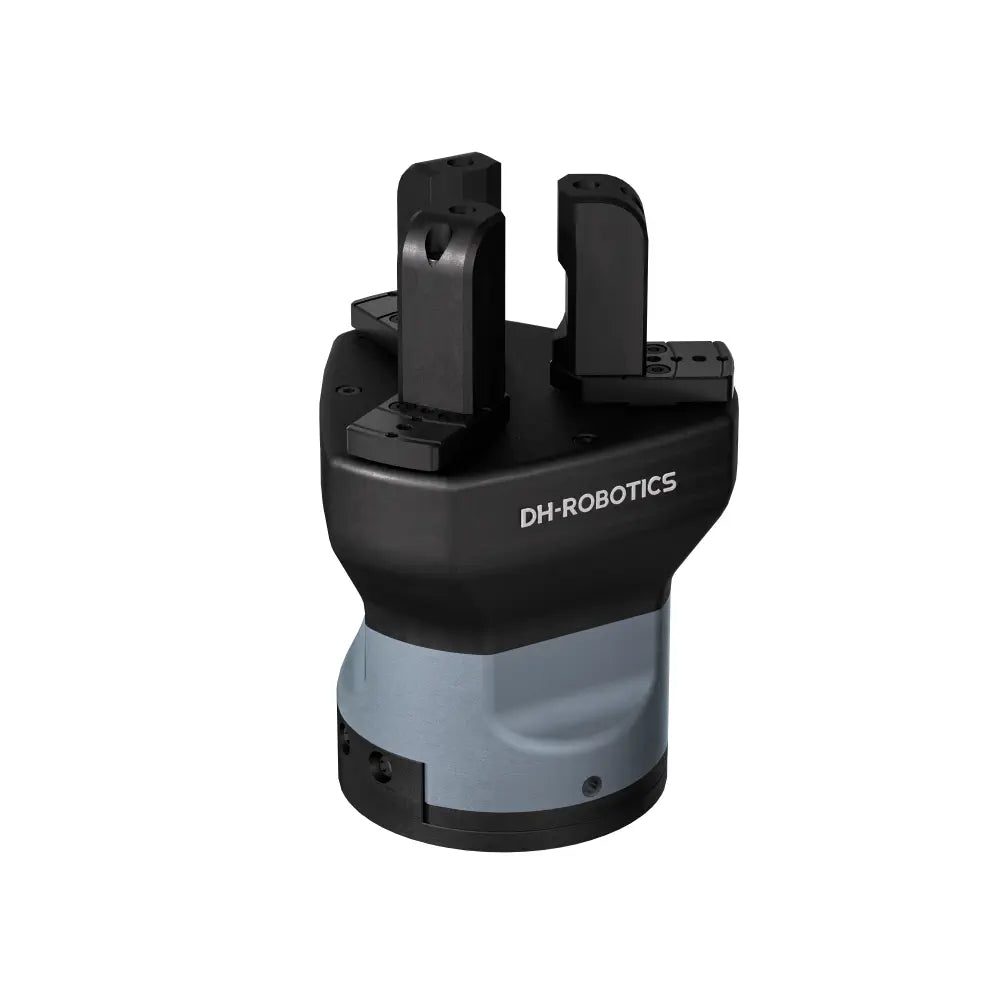

The CGC-80-10 Collaborative Centric Gripper with Three Fingers is engineered for precision, durability, and seamless integration with collaborative robots. Featuring an ergonomic cylindrical design and robust construction, this gripper is built for high-precision center-grabbing applications in demanding industrial environments. Its advanced process structure ensures high rigidity, while the built-in overload protection and high-performance servo motors deliver reliable, maintenance-free operation for over 10 million cycles.
With a gripping force adjustable from 20 to 80N and a 10mm stroke, the CGC-80-10 Collaborative Centric Gripper is ideal for handling a wide range of workpieces up to 1.5kg. The gripper offers repeat accuracy of ±.03mm and rapid opening/closing times of just .2 seconds, ensuring efficient and accurate performance. The IP67 rating guarantees protection against dust and water, making it suitable for harsh industrial environments.
Plug-and-play compatibility and support for multiple IO types make integration easy with leading cobot brands such as UR, DOBOT, and JAKA. Please specify your cobot model or IO type when ordering to ensure seamless communication.
Technical Specifications
- Gripping Force: 20–80 N
- Stroke: 10 mm
- Recommended Workpiece Weight: 1.5 kg
- Repeat Accuracy: ±.03 mm
- Opening/Closing Time: .2 s / .2 s
- Noise Emission: <50 dB
- Rated Voltage: 24 V DC ±10%
- Rated Current: .3 A
- Peak Current: 1 A
- IP Class: IP67
- Dimensions: 14.1 cm × 10.3 cm × 7.5 cm
- Weight: 1.5 kg
- Recommended Environment: –40°C, <85% RH
Package Includes
- 1 × CGC-80-10 Collaborative Centric Gripper
- 1 × 5m Extension Cable
- 1 × RS485 to USB Module
- 1 × Set of Screws
- 1 × Cobot Flange (supports UR, DOBOT, JAKA)
- 1 × Cobot Tool Connector Short Cable (confirm cobot brand upon order)
For integration guides, technical support, and compatible accessories, visit our Automation Accessories Collection. Explore more advanced robotic solutions in our Robotics Range.
