Compact Servoblock

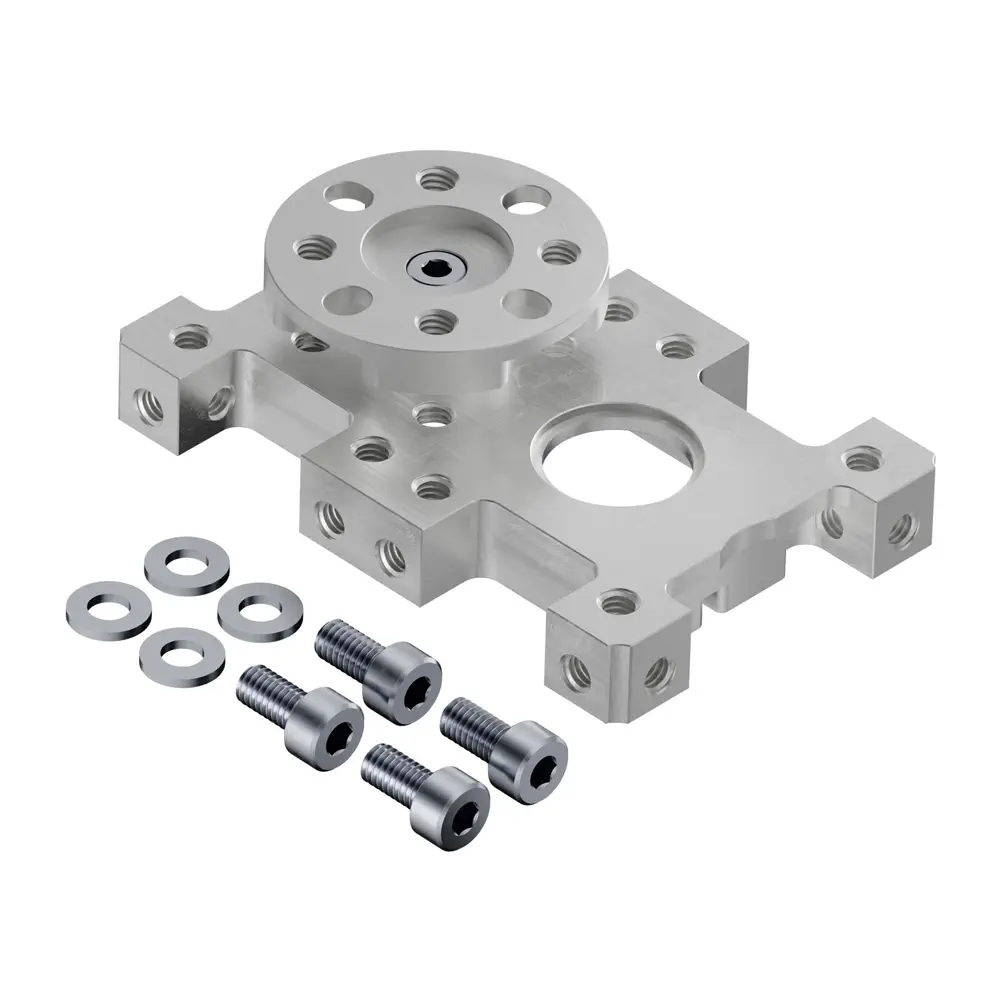

• ServoCity Compact ServoBlock (Standard Size, H25T Spline, Hub-Shaft)
• Incorporates an integrated bearing for radial load isolation
• Offers a wide range of mounting options with threaded holes
• Adheres to the goBILDA 16mm pattern for easy attachment
• Can integrate 1120 Series U-Channel or 1121 Series Low-Side U-Channel
• Weighs only 44g

The ServoCity Compact ServoBlock (Standard Size, H25T Spline, Hub-Shaft) is a 25-tooth ServoBlock designed to effectively isolate radial loads from the servo. This is achieved through a robust and compact frame that incorporates an integrated bearing to support its hub shaft. The ServoBlock is characterized by its threaded holes located on its face and sides, offering a wide range of mounting options.

The hub shaft of this ServoBlock adheres to the goBILDA 16mm pattern of the surrounding structure. This includes both thru-holes and threaded holes, facilitating the easy attachment of a variety of goBILDA components. The ServoBlock, with its 43 mm width, provides more than just the ability to be installed inside a U-channel. It can integrate the 1120 Series U-Channel or 1121 Series Low-Side U-Channel into its structure, thereby creating a robust servo assembly.

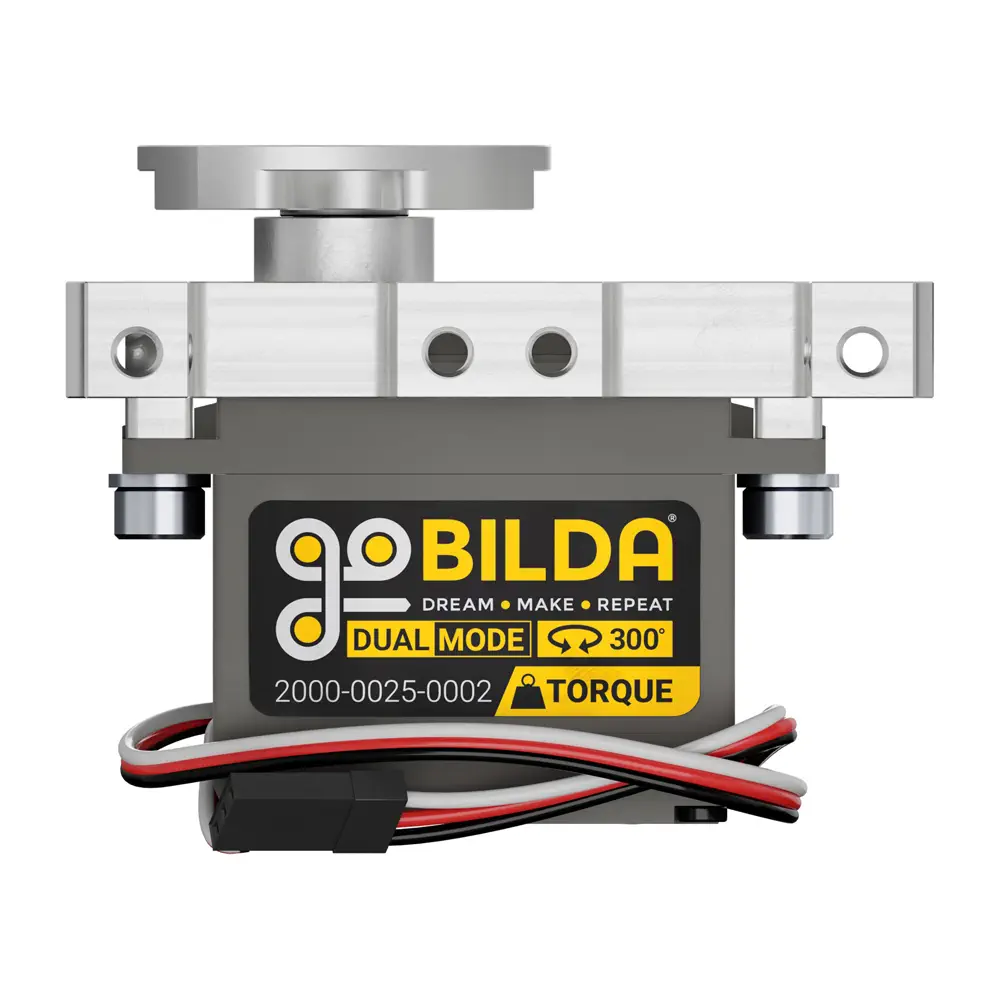

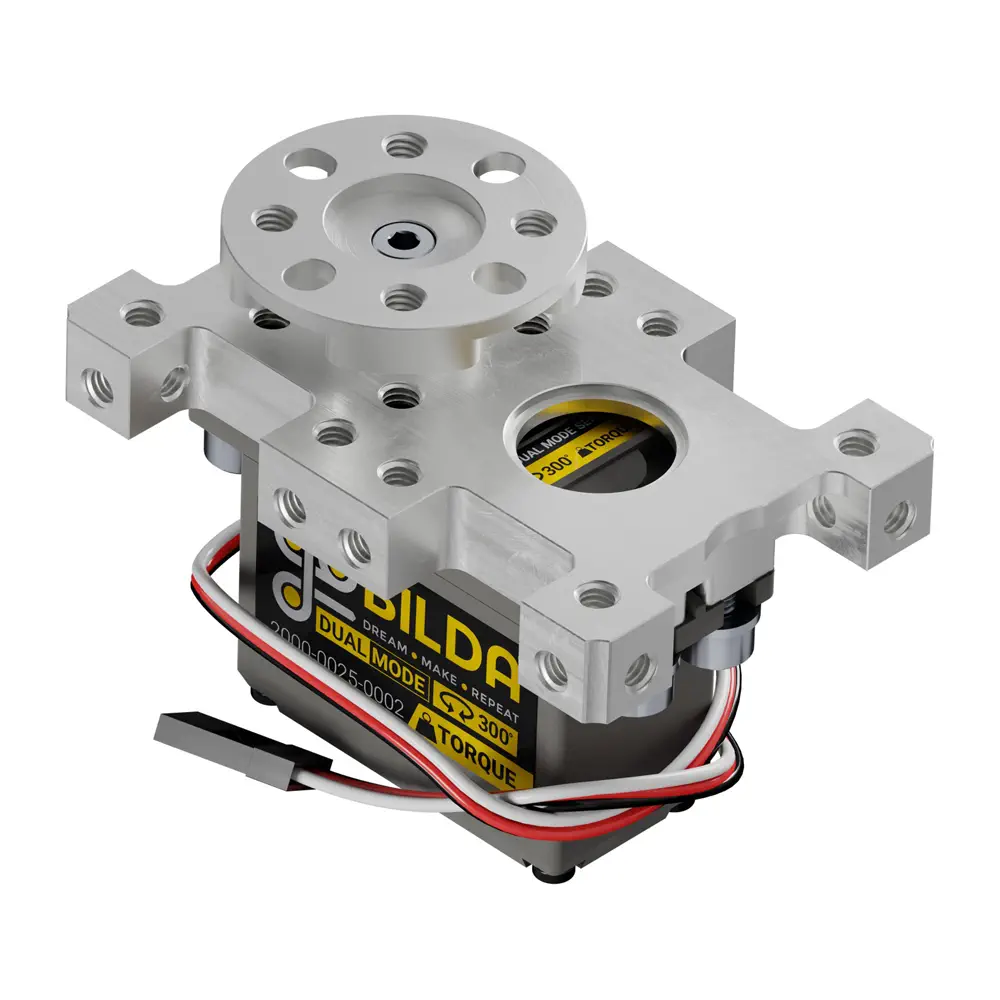

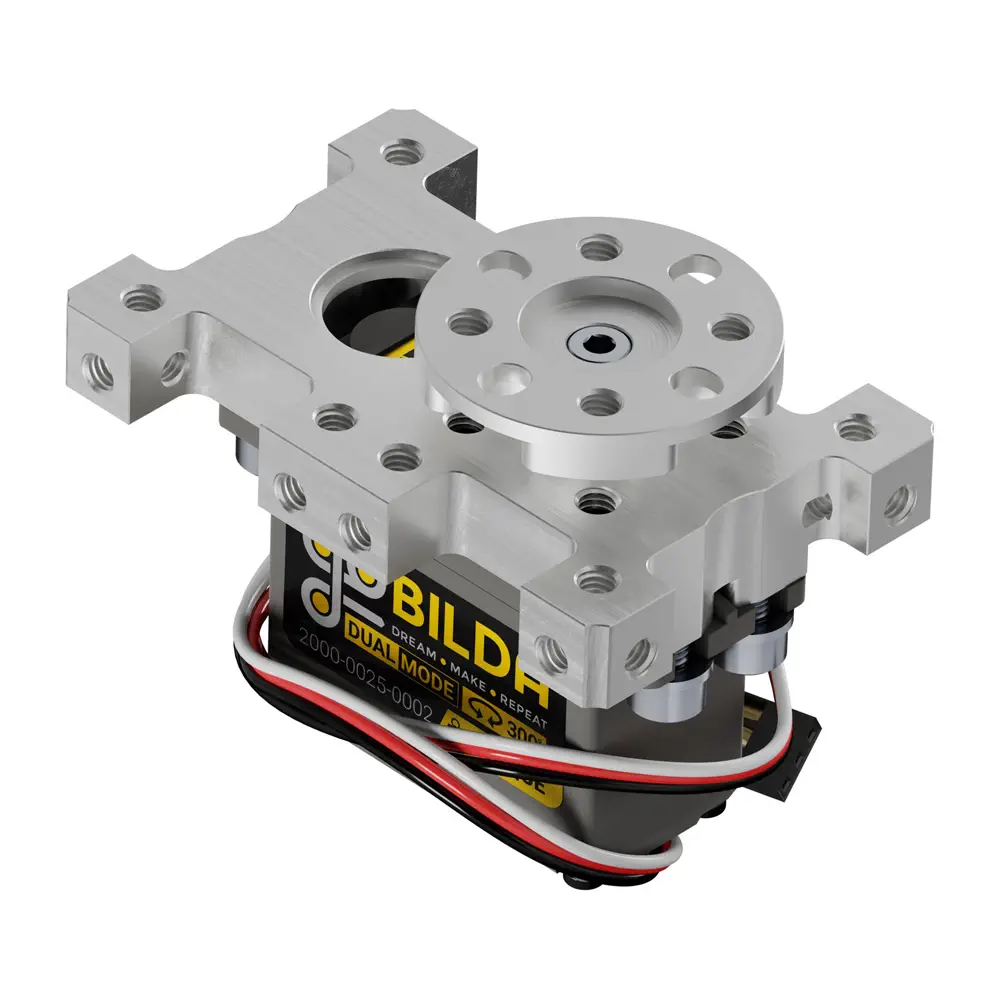

The integrated pillow block, with its 14 mm diameter protrusion, is designed to fit into the 14mm diameter holes of the U-Channel. When used in conjunction with a goBILDA 2000 Series Servo, the hub shaft of the ServoBlock rises 8 mm from the face of the channel. The ServoBlock, which weighs 44g only.

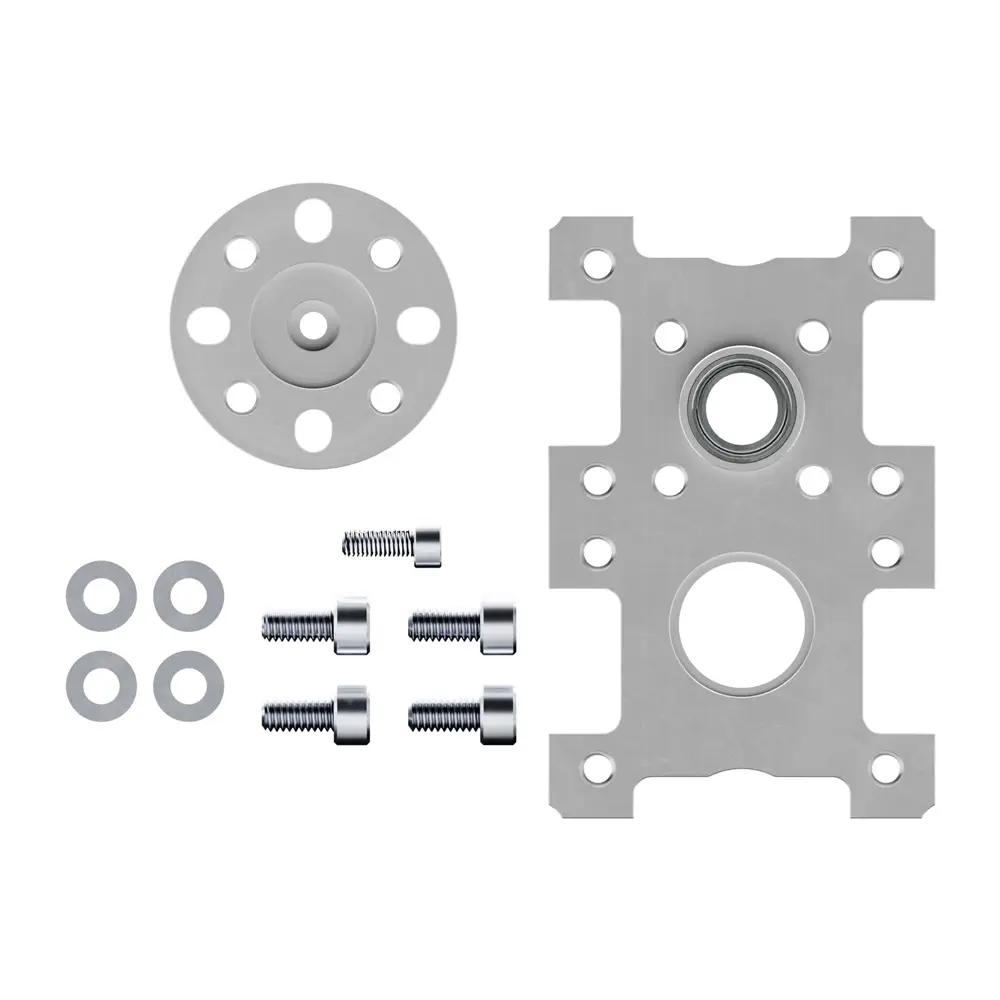

• 1x ServoCity Compact ServoBlock (Standard Size, H25T Spline, Hub-Shaft)

• Weight: 44 g
