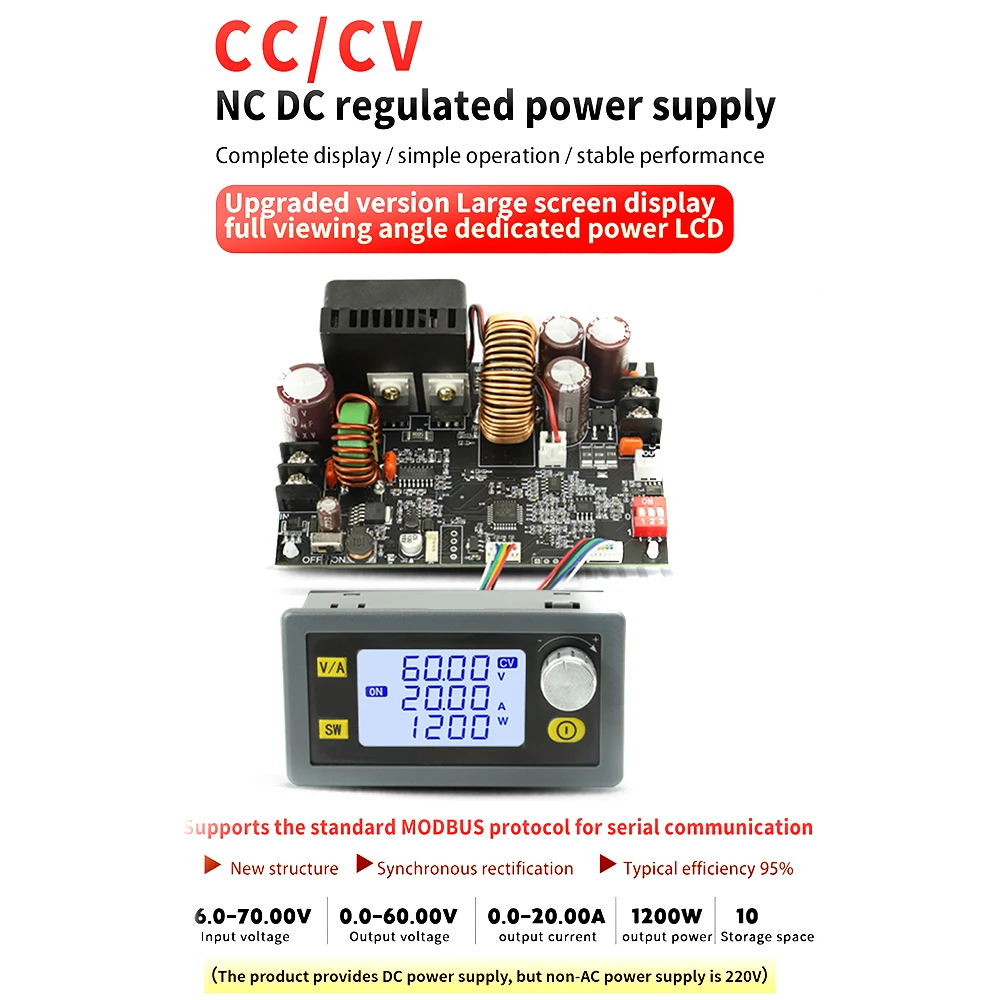

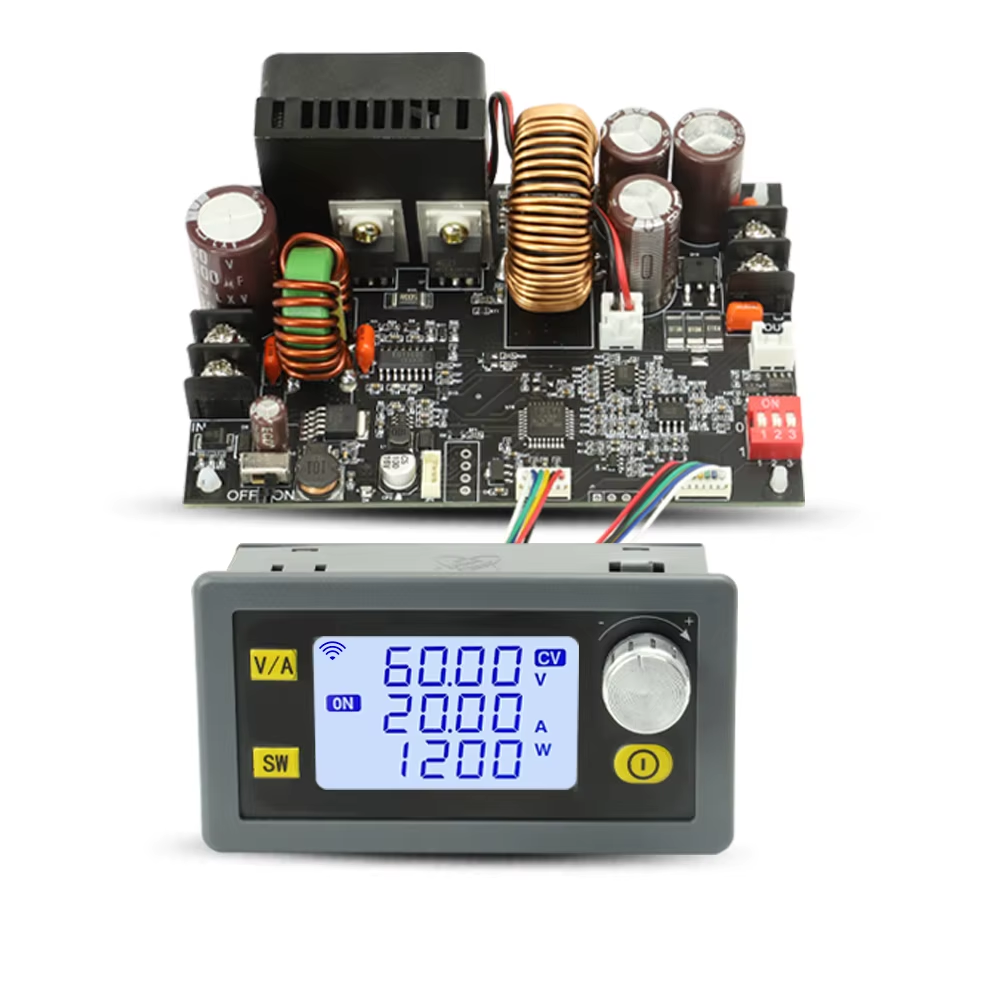

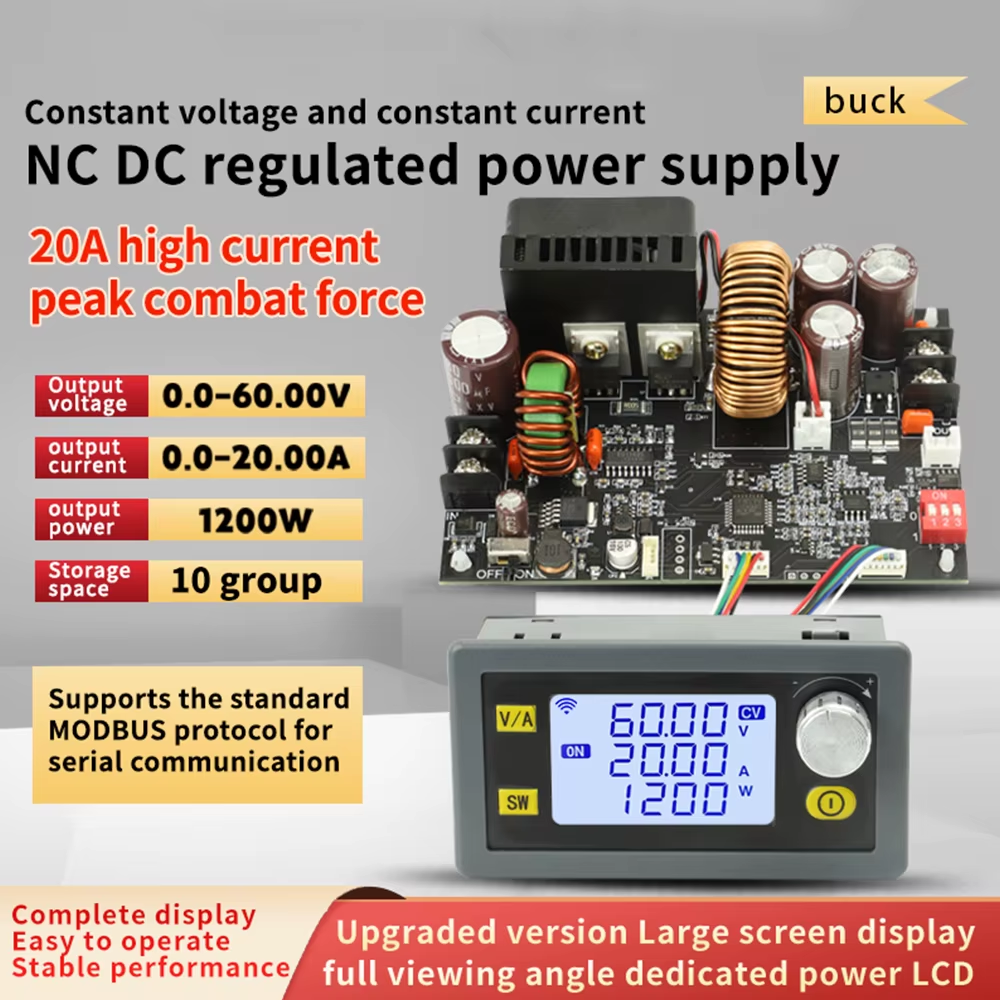

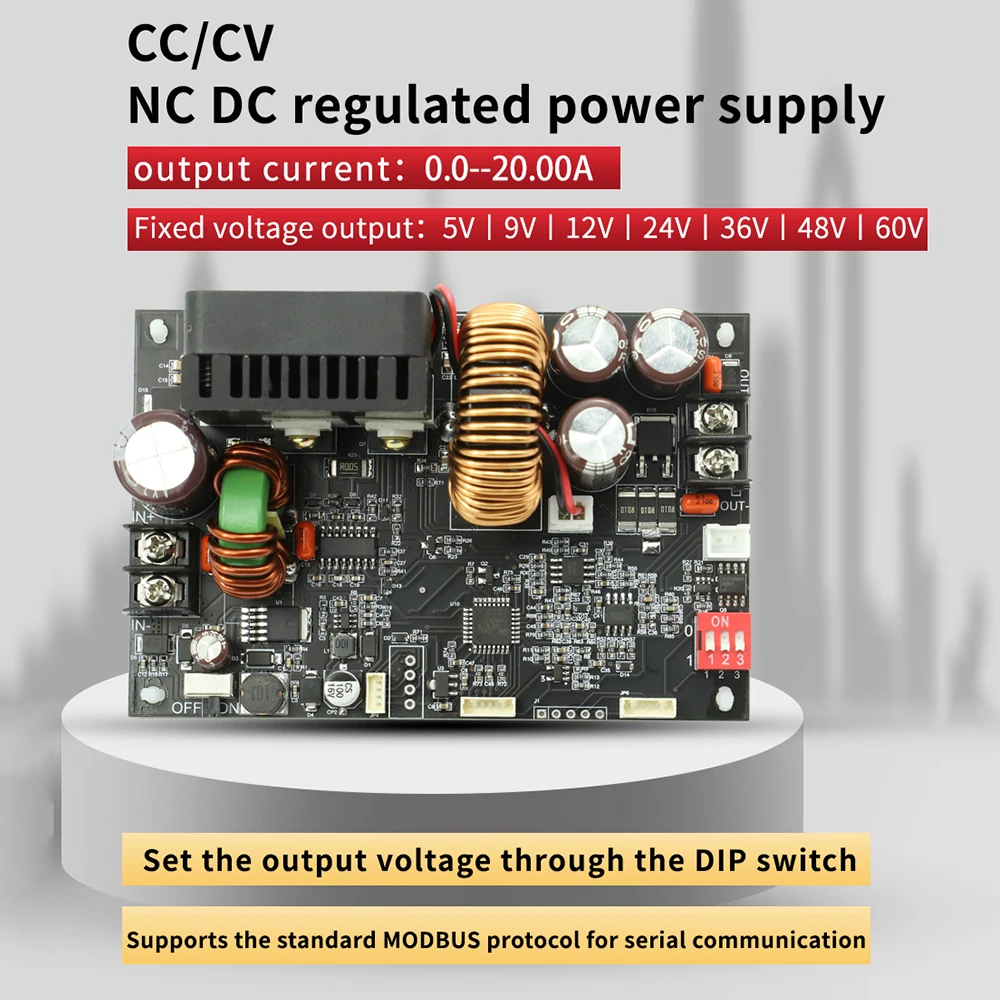

DC 6-70V Stabilized Buck Converter

The DC 6-70V Stabilized Buck Converter is a high-performance, constant voltage and constant current CNC DC power supply designed for precision, reliability, and ease of use. With a wide input voltage range of 6.–70V and an adjustable output voltage of .–60V, this converter delivers up to 1200W of power and a maximum output current of 20A, making it ideal for demanding applications in laboratories, workshops, and industrial automation.

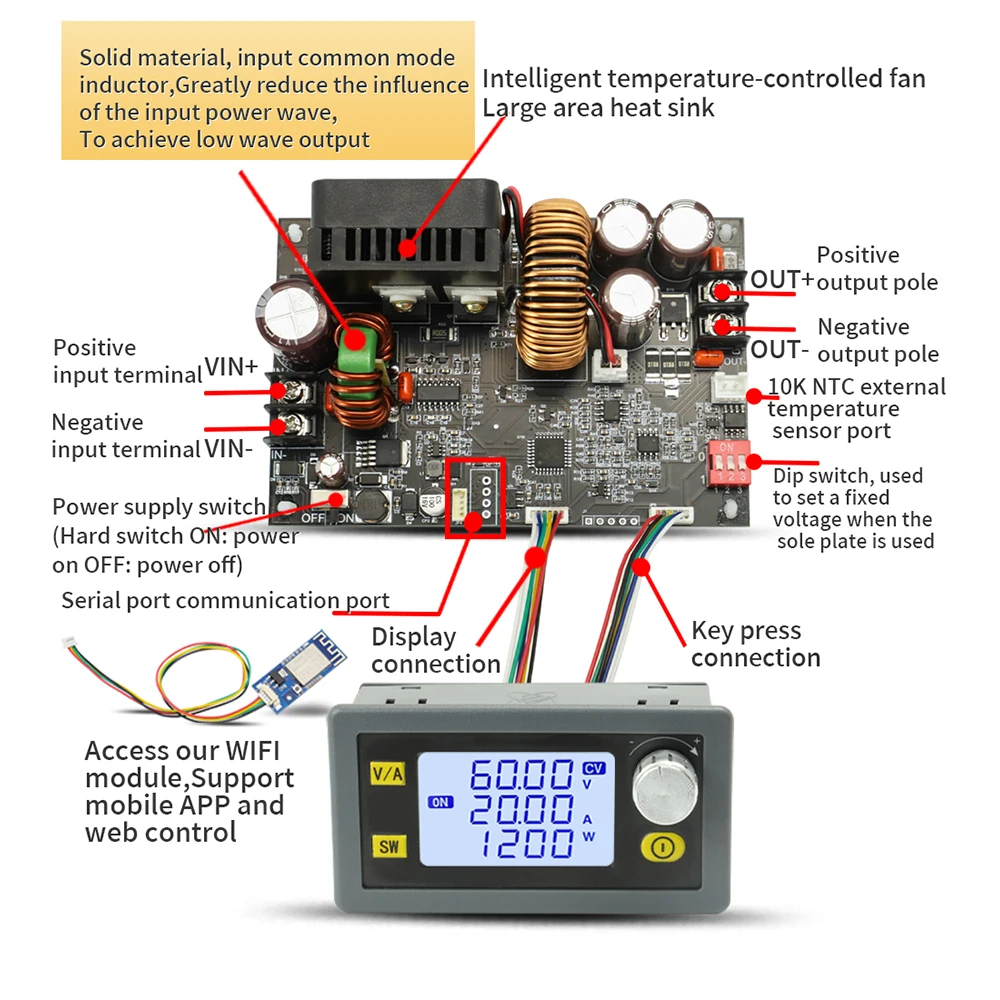

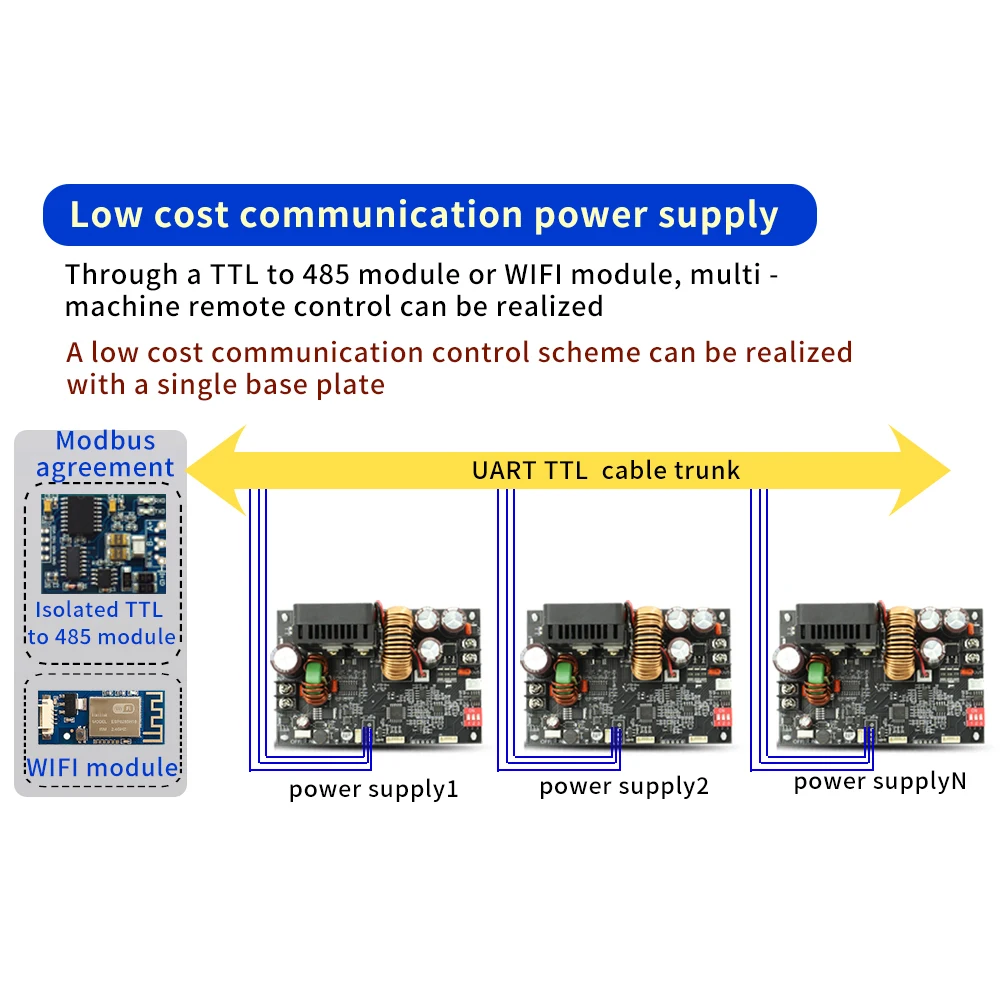

Featuring a large, full-view LCD display, this buck converter provides real-time monitoring of voltage, current, and power, ensuring complete control and visibility over your power supply parameters. The device supports serial communication and the standard MODBUS protocol, enabling seamless integration with advanced control systems and remote monitoring setups.

Engineered for safety and durability, the DC 6-70V Stabilized Buck Converter includes comprehensive protection mechanisms such as input overvoltage, undervoltage, output overvoltage, overcurrent, overpower, overtemperature, timeout, overcapacity, and super energy protection. The intelligent cooling fan activates automatically based on load, power, and temperature, ensuring optimal thermal management and extending the lifespan of the device.

With high measurement accuracy (voltage: ±.4%, current: ±.5%), fine adjustment resolution (.01V/.01A), and robust construction, this converter is perfect for battery charging, LED testing, motor drives, and other precision DC applications. The package includes all necessary components for quick setup and flexible use.

For installation guides, technical support, and compatible accessories, visit our Solar Panel Installation Guide and Solar Accessories Collection. Explore more power electronics in our DC Power Supply Range.

Parameters:
Input voltage: 6.0~70V
Output voltage: 0.0~60V
Output current: 0~20.00A
Typical value of output ripple: 100mv VPP
Output power: 0~1200W
Maximum output voltage: (input voltage+1.1) – 2
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.01A
Input voltage measurement accuracy: ± 1%+5 characters
Output voltage setting and measurement accuracy: ± 0.4%+1 word
Output current setting and measurement accuracy: ± 0.5%+3 words
Cooling fan on: current>2A power>50W temperature>50 ℃
Turn off the cooling fan after it is turned on: current<1.5A, power<45W, temperature<45 ° C

Protection mechanism:
External temperature protection: 0 – 110 ° C default off
Input overvoltage protection: 71V default
Input undervoltage protection: 4.8-71V adjustable default 4.8V
Output overvoltage protection: 0-65V Default: 65V
Output overcurrent protection: 0-16A, default 16A
Output over power protection: 0-950W Default: 950W
Over temperature protection: 60 — 110 ° C, 95 ° C by default
Timeout protection: 0 – 100H adjustable default off
Overcapacity protection: 0~9999AH is adjustable and closed by default
Super energy protection: 0~9999WH, adjustable and closed by default

Package include:
Package A:
Header * 1

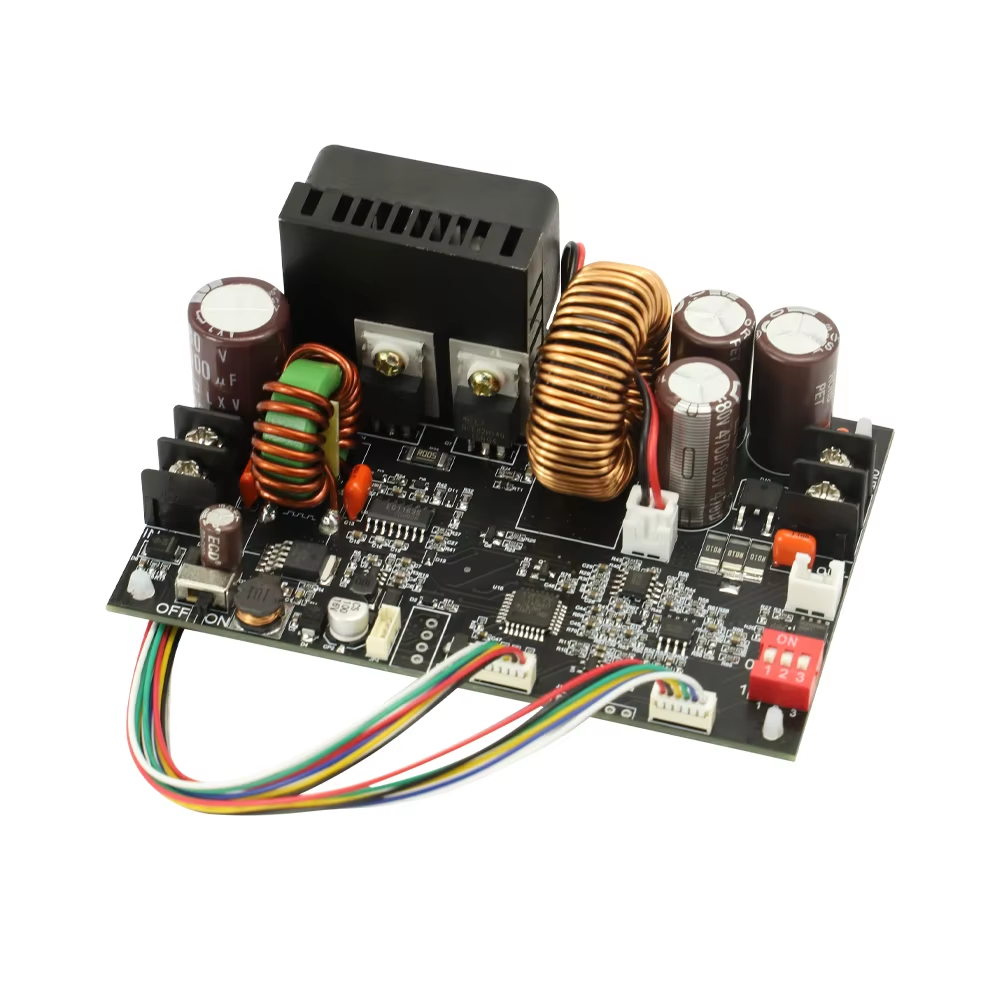

Base plate * 1
Wire * 2
Package B:

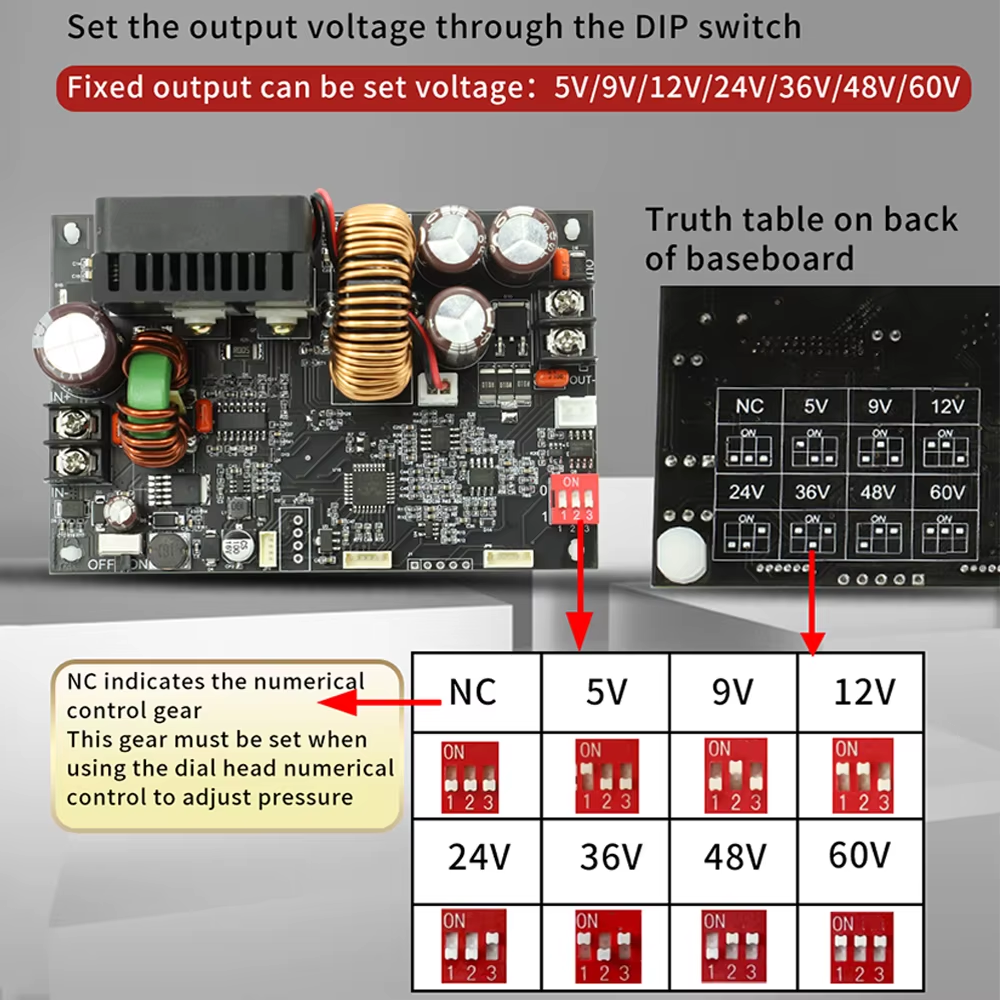

Bottom plate * 1 (output current 0-20A can be used separately for the bottom plate)
