DEYE 10kW Grid Tie Inverter, Three-Phase
834.14 €
Availability: 10 in stock
Safe and Secure Payments.*
Delivery time: 4-9 business days.
Free Shipping
DEYE 10kW Grid Tie Inverter—three-phase, high-efficiency inverter for residential, commercial, and industrial solar systems. Dual MPPT, wide voltage range, and robust grid integration.
DEYE 10kW Grid Tie Inverter—three-phase, high-efficiency inverter for residential, commercial, and industrial solar systems. Dual MPPT, wide voltage range, and robust grid integration.

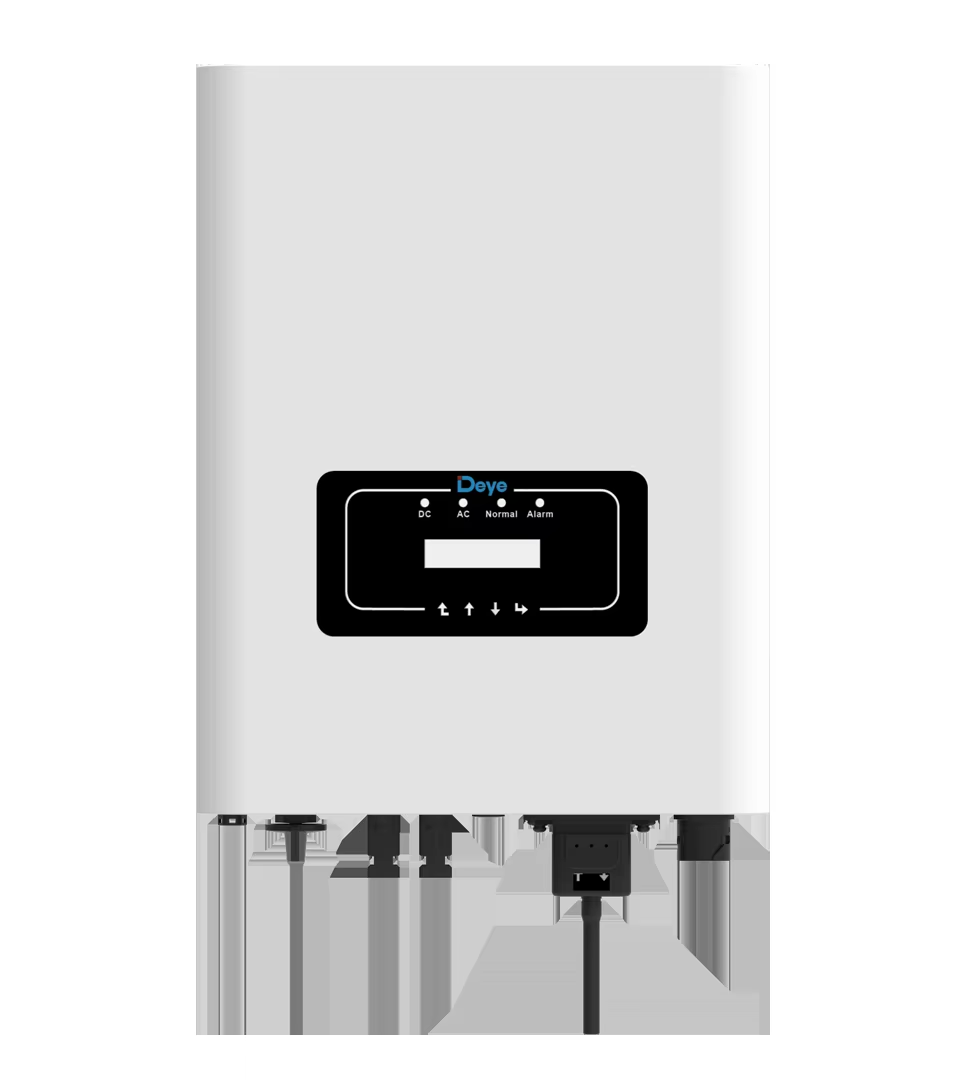

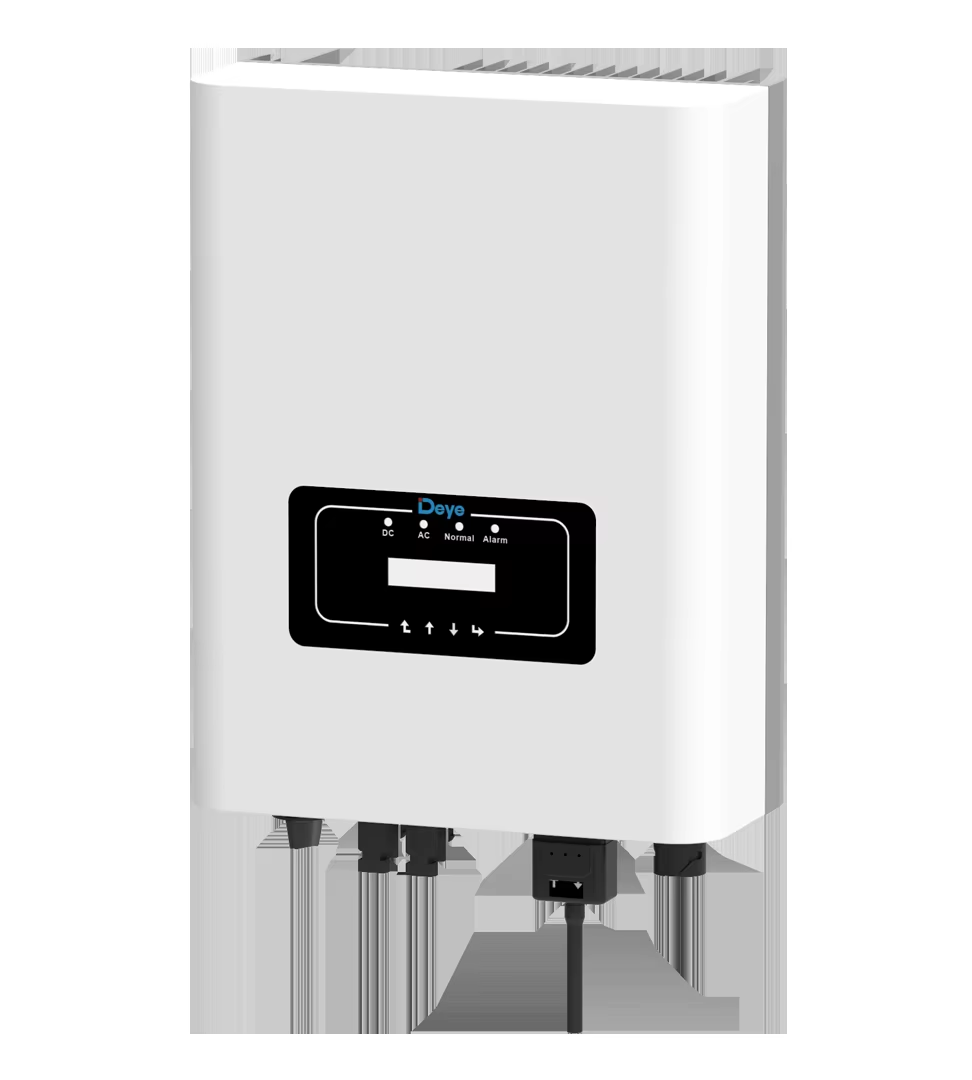

The DEYE 10kW Grid Tie Inverter is a powerful, three-phase inverter engineered for advanced solar energy systems in residential, commercial, and industrial settings. Designed for seamless integration with modern photovoltaic arrays, this inverter delivers a rated output power of 10kW and supports a maximum DC input power of 13kW, ensuring optimal energy conversion and system reliability.
With a maximum DC input voltage of 100V and a wide MPPT operating range of 120–850V, the DEYE 10kW Grid Tie Inverter efficiently captures and converts solar energy, even under variable sunlight conditions. The inverter features two independent MPPT trackers, allowing for flexible system design and maximum energy harvest from multiple strings. Its robust output capabilities include a rated AC grid voltage of 230/400V and a rated grid frequency of 50/60Hz, making it compatible with a wide range of grid standards worldwide.
Engineered for durability and long-term performance, the DEYE 10kW Grid Tie Inverter boasts a low total harmonic distortion (THD <3%) and advanced protection features, including DC injection current control, grid frequency monitoring, and comprehensive safety mechanisms. The inverter’s compact design and professional packaging options ensure safe delivery and easy installation, whether shipped by express, air, or sea.
Ideal for large-scale residential projects, commercial installations, and industrial solar plants, the DEYE 10kW Grid Tie Inverter provides reliable, high-efficiency power conversion and grid integration. For installation guides, technical support, and compatible accessories, visit our Solar Panel Installation Guide and Solar Accessories Collection. Explore more high-capacity inverters in our Grid Tie Inverter Range.
|
Model
|
SUN-4K-G03
|
SUN-5K-G03
|
SUN-6K-G03
|
SUN-7K-G03
|
SUN-8K-G03
|
SUN-10K-G03
|
|
Input Side
|
||||||
|
Max. DC Input Power(kW)
|
5.2
|
6.5
|
7.8
|
9.1
|
10.4
|
13
|
|
Max. DC Input Voltage (V)
|
1000
|
|||||
|
Start-up DC Input Voltage(V)
|
140
|
|||||
|
MPPT Operating Range(V)
|
120~850
|
|||||
|
Max. DC Input Current(A)
|
12.5+12.5
|
|||||
|
Number of MPPT/Strings per MPPT
|
2/1
|
|
Output Side
|
||||||
|
Rated Output Power(kW)
|
4
|
5
|
6
|
7
|
8
|
10
|
|
Max. Active Power(kW)
|
4.4
|
5.5
|
6.6
|
7.7
|
8.8
|
11
|
|
Rated AC Grid Voltage(V)
|
230/400
|
|||||
|
AC Grid Voltage Range(V)
|
277Vac~460Vac(this may vary with grid standards)
|
|||||
|
Rated Grid Frequency(Hz)
|
50 / 60 (Optional)
|
|||||
|
Operating Phase
|
Three phase
|
|||||
|
Rated AC Grid Output Current(A)
|
5.8
|
7.2
|
8.7
|
10.1
|
11.6
|
14.5
|
|
Max. AC Output Current(A)
|
6.4
|
8
|
9.6
|
11.1
|
12.8
|
15.9
|
|
Output Power Factor
|
0.8 leading to 0.8 lagging
|
|||||
|
Grid Current THD
|
<3%
|
|||||
|
DC Injection Current(mA)
|
<0.5%
|
|||||
|
Grid Frequency Range
|
47~52 or 57~62 (Optional)
|
|
Professional Packing: Carton, Wooden Pallet and Wooden Box.
|
|
|
By Express
|
TNT, DHL, FedDex, UPS available
|
|
By Air
|
Shenzhen/Shanghai or other Designated Airport
|
|
By Sea
|
Shenzhen, Shanghai, Ningbo or other Designated Port in China
|
