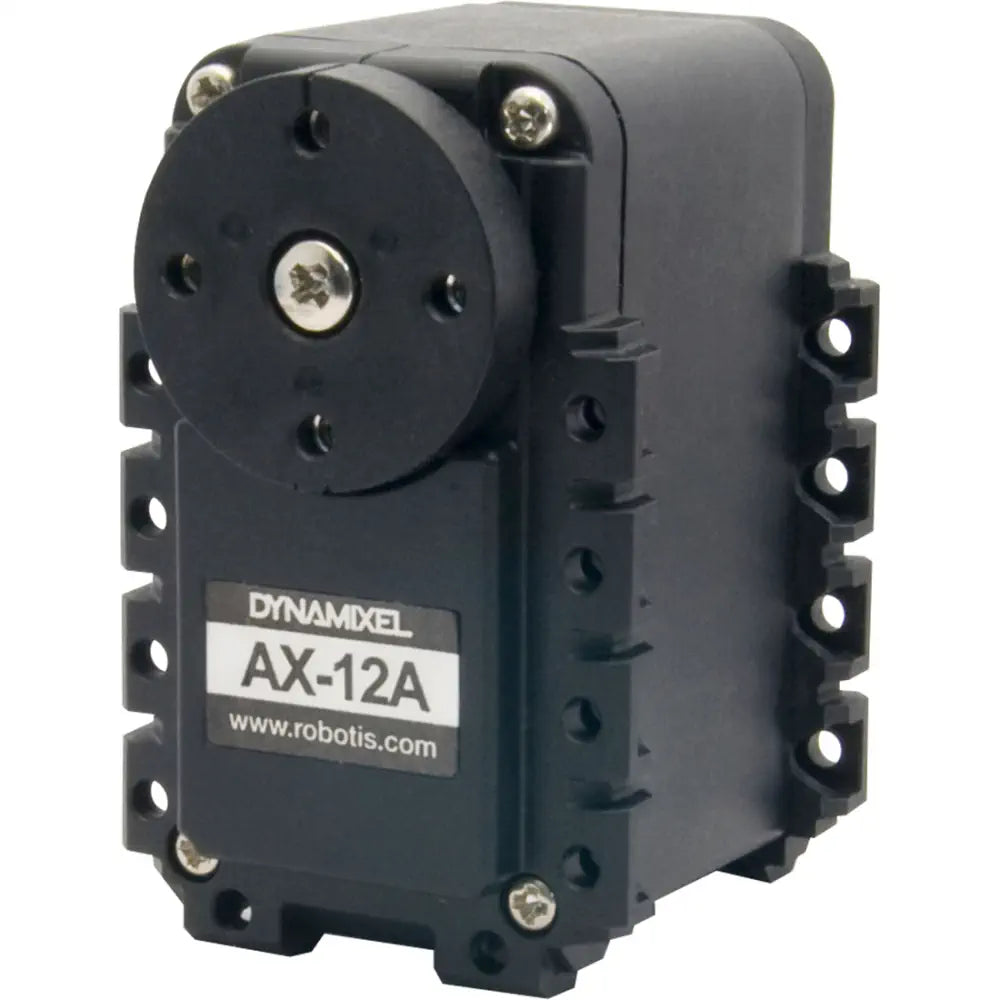

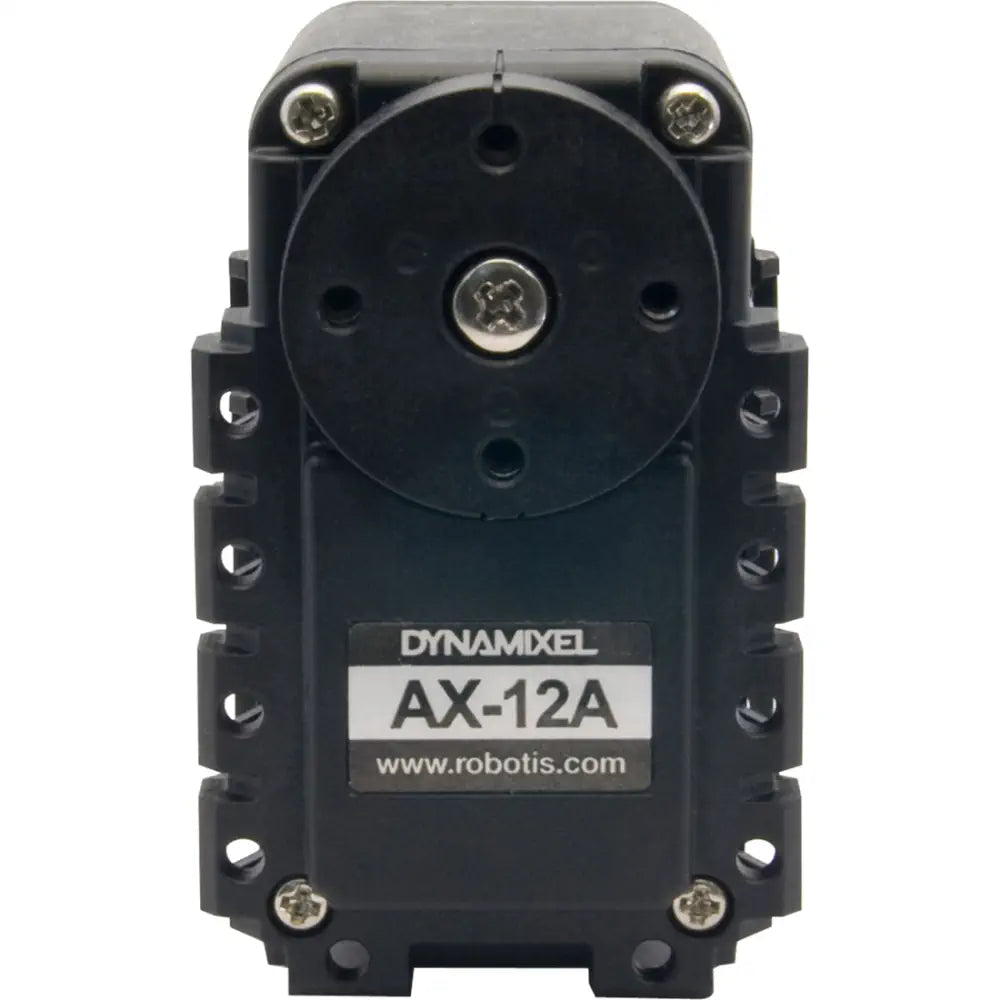

DYNAMIXEL AX-12A Smart Servo Actuator

• ROBOTIS DYNAMIXEL AX-12A Smart Servo Actuator
• Gear Ratio: 254:1
• Offers a robot-exclusive smart actuator
• Comes with a lower gear ratio
• Can easily create various types of robots
• Network Interface: TTL
• Operating Voltage: 12 V

The ROBOTIS DYNAMIXEL AX-12A Smart Servo Actuator is a robot-exclusive smart actuator with a fully integrated DC Motor + Controller + Driver + Sensor + Reduction Gear + Network in one DC servo module.

DYNAMIXEL AX-series are used in ROBOTIS STEM, Premium, and GP. You can easily create various types of robots such as humanoid, 4-legged, and 6-legged robots with the AX series.

It can also be used as a wheel so that you can create a robot with a combination of wheel type and joint type in a single module. By using a variety of high-strength engineering plastic option frames or by printing frames using a 3D printer, you can produce any type of robot at a low cost.

• 1x ROBOTIS DYNAMIXEL AX-12A Smart Servo Actuator

Size

• 32 x 50 x 40 mm / 1.26 x 1.97 x 1.57 inch

Website

• Operating Voltage: 12 V
• Gear Ratio: 254:1
• Stall Torque: 1.5 N.m
• Stall Current: 1.5 A
• No-Load Speed: 59 rpm
• Position Sensor: Potentiometer
• Motor: Cored
• Operating Range: 300°
• Resolution: 1024 steps/turn
• Network Interface: TTL
• Baud Rate: 7843 bps ~ 1 Mbps
• Material: Casing: Enpla | Gear: Engineering Plastic
• Input Voltage: 9.0 ~ 12.0 V
• Operating Temperature: -5 ~ +70 °C
• Weight: 54.6 g
