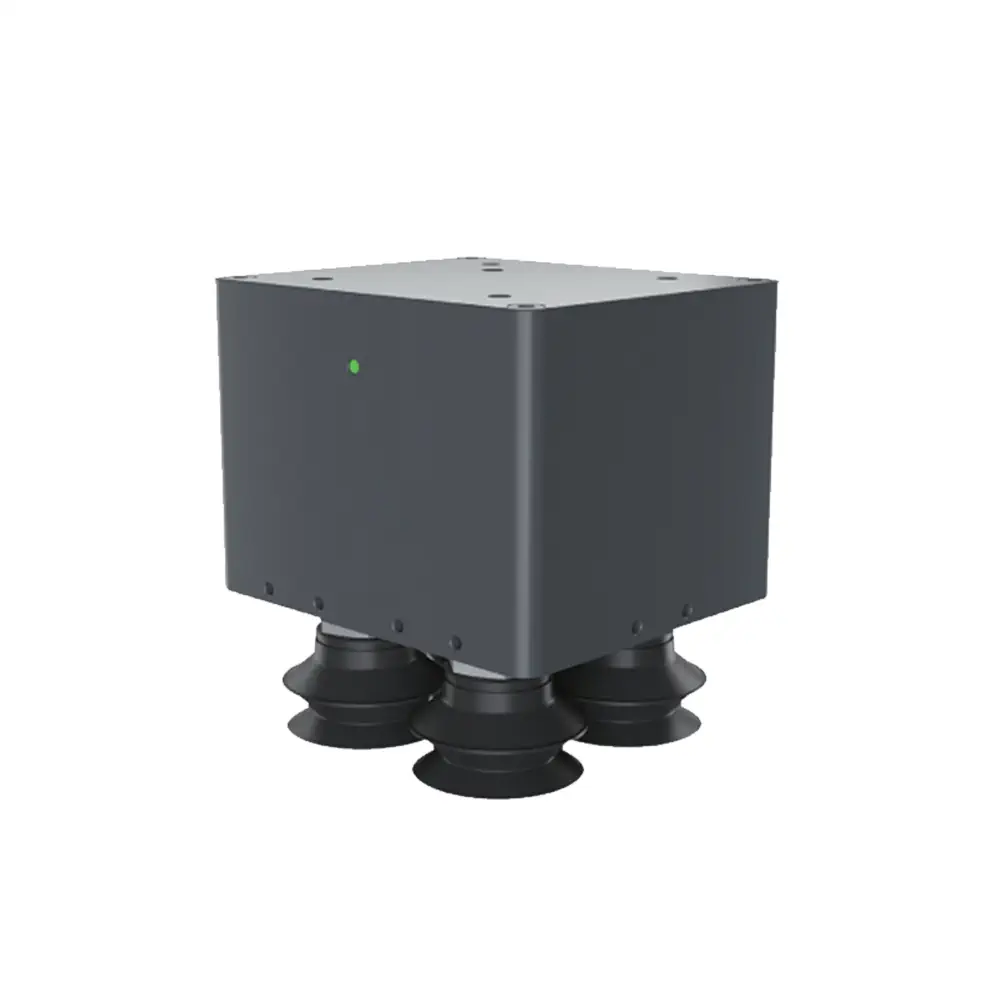

Electric Vacuum Gripper SUCTION CUPS EVS08, 8 Kg Capacity

Engineered for flexibility, the EVS08 features independent dual control of AB channels, allowing for precise manipulation and expansion of suction cup numbers to suit your specific needs. The gripper operates with a vacuum degree of 5% to 75% and an air flow of 10L/min, ensuring strong and consistent suction performance. Suction and release times are rapid, at .4 seconds and .2 seconds respectively, maximizing productivity in fast-paced environments.

Built for durability, the Electric Vacuum Gripper SUCTION CUPS EVS08 is rated IP54 for protection against dust and splashes, and operates reliably at DC24V with a rated current of 1A (peak 2.5A) and 16W power consumption. Communication is seamless via ModbusRTU (RS485) and I/O interfaces, making integration with modern automation systems straightforward.

Technical Specifications

• Vacuum Degree: 5%–75%
• Air Flow: 10L/min
• Body Weight: 1.4kg
• Maximum Load: 4kg (body), 8kg (chassis extension)
• IP Class: IP54
• Rated Voltage: DC24V ±10%
• Rated Current: 1A
• Peak Current: 2.5A
• Power: 16W
• Suction/Release Time: .4s / .2s
• Communication: ModbusRTU (RS485), I/O
• Dual Control: Independent AB channels
• Expansion: Supports additional suction cups

Package Includes

• 1 × Vacuum Gripper
• 1 × Set of Suction Cups
• 1 × EVS08 Unit
