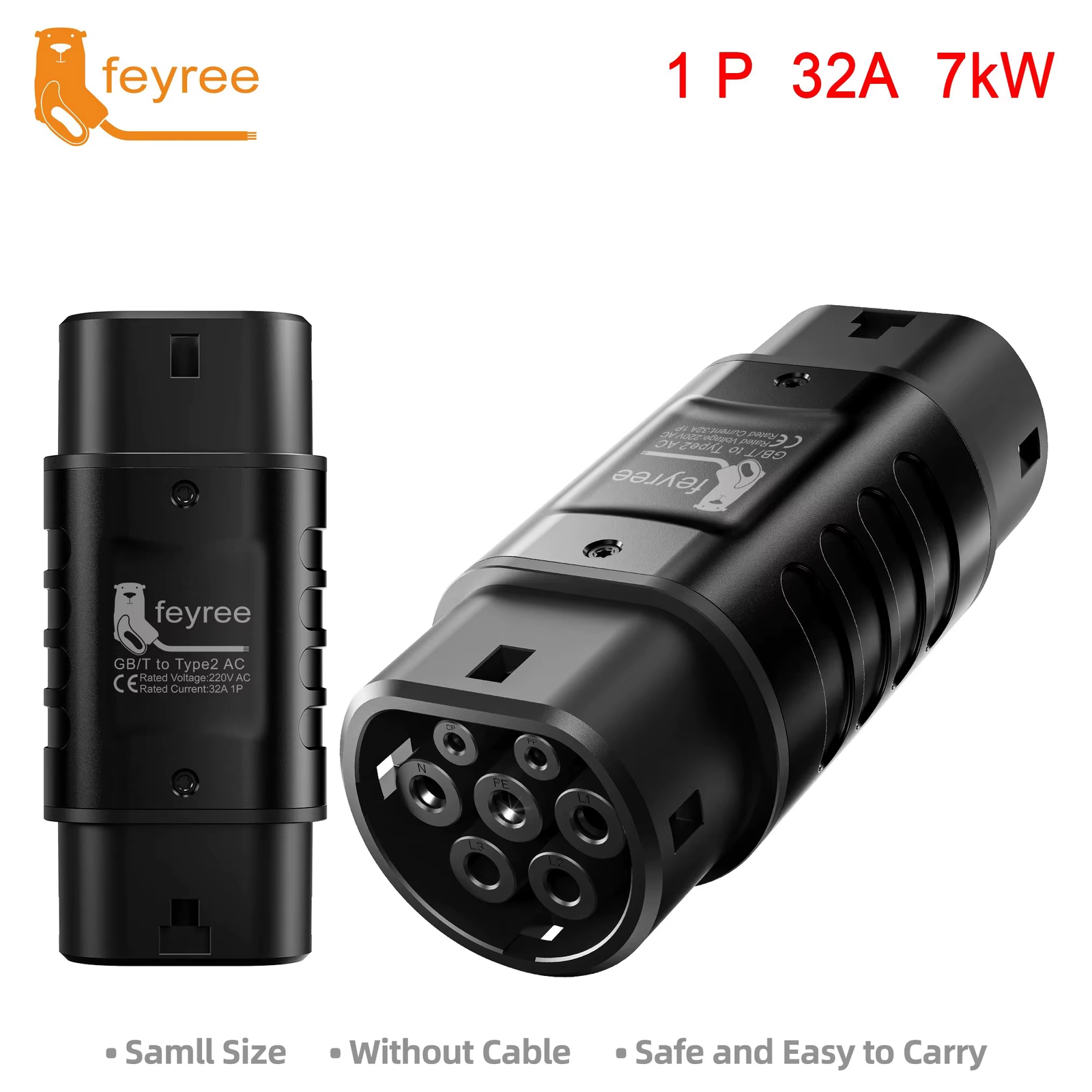

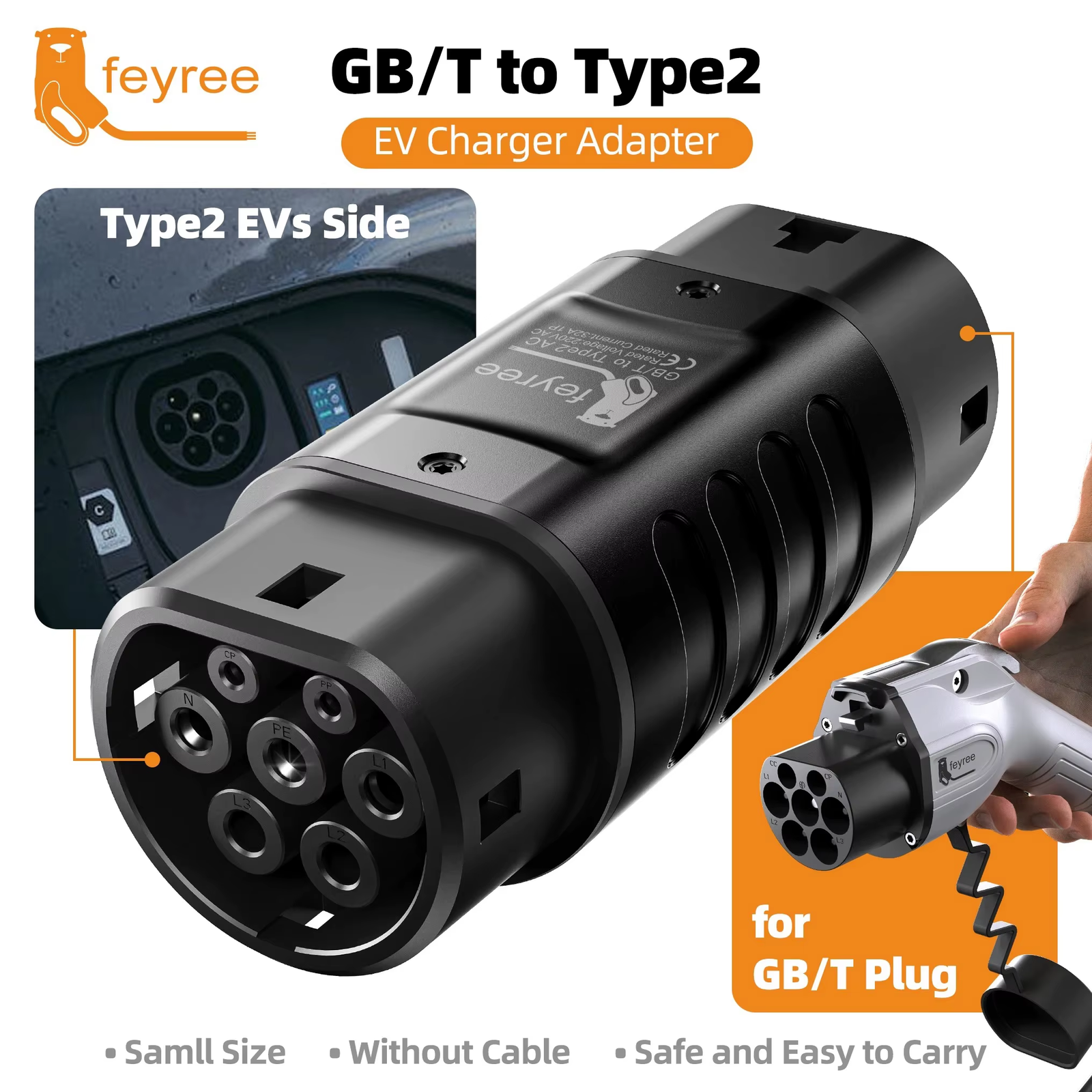

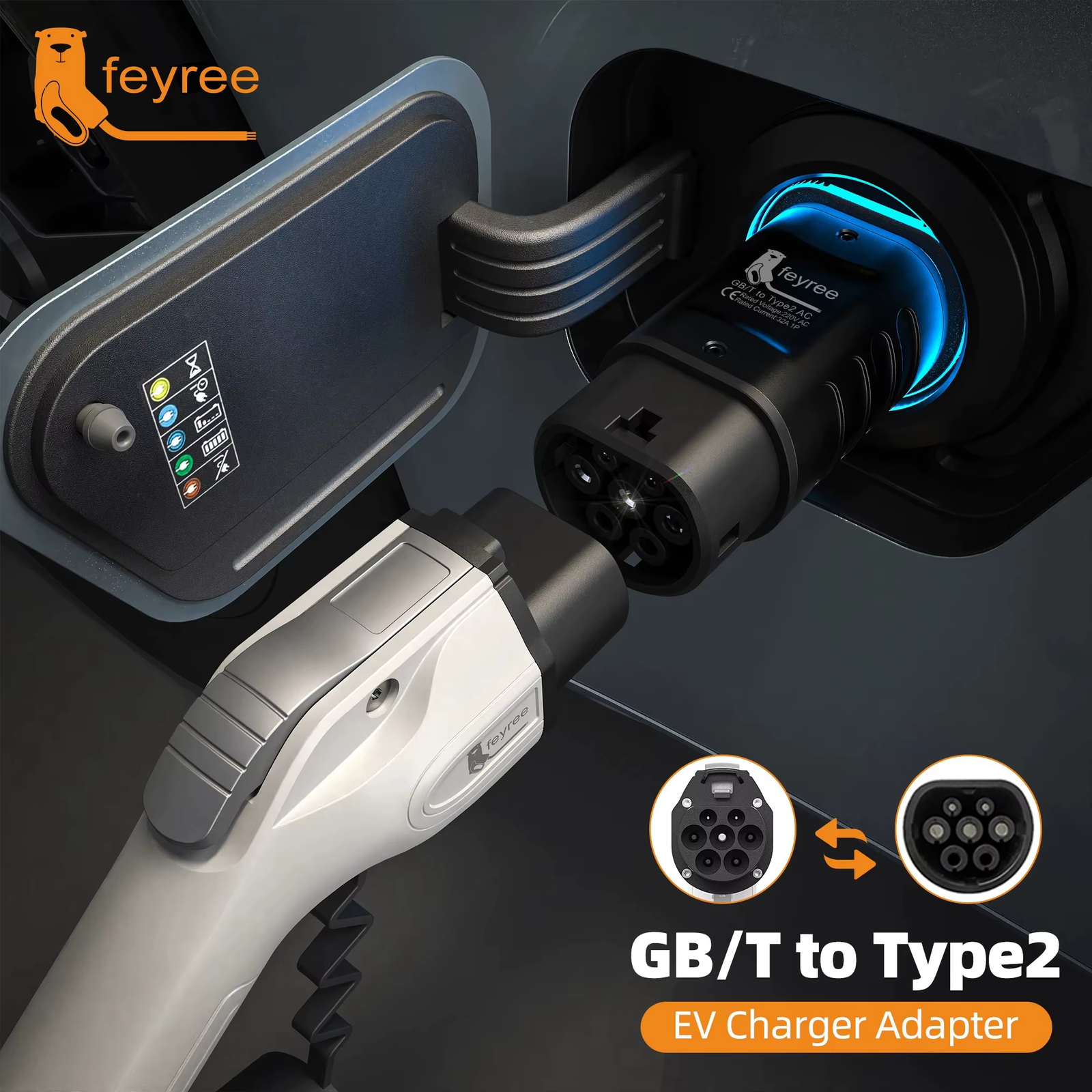

GBT to Type 2 Charger Adapter

The GBT to Type 2 Charger Adapter is a compact and reliable solution for connecting GBT standard chargers to Type 2 electric vehicles. Designed for versatility and convenience, this adapter enables seamless charging for Type 2 connector vehicles using GBT charging infrastructure. With a rated current of 32A and a voltage range of 220V to 480V AC, it supports fast and efficient charging without compromising safety or performance.

Built for durability, the GBT to Type 2 Charger Adapter features a robust thermoplastic housing with a flame-retardant rating of UL94 V-, ensuring high resistance to heat and fire. The pin material is copper alloy with a silver-plated surface, providing excellent conductivity and corrosion resistance. The adapter is engineered for over 10,000 insertion and extraction cycles, making it a long-lasting addition to your EV charging setup.

Safety is prioritized with an insulation resistance of ≥100MΩ, a withstand voltage of 200V, and a contact resistance of just .5mΩ max. The adapter is IP55-rated for protection against dust and water sprays, making it suitable for most environments, though it is not recommended for outdoor charging in heavy rain. Its compact, cable-free design makes it easy to carry and store, providing flexibility for charging at home, work, or on the go.

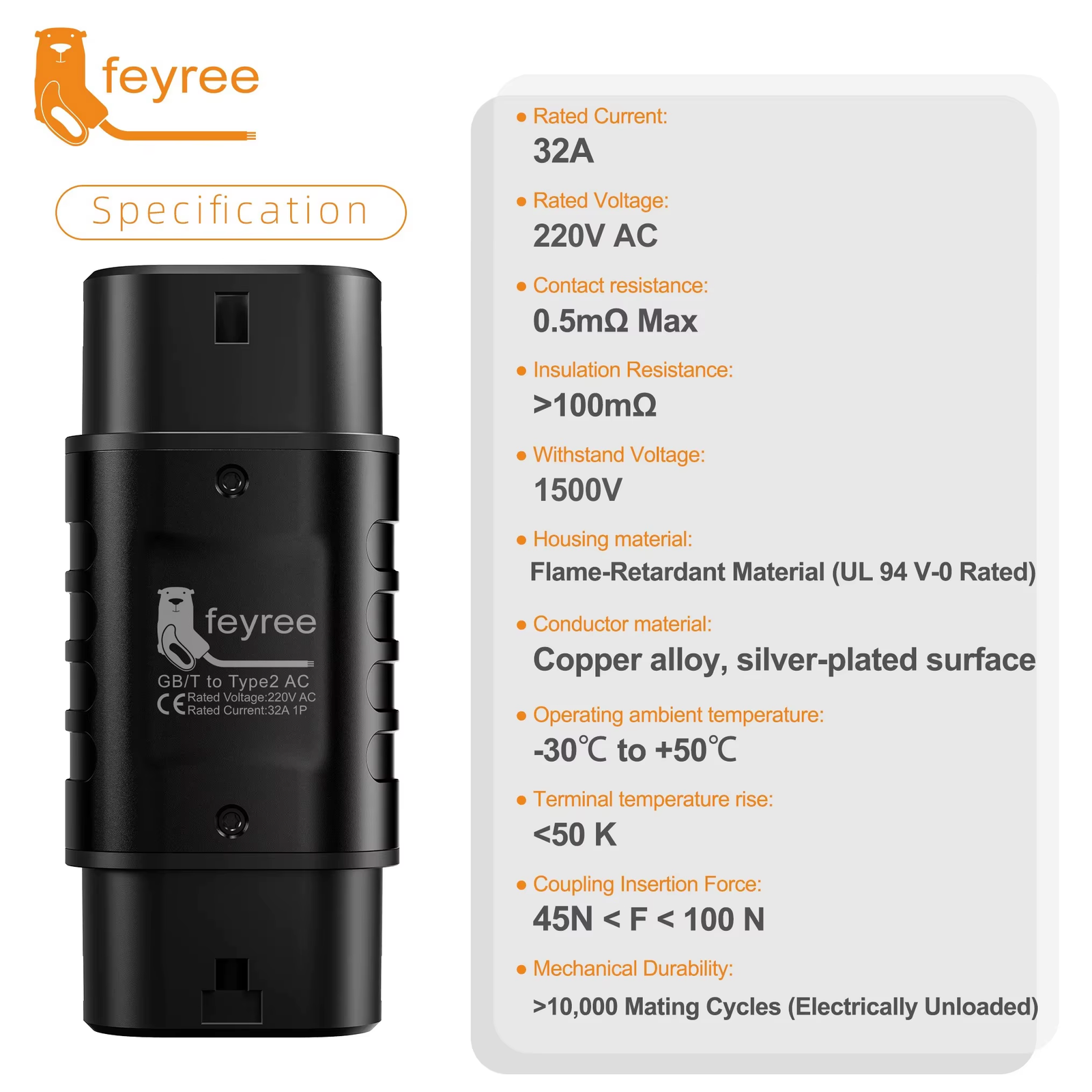

Technical Specifications:

• Rated current: 32A
• Rated voltage: 220V-480V AC, 50-60Hz
• Insulation resistance: ≥100MΩ
• Withstand voltage: 2000V
• Contact resistance: .5mΩ max
• Plastic fire rating: UL94 V-
• Mechanical life: >10,000 cycles (no-load)
• Insertion/withdrawal force: <80N
• Waterproof level: IP55
• Operating temperature: -30°C to +50°C
• Material: Thermoplastic, flame-retardant
• Pin material: Copper alloy, silver-plated with thermoplastic top

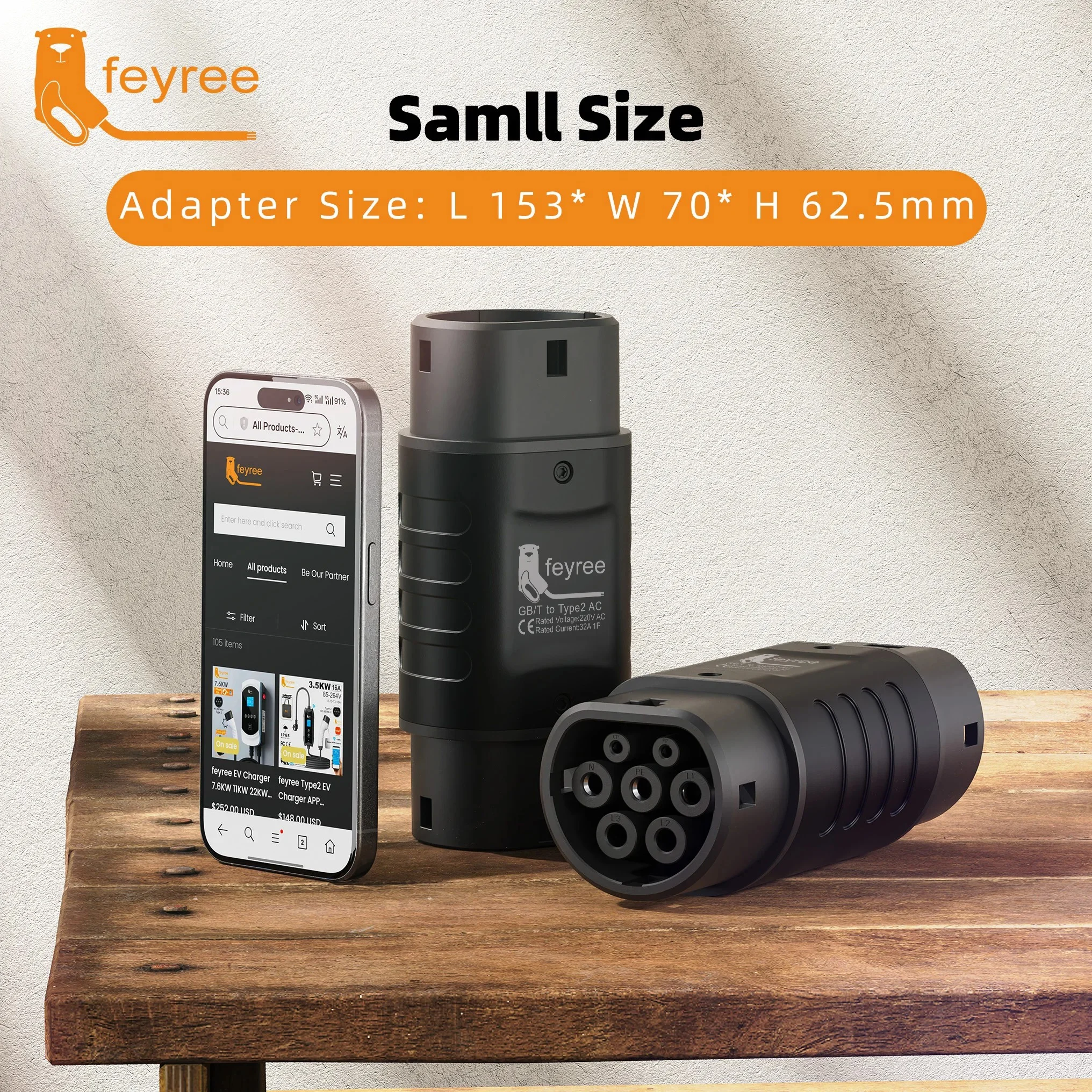

• Size: Compact, portable design

What’s in the Pack:

• 1x GBT to Type 2 Charger Adapter
• 1x User manual

For step-by-step installation guidance, visit our Mobile Energy System Guide. To complete your EV charging setup, explore our Accessories Collection, where you’ll find compatible products and helpful resources. If you’re interested in flexible charging solutions, check out our Flexible Charging Kits, designed to work seamlessly with the GBT to Type 2 Charger Adapter.
