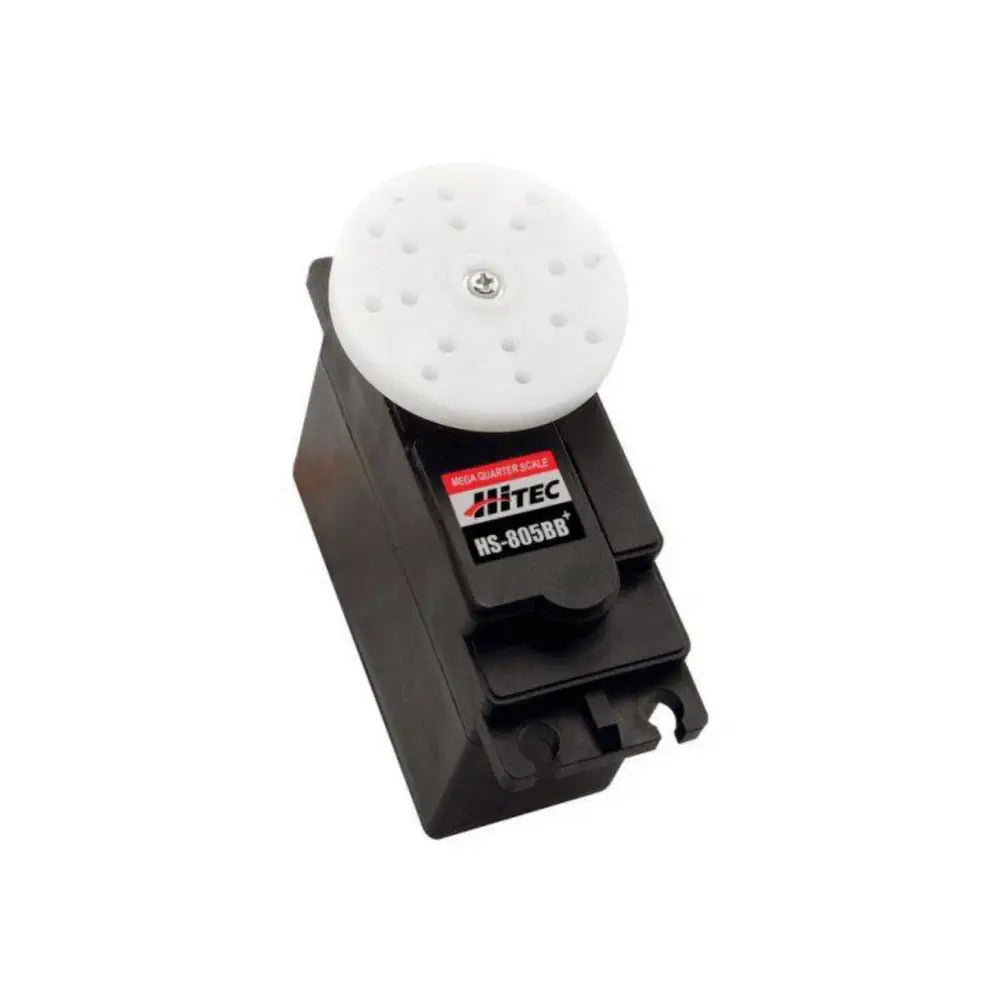

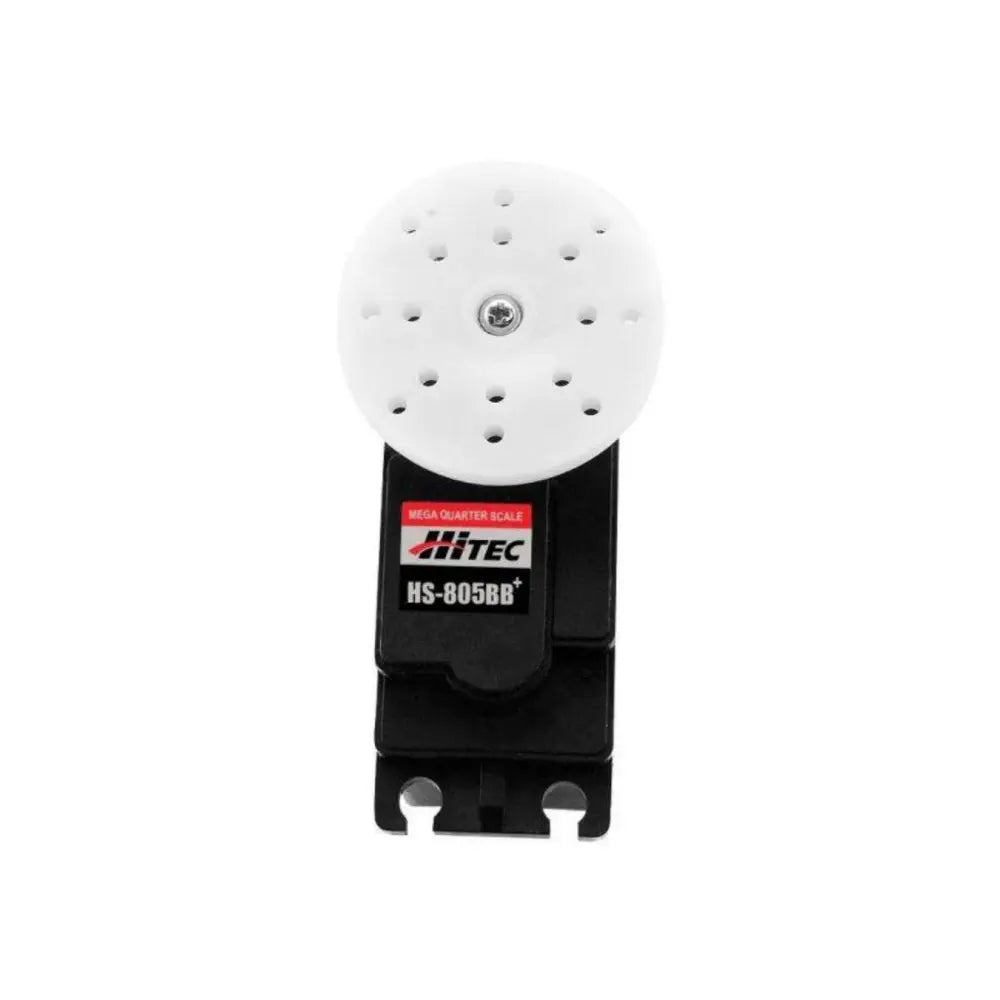

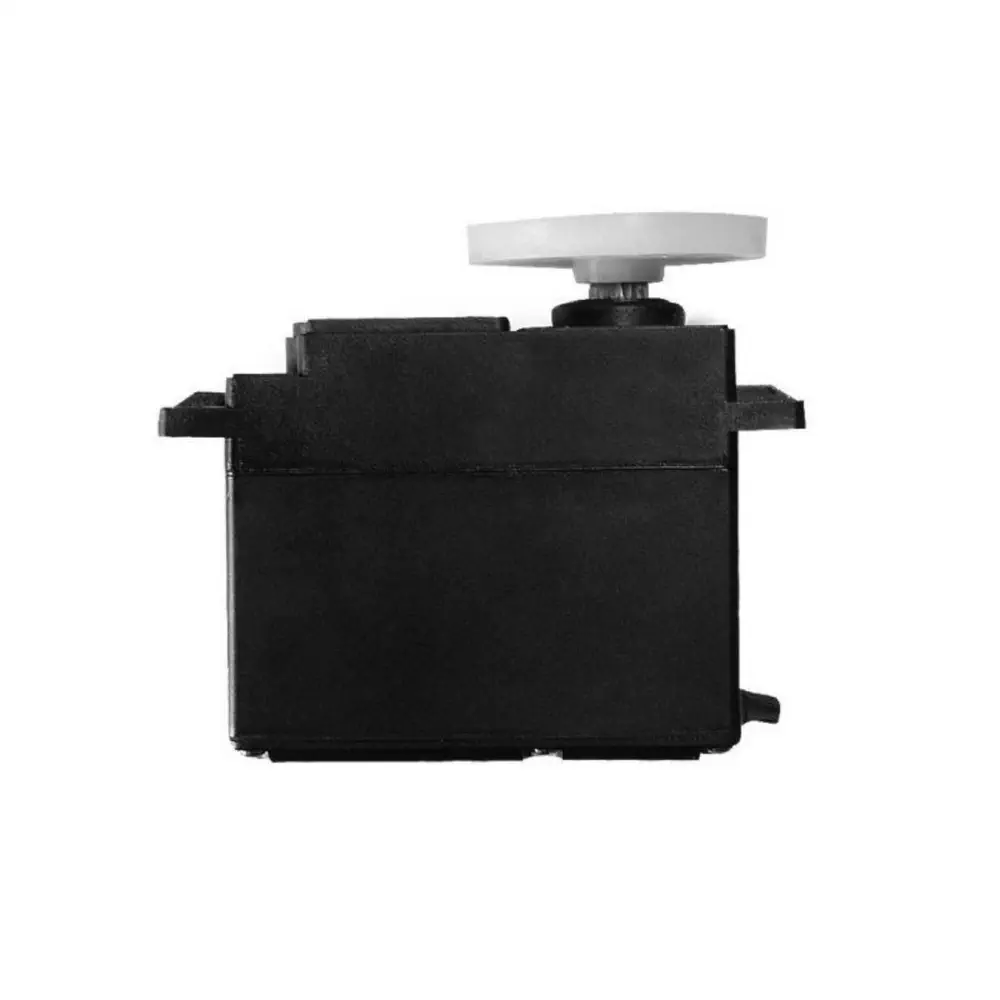

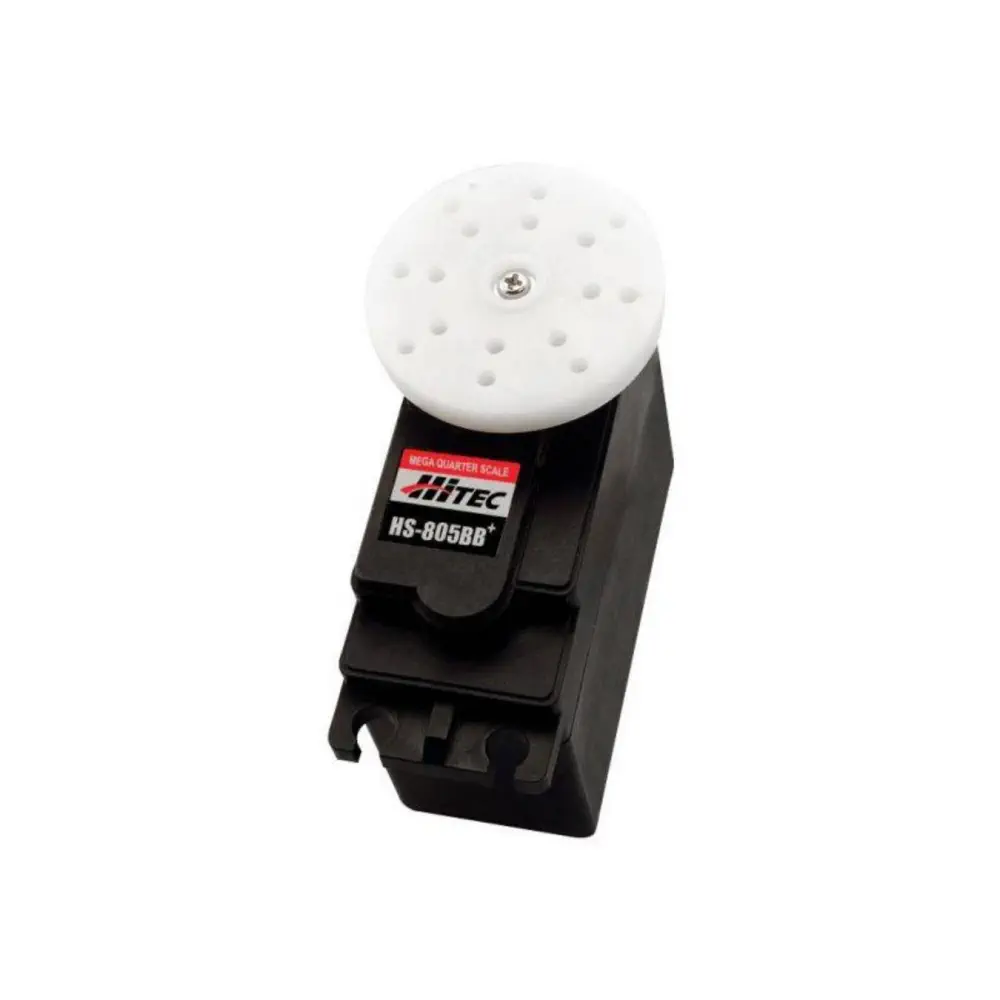

HS-805BB Giant Scale Servo Motor

• Economical Choice in a “Monster” Analog Servo
• Strong Three-Pole Ferrite Motor
• Heavy Duty, Nylon Gear Train
• Large 8mm Output Shaft with Dual Ball Bearings
• Solid Performance and Strong Gear Train
• Water and Dust-Resistant Case

HS-805BB Giant Scale Servo Motor Known as the “monster” servo, the HS-805BB uses a heavy duty nylon gear train and a strong 10mm, 15 tooth output shaft to generate 343 oz./in. of torque that will easily move just about any large plane, car, truck or boat!

• 1 x HS-805BB Giant Scale Servo Motor

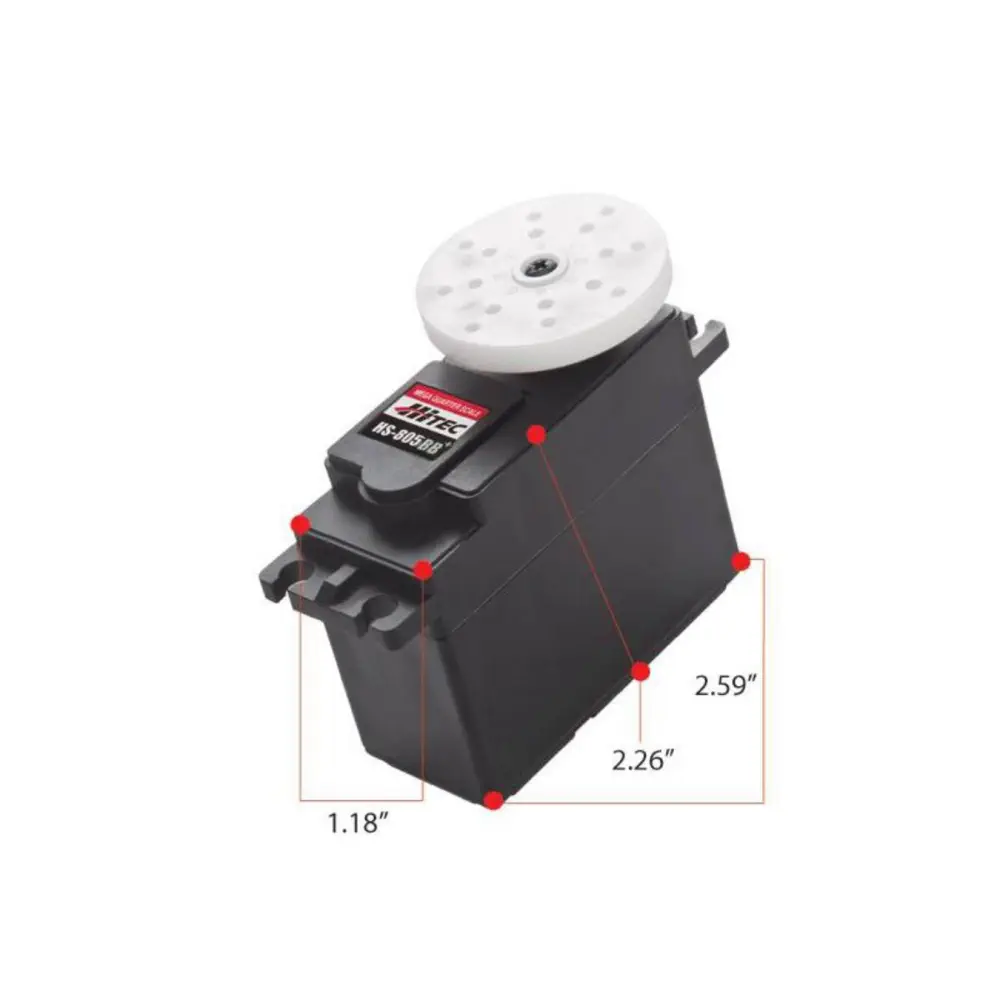

• 2.59 x 1.18 x 2.26 in.

Performance

• Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
• Speed (Second @ 60°): 0.19 ~ 0.14
• Maximum Torque Range oz. / in.: 275 ~ 343
• Maximum Torque Range kg. / cm.: 19.8 ~ 24.7
• Current Draw at Idle: 8 mA
• No Load Operating Current Draw: 520 mA
• Stall Current Draw: 6,000 mA
• Dead Band Width: 8 µs

Physical

• Weight (Ounces): 5.36
• Weight (Gram): 152.0
• Circuit Type: HT7003 Analog MosFet
• Motor Type: 3 Pole Carbon Brush Ferrite
• Gear Material: Nylon
• Bearing Type: Dual Ball Bearing
• Output Shaft (type / Ømm): Mega 15
• Case Material: Plastic
• Dust / Water Resistance: Splash Proof

Radio Control Applications

• Parkflyer: N / A
• Sport Plane: N / A
• Sailplane: N / A
• 3D Performance: N / A
• Scale: 30-40% and >40%
• Electric Helicopter: N / A
• Gas Helicopter: N / A
• On Road: N / A
• Monster Truck: N / A
• Buggies: N / A
• Truggies: N / A
• Short Course / Truck: N / A
• Crawlers: N / A
