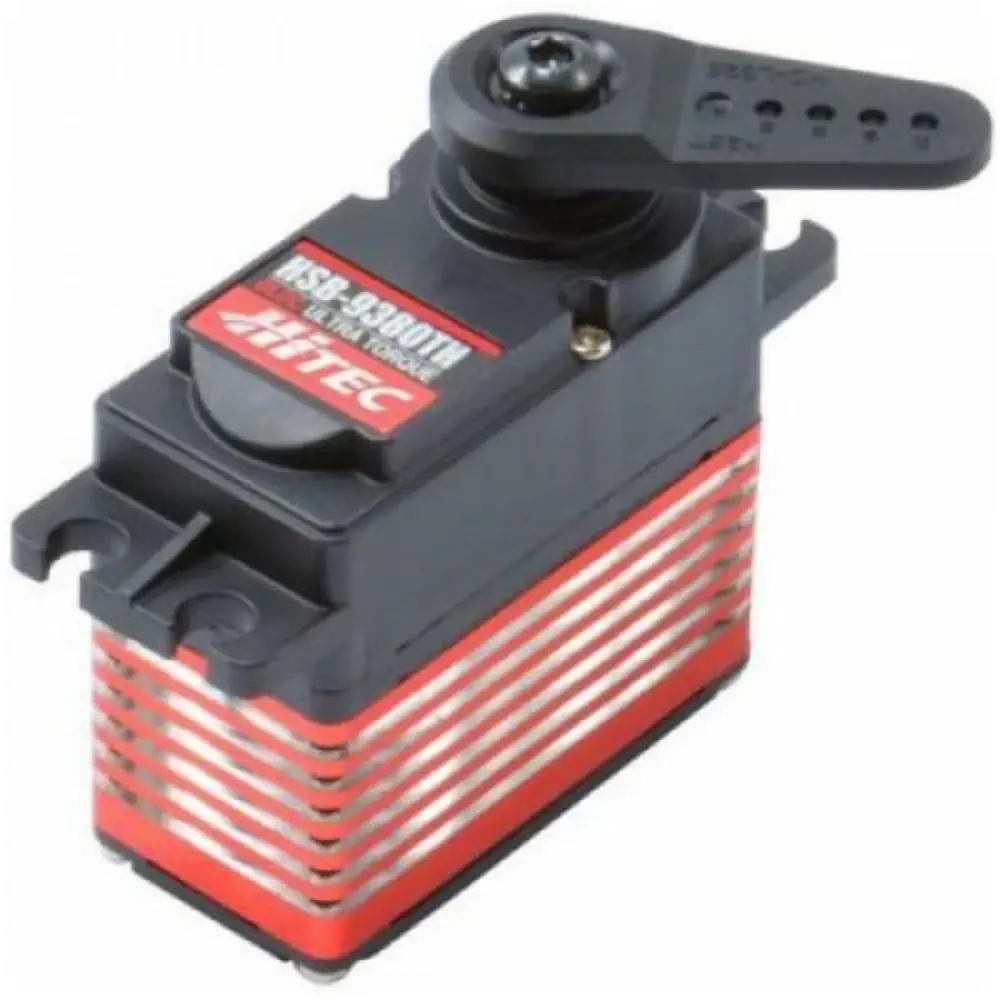

HSB-9380TH Ultra Torque Brushless Servo

• Ultra torque brushless servo with titanium gear
• Ideal for large planes and 1/8th and 1/5th scale road vehicles
• Speed(sec/60°): 0.17 (6.0 volts), 0.14 (7.4 volts)
• Torque(oz-in/kg-cm): 472/34.0 (6.0 & 7.4 volts)

The HSB-9380TH Ultra Torque Brushless Servo is the first-ever, ultra-efficient, premium brushless servo. With ultra-efficient Neu Castle brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers. The HSB-9380’s torque is the power solution for all giant scale pilots as well as 1/8th scale racers. The HSB-9380TH servo features the new 25-tooth industry standard output spline and 3mm hex head screw. Direction of rotation can be reversed, and angle of travel can be extended (180 degrees max) using a Hitec servo programmer.

Features

• Industry-leading titanium gear train
• 25-tooth standard spline
• Constant power output
• Programmable 12-bit resolution digital circuit
• Low current consumption
• Energy efficient

• Size: 1.57 x 0.79 x 1.50 in (40.0 x 20.0 x 38.0 mm)
• Weight: 2.40 oz (68 g)

ZIP File

• Model: Ultra torque
• Gear type: Titanium
• Control circuit: EBL digital
• Motor: Brushless
• Bearing: Dual BB
• Direction of rotation: Clockwise direction (CW)

• Pulse Data

– Requires 3-5V peak to peak square wave pulse
– Pulse duration is from 0.9mS to 2.1mS with 1.5mS as center
– The pulse refreshes at 50Hz (20mS)

• 6.0 volts

– Speed: 0.17 sec/60°
– Torque: 472 oz-in (34.0 kg-cm)

• 7.4 volts

– Speed: 0.14 sec/60°
– Torque: 472 oz-in (34.0 kg-cm)
