Description
- Single shaft serial bus intelligent servo
- 60kg Strong Torque 60kg.cm 7.4V
- Waterproof: fully sealed structure can effectively resist moisture
- Metal shell for strong heat dissipation

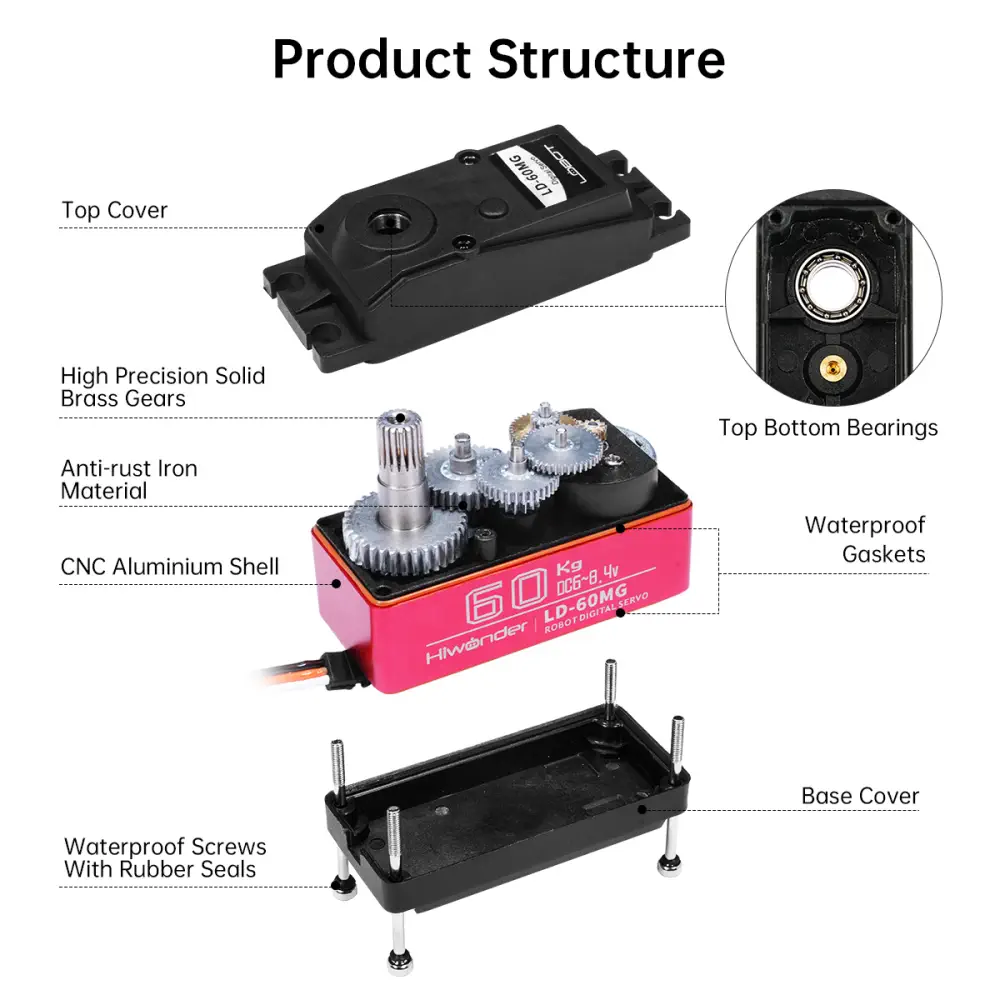

1) High-Quality Metal Motor
The servo features high-quality metal motors, allowing it to support higher payloads and withstand impacts. This design significantly enhances the servo’s torque and extends its lifespan.
2) Red Oxidized Metal Shell
The servo is encased in a red oxidized metal shell, providing excellent heat dissipation while also offering a sleek, modern appearance.
3) Stainless Steel Gear
The gear is made of stainless steel, which significantly enhances its durability and extends its lifespan, ensuring reliable performance over time.
4) 180° Precision Control
Equipped with a high-accuracy potentiometer, this servo offers precise control over its output angle from 0° to 180°. PWM pulse width modulation allows for fine-tuned adjustments, ensuring accurate positioning.
5) 60KG High-Torque Capability
This servo offers a high torque of 60KG, making it suitable for a wide range of robots and robotic arms that require strong performance and precision.
6) IP67 Waterproof Standard
The fully sealed structure provides effective protection against moisture commonly encountered in everyday environments.

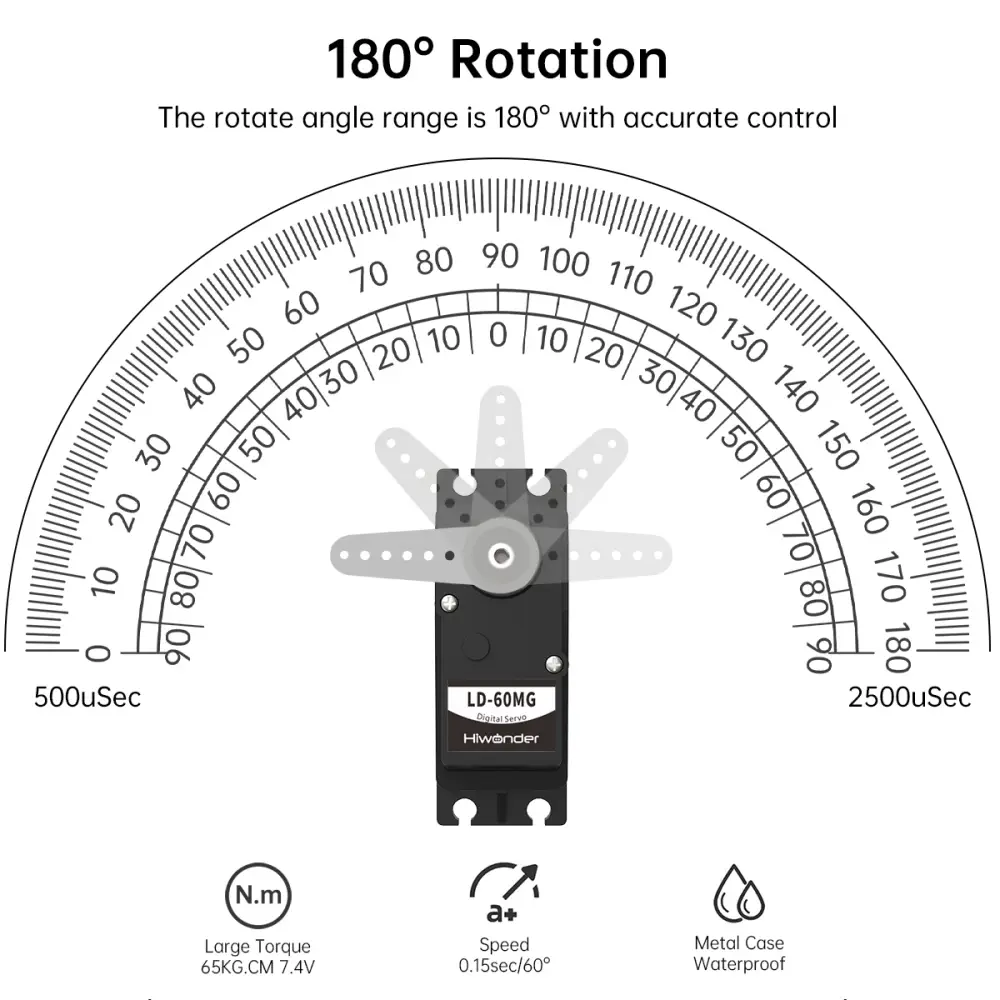

7) 180° Rotation
The controllable angle range of the servo is 180° with good linearity and accurate control.
It can be rotated 360° when the power is off.

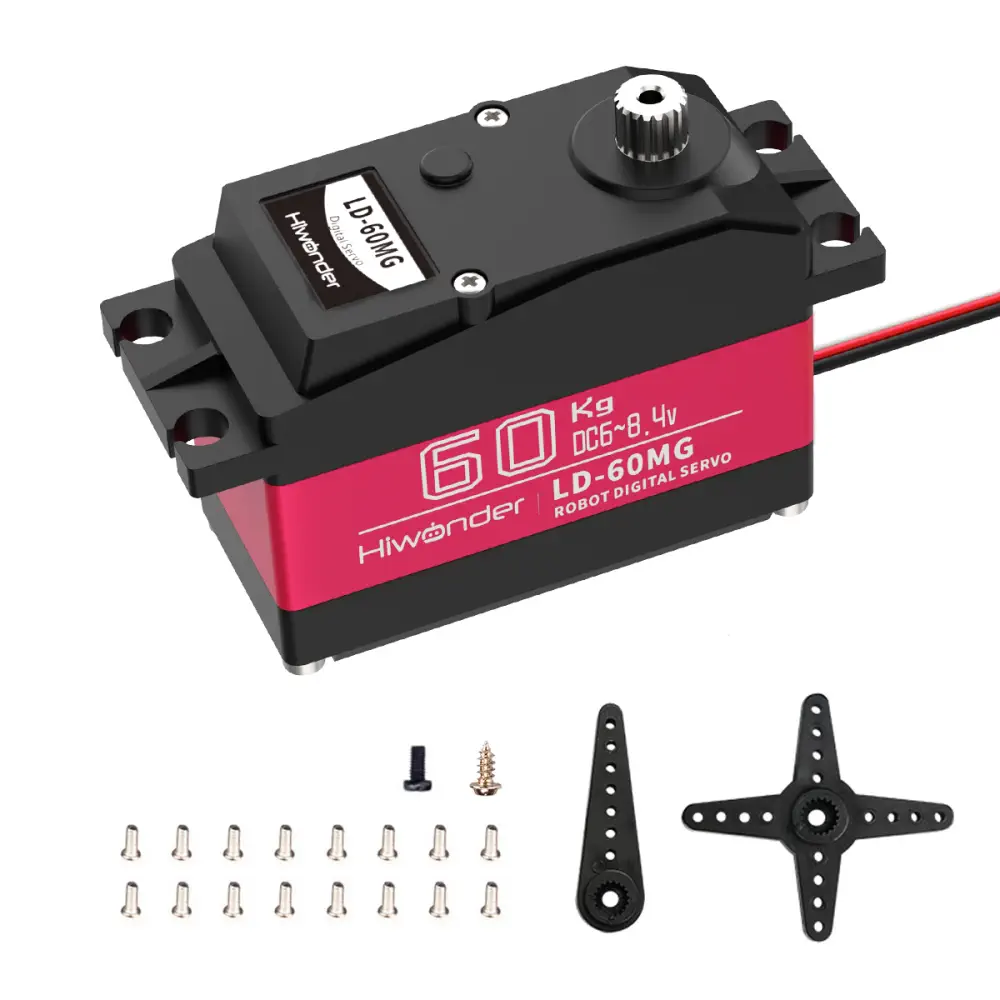

1* LD-60MG servo
1* Plastic servo horn
1* Screw bag

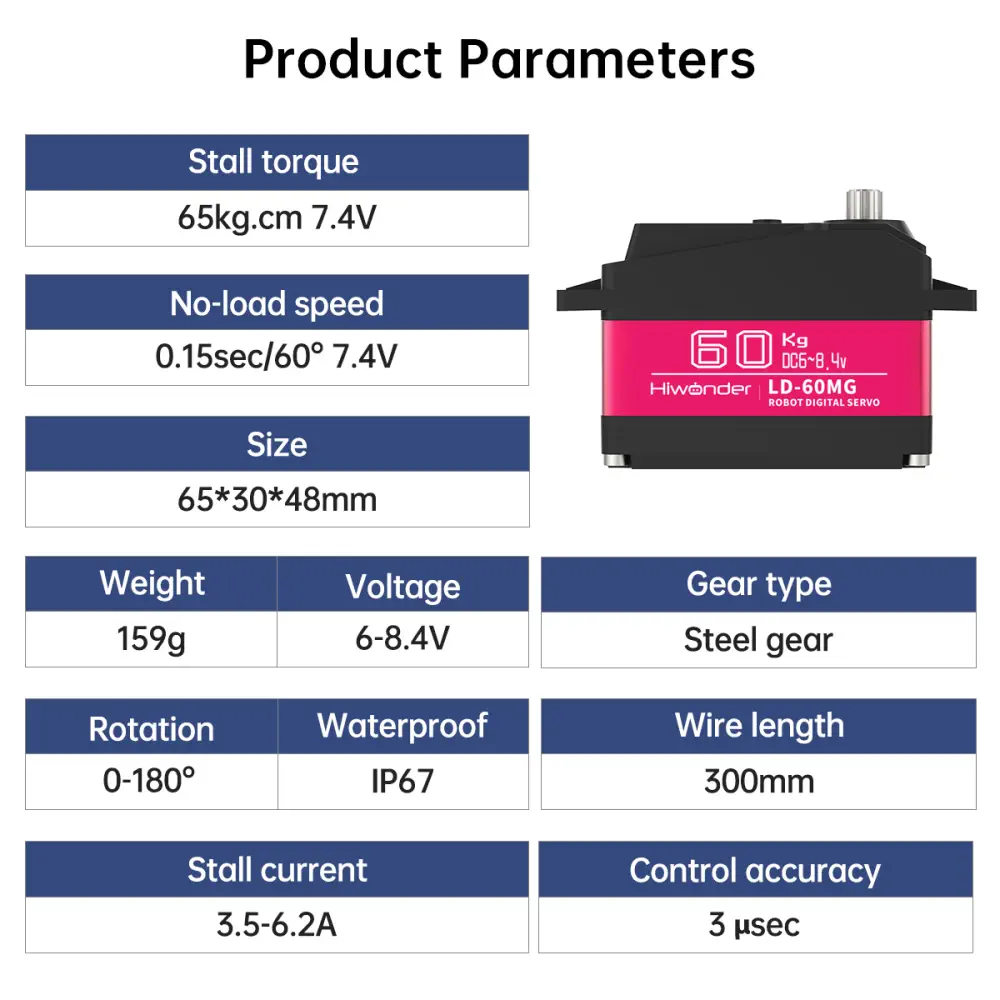

Weight: 159g

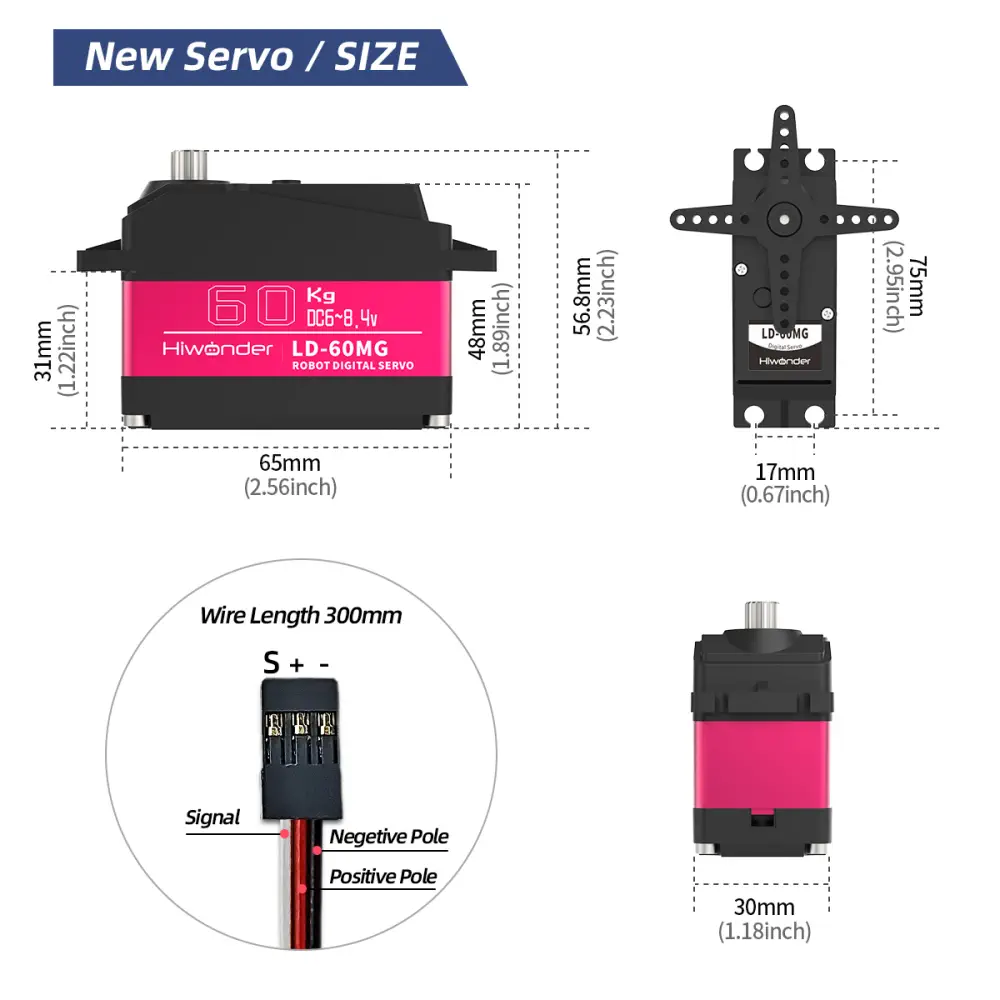

Size: 65*30*48mm
Working voltage: 6-8.4V
Stall current: 3.5~6.2A
No-load speed: 0.17sec/60° 6V; 0.15sec/60° 7.4V; 0.13sec/60° 8.4V
Stall torque: 58kg.cm 6V; 65kg.cm 7.4V; 70Kg.cm 8.4V
Gear type: Steel gear
Standby current: 4mA-6mA
Control angle: 180°
Waterproof: IP67
Control accuracy: 3 μsec
Wire length: 300mm
