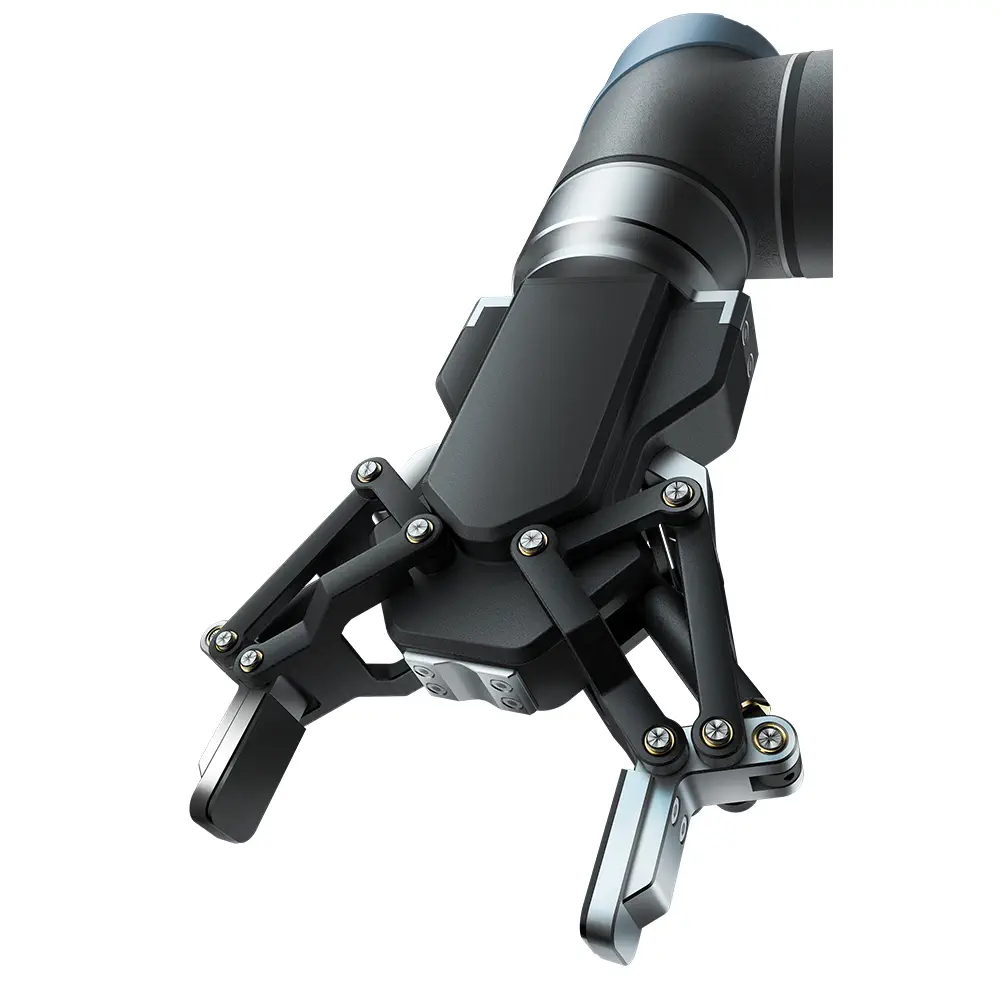

Linkage-Type Adaptive Electric Gripper AG 160 95

The Linkage-Type Adaptive Electric Gripper for Robotic Cobots AG 160 95 by DH Robotics is a certified, high-performance solution designed for seamless integration with leading collaborative robots, including UR, DOBOT, DOOSAN, and HANS ELITE. This advanced electric gripper features an integrated design with no external controller required, enabling quick and easy installation directly onto the robot’s end arm.

Engineered for versatility, the AG 160 95 gripper offers envelope adaptive grasping, providing exceptional stability when handling round, spherical, or irregularly-shaped objects. Its long stroke of up to 145mm allows a single gripper to accommodate a wide variety of object sizes, making it ideal for dynamic production environments.

Force and stroke are fully adjustable via intuitive software, ensuring precise control for delicate or heavy-duty applications. The standard connection is RS485 and IO, with optional communication boxes available for broader compatibility. Plug&Play functionality ensures rapid deployment and simplified programming, making the AG 160 95 gripper a perfect fit for both new and existing automation systems.

Technical Specifications

• Certified for UR, DOBOT, DOOSAN, HANS ELITE, and more
• Integrated design, no external controller
• Mounts directly to the robot end arm
• Force and stroke adjustable via software
• Maximum Stroke: 145mm
• Communication: RS485 and IO (other options available)
• Envelope adaptive grasping for stable handling of round, spherical, or irregular objects
• Plug&Play compatibility with most collaborative robots

Package Includes

• 1 × AG 160 95 Linkage-Type Adaptive Electric Gripper
• 1 × Connection Cable
• 1 × User Manual

For integration guides, technical support, and compatible accessories, visit our Automation Accessories Collection. Explore more advanced robotic solutions in our Robotics Range.
