MG400 Accessory – Vacuum Suction Cup Kit

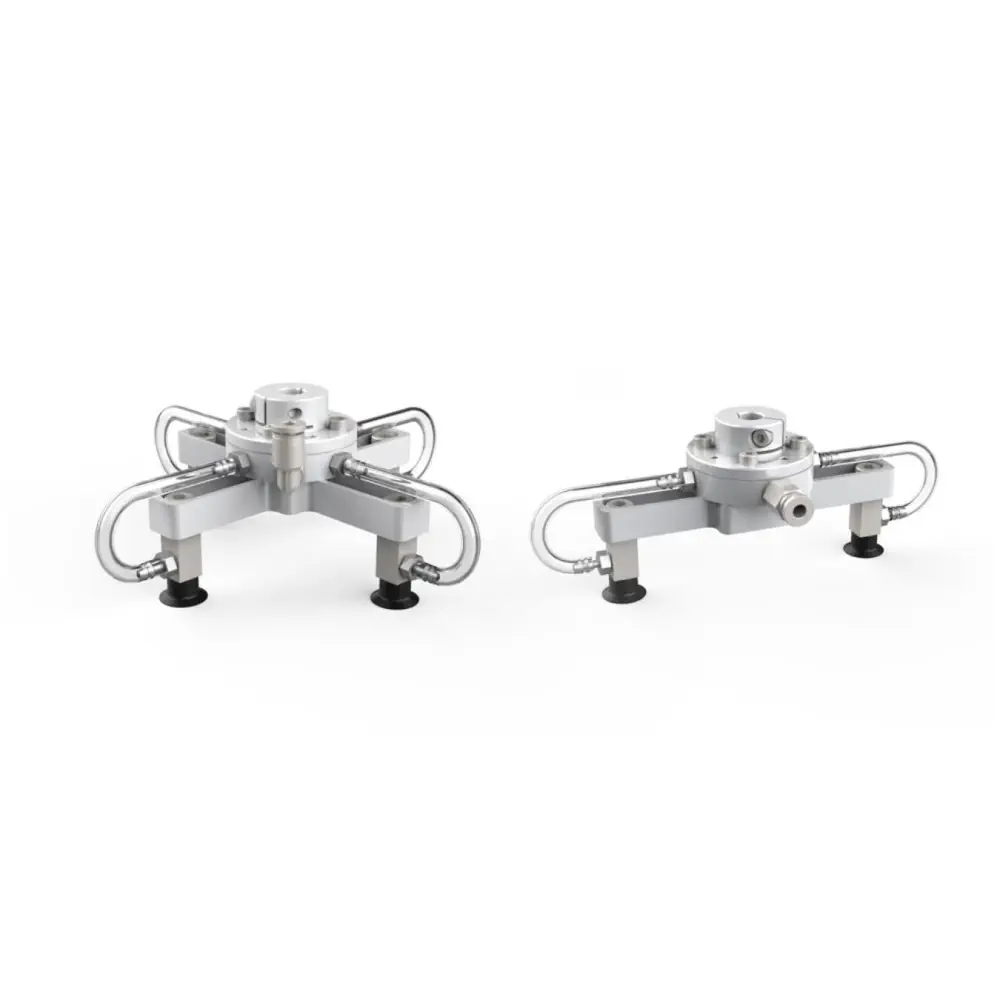

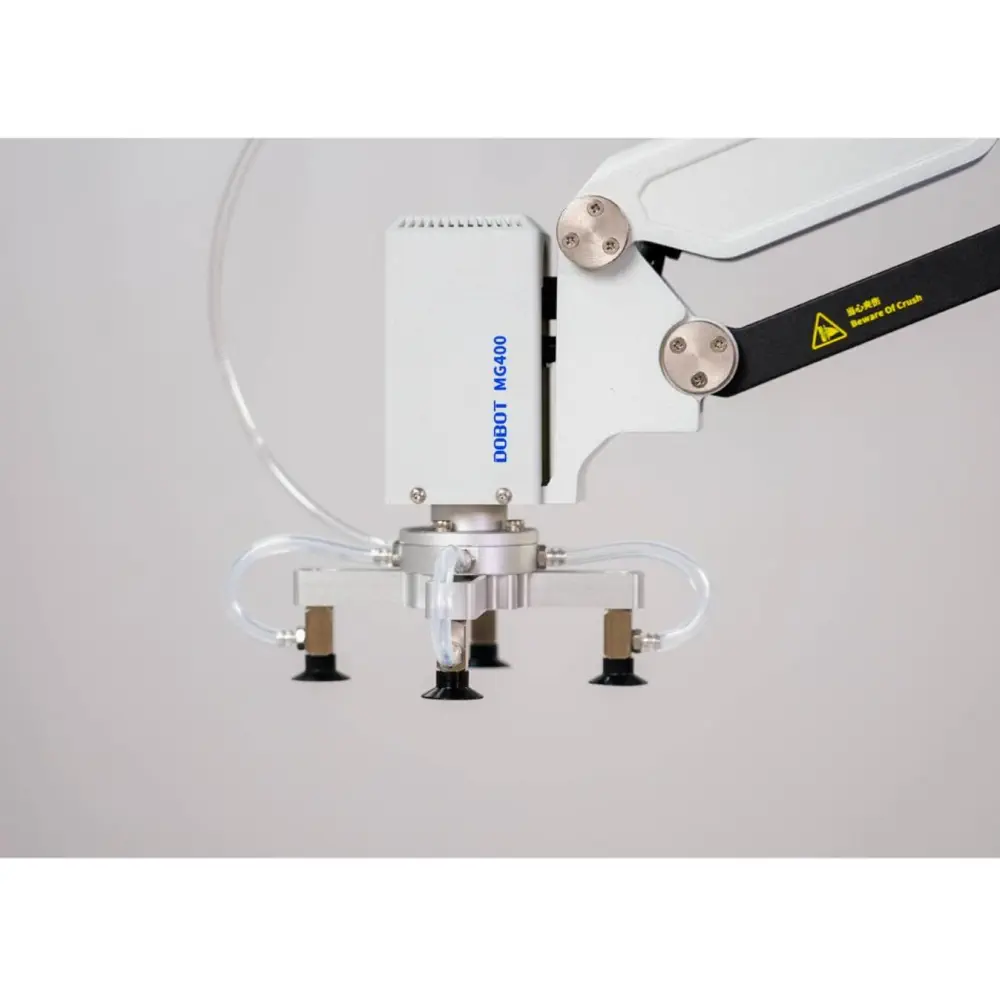

The MG400 Accessory – Vacuum Suction Cup Kit is a versatile and essential add-on designed to enhance the capabilities of your MG400 robotic system. This kit includes two suction cup units (A & B) that are ideal for picking up objects with large surfaces or elongated shapes, making it perfect for a wide range of automation and material handling tasks.

With adjustable distance between the suction cups, the MG400 Accessory – Vacuum Suction Cup Kit allows for quick and flexible setup to accommodate different object sizes and shapes. The kit includes six connectors—four ZP3A-Y2-B5 and two ZP3A-Y3-B5—enabling easy customization and secure attachment of the suction cups. Changeable suction cups in various sizes are provided, ensuring optimal grip and adaptability for diverse applications.

Please note: The MG400 Accessory – Mini Vacuum Pump Box is required for operation and is not included in this kit.

Technical Specifications

• Suction Cup Units: Unit A, Unit B
• Connectors: 4 × ZP3A-Y2-B5, 2 × ZP3A-Y3-B5
• Suction Cups: 6 × ZP3-16UMN, 2 × ZP3-13UMN, 6 × ZP3-04UMN, 4 × ZP3-08UMN
• Hexagon Socket Screws: 4 × M310, 2 × M58
• PU Tubes: 1 × Φ4 (1 meter), 1 × Φ5 (1 meter)

Package Includes

• 1 × Vacuum Suction Cup Unit A
• 1 × Vacuum Suction Cup Unit B
• 4 × Suction Cup Connector ZP3A-Y2-B5
• 2 × Suction Cup Connector ZP3A-Y3-B5
• 6 × Suction Cup ZP3-16UMN
• 2 × Suction Cup ZP3-13UMN
• 6 × Suction Cup ZP3-04UMN
• 4 × Suction Cup ZP3-08UMN
• 4 × Hexagon Socket Screw M3*10
• 2 × Hexagon Socket Screw M5*8
• 1 × PU Tube (Φ4) 1 meter
• 1 × PU Tube (Φ5) 1 meter
