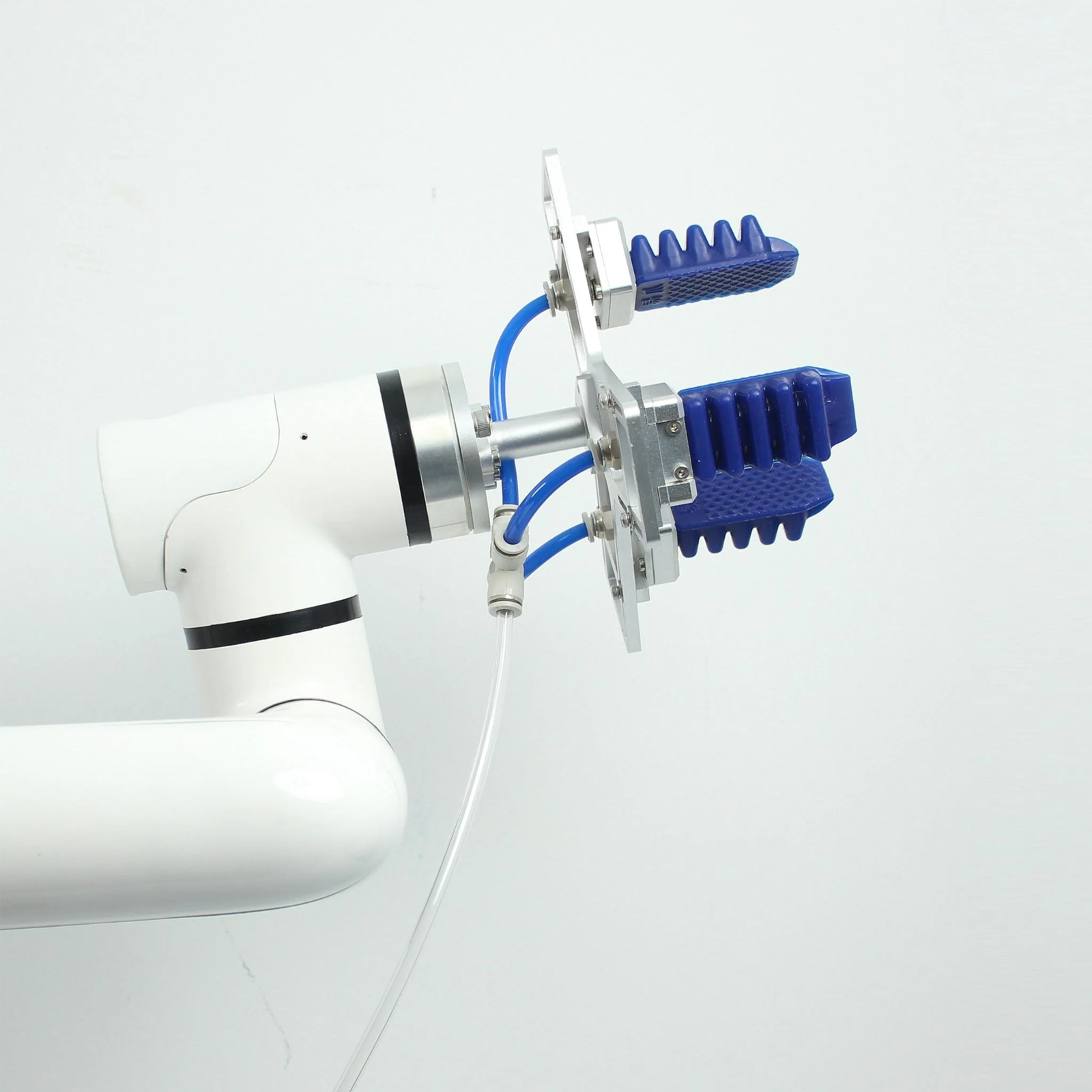

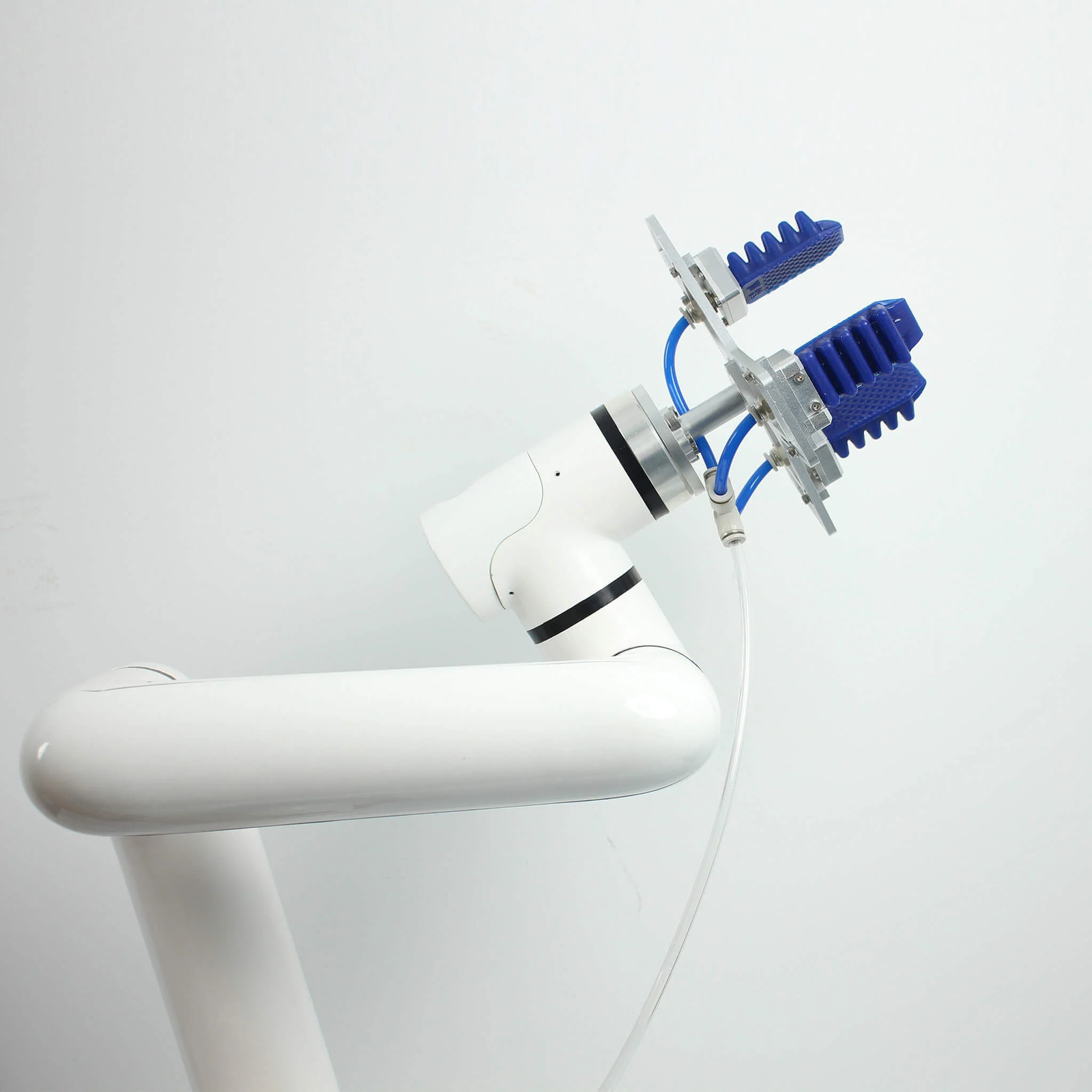

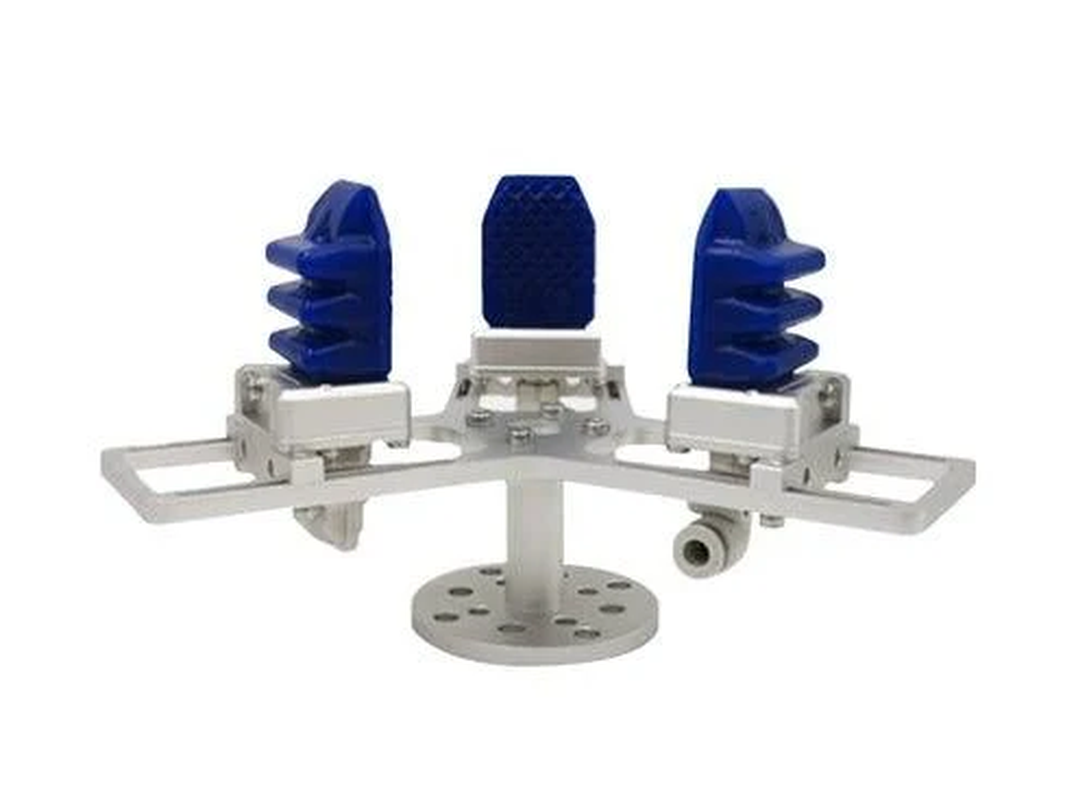

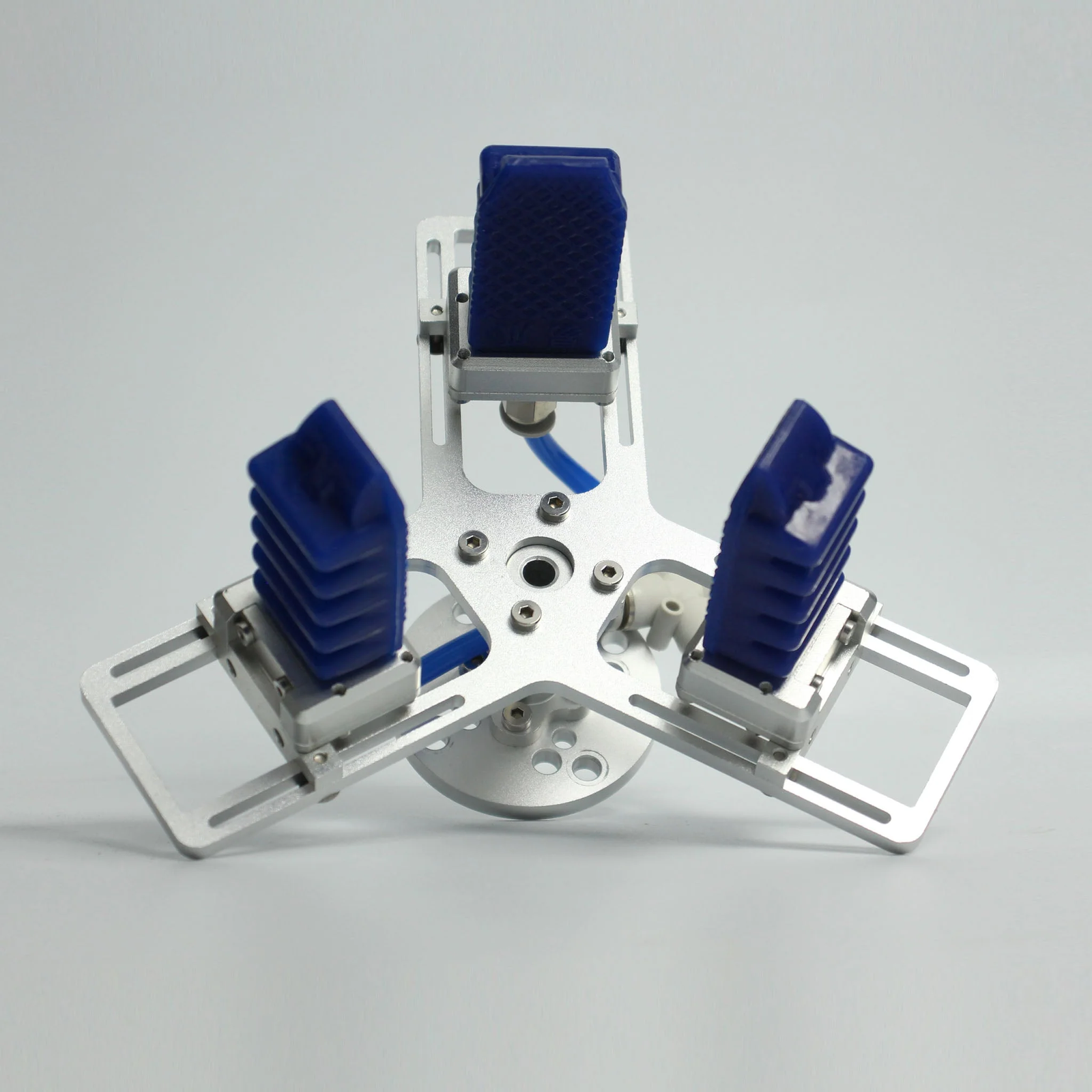

MyCobot Pro Soft Gripper & Air Compressor

The MyCobot Pro Soft Gripper & Air Compressor is a versatile, food-safe end-effector designed for seamless integration with MyCobot 320 and Pro 630 robotic arms. Crafted from metal and silica gel, this soft gripper safely wraps around objects of various shapes and sizes without causing damage, making it ideal for applications in food handling, electronics, daily chemicals, service retail, intelligent assembly, automatic sorting, and scientific research.

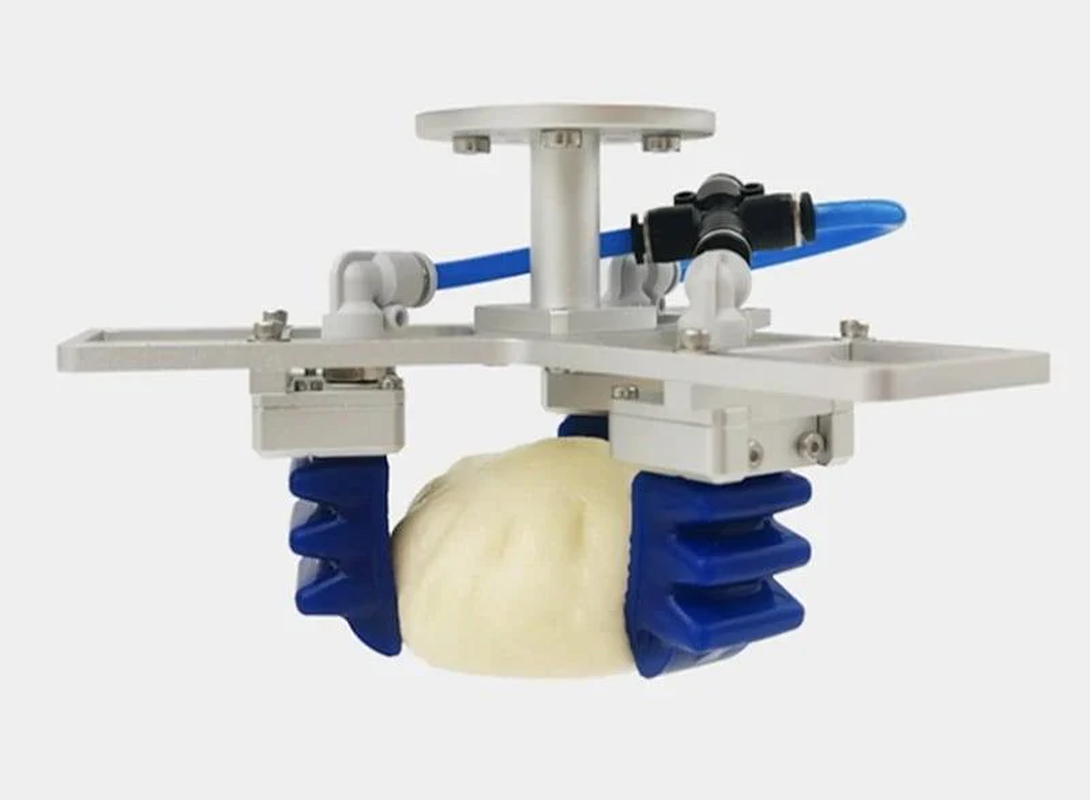

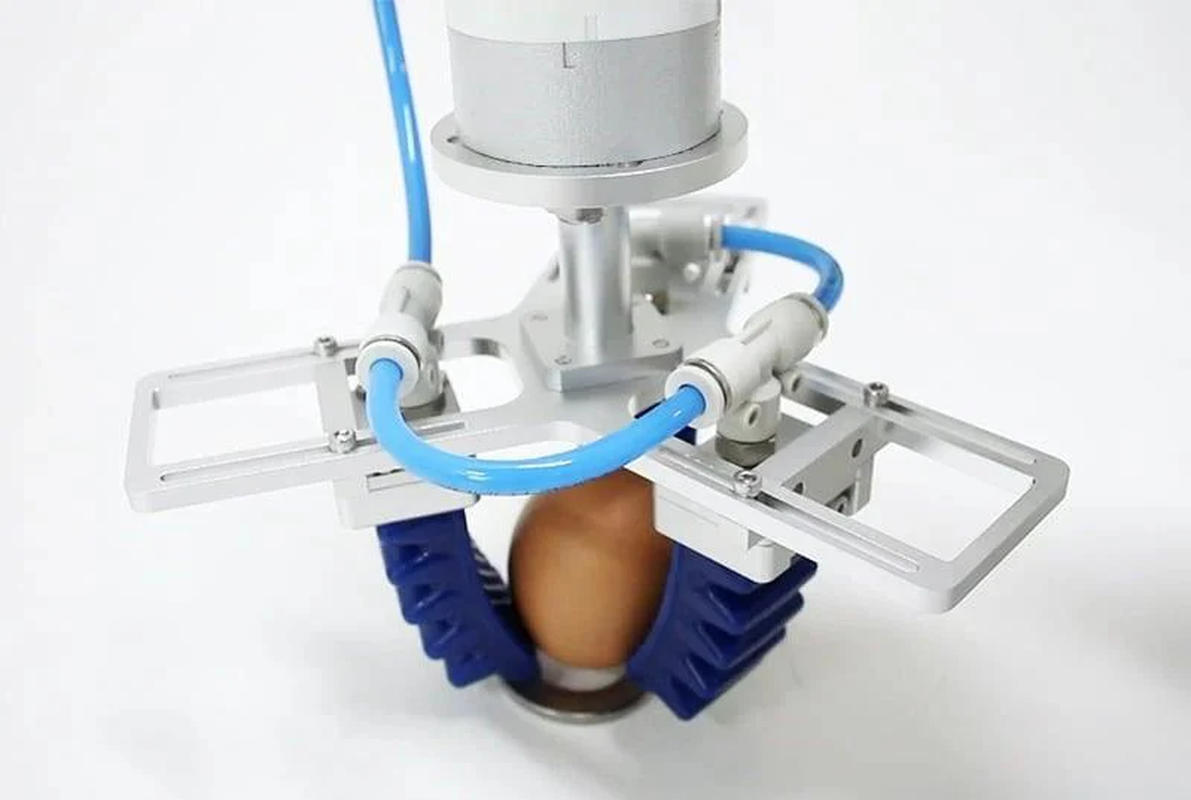

FDA-inspected and approved for food contact, the MyCobot Pro Soft Gripper can be fully immersed in water and features a modular design for easy adaptation and maintenance. The gripper supports one-paw adaptation and can securely grip items such as PCB sheets, fresh produce, and delicate components. With a maximum vertical load of 600g and a cladding load of up to 108g, it delivers reliable performance for both industrial and research environments.

Please note: The gripper requires connection to an air compressor (220V/50Hz) for operation. Ensure your use environment is compatible before purchase.

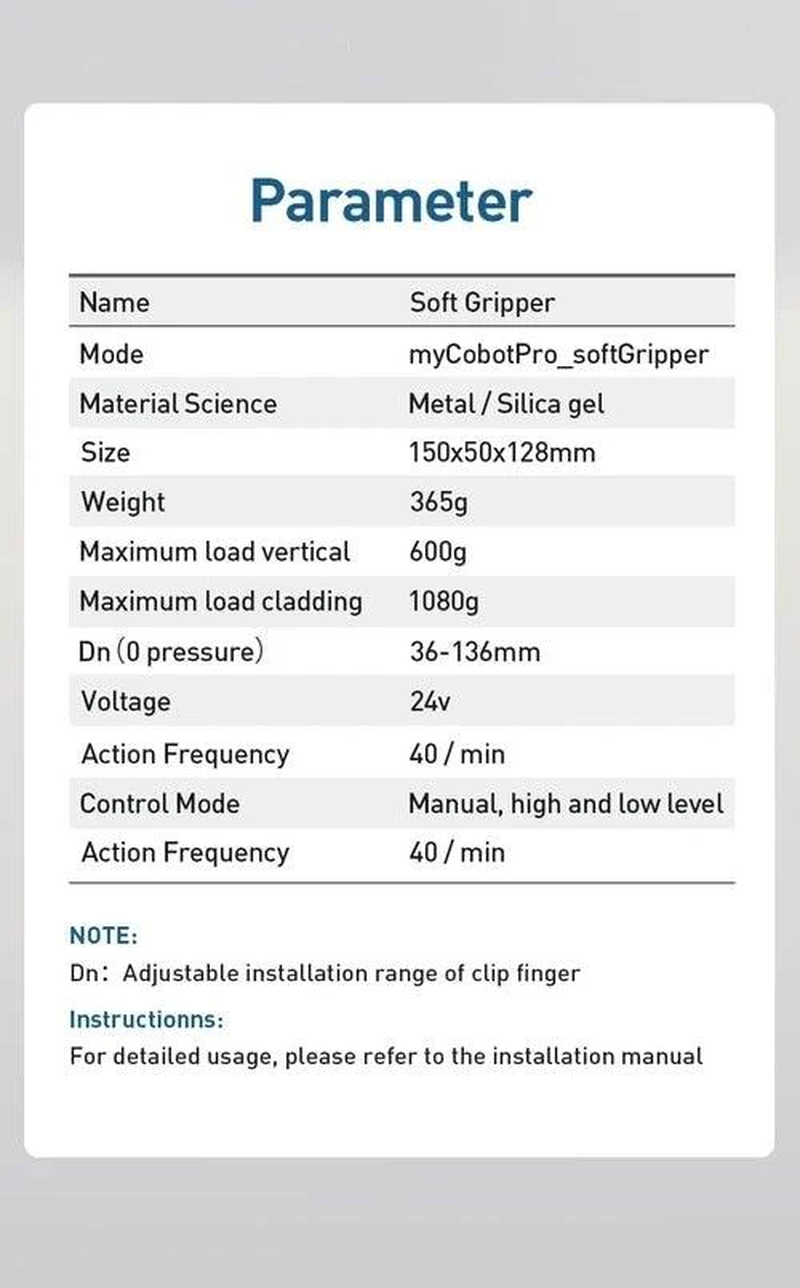

Technical Specifications

• Name: Soft Gripper
• Model: myCobotPro_softGripper
• Material: Metal / Silica gel
• Size: 150 × 50 × 128 mm
• Weight: 365g
• Maximum Load (Vertical): 600g
• Maximum Load (Cladding): 108g
• Dn ( pressure): 36–136mm (adjustable installation range of clip finger)
• Voltage: 24V
• Action Frequency: 40/min
• Control Mode: Manual, high and low level
• FDA Inspected: Yes
• Immersion: Can be used fully immersed in water

Package Includes

• 1 × MyCobot Pro Soft Gripper

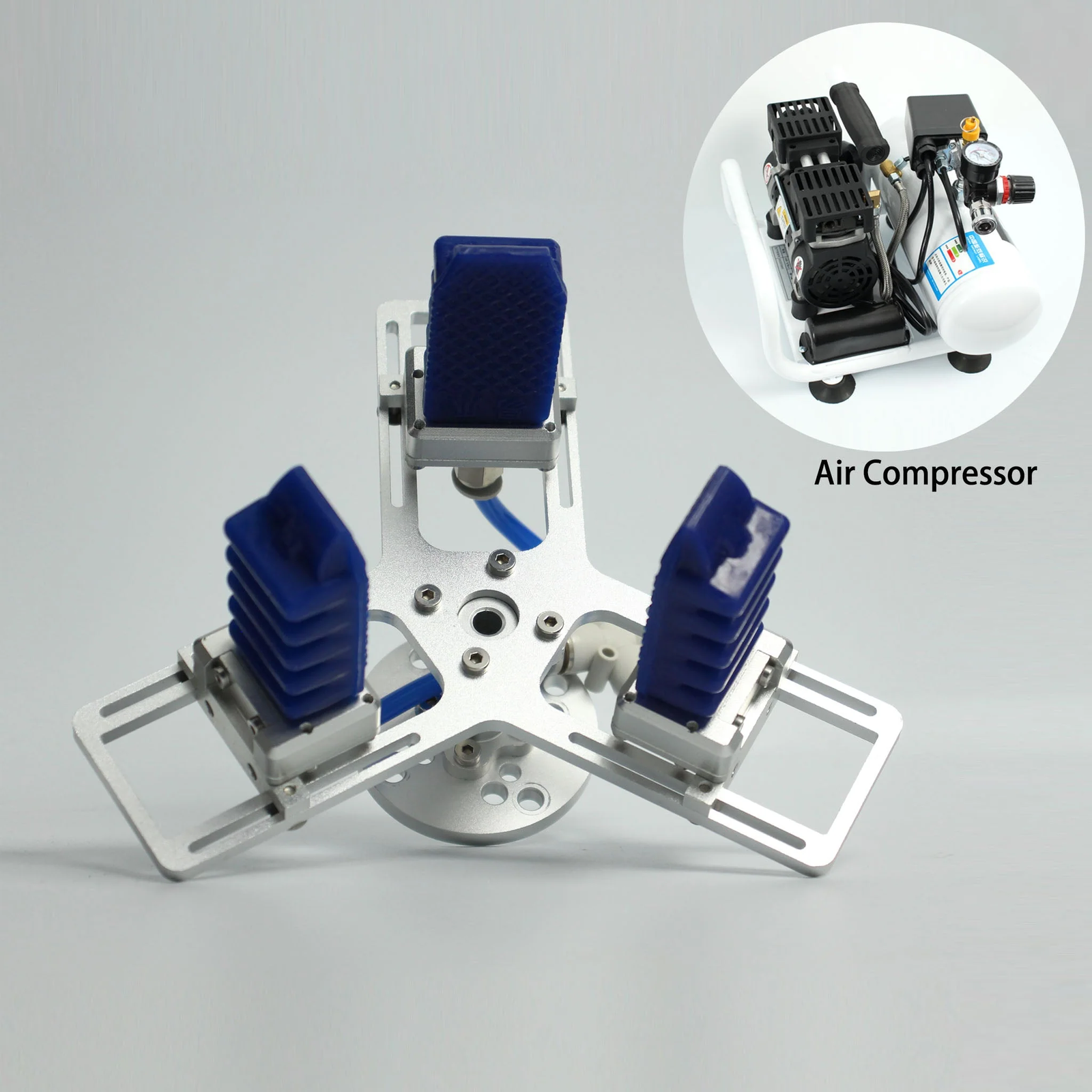

• 1 × Air Compressor (220V/50Hz)
• Installation Manual
