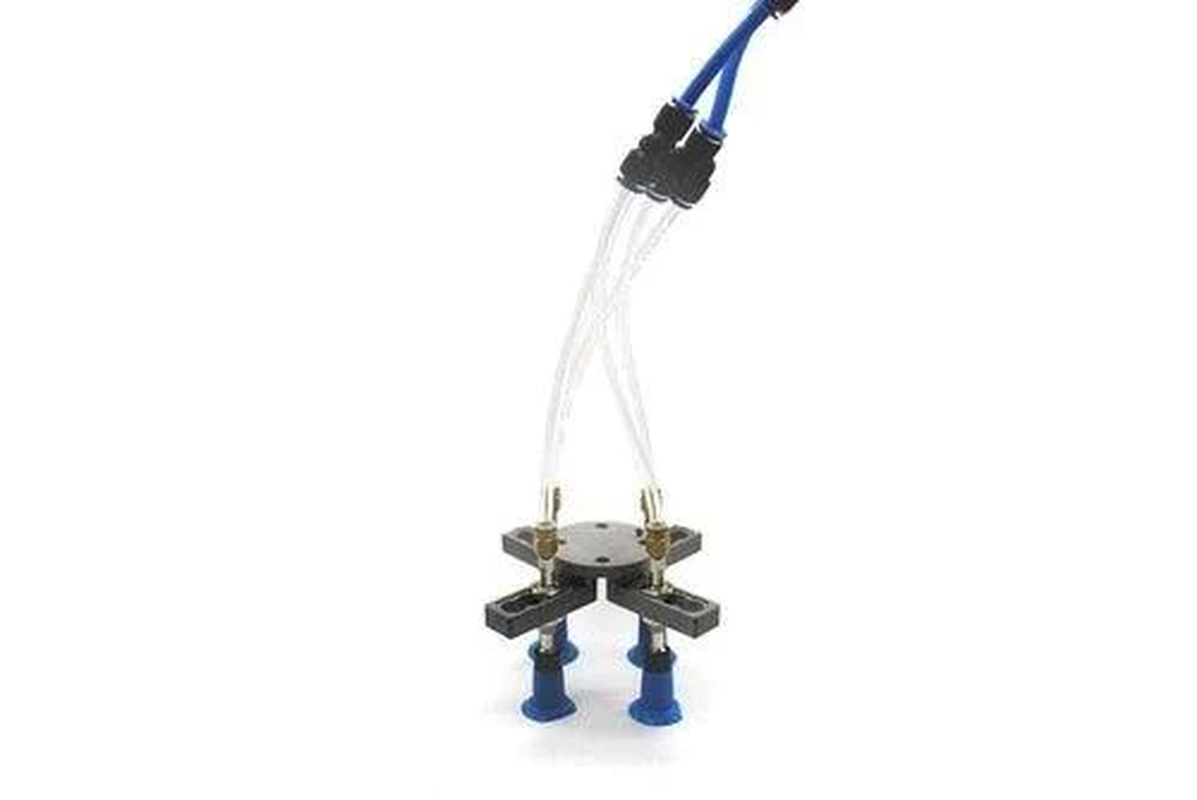

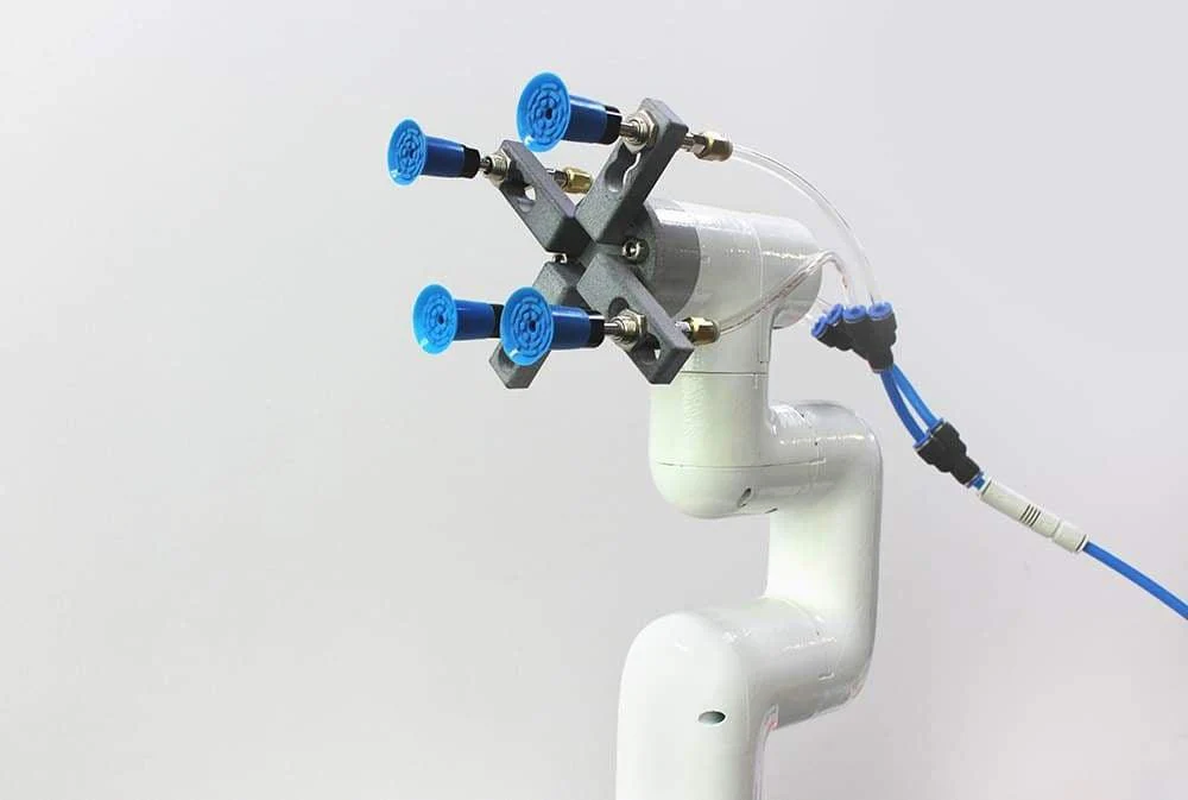

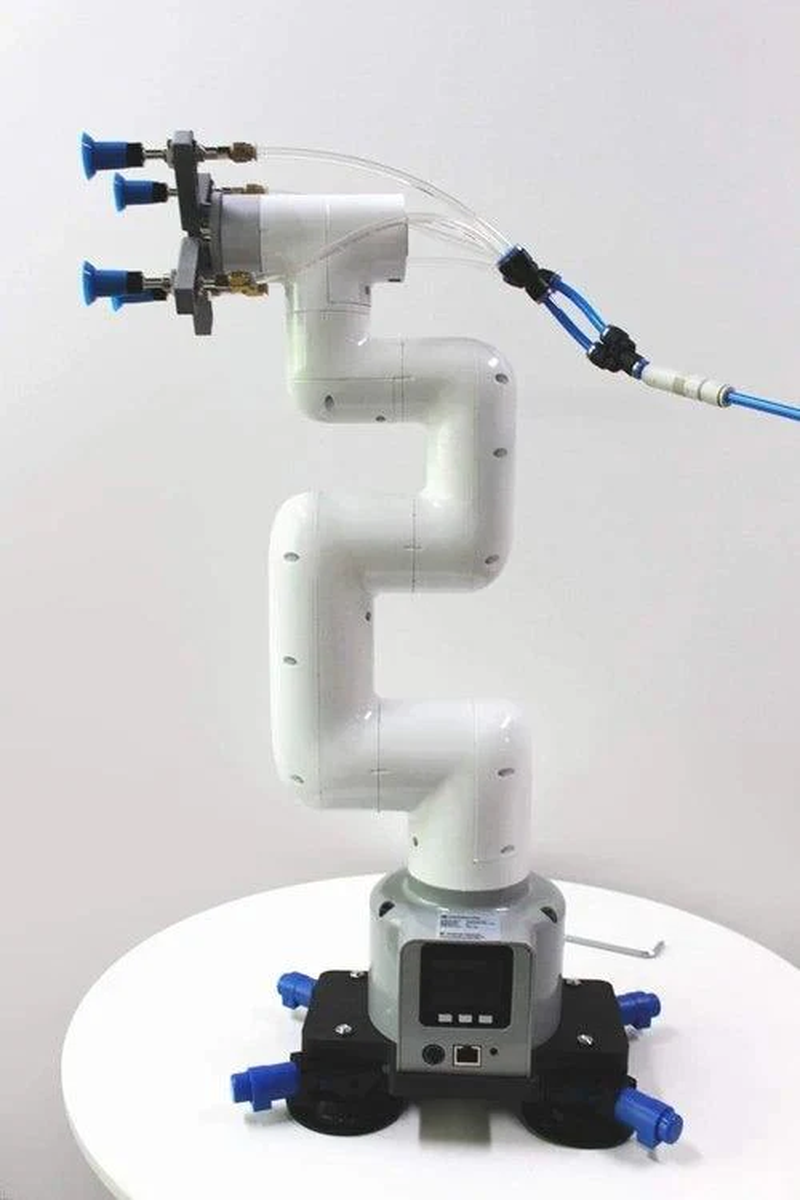

myCobot Pro vacuum suction cups are very efficient for fast and reliable pick and place and allow you to pick some objects that a normal gripper can¡¯t pick. Such as taking out the cover of a flat box, moving soda cans from the top, picking and placing large objects with a flat surface.(Fit for ER my Cobot 320 M5 Stack, ER myCobot 320 Pi , ER myCobot Pro 360
Features
Easy to Use
Strong Suction
Full Control and Versatile
Small Size and Saving Installation Space
Simple and Robust Robotic Vacuum Suction

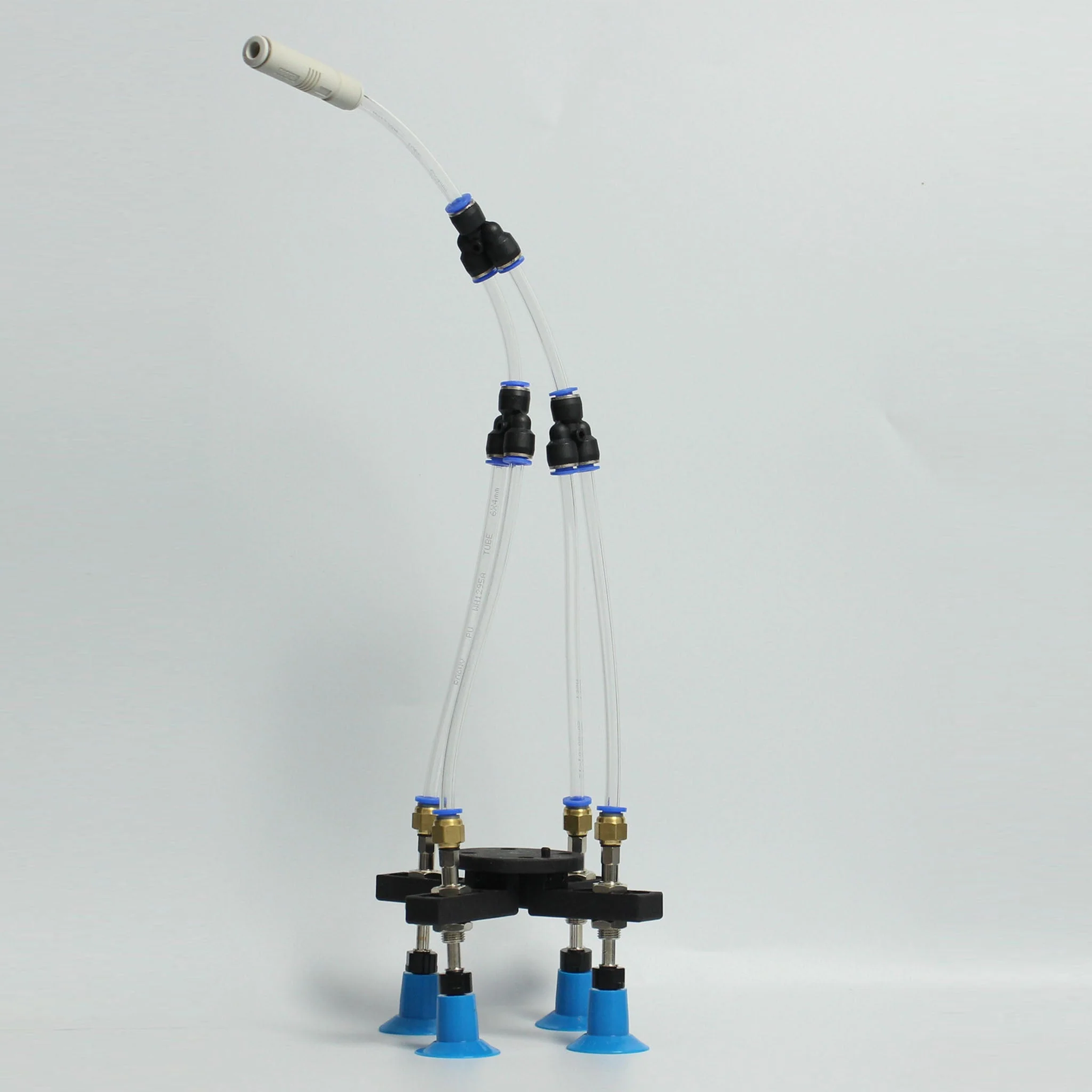

Components

- Center Flange x1
- Spring links x4
- L Holder x4
- Cups x4
- Air Tubes Set x1 (1m Long)
- Electromagnetic valve and connectors x1

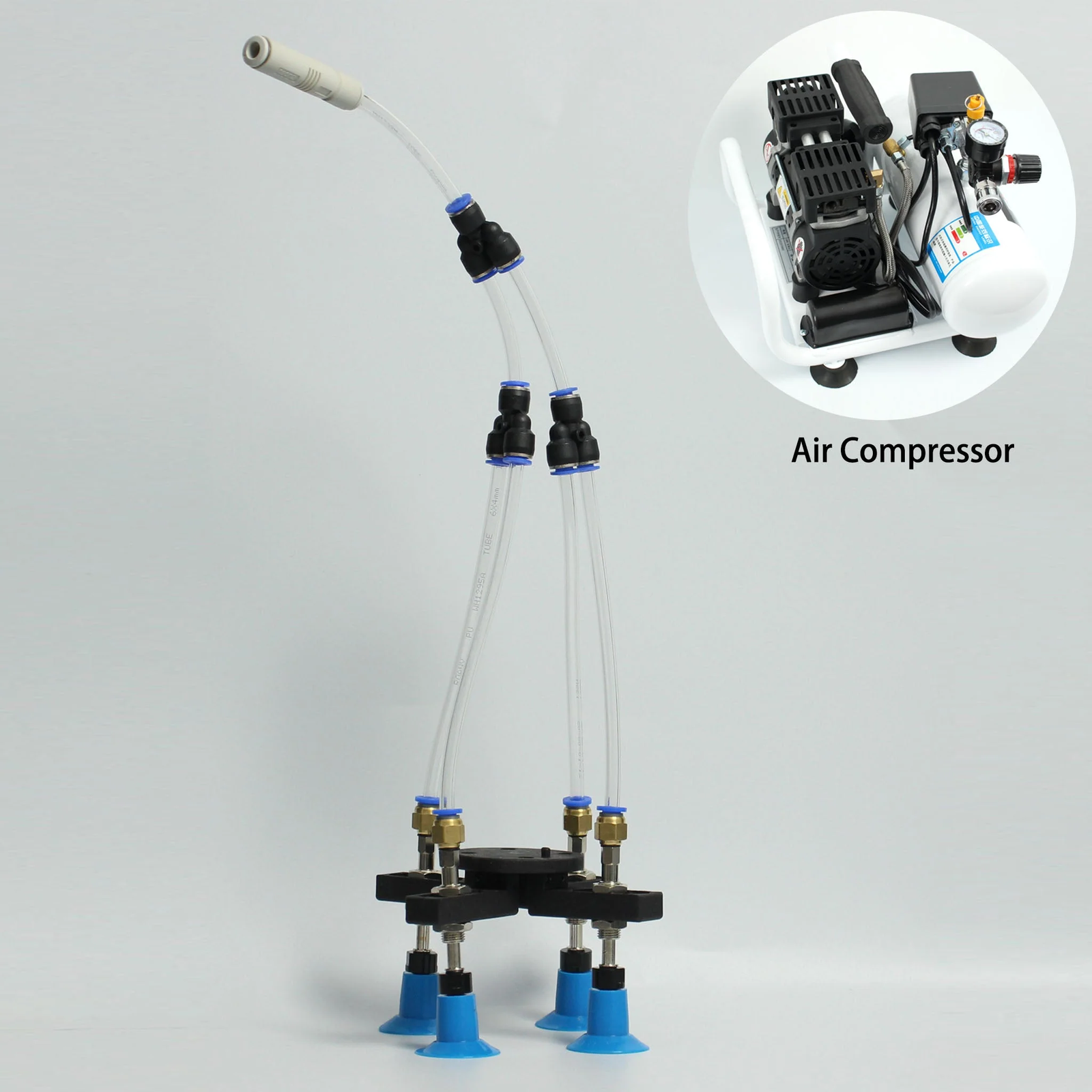

- Air Compressor x1 £¨The working voltage of the air pump is 220V/50HZ. Please identify the use environment after purchase.
Specifications
| Specification | Parameter |
|---|---|
| Power rating | 370W |
| Pressure | 0.8mpa |
| Rotate speed | 1400R/Min |
| Voltage | 220V/50Hz |
| Air displacement | 49L/Min |
| Maximum adsorptible weight | 1kg |
| Available suction numbers | 1/2/4 |
| Weight of air pump | 10kg |
| Weight of suction | >300g |
