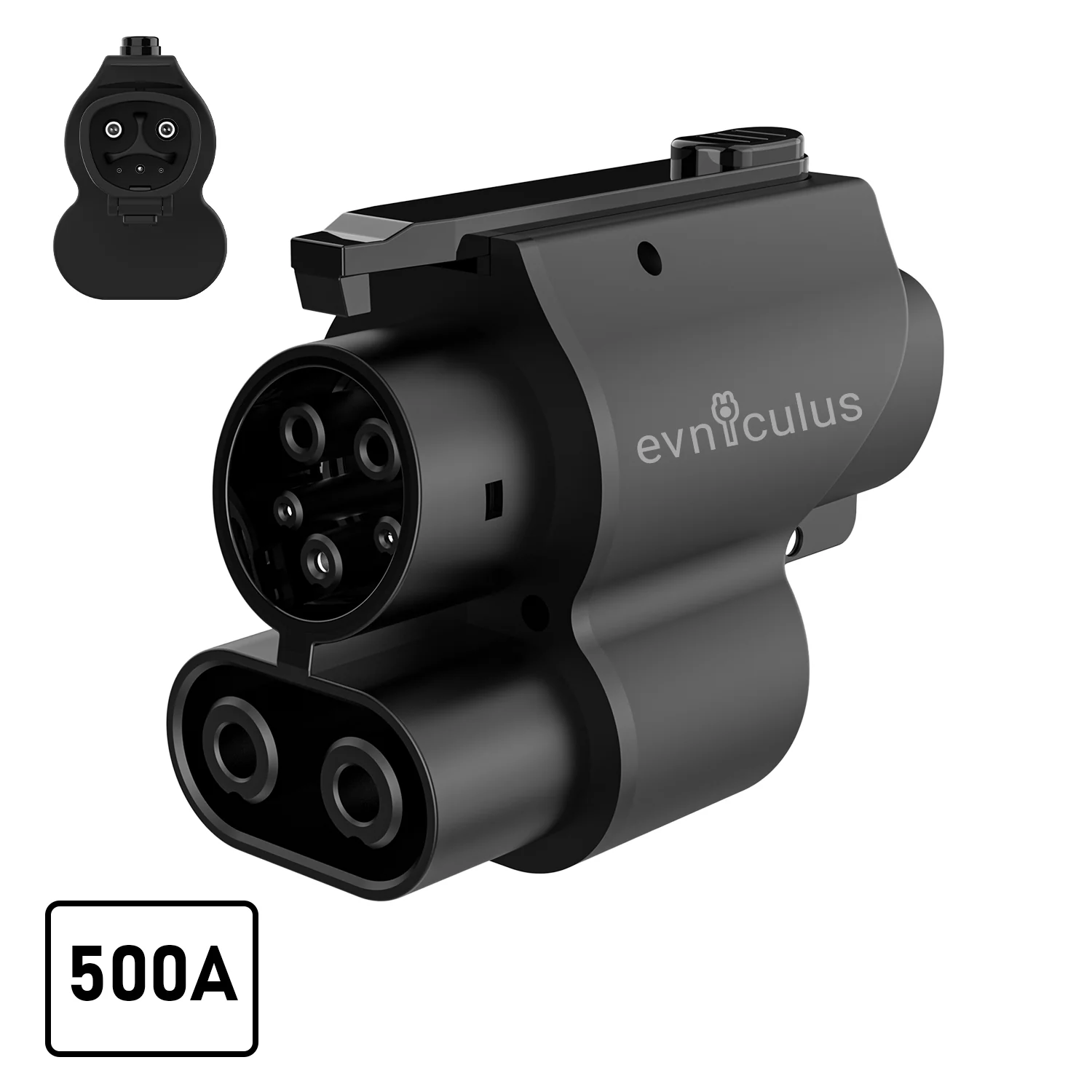

NACS to CCS1 500A Fast Charging Adapter

The NACS to CCS1 500A Fast Charging Adapter is a cutting-edge solution for North American EV owners seeking seamless compatibility between NACS DC fast chargers and CCS1-equipped vehicles. Engineered for ultra-fast charging, this adapter supports up to 500A and a rated voltage of 1000V DC, making it ideal for accessing high-power charging stations, including Tesla Supercharger V3 and V4.

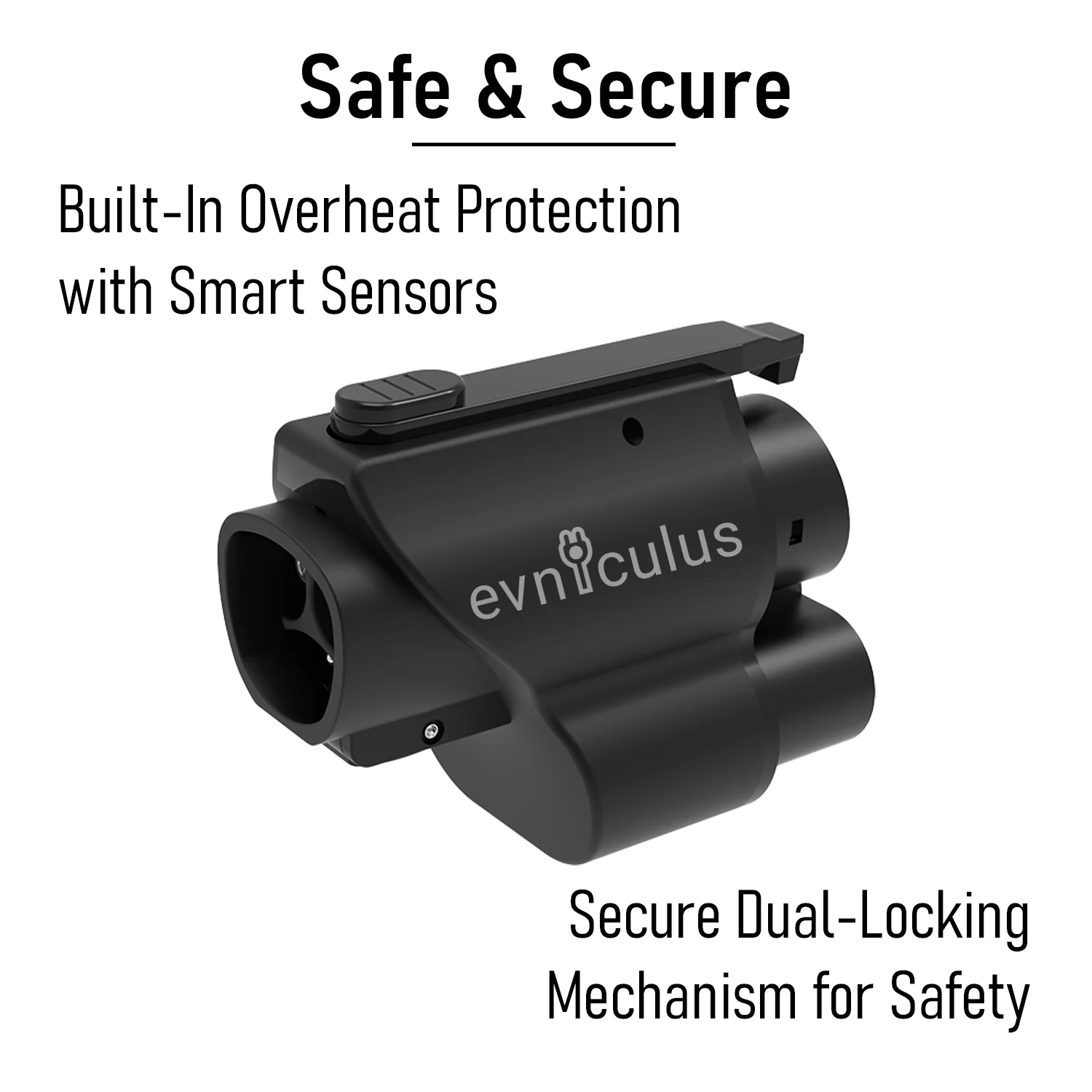

Designed with advanced safety and reliability in mind, the NACS to CCS1 Fast Charging Adapter features a dual locking mechanism that ensures a secure connection between the adapter and your vehicle’s charge port. The innovative top latch controls the NACS side locking pin via a spring system, providing a robust interlock that prevents accidental disconnections. If your vehicle is equipped with a charge port locking pin, the adapter locks firmly in place during charging for added peace of mind.

Intelligent thermal protection is built in, with two temperature sensor switches that monitor the adapter’s heat levels. The first sensor reduces charging speed if temperatures rise, while the second halts charging if safe limits are exceeded. Charging automatically resumes once the adapter cools and is reconnected, ensuring both safety and efficiency. Real-world testing confirms that the thermal shutdown threshold is rarely, if ever, reached.

Constructed for durability, the adapter boasts an IP54 rating at connection points and an IP67-sealed enclosure, enhanced by a silicon rubber gasket for superior weather resistance. Premium silver-plated copper conductors ensure maximum conductivity and efficient energy transfer, making this adapter a reliable choice for all conditions.

Compatible with all CCS1-equipped EVs and NACS DC fast chargers across North America, the NACS to CCS1 500A Fast Charging Adapter is the ultimate accessory for rapid, secure, and efficient charging.

Technical Specifications:

• Adapter type: NACS to CCS1 Fast Charging Adapter
• Rated current: 500A max
• Rated voltage: up to 1000V DC
• Compatibility: All CCS1-equipped EVs, NACS Level 3 DC fast chargers (including Tesla Supercharger V3/V4)
• Dual locking mechanism for secure connection
• Intelligent thermal protection with dual temperature sensors
• Conductors: Silver-plated copper
• Weather resistance: IP54 (connection points), IP67 (enclosure), silicon rubber gasket
• Application: Ultra-fast DC charging in North America

What’s in the Pack:

• 1x NACS to CCS1 500A Fast Charging Adapter
• User manual
