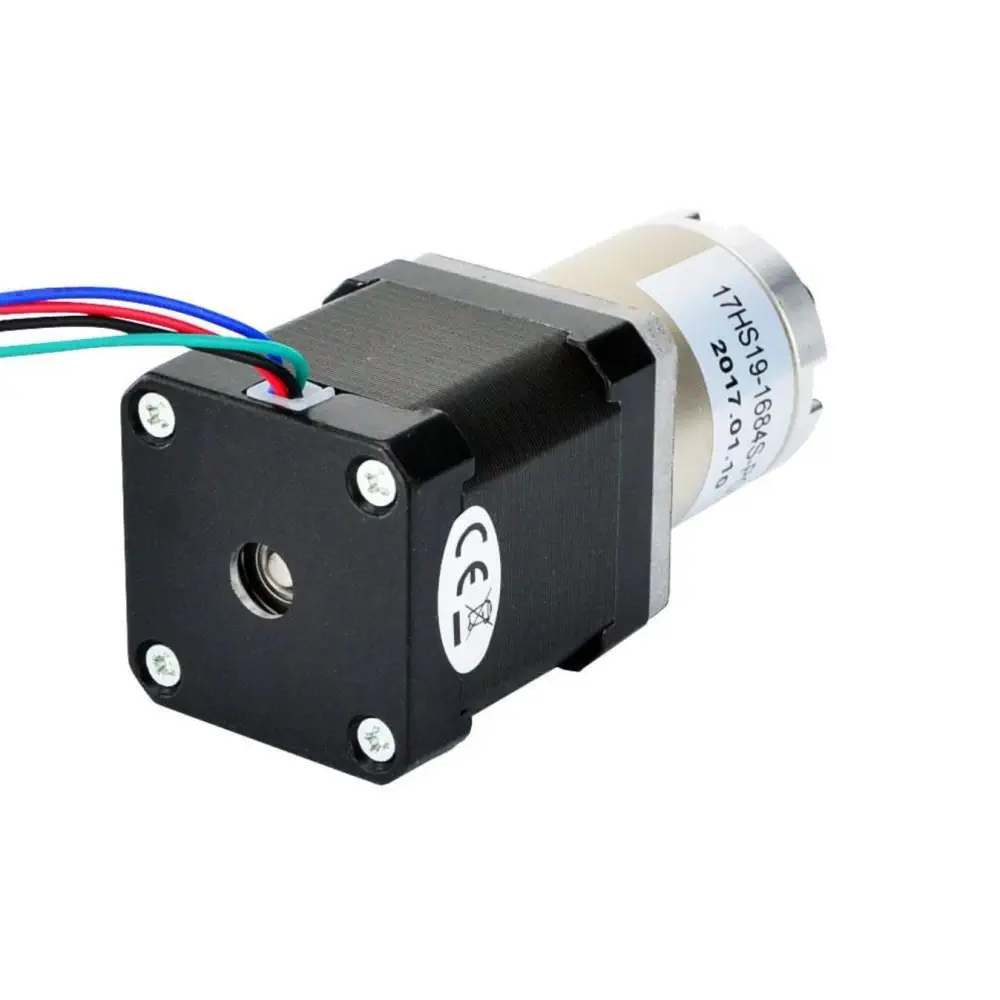

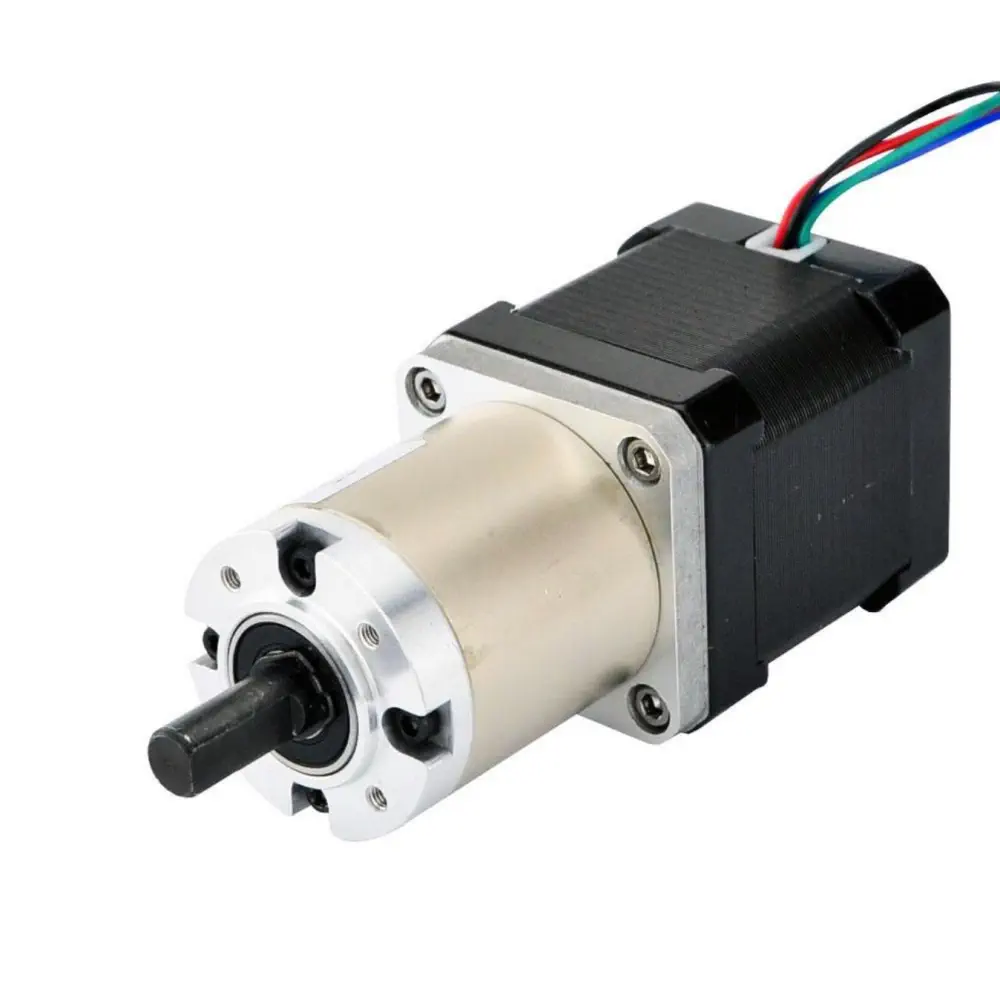

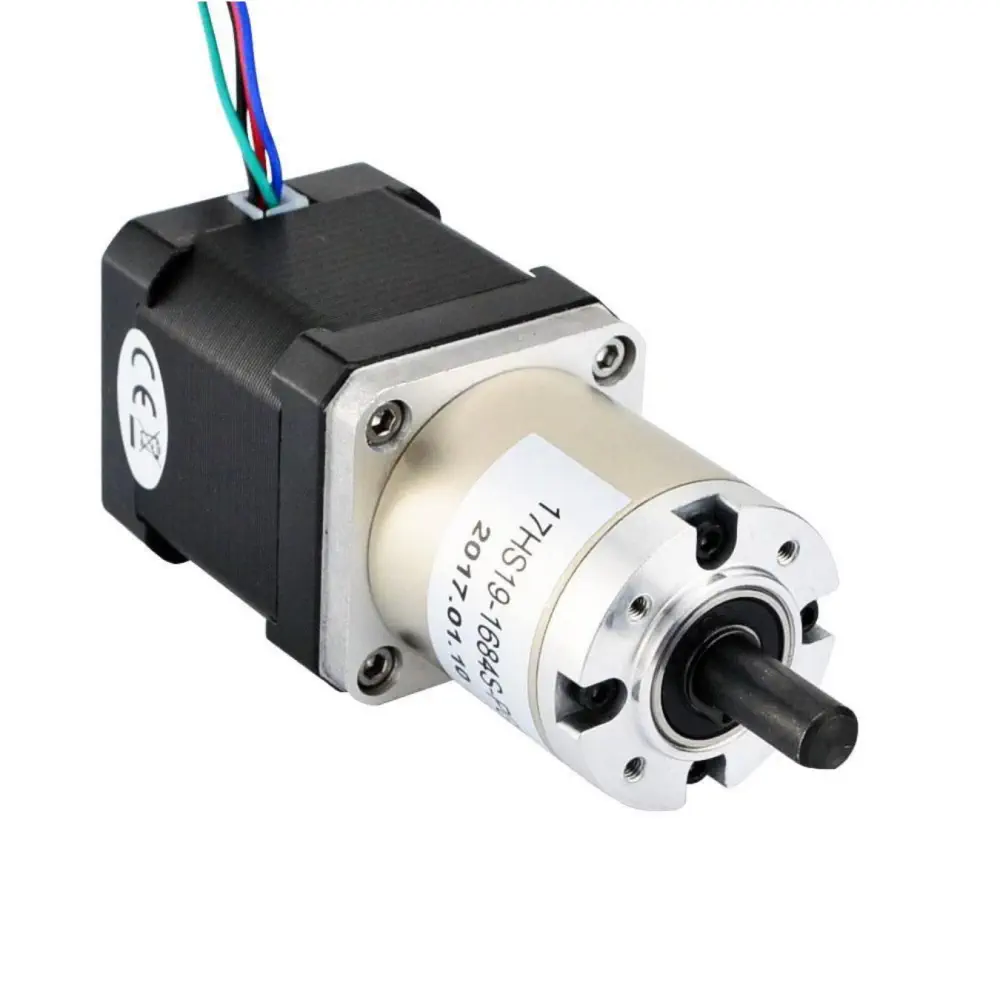

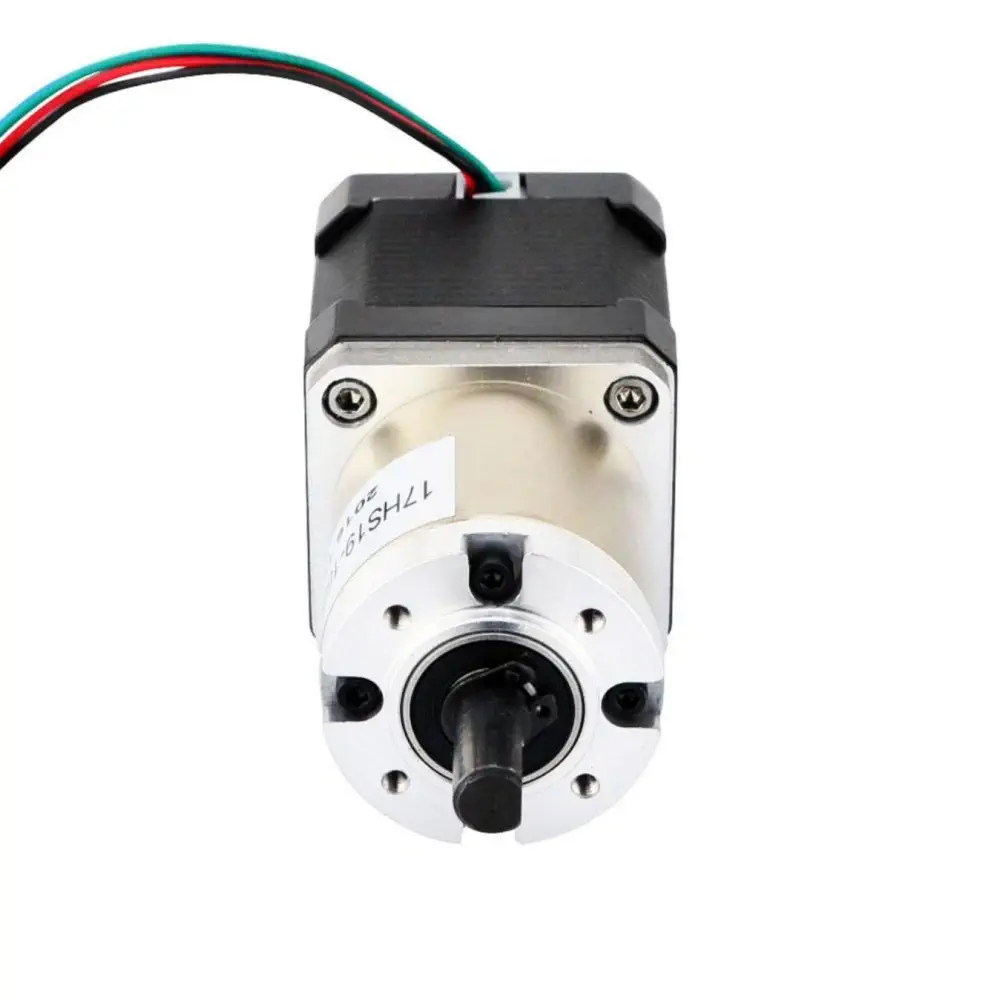

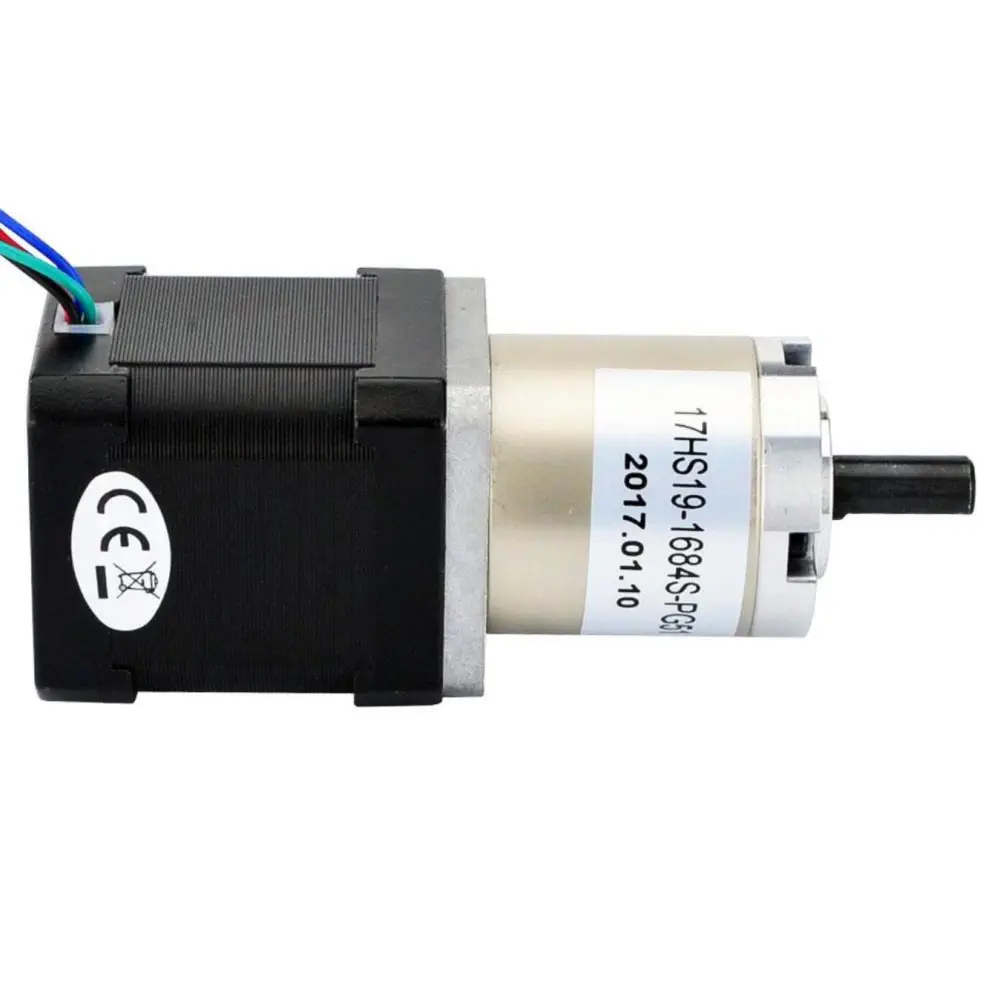

Nema 17 Stepper Motor Bipolar W/ 51:1 Planetary Gearbox

• Nema 17 Stepper Motor Bipolar w/ 51:1 Planetary Gearbox
• Nominal Voltage: 2.8 V
• Stall Current: 1.68 A
• Stall Torque: 566 oz.in
• Shaft Diameter: Φ8 mm

The Nema 17 Stepper Motor Bipolar w/ 51:1 Planetary Gearbox is a stepper motor with 48 mm body and 1.68 A rated current, integrated a planetary gearbox of 50.9:1 gear ratio. It’s a good solution to applications with limited space but need low speed and/or high torque.

• 1 x Nema 17 Stepper Motor Bipolar w/ 51:1 Planetary Gearbox

Size

• 42 x 42 x 48 mm

PDF Files

• Gear Ratio: 50.89:1
• Nominal Voltage: 2.8 V
• Stall Current: 1.68 A
• Stall Torque: 566 oz.in
• Shaft Type: D-Cut
