NEMA 23 Bi-Polar Stepper Motor 175 Oz-In

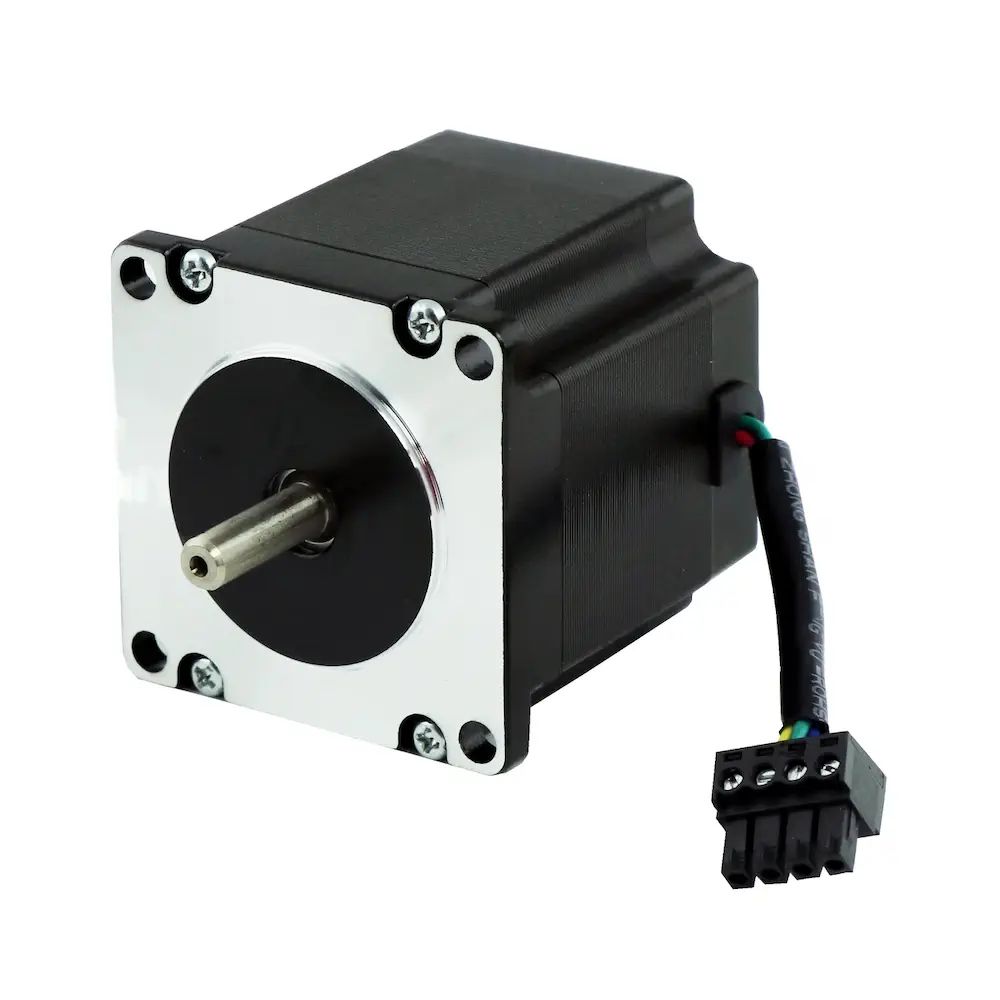

• OpenBuilds NEMA 23 Bi-Polar Stepper Motor 175 oz-in
• Offers 4 wire Bi-Polar motor
• Plug and Play Xtension connector for easy and fast install
• Flat shaft section for better torque
• RoHS Compliant
• Torque: 175 oz/in
• Peak Current: 2.8A/phase

The OpenBuilds NEMA 23 Bi-Polar Stepper Motor 175 oz-in offers 4 wire Bi-Polar motor. It is the stepper of choice for larger builds requiring more power.

• 1 x NEMA 23 Stepper Motor
• 1 x 7 Foot lead (2.13m) 4 conductor wire
• 1 x Xtension connector (4-pin) male
• 1 x Xtension connector (4-pin) female

Size

• Shaft: 1/4 inch
• Lead Wire: 7 ft

• Torque: 175 oz/in
• Step Angle: 1.8
• Peak Current: 2.8A/phase
• 4 Wire: Bi-Polar
• Voltage: 12-48 VDC (Recommended)
• RoHS Compliant
