NEMA 23 Bipolar Stepper Motor

• OpenBuilds NEMA 23 Bipolar High Torque Stepper Motor 345 oz-in
• Offers 4 wire high torque Bi-Polar Motor
• Provides plug and play extension connector
• Lets you flat shaft section for better torque
• Voltage: 24 – 48 VDC (Recommended)
• RoHS Compliant

The OpenBuilds NEMA 23 Bipolar High Torque Stepper Motor 345 oz-in provides more holding power and strength to take any build to the next level.

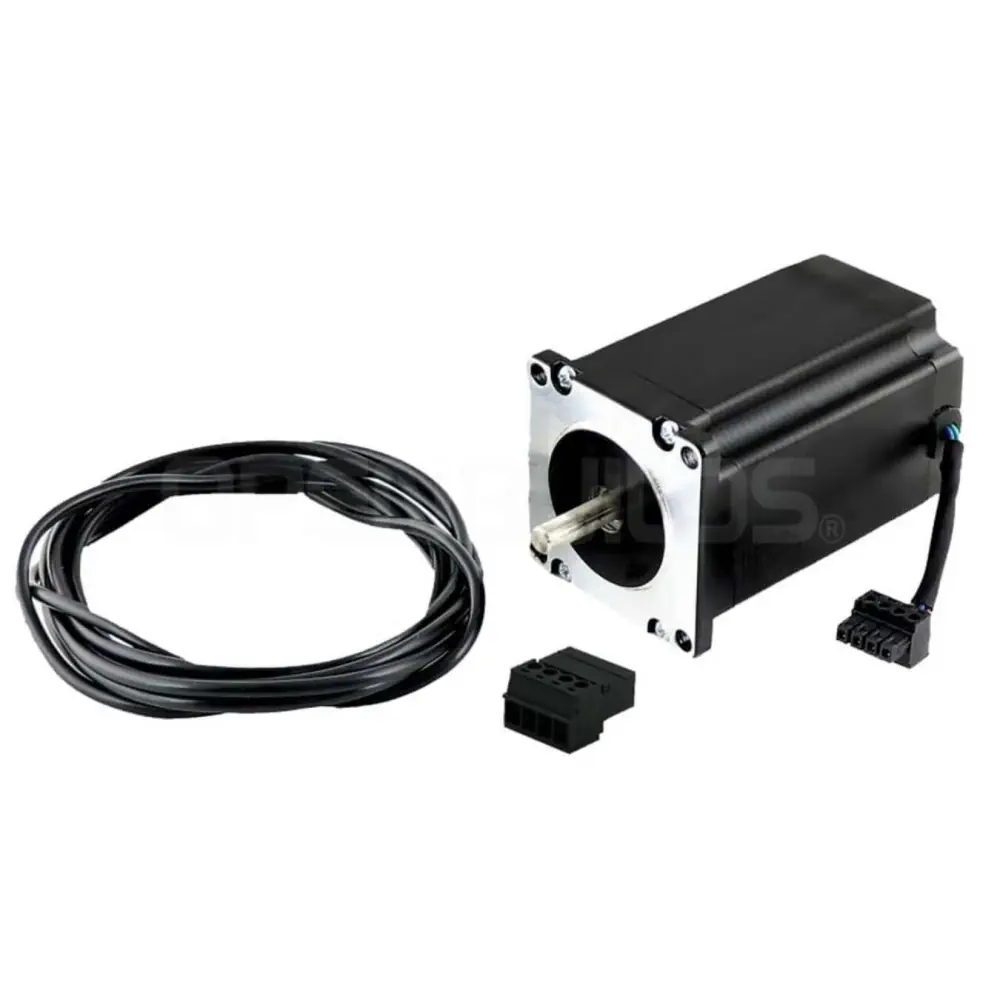

• 1 x NEMA 23 Stepper Motor – High Torque Series
• 1 x 7 foot lead (2.13m) 4 conductor wire
• 1 x Xtension connector (4 pin) male
• 1 x Xtension connector (4 pin) female

• Shaft Size: 1/4 inch
• Lead Wire: 7 ft

• Phase: 2
• Torque: 345 oz/in
• Step Angle: 1.8°
• 4 Wire: Bi-Polar
• Voltage: 24 – 48 VDC (Recommended)
• RoHS Compliant
