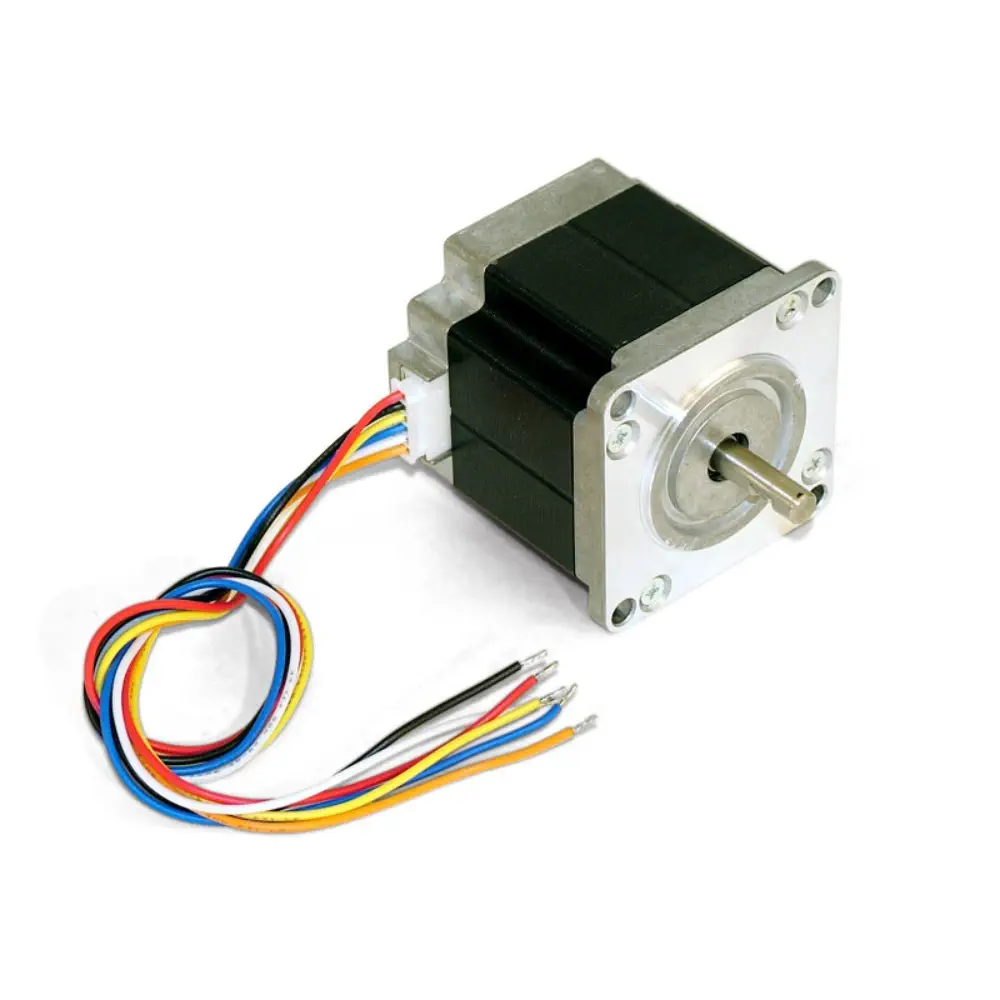

Sherline Stepper Motor W/ Raw Wire Leads

• Sherline Stepper Motor w/ Raw Wire Leads
• Features dual shafts for manual control
• Offers raw wire leads for flexibility
• Ensures secure attachment with flats for set screws
• Provides 0.775 N.m holding torque
• Operates at 530 RPM with 1.8° step angle

The Sherline Stepper Motor w/ Raw Wire Leads is a high-quality component designed for those assembling their own CNC systems. This motor is equipped with dual shafts, allowing for manual control via a handwheel if desired. The shafts are engineered with flats to accommodate set screws, ensuring secure attachment and easy removal when used with Sherline motor mounts.

This stepper motor features raw wire leads, providing flexibility for customized hookups. It includes six wire leads but does not come with a plug, allowing users to tailor the connections to their specific requirements. The motor’s frame size is NEMA #23, and it offers a holding torque of 0.775 N.m, making it a robust choice for various applications.

The motor operates at a maximum speed of 530 rpm, with a voltage requirement of 3.2 V DC and a current of 2 A. It has a step angle of 1.8°, translating to 200 steps per revolution, which ensures precise control and positioning in motion control systems. Note: Ensure proper handling of wire connections to avoid electrical hazards.

• 1x Sherline Stepper Motor w/ Raw Wire Leads

PDF File

• Powerful dual-shaft motor with raw wire leads for customized connection
• Six wire leads; does not include a plug
• Frame size: NEMA #23
• Shaft diameter: 1/4 inch, dual shafts
• Holding torque: 0.775 N.m (7.9 kg-cm, 109.71 oz/in, 6.856 in/lb)
• Maximum RPM: 530
• Voltage: 3.2 V DC
• Current: 2 A
• Step angle: 1.8° (200 steps/rev)
