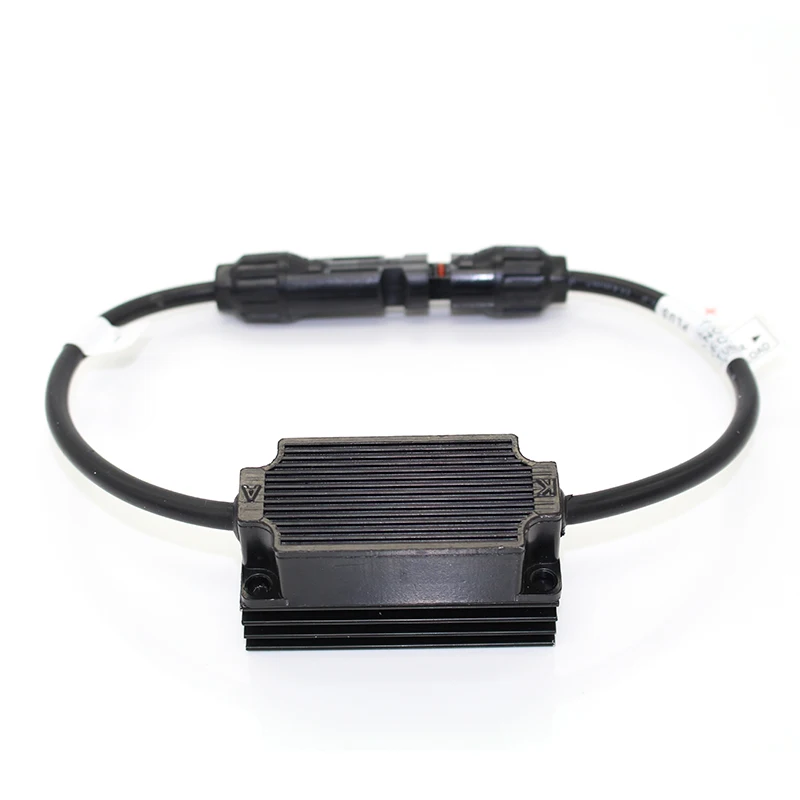

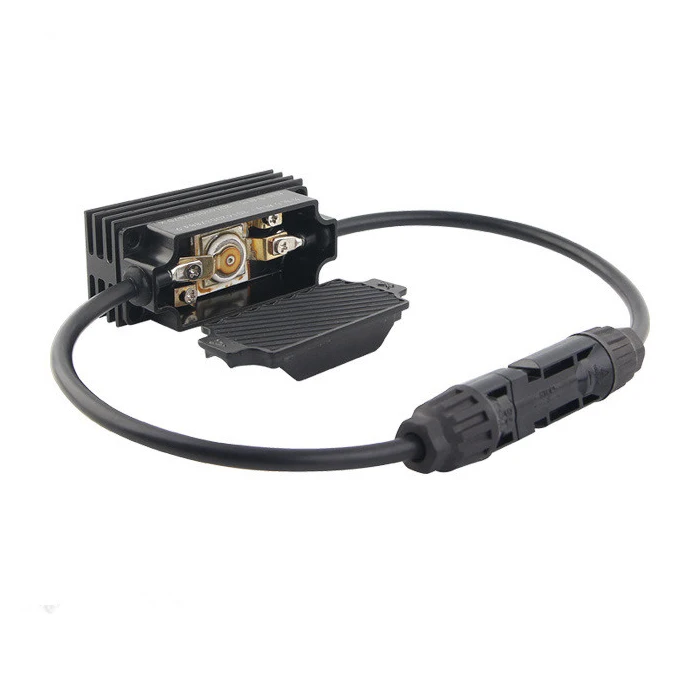

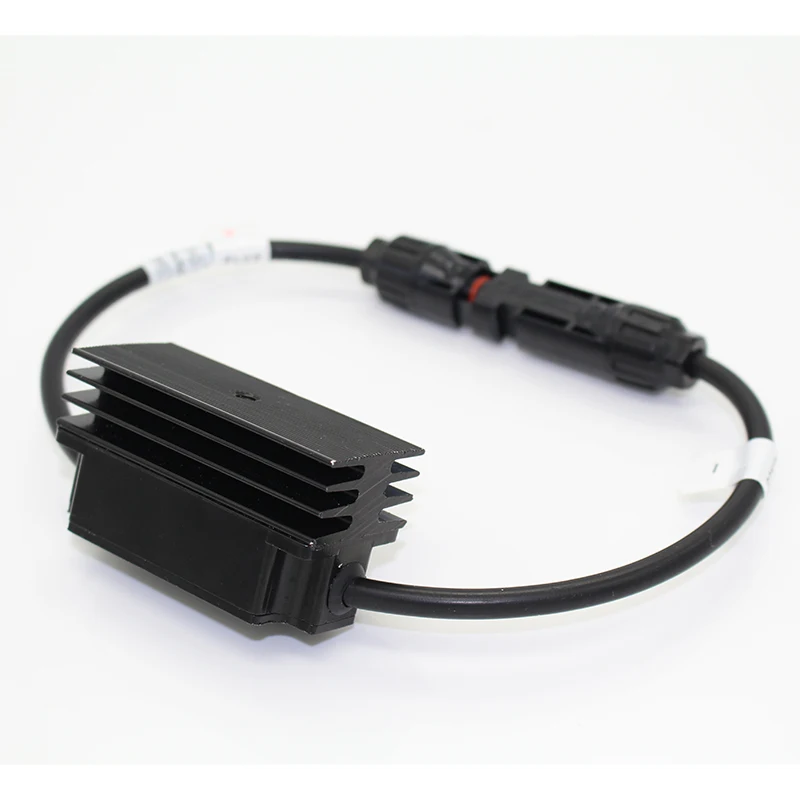

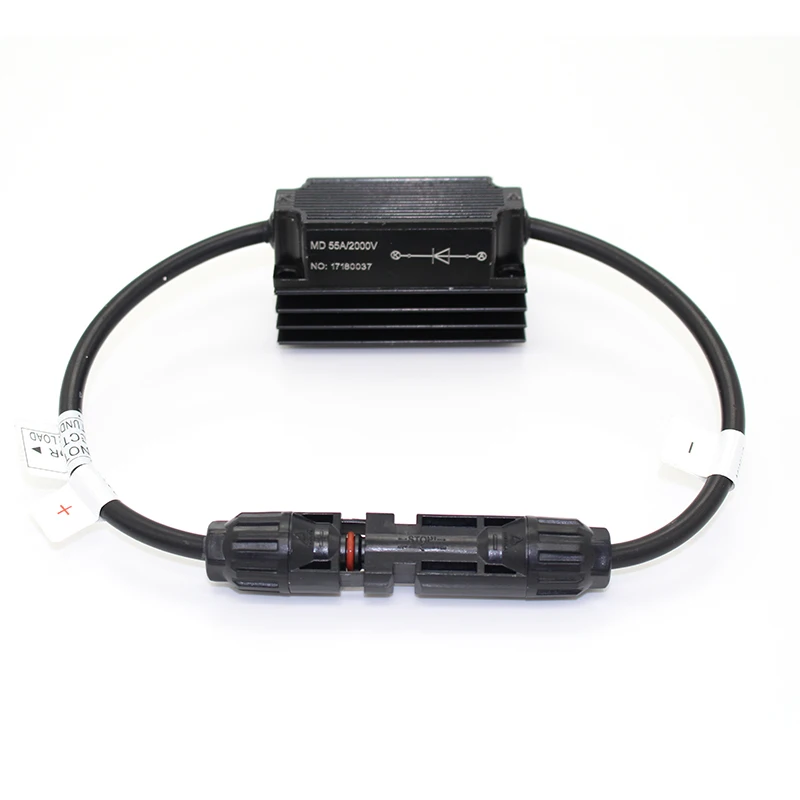

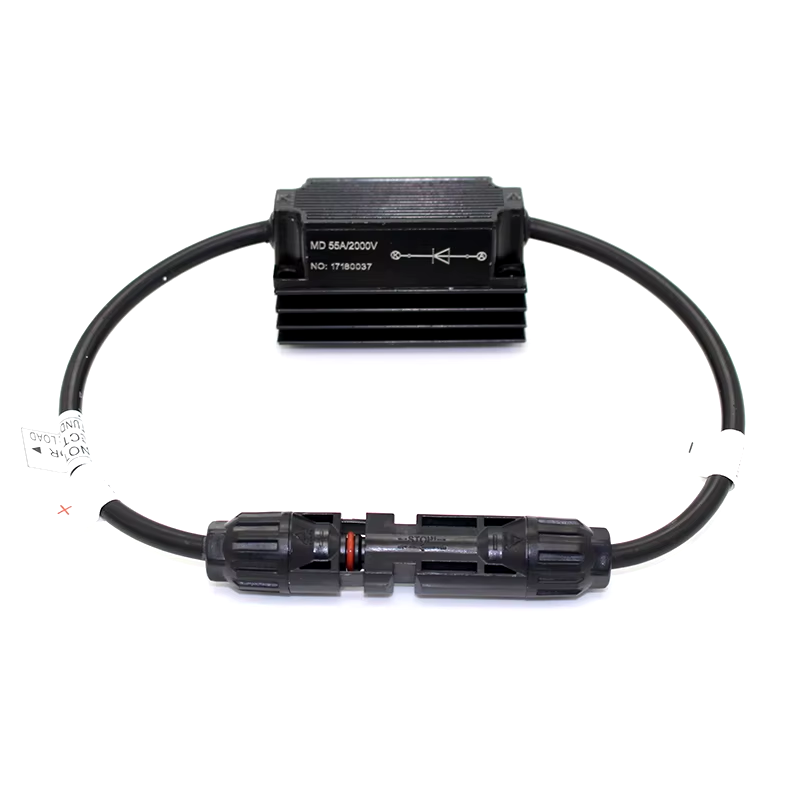

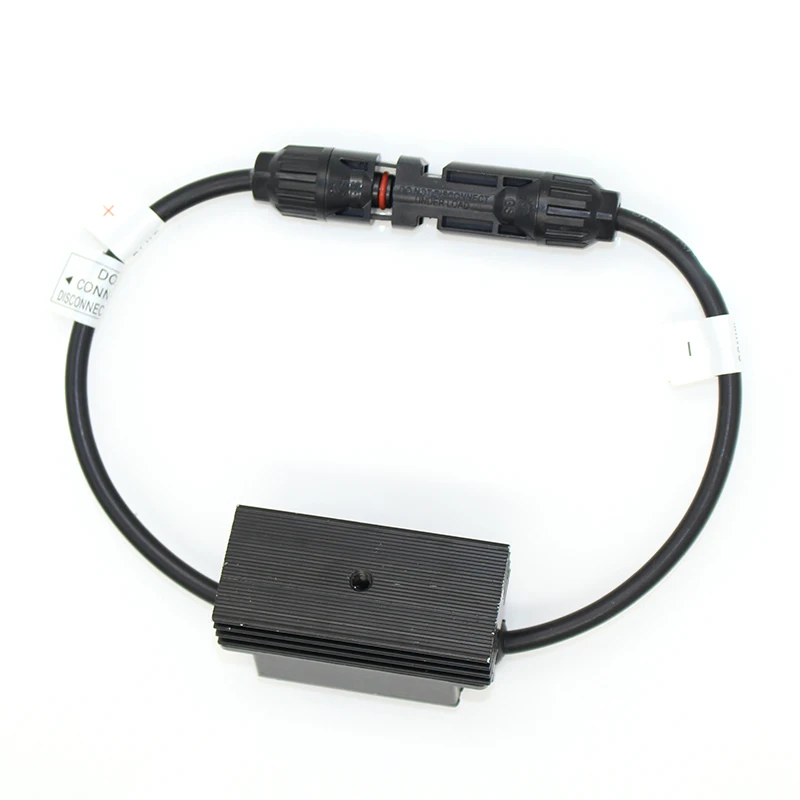

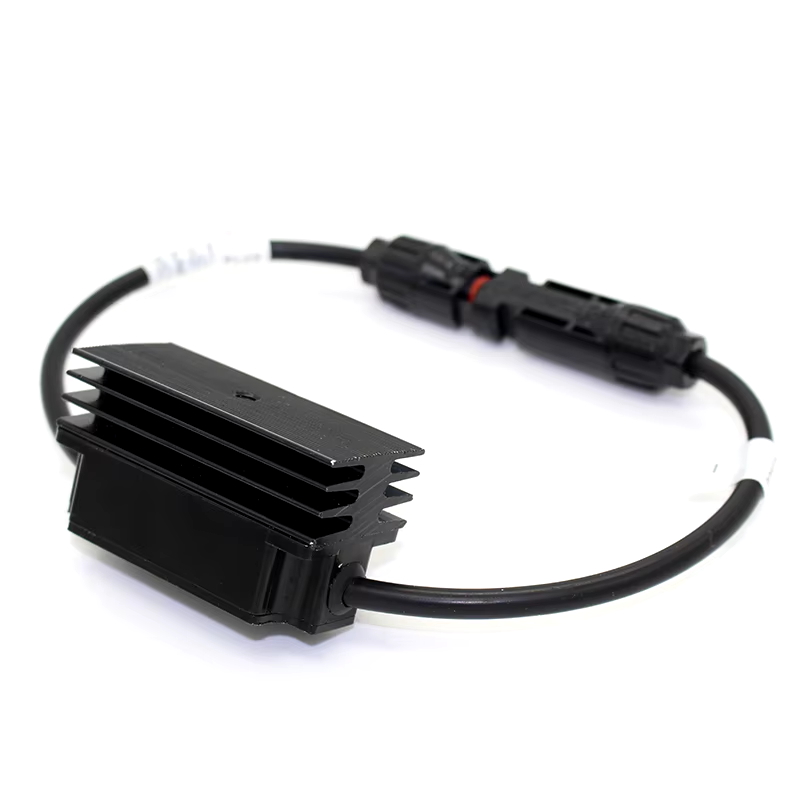

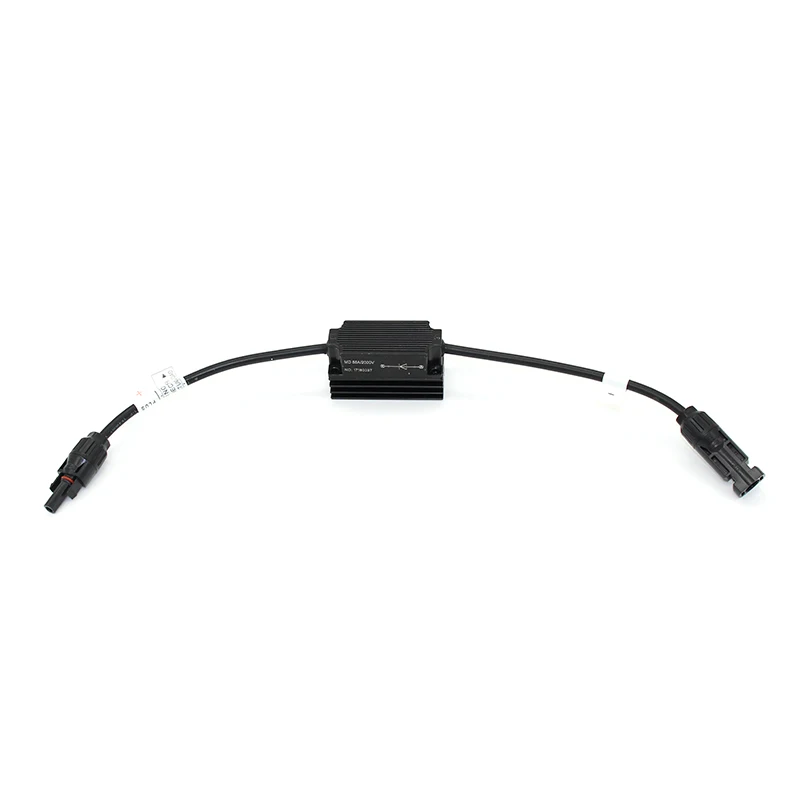

Outdoor Waterproof 55Amp DC 2000V SOLAR Style Solar Panel In-Line Diode Connector IP67 for Combiner Box
🔥 2 watched in the last 24 hours
15.47 €
Availability: 10 in stock
Safe and Secure Payments.*
Delivery time: 4-9 business days.
Free Shipping
Outdoor Waterproof 55Amp DC 2000V SOLAR Style Solar Panel In-Line Diode Connector IP67 For Combiner Box
Advantage:
1. Vacuum welding, high efficiency rectification, good stability, safe and reliable, small loss, small size,
2. good heat dissipation with heat sink.
3. Outdoor waterproof, Combiner Box
Products details :
|
Insulation material |
PPO |
|
Rated voltage |
TUV 1000 DC/ UL 2000V DC |
|
Test voltage |
6KV(50Hz,1Min) |
|
Contact material |
Copper, tin plated |
|
Contact resistance |
Less than 0.5 m ohm |
|
Degree of protection |
IP67 |
|
Pollution Degree |
2 |
|
Protection class |
Class II |
|
Flame calss |
UL94-V0 |
|
Plug Force |
less than 50N |
|
Withdrawal force |
more than 50N |
|
Ambient temperature range |
-40 ~ + 90. |
|
Diode |
55A |
|
Pin dimention |
4.0mm |
