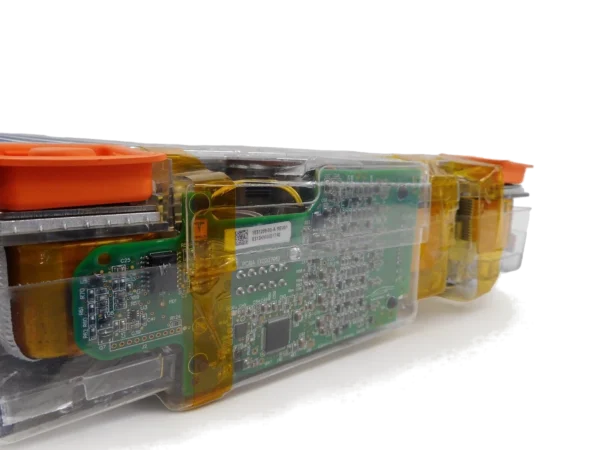

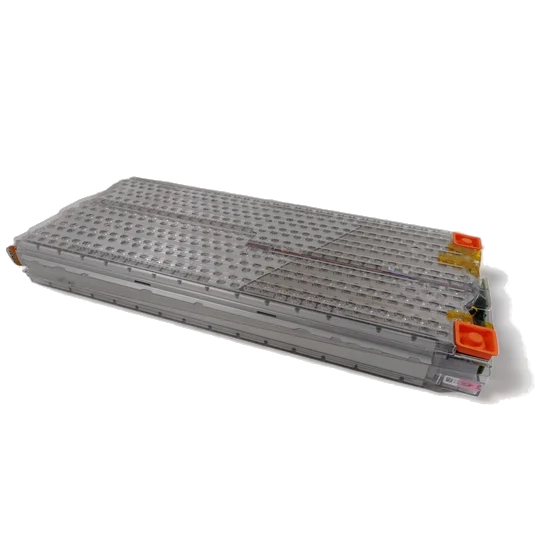

Tesla 5.6 Kwh 24V Battery Module

The Tesla 5.6 kWh 24V Battery Module is a premium Gen 2 lithium-ion battery pack, expertly engineered for electric vehicle conversions, off-grid energy storage, RVs, and renewable energy projects. Built with 444 Tesla 18650 cells in a 74p6s configuration, each module delivers 22.8V nominal (25.2V max) and a robust 250Ah capacity, providing a total energy storage of 5.6 kWh per module.

Sourced directly from Tesla’s advanced US manufacturing facilities, these Gen 2 modules (produced after 2018) offer superior quality, reliability, and lifespan compared to older Gen 1 packs. Each module is thoroughly inspected, matched, and balanced, and comes with a 2-year warranty for peace of mind. With a continuous output of 225A and a peak of 150A for 3 seconds, these modules are ideal for demanding EV, solar, and backup power applications.

EVR’s expert team provides personalized support, one-on-one consultations, and full insurance on every shipment. The modules are compatible with the Vero BMS for seamless battery management and easy system expansion—no custom harness required.

Technical Specifications:

• Chemistry: Tesla Gen 2 NMC (Nickel Manganese Cobalt)
• Cell Configuration: 74p6s (444 Tesla 18650 cells)
• Nominal Voltage: 22.8V
• Max Charge Voltage: 25.2V
• Discharge Cut-off: 19.8V
• Capacity: 250Ah, 5.6 kWh
• Continuous Output: 225A
• Max Output (3s): 150A
• Dimensions: 26.2″ (L) × 11.9″ (W) × 3.1″ (H)
• Weight: 55 lbs (25 kg)
• Bolt Size: M8
• Warranty: 2 years
• Cycle Life: Industry-leading, with all modules matched and balanced
• BMS Compatibility: Vero BMS (controls up to 64 modules)

Key Features:

• Genuine Tesla Gen 2 battery module, never supercharged or abused
• 9-point inspection, matched and balanced for safety and performance
• Ideal for 24V, 48V, 72V, 96V, 120V, 144V, and 400V systems
• Suitable for EV conversions, solar, off-grid, and RV energy storage
• Personalized technical support and one-on-one consultations
• Fully insured, professionally packaged shipments
• Volume discounts available for orders of 3+ modules
• International shipping available

What’s in the Pack:

• 1x Tesla 5.6 kWh 24V Battery Module (Gen 2)
• Custom wood shipping box
• User manual and support resources

For installation guidance, visit our Mobile Energy System Guide. Explore our Accessories Collection for compatible BMS and energy solutions, or check out our Flexible Charging Kits for integrated power management.
