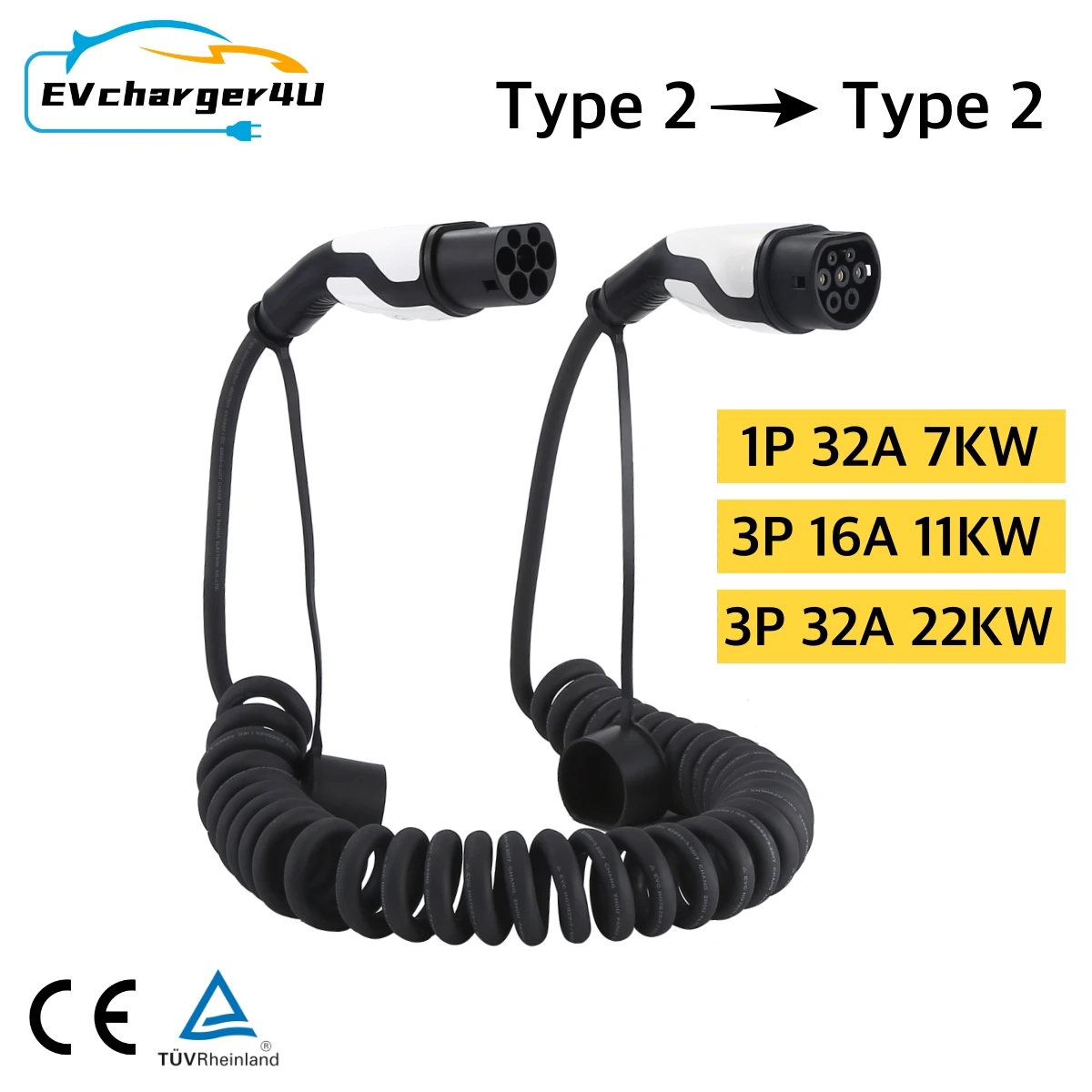

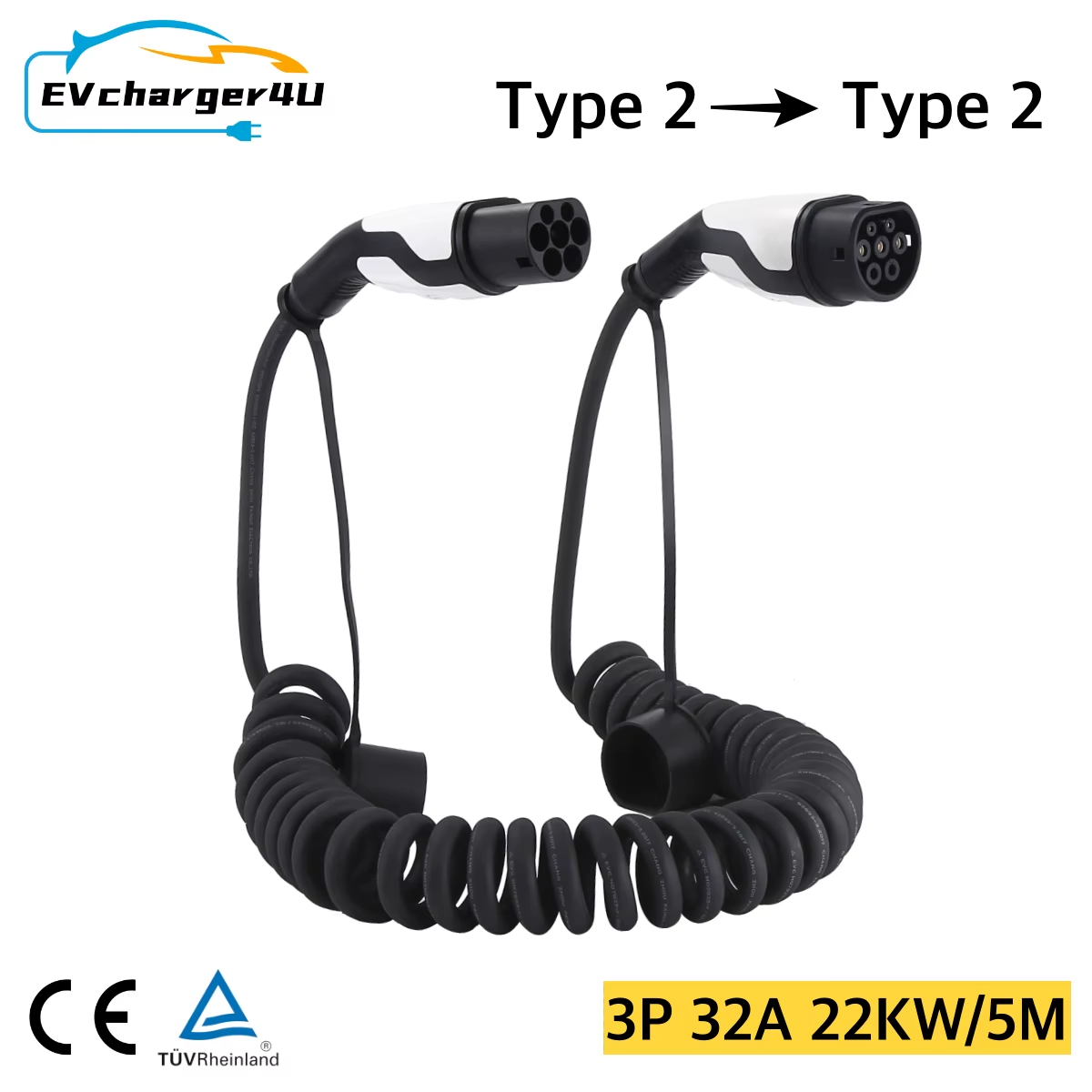

Type 2 EV Spiral Charging Cable 5M

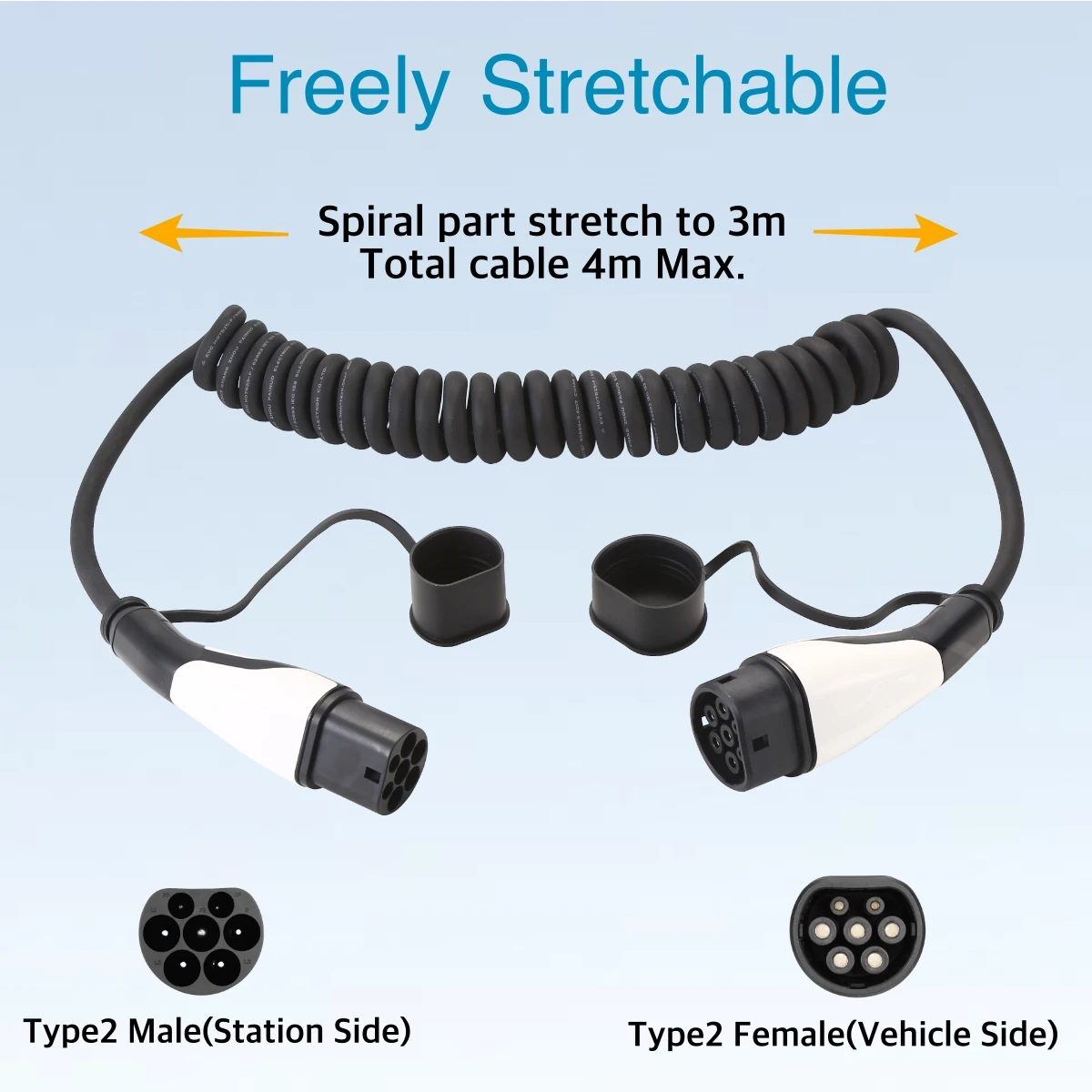

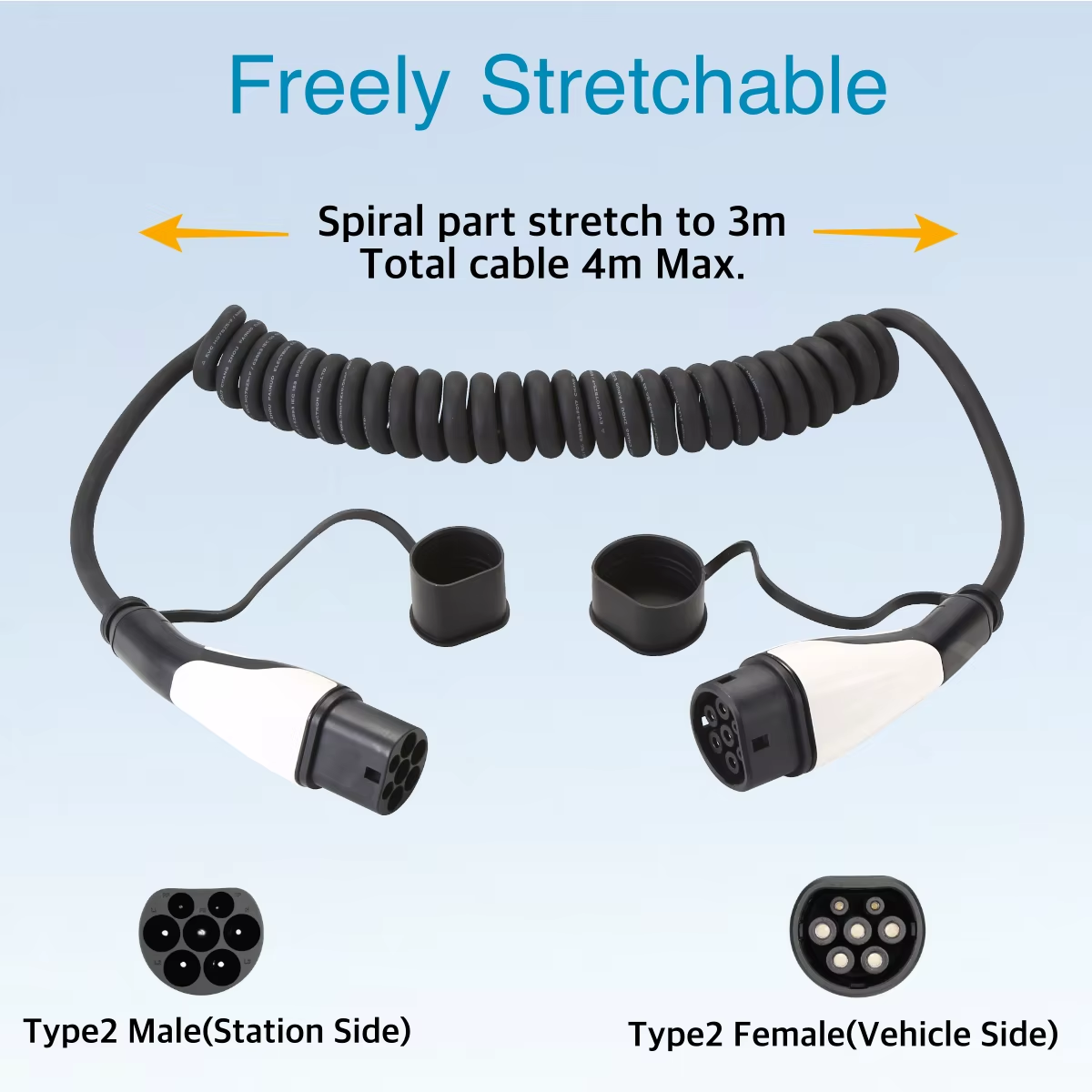

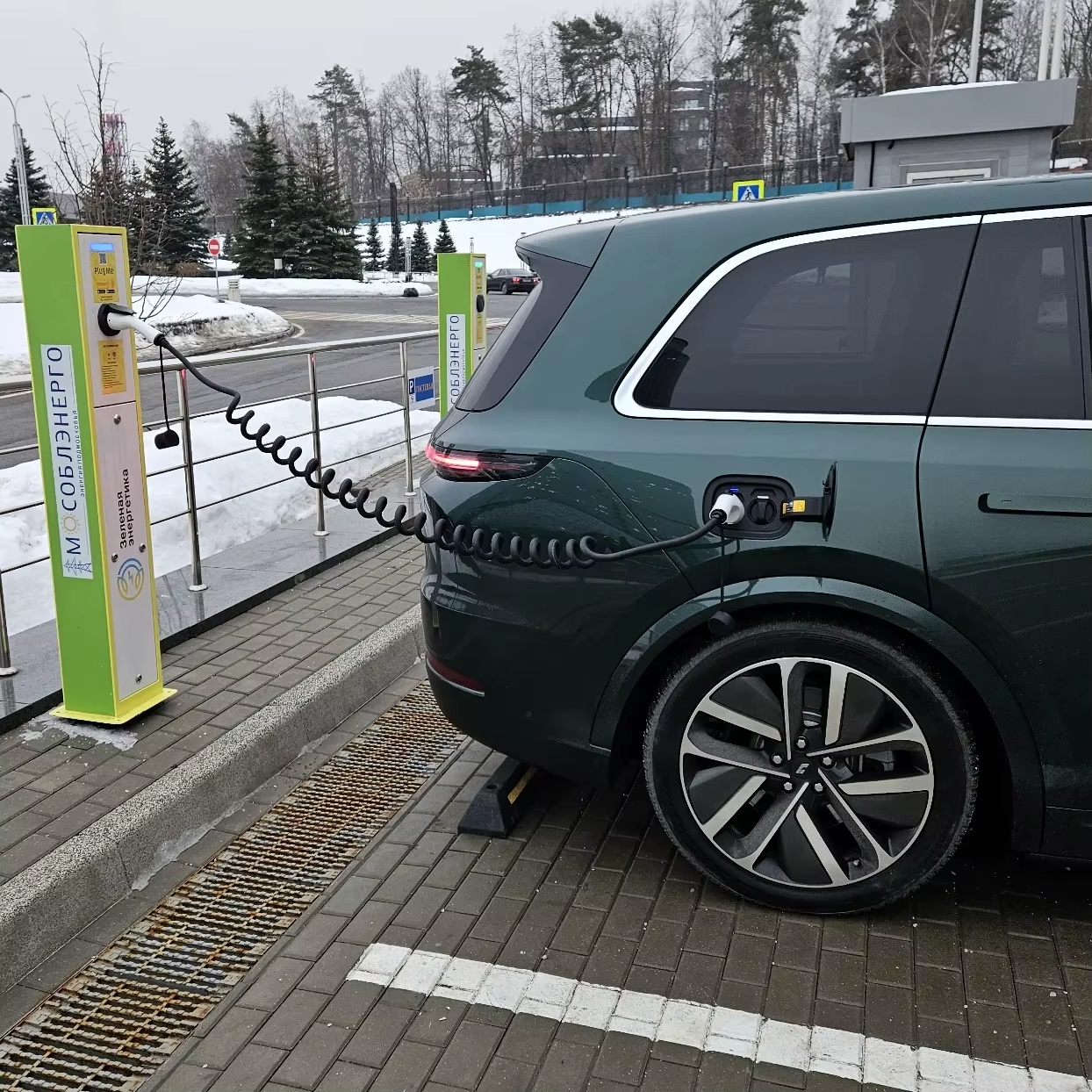

The EVcharger4U Type 2 EV Charging Spiral Cable is a premium, high-performance coiled cord designed for efficient and reliable charging of electric vehicles. Available in a 5-meter length, this spiral cable supports both single-phase and three-phase charging at 16A or 32A, delivering up to 7kW, 11kW, or 22kW of power. Engineered for flexibility and convenience, the coiled design prevents tangling and keeps your charging area organized, making it ideal for both home and public charging stations.

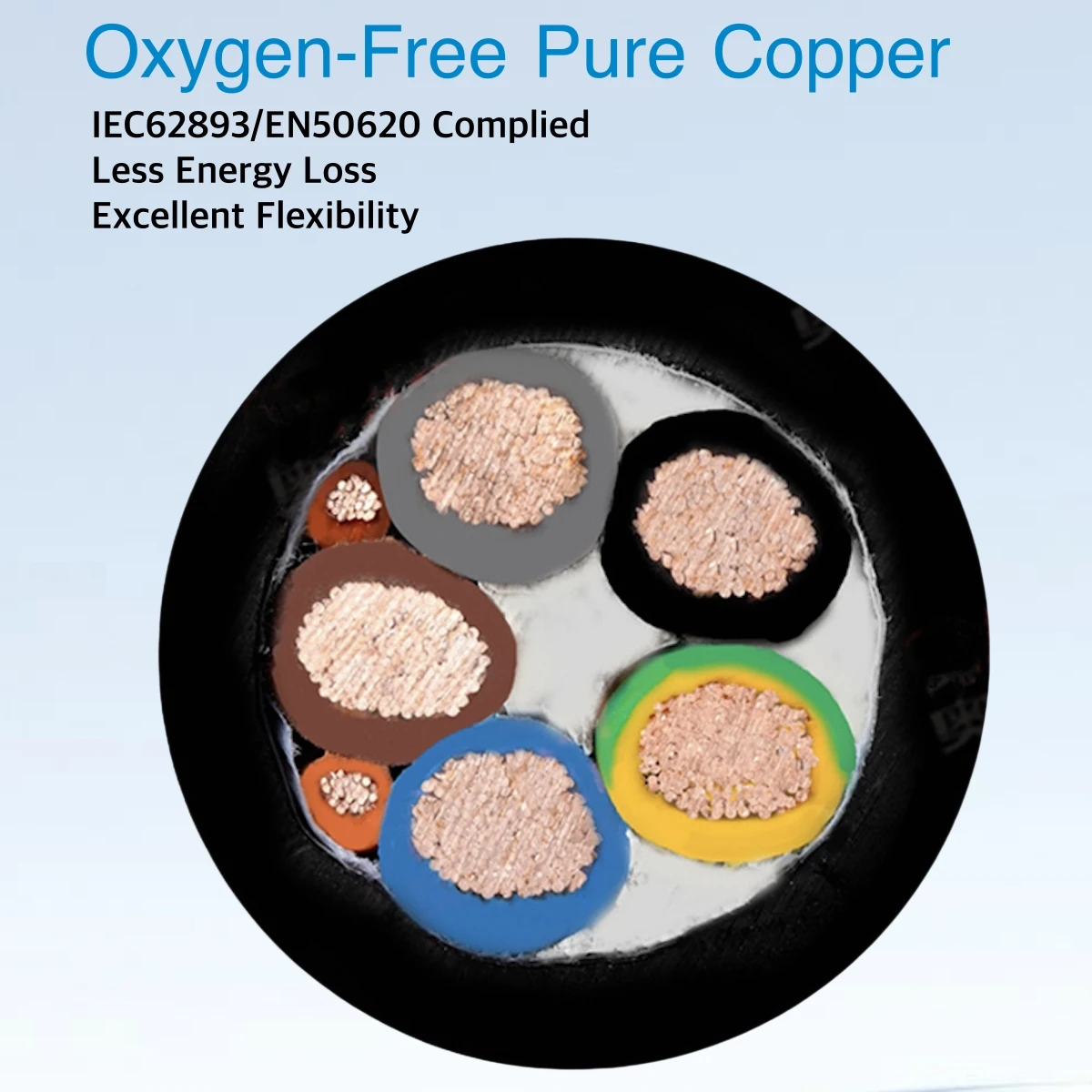

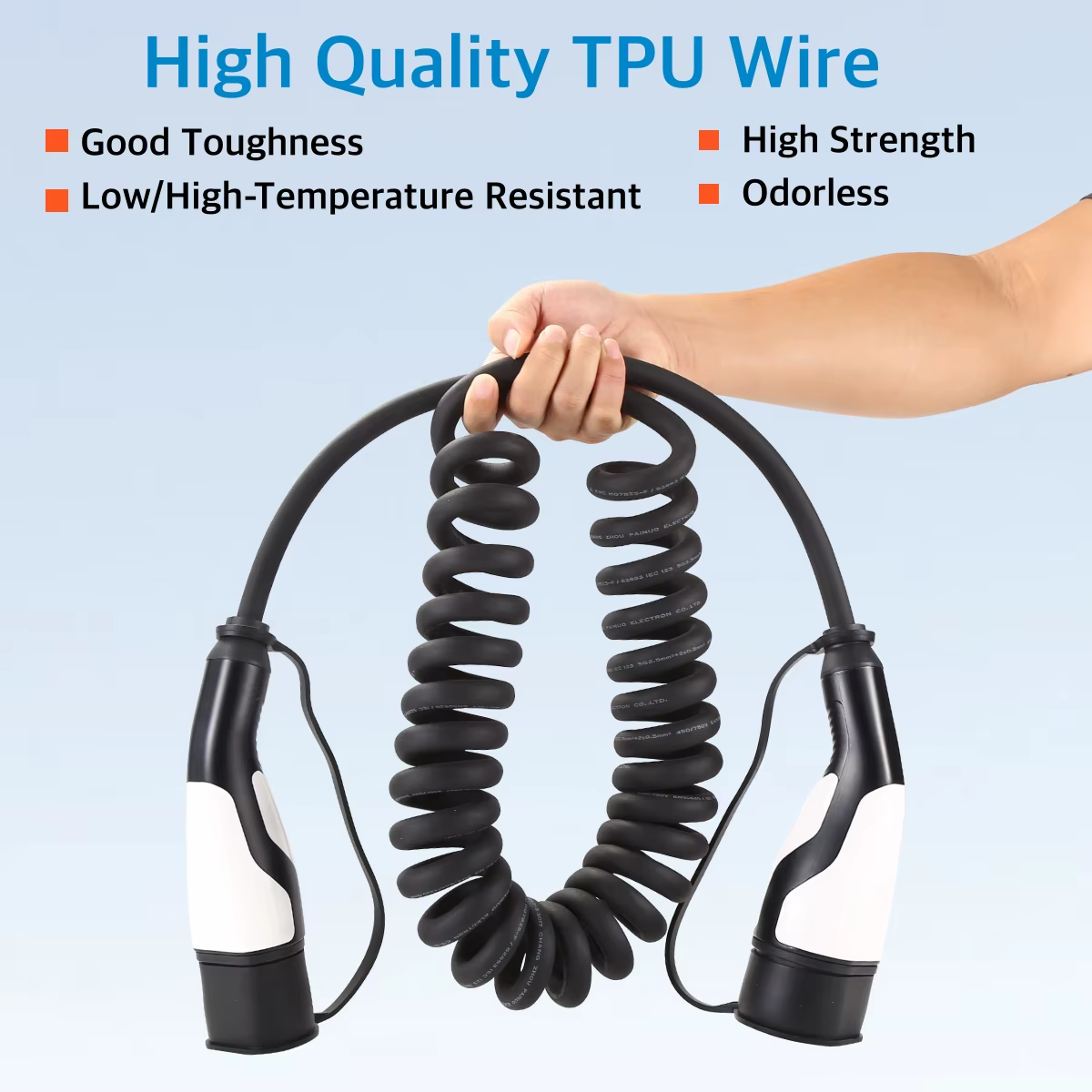

Built to the highest safety and durability standards, the cable features an IP55 protection rating, ensuring resistance to dust and water splashes for dependable outdoor use. The fire-retardant thermoplastic PC shell (UL94 V-) and robust black TPU jacket provide superior abrasion and impact resistance. The connector is crafted from copper alloy with nickel bottom plating and a 3μm silver surface plating, guaranteeing excellent conductivity and long-term corrosion resistance.

The EVcharger4U spiral cable is designed for longevity, with a mechanical life of over 10,000 plug-in and pull-out cycles. It can withstand the impact of a 1-meter drop or being run over by a 2-ton vehicle, ensuring reliable performance in demanding environments. The cable is compliant with IEC61851-1:201 mode 3 & B2, EN62196-2:2017, and EN62196-1:2014 standards, making it compatible with a wide range of electric vehicles and charging stations across Europe.

Technical Specifications:

• Length: 5 meters
• Type: Spiral (coiled) cable
• Rated current: 16A / 32A
• Rated voltage: 250V / 480V
• Power: 7kW / 11kW / 22kW
• Protection rank: IP55
• Fire retardant level: 94 V-
• Insulation resistance: >100MΩ (DC 500V)
• Terminal temperature rise: <50K
• Withstand voltage: 200V
• Contact resistance: .5mΩ max
• Coupled insertion force: >45N <80N
• Operating temperature: -30°C to 50°C
• Mechanical life: >10,000 cycles
• Impact resistance: 1m drop or 2-ton vehicle run over
• Connector: Copper alloy, nickel and silver plated
• Shell: Thermoplastic PC, fire retardant
• Cable: TPU jacket, customizable color
• Compliance: IEC61851-1:201, EN62196-2:2017, EN62196-1:2014

What’s in the Pack:

• 1x EVcharger4U Type 2 EV Charging Spiral Cable (selected configuration)
• User manual
