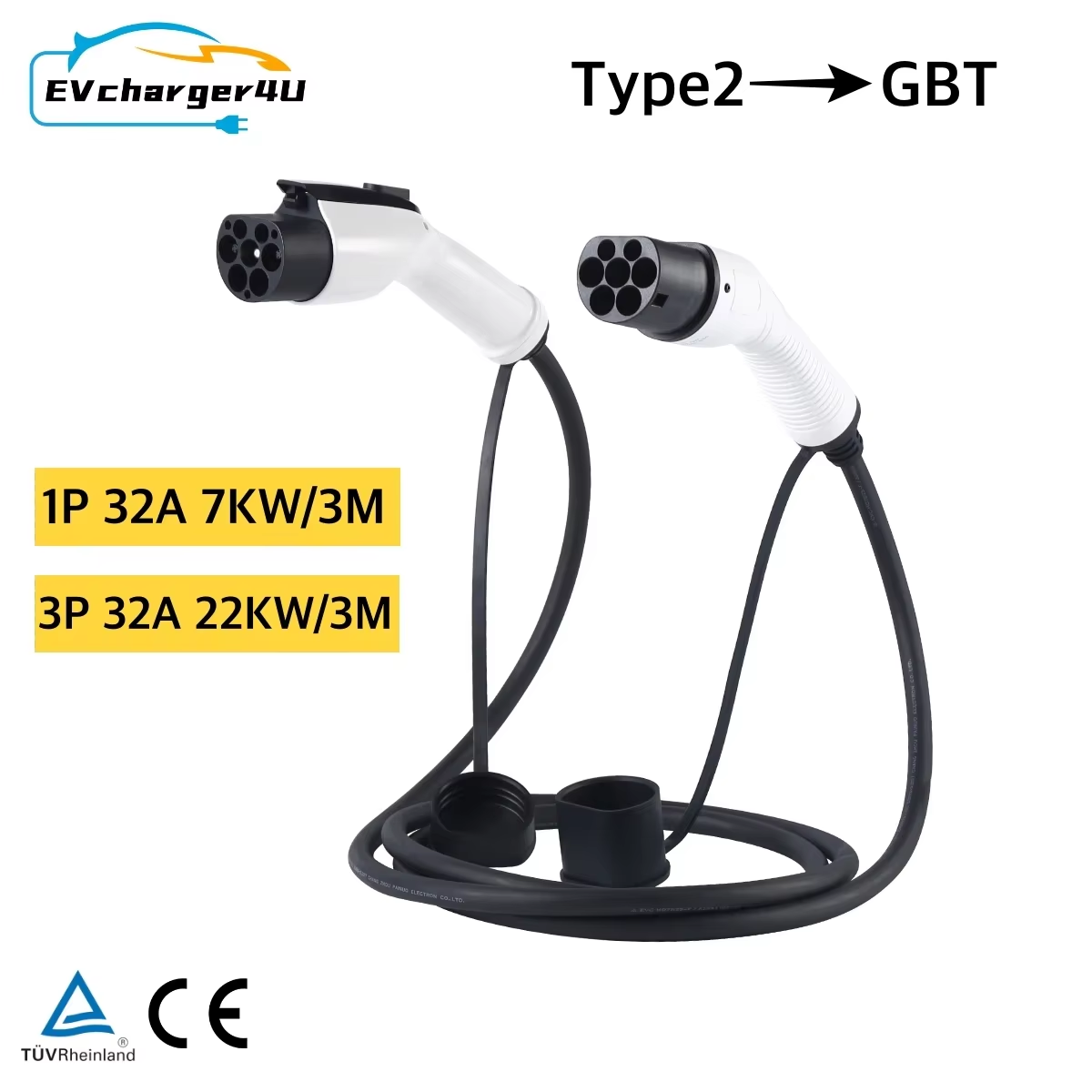

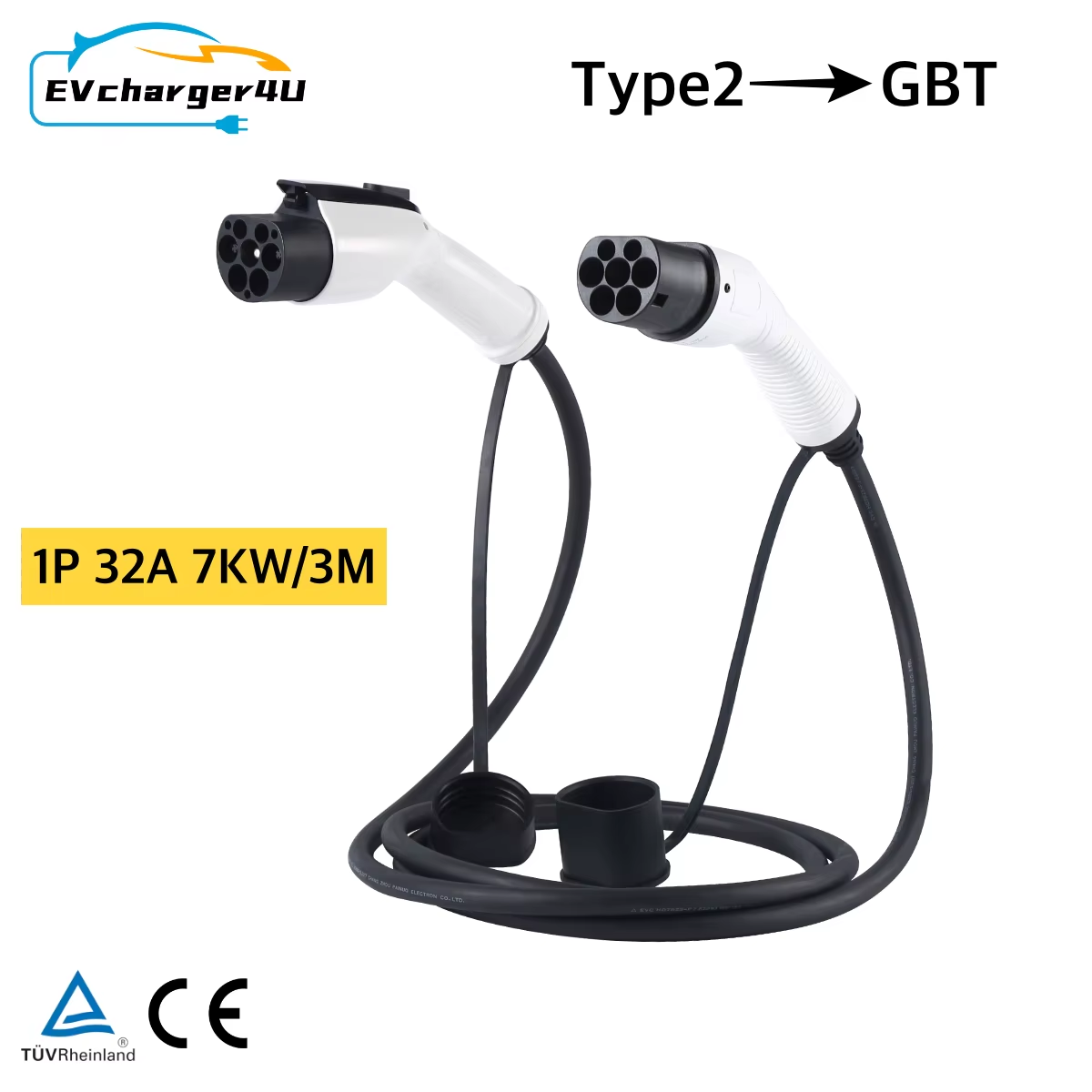

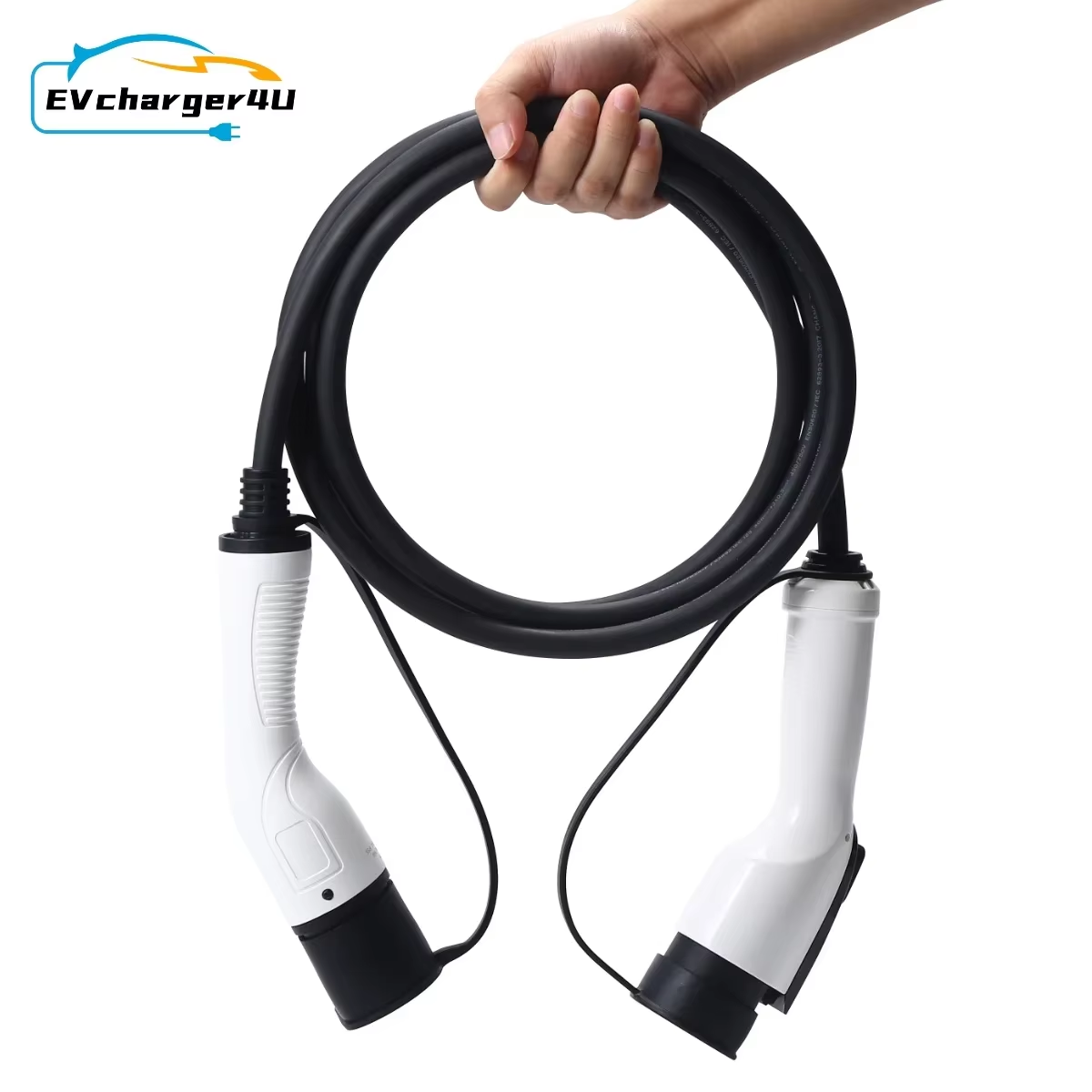

Type2 to GBT EV Charging Cable

Upgrade your electric vehicle charging experience with the Type2 to GBT EV Charging Cable, engineered for exceptional performance, safety, and durability. This premium EV charging cable is designed to seamlessly connect Type2 and GBT charging standards, making it the ideal solution for electric vehicle owners who demand reliability and efficiency.

The Type2 to GBT EV Charging Cable boasts an impressive protection rank of IP55, ensuring resistance to dust and water, making it suitable for both indoor and outdoor use. With a fire retardant level of 94 V-, you can trust in its safety even under challenging conditions. The cable supports a rated current of 16A or 32A and operates at voltages of 250V or 480V, providing flexibility for a wide range of electric vehicles. Its insulation resistance exceeds 100M ohm (DC 500V), and the terminal temperature rise remains below 50K, guaranteeing stable and efficient charging.

Built to last, the Type2 to GBT EV Charging Cable features a mechanical life of over 10,000 plug-in and pull-out cycles without load, and it can withstand the impact of a 1-meter drop or even being run over by a 2-ton vehicle. The connector is crafted from copper alloy with nickel bottom plating and a 3μm silver surface plating, ensuring optimal conductivity and corrosion resistance. The shell is made from fire-retardant thermoplastic PC, available in white or black, with customizable color options. The cable itself is protected by a robust TPU jacket, also customizable in color.

Technical Specifications:

• Protection rank: IP55
• Fire retardant level: 94 V-
• Rated Current: 16A / 32A
• Rated voltage: 250V / 480V
• Insulation resistance: > 1000M ohm (DC 500V)
• Terminal temperature rise: <50K
• Withstand voltage: 2000V
• Contact resistance: .5m ohm Max
• Coupled insertion force: >45N <80N
• Operating temperature: -30°C to 50°C
• Mechanical life: >10,000 cycles (no load)
• Impact resistance: 1m drop or 2-ton vehicle run over
• Connector: Copper alloy with nickel and silver plating

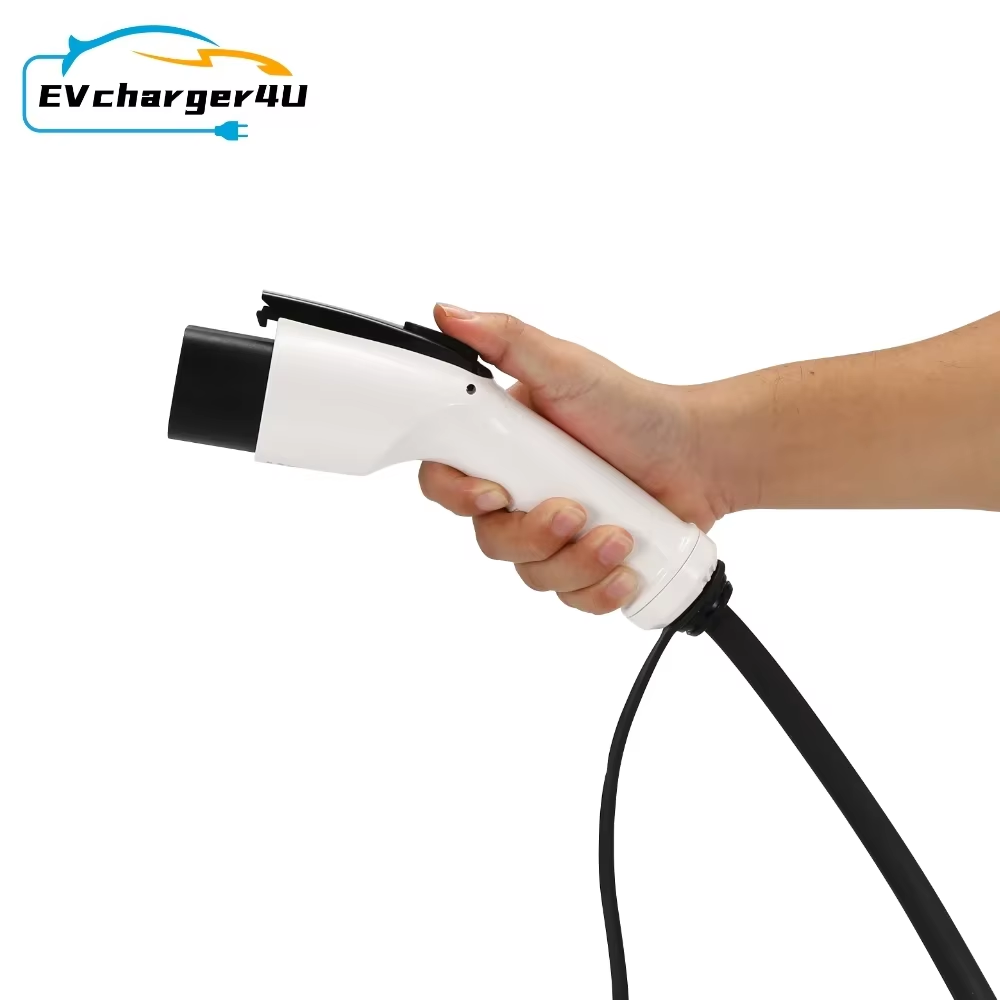

• Shell: Thermoplastic PC, fire retardant, customizable colors

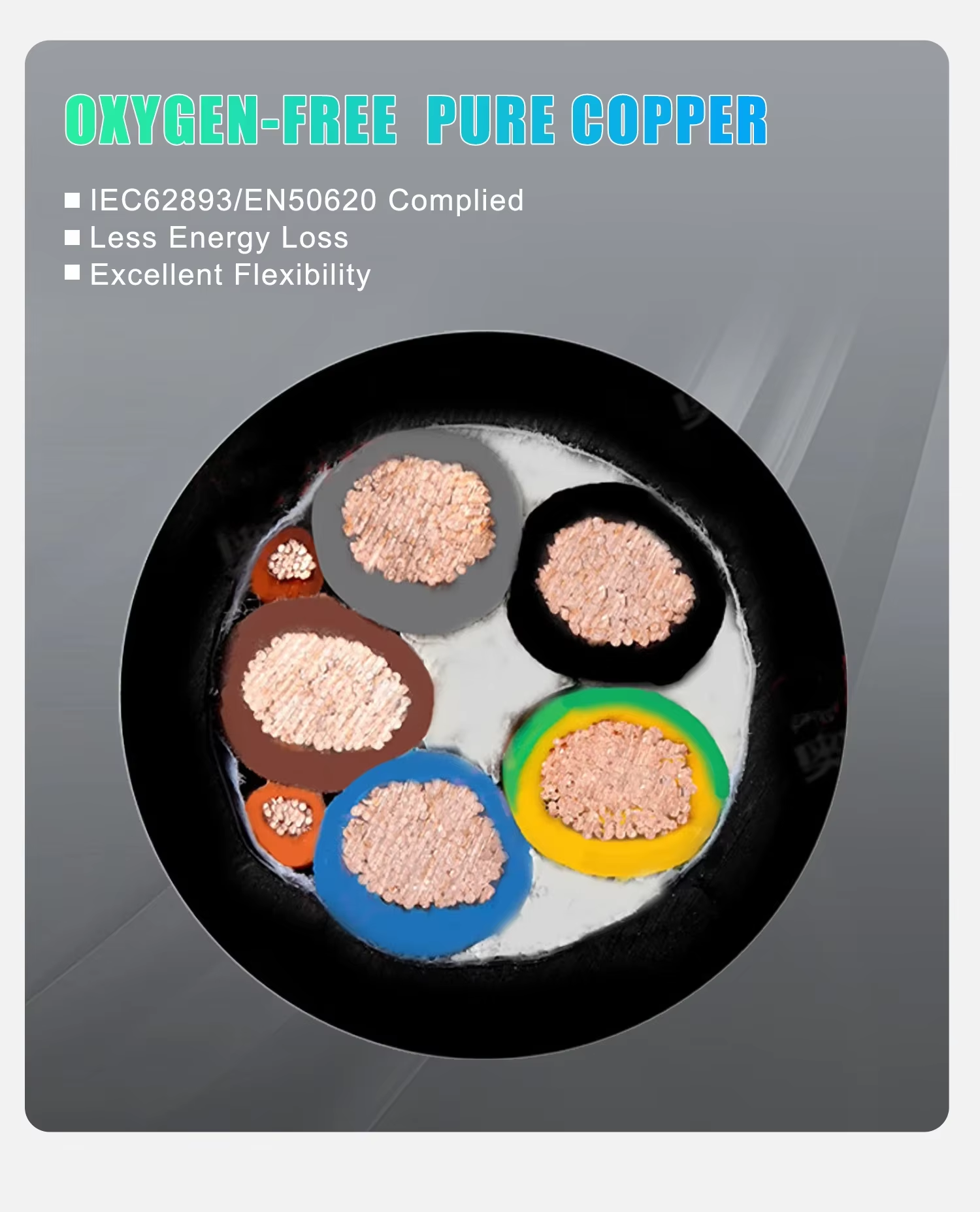

• Cable: TPU jacket, customizable colors
• Compliance: IEC61851-1:201 mode 3 & B2, EN62196-2:2017, EN62196-1:2014

What’s in the Pack:

• 1x Type2 to GBT EV Charging Cable
• User manual

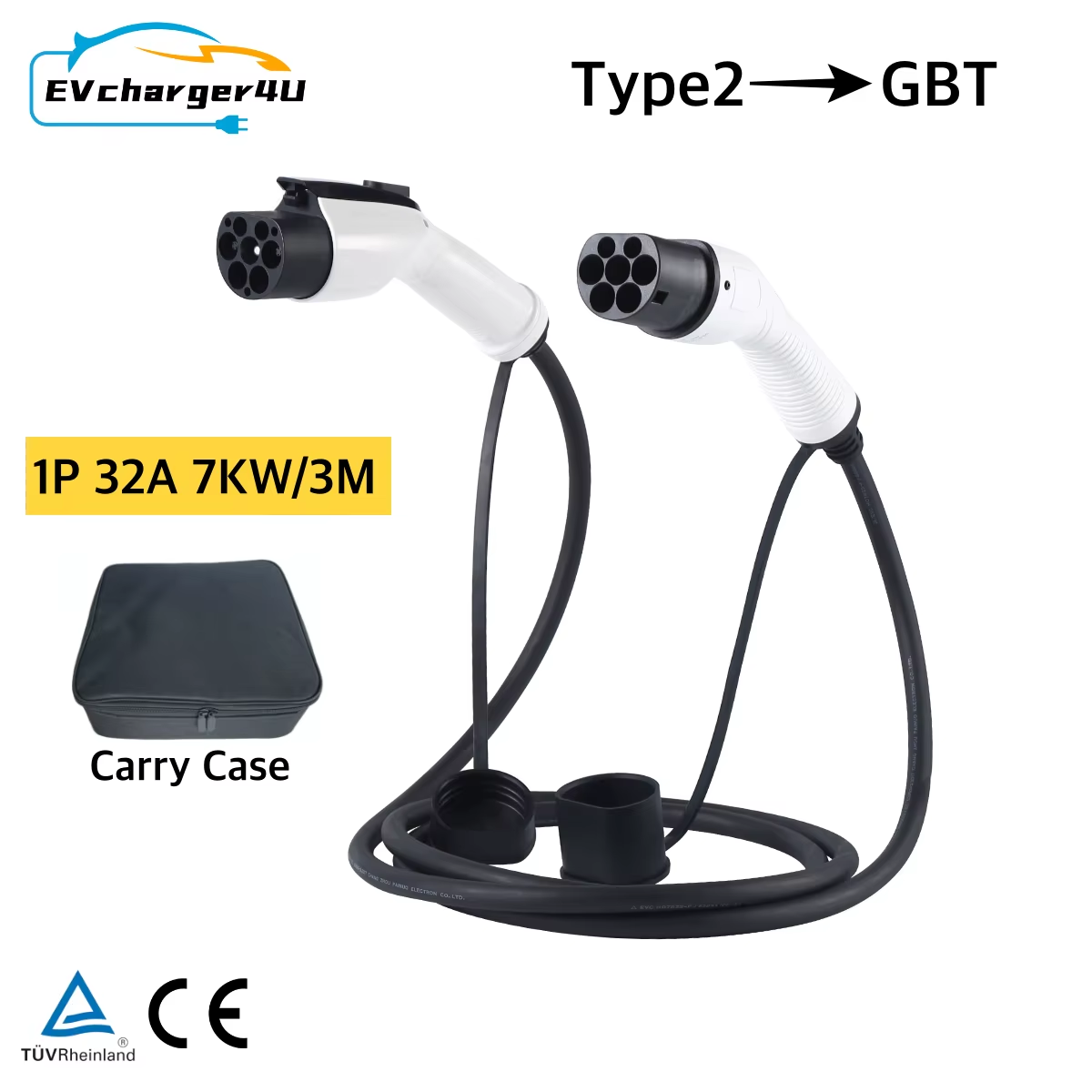

• Protective carrying case
