Unitree B2 – Industrial Quadruped Robotic Dog with Lidar

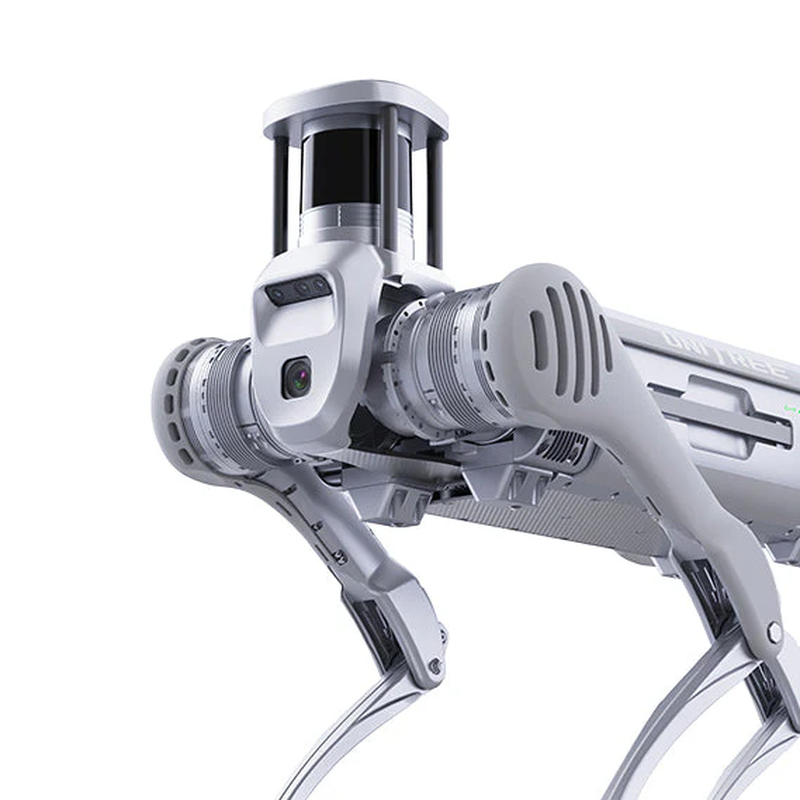

The Unitree B2 is a next-generation industrial quadruped robotic dog engineered for full-scene adaptation and all-around performance in demanding environments. Equipped with advanced Lidar for precise navigation and obstacle detection, the B2 sets new standards in speed, endurance, payload, and agility for industrial robotics.

With a maximum running speed exceeding 5 m/s and a longest jump distance of over 1.6 meters, the Unitree B2 delivers unmatched mobility and dynamic capability. Its ultra load capacity allows for a standing load of up to 120 kg and continuous walking with a load exceeding 40 kg, making it ideal for logistics, inspection, research, and rescue operations. The robot’s robust design enables it to cross obstacles up to 40 cm high and tackle slopes up to 45°, ensuring reliable operation across varied terrains.

The B2’s ultra-long endurance allows for continuous walking without load for over 5 hours, and with a 20 kg load for more than 4 hours, supporting extended missions and fieldwork. Each joint delivers a maximum torque of about 360 N·m, providing the strength and stability needed for industrial applications.

Technical Specifications:

• Max Running Speed: >5 m/s
• Max Jump Distance: >1.6 m
• Max Joint Torque: ~360 N·m
• Standing Load: 120 kg max
• Continuous Walking Load: >40 kg
• Max Walking Capacity: Obstacle crossing up to 40 cm, slope angle up to 45°
• Ultra-Long Endurance: >5 h (no load), >4 h (20 kg load)
• Navigation: Integrated Lidar for mapping and obstacle avoidance
• Application: Industrial logistics, inspection, research, rescue, and more

What’s in the Pack:

• 1x Unitree B2 Industrial Quadruped Robot
• Integrated Lidar sensor
• Battery and charger
• Remote controller
• User manual

For step-by-step setup and integration guidance, visit our Mobile Energy System Guide. To expand your robotics toolkit, explore our Accessories Collection, where you’ll find compatible sensors, batteries, and more. For flexible robotics solutions, check out our Flexible Charging Kits, designed to work seamlessly with the Unitree B2.
