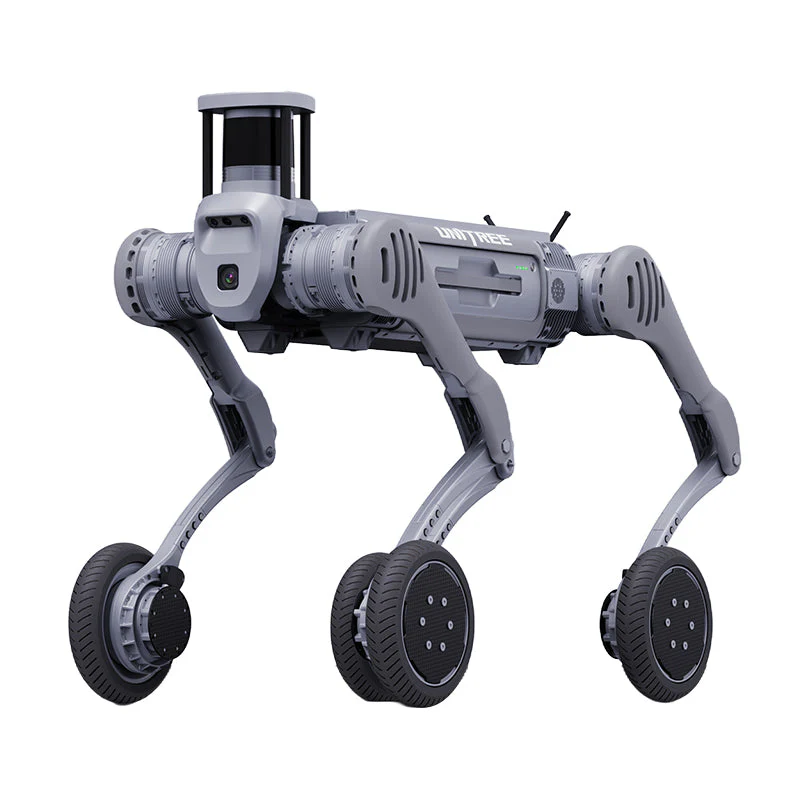

Unitree B2-W Industrial Quadruped Robotic Dog with Lidar and Wheels

The Unitree B2-W Industrial Quadruped Robotic Dog with Lidar and Wheels is a cutting-edge mobile robot engineered for advanced industrial, inspection, and research applications. Combining the agility of a quadruped with the speed and efficiency of integrated wheels, the B2-W delivers exceptional versatility and performance across a wide range of terrains and environments.

Equipped with high-precision Lidar, the B2-W provides real-time 3D mapping, obstacle detection, and autonomous navigation, making it ideal for dynamic and unstructured settings. Its robust design supports a maximum payload of 15kg, and the hybrid wheel-leg system allows for rapid transitions between walking and rolling modes, ensuring both stability and speed.

With a battery capacity of 45Ah, the B2-W offers up to 7 hours of continuous operation and a maximum travel distance of 35km on a single charge. The robot features a durable chassis, advanced sensors, and a modular architecture for easy customization and integration of additional payloads. Whether deployed for automated inspection, logistics, security, or research, the B2-W excels in tasks that require intelligent mobility, advanced perception, and adaptive control.

Technical Specifications

• Size (Standing): 110mm × 450mm × 750mm
• Standing Speed: 6.5km/h (Wheels: 15km/h)
• Weight: 49kg (with battery installed)
• Battery Capacity: 45Ah
• Endurance Ability: 7 hours runtime / 35km travel distance
• Maximum Payload: 15kg
• Obstacle Crossing: 180mm
• Maximum Wheel Speed: 15km/h
• Continuous Slope Climbing: 30°
• Operating Temperature: -20°C to 45°C
• Lidar: Yes (3D mapping and obstacle detection)
• IP Rating: IP67
• Control: Remote, autonomous, programmable
• Applications: Industrial inspection, logistics, research, security, automation

Package Includes

• 1 × Unitree B2-W Industrial Quadruped Robotic Dog
• 1 × Lidar Sensor
• 1 × Battery
• 1 × Power Supply
• 1 × User Manual
• 1 × Accessory Kit
